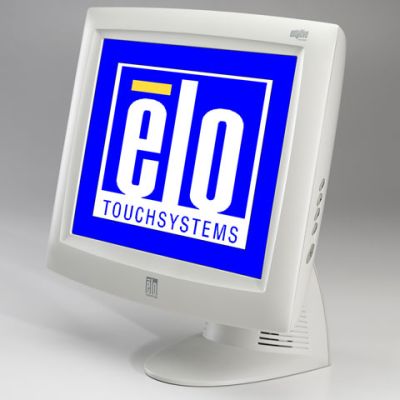

1527L 15" Touchscreen Monitor (Discontinued October 2005)
Overview
The 1527L was designed from a blank sheet of paper to address the key needs of touch applications, resulting in a product that can truly be called "designed for touch." It has a unique combination of flexibility, reliability, performance, ease-of-use and installation, all with a distinctive visual appeal.
Other featuers.
- "Designed for touch" features such as a stable tilt base
- Cables hidden from user's view
- Mounting holes on base bottom for tabletop security
- Base removable or reversible for wall mounting, plus VESA mounting option
- Built-in speakers located in display head
- Available with AccuTouch Five-Wire Resistive Technology or IntelliTouch Surface Wave Technology and serial interface
- Sealed touchscreen
- Controls on the side rather than the front, plus lockout function for public use
- Multilingual on-screen display (OSD) with extras including speaker volume, treble, bass, and balance
- Internal power supply
- Long-lasting product cycle
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
AccuTouch (Worldwide) - C42910-000
AccuTouch (Worldwide) - D62208-000
IntelliTouch (Worldwide) - 991740-000
IntelliTouch (Worldwide) - C57667-000Enclosure Color
Beige
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
11.9" x 8.9" / 304mm x 228mm
Resolution
1024 x 768 at 60, 70 or 75 Hz
Other Supported Resolutions
1024 x 768 at 65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 HzViewing Angle
Horizontal: ±75° or 150° total / Vertical: 75/50° or 125° total
Number of Colors
16.2 million with dithering (6 bit)
Brightness (typical)
LCD panel: 300 nits
AccuTouch: 287 nits
IntelliTouch: 322 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
500:1
Input Video Format
Analog (no proprietary video card needed)
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Power Supply
Internal power supply
Input Voltage
100-240 VAC, 50-60 Hz
Input Frequency
Horizontal: 31.5-60 kHz / Vertical: 56-75 Hz
Power Consumption (Typical)
20 W max.
Speakers
Two built-in, rear-facing 1W speakers in display head
On Screen Display
Digital OSD
User Controls
Side: auto, enter, ±, menu, power
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time
Languages: English, German, Spanish, Japanese, French
OSD disable/enable: power, volume, and/or OSD menuMonitor Dimensions (with Stand)
15.37" x 15.40" x 8.2" / 390mm x 391mm x 208mm
Weight (Unpackaged)
14.7 lbs / 6.67 kg
Weight (Packaged)
20.45 lbs / 9.28 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-30°C to 60°C
Humidity
Operating: 20%-80%; Storage: 5%-95%; noncondensing
Mounting Options
75mm VESA mount
Removable base
Wall-mountable when installed by qualified personnelOther Features
Sealing
Backlight lamp life
Min 40,000 hours to half brightness
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, TÜV-GS, CE, FCC, IC, VCCI, C-Tick Class B
Power Cables
A North American power cable and a European power cable are included. For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000.
Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Stability Plate
Mounts to the pedestal of the monitor to increase stability. Part number C41696-000. Available at additional cost.
