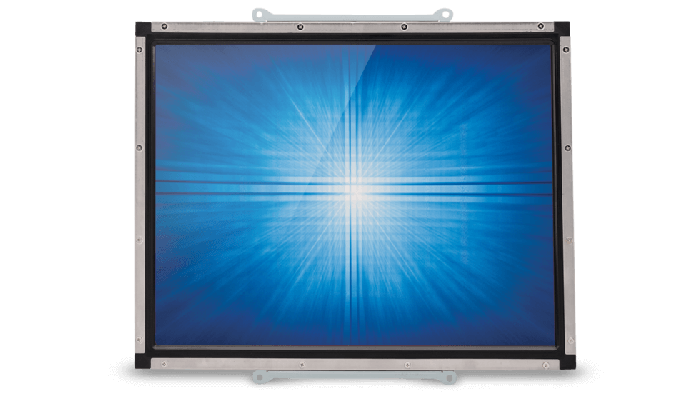

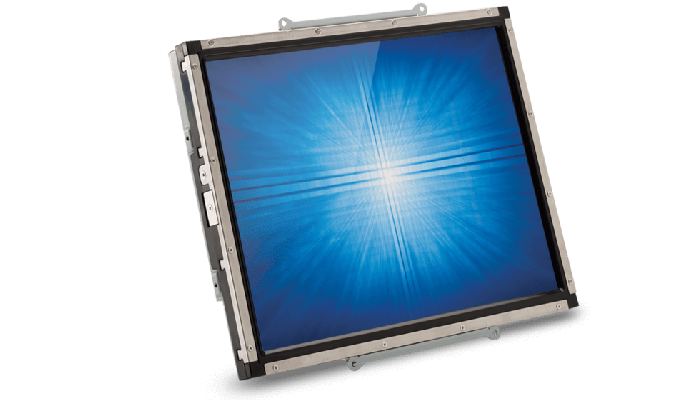

1537L Open Frame Touchscreen (Discontinued)
How to Buy

Overview

The Elo 1537L 15-inch open frame touchscreen is designed for touch with proven Elo expertise and reliability built in. The compact form factor with thin borders complements the large family of Elo solutions for applications in the retail self-service and gaming/ amusement markets. The 1537L features a high quality panel along with a unique, injection-molded mini-bezel with virtually invisible water-resistant seal. The open frames are available with your choice of touch technologies and multiple mounting options for easy integration.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.

The 1537L is available with a choice of industry-leading touch technologies, in both single touch or multi touch versions. The seamless zero-bezel 15-inch display is available with multi-touch (4-touch) projected capacitive (PCAP) technology offering an edge-to-edge glass design with fast and extremely sensitive responses right out of the box. Standard bezel, single-touch options include AccuTouch® five-wire resistive and IntelliTouch® SAW for the ultimate in optical quality or SecureTouch® anti-vandal SAW with a chemically strengthened glass touch sensor.


Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.


Other features.
  • Integrated precision mini-bezel with water-resistant 0.5 mm seal on bezel versions
  • Mounting options including rear-mount (from top/bottom or sides) and VESA mount
  • Multilingual on-screen display (OSD)
  • Available in both bezel and zero bezel versions
  • Three-year warranty on the entire unit including the panel

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Worldwide) - E512043
    AccuTouch (Worldwide) - E701210
    SecureTouch (Worldwide) - E731919
    PCAP (Worldwide) - E001122

    Enclosure Color

    Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    PCAP (TouchPro® Projected Capacitive) - 10 Touch
    SAW (SecureTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the unit’s tethered OSD Control box.

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

    Lockouts: OSD, Power

    Aspect Ratio

    4:3

    Active Area

    11.97" x 8.98"/ 304.1mm x 228.1mm

    Resolution

    1024 x 768 at 60 Hz

    Other Supported Resolutions

    1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66 (Mac), 72 or 75 Hz
    512 x 256 at 60 Hz
    512 x 247 at 60 Hz

    Viewing Angle

    Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch: 225 nits
    AccuTouch: 200 nits
    SecureTouch: 225 nits
    PCAP: 225 nits

    Response Time-total (typical)

    16 msec

    Contrast Ratio

    700:1

    Input Video Format

    Analog VGA and digital DVI

    Input Video Signal Connector

    Analog VGA on Female DB-15 connector
    Female DVI-D, Dual-Link connector

    Input Video Frequency

    Horizontal: 31.5 - 60.2 KHz Vertical: 56.3 - 75 Hz

    Power Supply

    External DC - power brick (sold separately)

    Input power connector (Monitor)

    Coaxial power jack (2.0mm (+0.0 -0.1mm) 2.1mm pin outer diameter, 6.4mm (+/- 0.3mm) 5.5mm barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

    Power connector (Power brick)

    Type: DC Barrel Plug
    Barrel outer diameter: 5.5mm (+/- 0.1mm)
    Pin inner diameter: 2.1mm (+/-0.1mm)
    Barrel length: 9.5mm (+/- 0.5mm)

    Input Voltage

    +12VDC +/- 5%

    Power Consumption (Typical)

    Monitor + Adapter at 230V/50Hz:
    ON: 12 W
    SLEEP: 2 W
    OFF: 1 W

    Dimensions

    See below

    Monitor Dimensions

    Bezel: 13.24" x 10.41" x 1.66" / 336.4mm x 264.4mm x 42.1mm
    PCAP: 14.24" x 11.36" x 1.54" / 361.7mm x 288.6mm x 39mm

    Shipping Box Dimensions

    Bezel versions: 16.14" x 6.50" x 14.17" / 410mm x 165mm x 360mm
    PCAP: 14.29" x 12.42" x 11.42" / 363mm x 290 mm x 290mm

    Weight (Unpackaged)

    5.7 lbs / 2.6 kg

    Weight (Packaged)

    8.8 lbs / 4 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM
    Canada cUL, IC
    China CCC
    Europe Semko
    Japan VCCI
    Korea KCC
    Taiwan BSMI
    United States UL, FCC
    China RoHS

    Mounting Options

    100 mm or 75 mm VESA mount
    Rear mount or with included standard mounting brackets
    Front mount with optional bezel (see Accessories tab for details)
    Rack mount with optional bracket (see Accessories tab for details)
    Flush mount with optional bezel kit (see Accessories tab for details)

    What's in the Box

    VGA cable
    Serial cable
    USB cable
    OSD Remote
    CD and Quick Install Guide
    PCAP/IT ZB Models - Flush Mount Brackets w/Screws
    IT/ST/AT Models - “L” (Side Mount) Brackets w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 15-inch- Flush-mount Bracket - Elo P/N: E139556
    Elo 15-inch - L-Bracket - Elo P/N: E203787
    Elo 15-inch - Front-mount Bezel - Elo P/N: E323425 (See Mounting Options Spec for Compatibility)
    Elo 15-inch - Rack-mount Bracket - Elo P/N: E295006 (See Mounting Options Spec for Compatibility)
    Elo Remote OSD (With 1.8 m cable) - Elo P/N: E622897

    VESA Adapter Plate

    Elo P/N: E155809 - adapter plate kit available to alter the VESA mounting options on the 1537L family

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included

    Optional PCAP Stylus Pen

    E066148

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch or IntelliTouch ZB surface wave touch technology. Part number D82064-000, available at additional cost.

Configurations

(4)

Refine your search:
Compare Compare
Image of item
E701210
  • AccuTouch® - 5-Wire Resistive
  • 1
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Compare Compare
Image of item
E512043
  • IntelliTouch® - SAW
  • 1
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Compare Compare
Image of item
E731919
  • SecureTouch® SAW
  • 1
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
Compare Compare
Image of item
E001122
  • Projected Capacitive
  • 4
  • 4:3
  • Horizontal: ±80° or 160° total / Vertical: ±70° or 140° total
No Configurations found.

Resources

(16)

  • Drawings and Certificates

    Dimensional Drawing

    Go

    CAD Drawings

    Go

    Agency Approval Certificates

    Go
  • User Guides

    English

    Go

    French

    Go

    Italian

    Go

    German

    Go

    Spanish

    Go

    Simplified Chinese

    Go

    Traditional Chinese

    Go

    Japanese

    Go

    Korean

    Go

    Russian

    Go
  • Additional Support Resources

    Extended Warranty Information

    Go

    Download Drivers

    Go
  • Literature

    Spec Sheet

    Go
