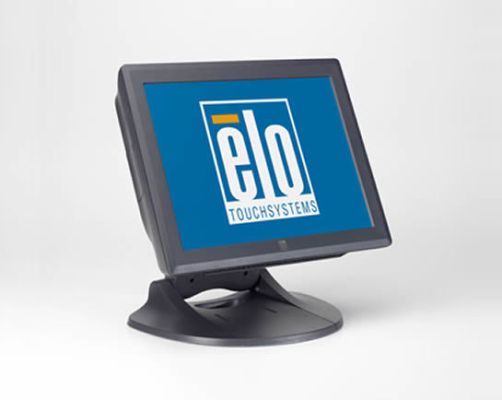

15A2 15" Touchcomputer (Discontinued June 2011)
How to Buy

Overview

The 15A2 touchcomputer with dual video-display capability includes the choice of the industry-leading Elo touch technologies: AccuTouch® five-wire resistive, IntelliTouch® surface acoustic wave, CarrollTouch infrared and the company's innovative Acoustic Pulse Recognition (APR) that blends the benefits of all three. The space-saving, compact design of the 15A2 touchcomputer offers increased flexibility for simplified integration of a variety of optional field-replaceable peripherals that it shares with the 17A2 touchcomputer and 1729L touchmonitor: three-track magnetic stripe reader (MSR); customer-facing display; biometric fingerprint reader; and 3-watt speaker bar with or without optional single line or omni-directional barcode scanner. A unique cable management design conceals cables from view, providing additional security from tampering and robust tie-downs for strain relief. The multi-adjustable stand offers flexibility to accommodate a variety of installation configurations and the stand is easily removed for secure mounting to countertops and walls. Serviceability is enhanced with easy access to the hard drive and compact flash through a slide-out drawer.

Features
  • Small integrated, all-in-one touchcomputer - Saves space, with the same footprint as a standard 15" LCD display, Combines processing capability with touchscreen to fit virtually anywhere
  • Silent, fanless Intel® Celeron® M design - Can be installed and functional in any point-of-service environment, Reliable operation in demanding environments, 2X performance improvement over 1529 based on Passmark Benchmark
  • "Designed for touch" with a stable, wall/arm VESA mount, and mounting holes on stand bottom for table-top installations or wall mounting - Flexible VESA mounting options–configurable as a desktop or wall-mount, Mounting options complement store layout and customer traffic
  • Variety of optional field installable and replaceable point-of-service peripherals - Variety of optional field installable and replaceable point-of-service peripherals
  • USB 2.0, serial and cash drawer connectivity - Flexibility to support both legacy and future POS peripherals
  • Dual video display capability - Allows attachment of a second touch screen display for digital signage
  • Microsoft Windows XP Professional, WEPOS - Increases software and peripheral choices offering versatility and compatibility
  • On-screen display controls located on the side rather than the front, plus lockout function - Minimizes accidental or intentional changes to the display's controls in a public access environment
  • Securable cable cover - Cable management system conceals cables from view providing additional security from tampering and cable strain relief
  • Security lock receptacle - Provides fast, effective, and convenient security in any public and/or point-of-service installation
  • User accessible hard drive mounted on slide-out drawer - Easy access and quick upgrades or repairs, lockable with one screw
  • Touchscreen sealed from the factory - Resists dirt, dust and liquid intrusion

Specifications

  • Technical

    Part Number(s)

    AccuTouch (Antiglare) - E303492
    AccuTouch (Antiglare) - E235543
    AccuTouch (Antiglare) - E260931
    Acoustic Pulse Recognition (Antiglare) - E403628
    Acoustic Pulse Recognition (Antiglare) - E967719
    CarrollTouch (Antiglare) - E565315
    IntelliTouch (Antiglare) - E099344
    IntelliTouch (Antiglare) - E868236
    IntelliTouch (Antiglare) - E210444

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    Acoustic Pulse Recognition - Single Touch
    CarrollTouch Infrared Technology

    Processor

    Intel Celeron M 1GHz CPU

    BIOS

    ACPI 2.0, APM 1.2, SMBIOS 2.4, PXE, WOL, WFM 2.0

    Memory (RAM)

    1 GB DDR2 standard on 1 of 2 slots
    Expandable to 2 GB max

    Hard Disk Drive

    1 x 80 GB 2.5" SATA hard drive

    Storage

    80 GB

    Chipset

    Intel 915GME/ICH6

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    On-Screen Display (OSD)

    Controls (side): menu, up, down, select, power
    Settings: volume, brightness, sharpness, contrast, color temperature, OSD position and orientation, factory reset
    Languages: English, French, Italian, German, Spanish
    Lockouts: all controls

    Aspect Ratio

    4:3

    Active Area

    12.0" x 9.0" / 304 mm x 228 mm

    Resolution

    1024 x 768

    Other Supported Resolutions

    800 x 600

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    Acoustic Pulse Recognition: 230 nits
    CarrollTouch: 230 nits
    IntelliTouch: 230 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    500:1

    Viewing Angle

    Horizontal: ±75° or 150° total/ Vertical: ±70° or 140° total

    USB Ports

    4 x USB self powered 2.0
    1 port is 12V powered USB (1.5 A) for POS peripherals

    Serial Ports

    2 x RS-232 serial (RJ45, 8 position)
    COM2 is RS-232, RS-422 and RS-485 selectable

    Ethernet Port

    1 x LAN RJ45

    Cash Drawer Port

    BIOS selectable
    1 x cash drawer (RJ11, 6 position) or 1 x RJ11 port for optional internal modem

    Audio Ports

    1 x 3.5 mm audio-out
    1 x 3.5 mm mic-in

    Speakers

    Two-watt/channel speakers in display head

    OS

    Windows XP Professional Service Pack 2
    Windows Embedded for Point of Service (WEPOS)

    Languages

    Windows XP – 24 Language groups; WEPOS - 5 language groups

    Power Supply

    External DC (power brick)

    Input Voltage

    DC: 12V 120 W min.

    Power Consumption (Typical)

    Touchcomputer: 85 W max.
    Serial VFD customer display: 5 W max.
    USB fingerprint reader: 3 W max.
    USB magnetic stripe reader: 1 W max.
    USB scanner: 3 W max.
    Speaker bar: 7 W max.
    Modem daughter card: 1 W max.
    Wireless card/TV tuner: 5 W max.
    Total power drawn with all possible peripherals: 101 W max.

    Max Touchcomputer Dimensions With Stand

    14.1" x 13.4" x 9.4" / 358 mm x 339 mm x 238 mm

    Shipping Box Dimensions

    20.87" x 9.84" x 14.96" / 530 mm x 250 mm x 380 mm

    Weight (Unpackaged)

    19.4 lbs / 8.8 kg

    Weight (Packaged)

    25.5 lbs / 11.6 kg

    Operating Temperature

    0°C to 35°C (32°F to 95°F)

    Storage Temperature

    -20°C to 60°C (-4°F to 140°F)

    Humidity

    Operating: 20%-80%
    Storage: 5%-95%

    Regulatory approvals and declarations

    UL/cUL (recognized component), FCC, CE, VCCI, C-Tick, EN60950

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75 mm VESA mount
    Threaded holes on bottom of stand for secure mounting

    Warranty

    3-year

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    Power Cables

    A North American power cable and a European power cable are included. For touchcomputers being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number E235317.

    Other Features

    Accessible hard disk drive, compact flash, miniPCI card
    Kensington security lock

    Expansion Options

    Wireless card
    Modem daughter card

    Replacement DC Power Supply

    12V DC power brick, part number E114692, is available at additional cost

    Optional IntelliTouch Stylus Pen

    D82064-000, available at additional cost.

    Optional Acoustic Pulse Recognition (APR) Stylus Pen

    E963860, available at additional cost.
