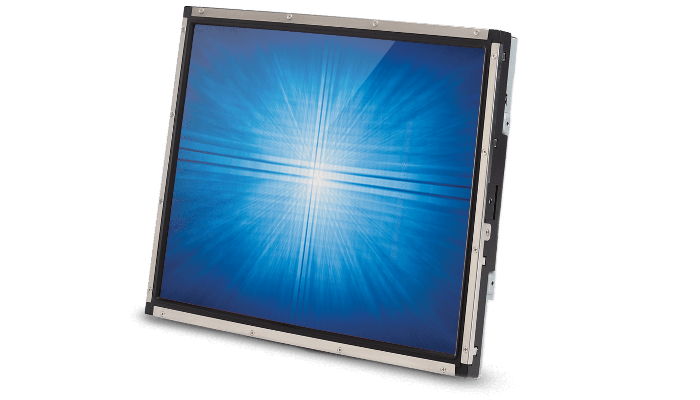

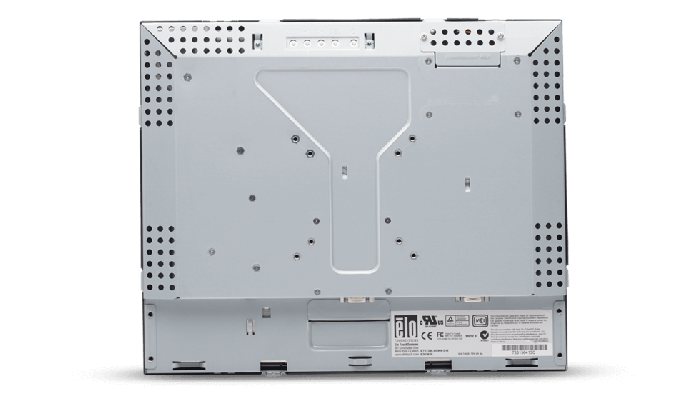

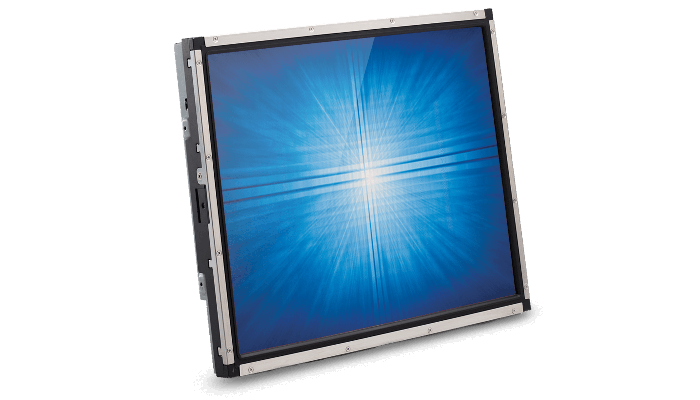

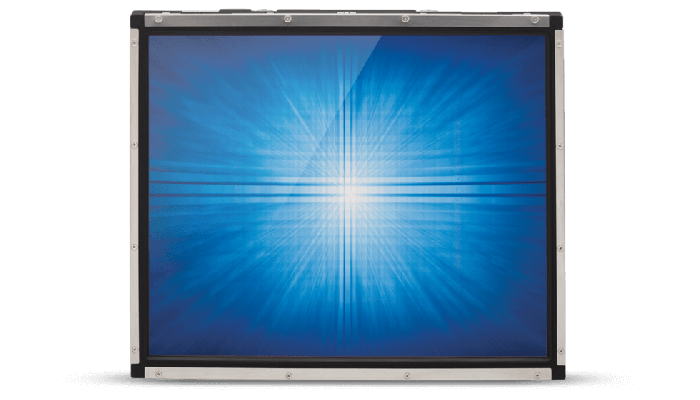

1739L Open Frame Touchscreen (Discontinued)
Overview
The Elo 1739L 17-inch open frame touchscreen is designed for touch with proven Elo expertise and reliability built in. The compact form factor with thin borders features a high quality panel along with a unique, injection-molded mini-bezel with virtually invisible water-resistant seal. The 1739L is available with your choice of touch technology and multiple mounting options for easy integration.
Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. |
 |
 |
Touch ready.The 1739L is available with a choice of Elo’s industry-leading touch technologies, in single-, dual- or multi-touch versions. The seamless zero-bezel 17-inch display is available with multi-touch (4-touch) projected capacitive (PCAP) technology offering an edge-to-edge glass design with fast and extremely sensitive responses right out of the box. Standard bezel, single-touch display options include AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) for the ultimate in optical quality or SecureTouch® anti-vandal SAW with a 3mm chemically strengthened glass touch sensor. Dual-touch is also available with IntelliTouch SAW technology, delivering the same optical quality customers count on.
|
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
|
 |
Other features.
- High quality energy-saving LED panel
- Integrated precision mini-bezel with water-resistant 0.5 mm seal on bezel versions
- Mounting options include rear-mount and VESA mount; optional front and rack mount
- Three-year warranty on the entire unit including the panel
Specifications
-
Technical
Part Number(s)
IntelliTouch (Worldwide) - E012584
IntelliTouch Dual Touch (Worldwide) - E575274
SecureTouch (Worldwide) - E734455
PCAP (Worldwide) - E001126Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
PCAP (TouchPro® Projected Capacitive) - 10 Touch
SAW (SecureTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
17'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsAspect Ratio
4:3
Active Area
13.3" x 10.6"/ 337.92mm x 270.34mm
Resolution
1280 x 1024
Other Supported Resolutions
1280 x 1024 60, 70, 75 Hz
1280 x 960 60 Hz
1152 x 864 75 Hz
1024 x 768 60, 70, 75 Hz
1024 x 768 65 Hz (Sun)
832 x 624 75 Hz (Mac)
800 x 600 56, 60, 72, 75 Hz
720 x 400 70 Hz
720 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz (Mac)Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
IntelliTouch: 225 nits
IntelliTouch DT: 225 nits
SecureTouch: 220 nits
PCAP: 225 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Input Video Format
Analog VGA and digital DVI
Input Video Signal Connector
Female DE-15 connector
Female DVI-D, Dual-Link connectorInput Video Frequency
Horizontal: 31.5 - 80 KHz
Vertical: 56.3 - 75 HzPower Supply
External DC - power brick (sold separately)
Input Voltage
12VDC +/- 5%
Input Connector
Type: DC barrel jack
Barrel inner diameter: 6.4 +/- 0.3mm
Pin outer diameter: 2.0 +0.0 -0.1mm
Barrel depth: 8.8 +/- 0.3mmPower Consumption (Typical)
Monitor - ON: 20 W (typical) / 36 W (max)
Monitor + Power Brick: 22 W (typical) / 40 W (max)Dimensions
Bezel Models: 14.50" x 12.0" x 1.87" / 368mm x 306mm x 49mm
ZB Models: 15.6" x 12.93" x 1.8" / 397mm x 332mm x 46.4mmShipping Box Dimensions
Bezel Models: 18.11" x 16.10" x 6.89" / 460mm x 410mm x 175mm
ZB Models: 18.1” x 15.7” x 6.1” / 460mm x 400mm x 155mmWeight (Unpackaged)
8.8 lbs / 4.0 kg
Weight (Packaged)
11.5 lbs / 5.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, FCC, CE, VCCI, IC, CCC, BSMI Mark, KCC, China RoHS, RCM (Class B), TÜV T-Mark, Argentina S-Mark
Mounting Options
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting brackets
Front mount with optional bezel (see Accessories tab for details)
Rack mount with optional bracket (see Accessories tab for details)
Flush mount with optional bezel kit (see Accessories tab for details)What's in the Box
VGA Cable
Touch USB Cable
User Manual CD
Quick Install Guide
ZB Models: Flush Mount Brackets w/Screws
Bezeled Models: “L” (Side Mount) Brackets and w/ScrewsOptions / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Replacement Cable Kit - Elo P/N: E378229
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
IntelliTouch Stylus Pen - Elo P/N: D82064-000
Elo 17-inch - Flush-mount Bracket - Elo P/N: E129564
Elo 17-inch & 19-inch L-Bracket- Elo P/N: E147211
Elo 17-inch - Front-mount Bezel - Elo P/N: E860319 (See Mounting Options Spec for Compatibility)
Elo 17-inch - Rack-mount Bracket - Elo P/N: E939253 (See Mounting Options Spec for Compatibility)Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional PCAP Stylus Pen
E066148
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.
