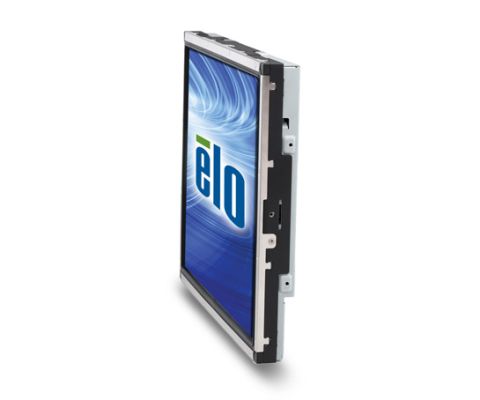

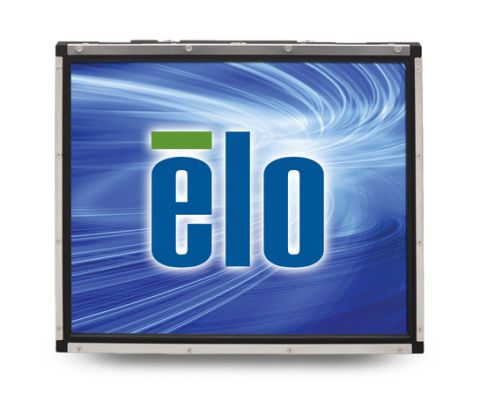

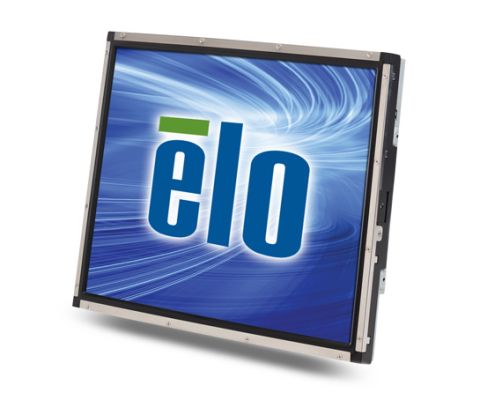

1739L 17" Open Frame Touchscreen (Discontinued September 2015)
Overview
Elo Open Frames Touchscreens have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1739L features a wide viewing angle panel along with a unique, injection-molded mini-bezel and virtually invisible water-resistant seal.

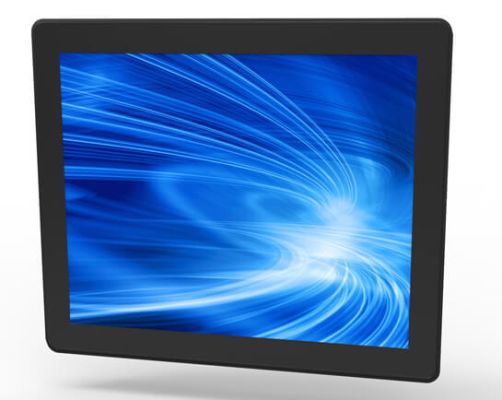

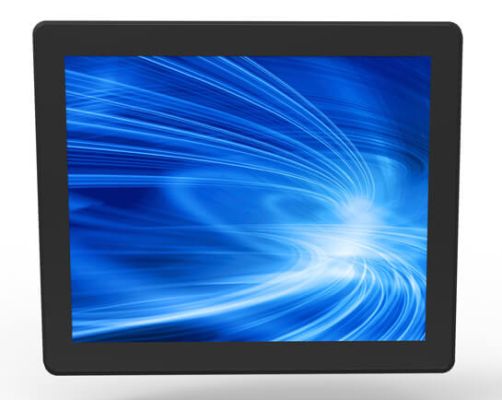

The 1739L is available with a choice of touch technology, with single touch and multi touch options and in standard bezel and seamless, zero-bezel touchscreen design.
Other Features
- High quality energy-saving LED panel
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision mini-bezel with water-resistant 0.5 mm seal

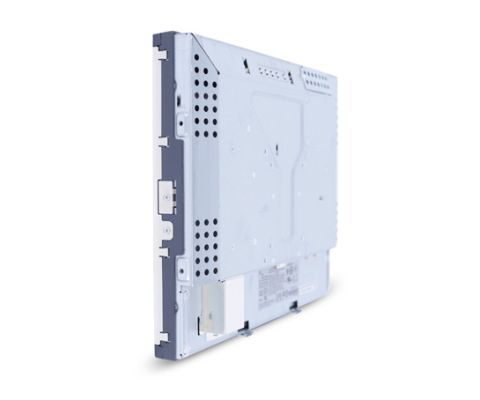

- Mounting options including rear-mount (two standard rear-mount brackets included) and VESA mount; optional front mount (see Accessories tab for details) and rack mount (see Accessories tab for details)
- Multilingual on-screen display (OSD)
- Worldwide agency approvals
- 3-D electronic design files available
Specifications
-
Technical
Part Number(s)
CarrollTouch (Antiglare, Worldwide) - E964551
Enclosure Color
Black
Touch Technology & Capacity
CarrollTouch Infrared Technology
Touch Interface
Dual serial/USB
Diagonal Size
17'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, German, Spanish, Japanese, French
Lockouts: power, user controlsAspect Ratio
5:4
Active Area
13.3" x 10.6" / 338 mm x 270 mm
Resolution
1280 x 1024
Other Supported Resolutions
1280 x 1024 at 60, 70 or 75 Hz
1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70 or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72 or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
CarrollTouch: 225 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Input Video Format
Analog VGA and digital DVI
Input Video Signal Connector
Female DE-15 connector, Female DVI-D, Dual-Link connector
Power Supply
External DC - Optional power brick (sold separately)
Input power connector (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)Power connector (Power brick)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Input Voltage
DC: +12VDC ±5%
Input Frequency
Horizontal: 31.5-80.0 kHz
Vertical: 56.3-75 HzPower Consumption (Typical)
Monitor only: 20 W
Monitor and power brick: 22 WDimensions
Bezel: 14.5" x 12.0" x 1.9" / 368 mm x 306 mm x 49 mm
Zero-bezel: 15.6" x 13" x 1.8" / 397mm x 332mm x 46.4mmShipping Box Dimensions
Bezel: 18.11" x 16.10" x 6.89" / 460 mm x 410 mm x 175 mm
Zero-bezel: 18.1” x 15.7” x 6.1” / 460 mm x 400 mm x 155 mmWeight (Unpackaged)
8.8 lbs / 4.0 kg
Weight (Packaged)
11.5 lbs / 5.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20%-80%
Storage: 10%-90%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
North America/Worldwide: UL/cUL (Recognized), TÜV T-Mark, Argentina S-Mark, MPR II, CE, FCC, VCCI, IC, C-Tick (Class B), BSMI Mark, MIC, CCC, China RoHS
Mounting Options
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting brackets
Front mount with optional bezel (see Accessories tab for details)
Rack mount with optional bracket (see Accessories tab for details)Options / Peripherals / Upgrades
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
IntelliTouch Stylus Pen - Elo P/N: D82064-000
Elo 17-inch & 19-inch L-Bracket- Elo P/N: E147211
Elo 17-inch - Front-mount Bezel - Elo P/N: E860319 (See Mounting Options Spec for Compatibility)
Elo 17-inch - Rack-mount Bracket - Elo P/N: E939253 (See Mounting Options Spec for Compatibility)
Elo Remote OSD (With 1.8 m cable) - Elo P/N: E622897Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included
Optional IntelliTouch Stylus Pen
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
