1930L Open Frame Touchscreen (Discontinued)
Overview

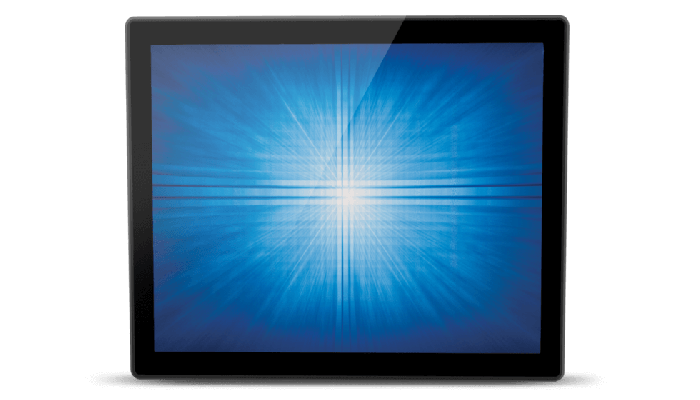

Elo’s 1930L 19-inch open frame touchscreen is designed for touch with proven Elo expertise and reliability built in. The compact form factor and thin borders complements the large family of Elo solutions for applications in the retail self-service and gaming/ amusement markets. Available standard with a high quality energy-saving LED panel and clear glass optical clarity and your choice of mounting options for easy integration.
Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs. |
 |
 |

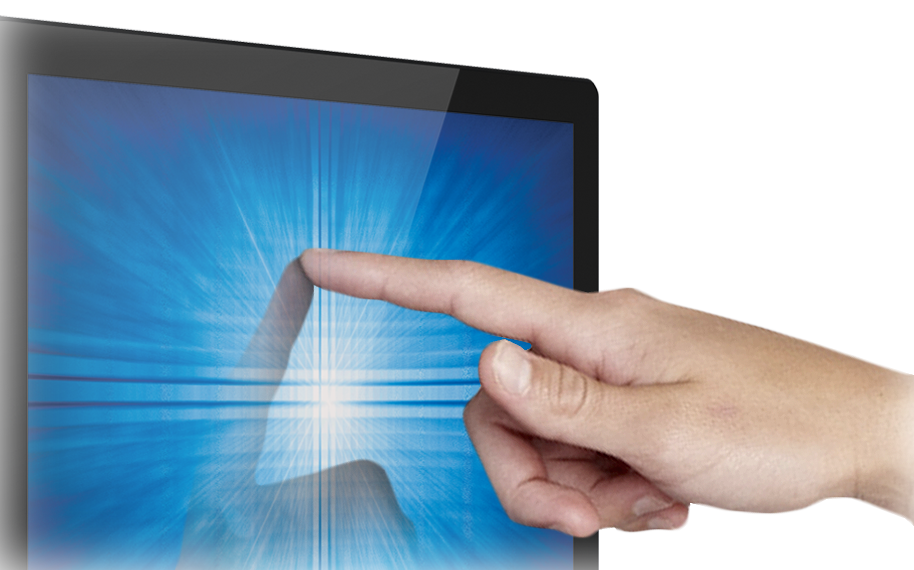

Touch ready.Elo’s touchscreens are built for touch with the technology built in, not added on later. The 1930L offers a zero-bezel glass-to-edge design with projected capacitive (PCAP) multi-touch (4-touch) technology.
|

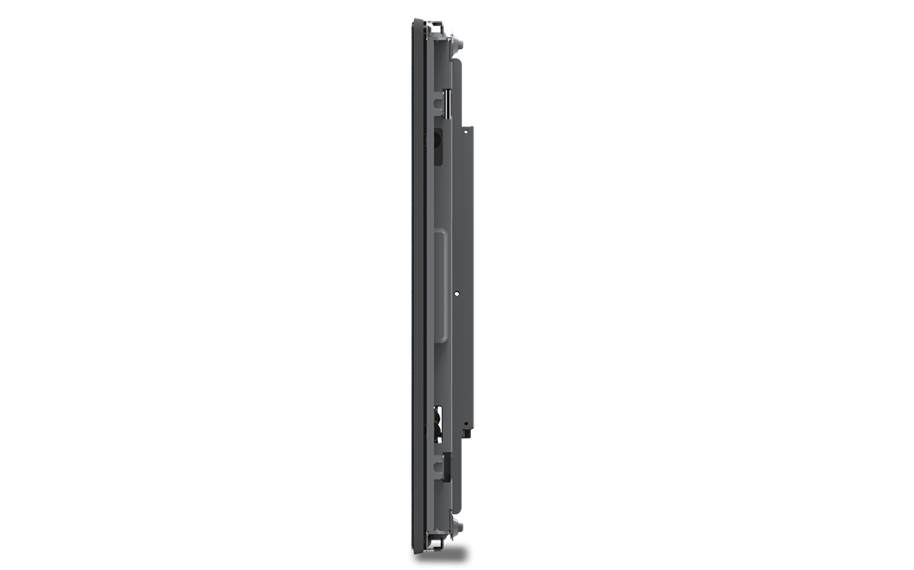

Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
|
 |
Other features.
- Flush mount mounting for PCAP open frame
- Three-year warranty on the entire unit including the panel
Specifications
-
Technical
Part Number(s)
PCAP (Worldwide) - E000859
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Touch Interface
USB
Diagonal Size
19'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
Lockouts: OSD, PowerAspect Ratio
5:4
Active Area
14.8" x 11.85" / 376.32mm x 301.06mm
Resolution
1280 x 1024
Other Supported Resolutions
512 x 247 @ 60 Hz
512 x 248 @ 60 Hz
640 x 350 @ 70 Hz
640 x 480 @ 60, 61, 66, 72, 75 Hz
720 x 400 @ 70Hz
800 x 600 @ 56, 60, 72, 75Hz
832 x 624 @ 75Hz
1024 x 768 @ 60, 65, 70, 75 Hz
1152 x 864 @ 75 Hz
1280 x 960 @ 60
1280 x 1024 60, 75HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
PCAP: 225 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Input Video Format
Analog VGA on Female DB-15 connector / Digital DVI on Female DVI-D, Dual-Link connector
Input Video Frequency
Horizontal: 31.5 - 82 KHz
Vertical: 56 - 75HzPower Supply
External DC - power brick (sold separately)
Input Voltage
+12VDC +/- 5%
Input Connector
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Power Consumption (Typical)
Monitor + Adapter
ON: 19 W
SLEEP: 2 W
OFF: 1WDimensions
16.54" x 13.71" x 1.65" / 420.2mm x 348.2mm x 42mm
Shipping Box Dimensions
19.69" x 17.72" x 6.10" / 500mm x 450mm x 155mm
Weight (Unpackaged)
8.86 lbs / 4.02 kg
Weight (Packaged)
13.91 lbs / 6.31 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
Australia RCM; Canada CUL, IC; China CCC; Europe CE; Japan VCCI; Korea KCC, e-Standby; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE
Mounting Options

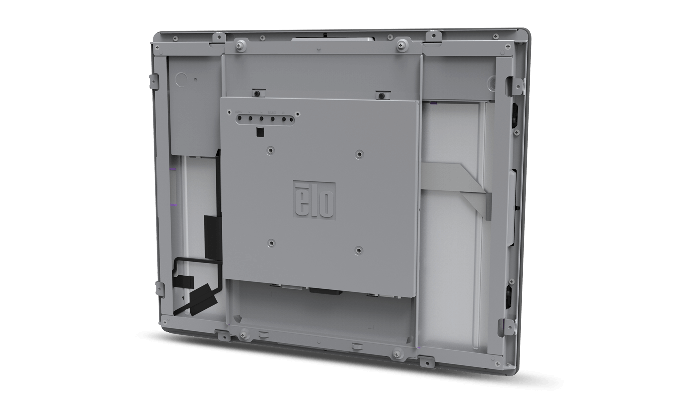

100 mm x 100 mm VESA 4-hole mounting interface on rear of unit. Flush mounting brackets included with unit.
What's in the Box
VGA Cable
Touch USB Cable
User Manual CD
Quick Install Guide
ZB Models: Flush Mount Brackets w/Screws
Bezeled Models: “L” (Side Mount) Brackets and w/ScrewsOptions / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Replacement Cable Kit - Elo P/N: E378229
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
Elo 19-inch- Flush-mount Bracket - Elo P/N: E001178Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included.
Optional PCAP Stylus Pen
E066148
