1940L Open Frame Touchscreen (Discontinued)
How to Buy

Overview

Elo’s 1940L 19-inch wide-aspect open frame touchscreen is designed for touch with proven Elo expertise and reliability built in. The compact form factor easily integrates into state-of-the-art cabinet designs and provides stable, drift-free operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images. The 1940L delivers a high-definition cinematic-like experience making it an ideal solution for many public applications including gift registry, food ordering, airline check-in, DVD and bill-paying kiosks. The 19-inch touchscreen is available with your choice of touch technologies and multiple mounting options for easy integration.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.

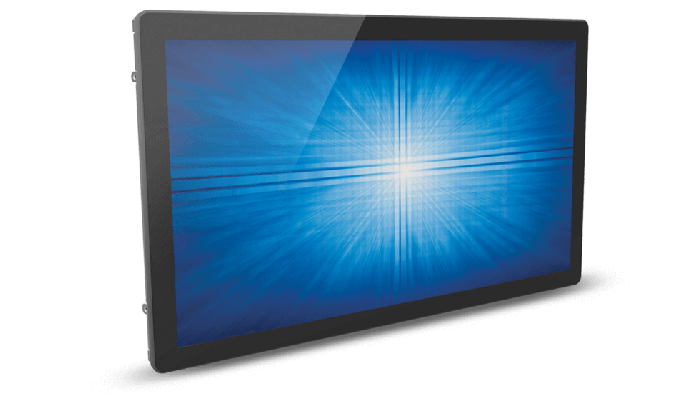

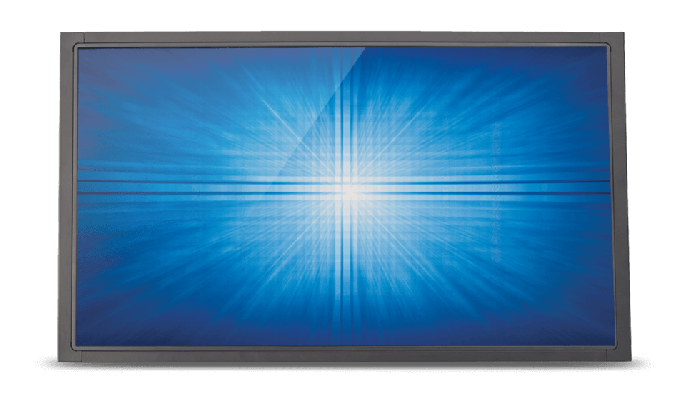

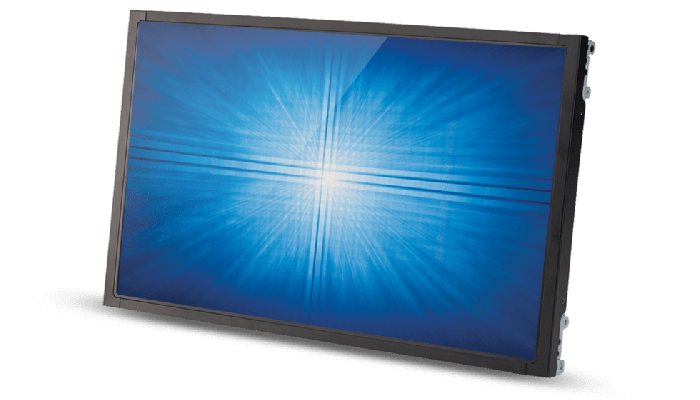

Elo’s touchscreens are built for touch with the technology built in, not added on later. The 1940L with IntelliTouch surface acoustic wave (SAW) provides an integrated precision mini-bezel with water-resistant 0.5 mm seal. For multi-touch, projected capacitive (PCAP) technology offers a seamless, zero-bezel design with edge-to-edge glass.

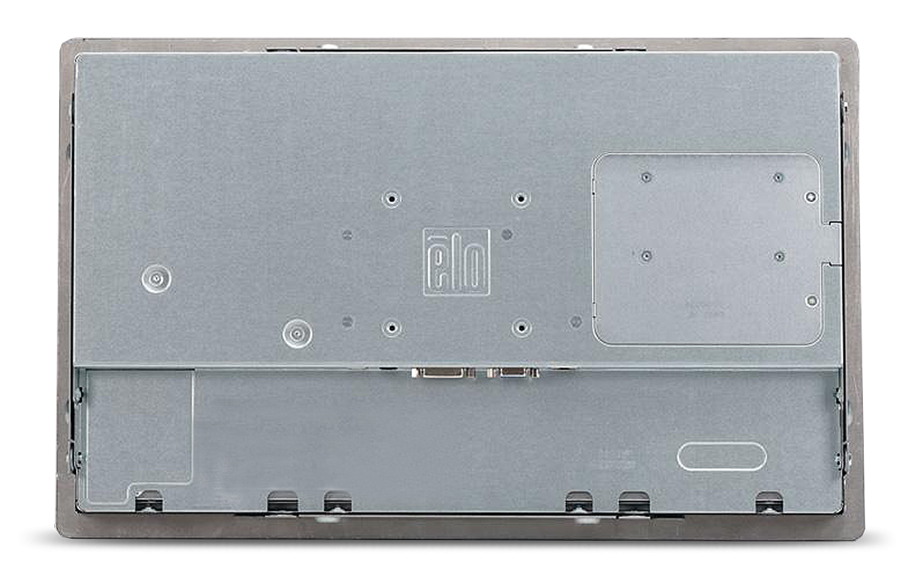

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.


Other features.
  • High quality panel with 170°x160° viewing angle
  • 1000:1 contrast ratio
  • Optional mounting options including rack and front mount
  • Three-year warranty on the entire unit including the panel

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Dual Touch (Worldwide) - E855244
    PCAP (Worldwide) - E065303

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Diagonal Size

    18.5'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Aspect Ratio

    16:9

    Active Area

    16.13" x 9.07" / 409.8mm x 230.4mm

    Resolution

    1366 x 768

    Other Supported Resolutions

    720 x 350 at 70Hz
    720 x 400 at 70Hz
    640 x 480 at 60, 72, 75Hz
    800 x 600 at 56, 60, 72, 75Hz
    800 x 500 at 60Hz
    832 x 624 at 75Hz
    1024 x 768 at 60, 70, 75Hz
    1280 x 800 at 60Hz
    1280 x 960 at 60Hz
    1280 x 1024 at 60, 75Hz
    1366 x 768 at 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch DT: 225 nits
    PCAP: 225 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Input Video Format

    Analog VGA on Female DB-15 connector
    Digital DVI on Female DVI-D connector

    Input Video Frequency

    Horizontal: 31.5-80.0 kHz
    Vertical: 50-75 Hz

    Power Supply

    External DC - power brick (sold separately)

    Power connector (Power brick)

    Adapter input connector: IEC 60320 C14
    Adapter input voltage range: 100-240VAC, 50/60Hz

    Input Voltage

    12VDC +/- 5%

    Input Connector

    Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

    Power Consumption (Typical)

    Monitor + Adapter at 230V/50Hz
    ON: 19W (Typical), 25W (Max)
    SLEEP: 2.0 W
    OFF: 1.0W

    Dimensions

    17.58" x 10.58" x 1.51" / 446.7mm x 268.8mm x 38.5mm

    Shipping Box Dimensions

    21.45" x 14.37" x 5.51" / 545mm x 365mm x 140mm

    Weight (Unpackaged)

    7.38 lbs / 3.35 kg

    Weight (Packaged)

    10.58 lbs / 4.8 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM
    Canada cUL, IC
    China CCC
    Europe CE
    Japan VCCI
    Korea KCC, e-standby
    Mexico CoC
    Taiwan BSMI
    United States UL, FCC
    International CB
    RoHS, China RoHS, WEEE, IMERC

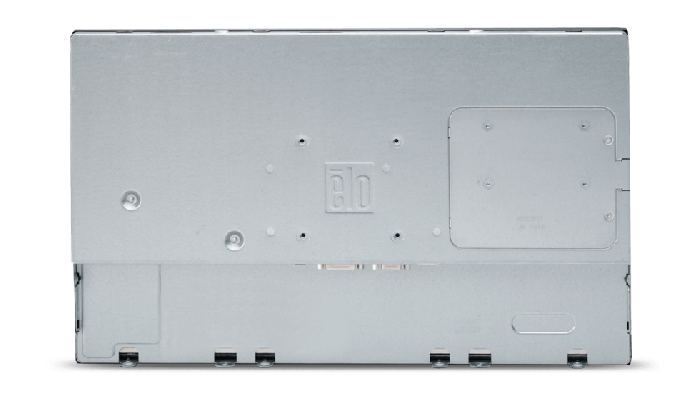

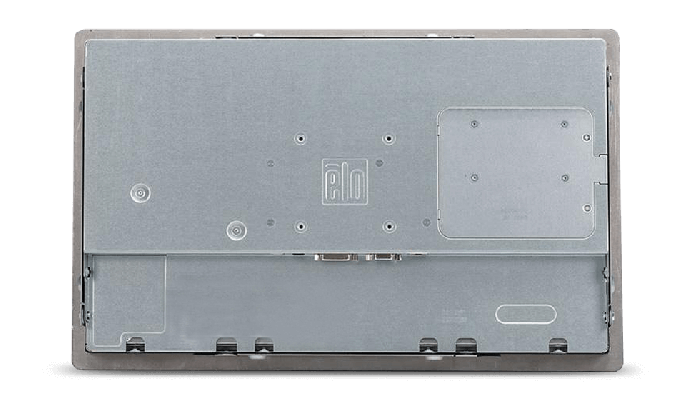

    Mounting Options

    VESA 4-hole 75mm mounting interface on rear of unit
    2-hole mounting interface on all 4 sides
    See dimensional drawings for details

    What's in the Box

    VGA Cable
    Touch USB Cable
    User Manual CD
    Quick Install Guide
    ZB Models: Flush Mount Brackets w/Screws
    Bezeled Models: “L” (Side Mount) Brackets and w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 1940L – Wide Flush-Mount Bezel Kit - Elo P/N: E925445
    Elo 1940L - Front-mount Bezel Kit (IntelliTouch/Non-Touch) - Elo P/N: E941898
    Elo 1940L - Rack-mount Bracket Kit (IntelliTouch/Non-Touch) - Elo P/N: E343109
    Elo 1940L - Side-mount Bracket Kit (IntelliTouch/Non-Touch) - Elo P/N: E201156

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional PCAP Stylus Pen

    E066148

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch or iTouch surface wave touch technology. Part number D82064-000, available at additional cost.
