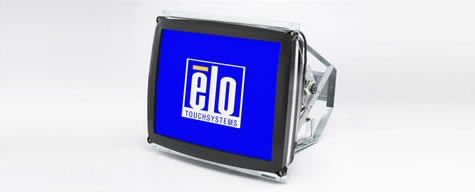

2187C 21" CRT Open Frame Touchmonitor (Discontinued June 2007)
Overview
Elo IntelliTouch® ZB SAW touch-on-tube open-frame CRTs are the right choice for your public access or industrial application because they are easily integrated, reliable, sealed, and deliver the ultimate in picture quality, at an optimal price.
Open-frame CRTs reduce or eliminate the need for redesign by providing a much longer model life than plastic case CRTs. At the same time, they provide the reliability and ruggedness required for operation in an indoor public environment. Featuring the breakthrough Elo iTouch touch-on-tube technology and no overlay to break, your application will have the best picture quality and vandal resistance possible on a touch CRT. A final benefit is the watertight sealed bezel that stays in place when the cabinet front is opened.
Features
- Computer-grade digital design and video quality
- Unique IntelliTouch touch-on-tube technology preserves 100% of the original brightness, picture quality, and color purity, with up to 80% less reflection than some overlays
- Super sensitive, drift free and precise touch with no parallax from an overlay
- Open-frame metal chassis keeps the CRT cooler, extending life
- Fixed outside dimensions-model life is longer than plastic-cased monitors (3D design files available)
- Bezel includes watertight 0.5 mm seal
- Rugged epoxy composite PCB material (CAM-1)
- Schematic and component-level repair manual available, plus entire electronics can be quickly replaced
- Built-in power, deflection and video test with diagnostic pin and LEDs
- Multilingual on-screen display (OSD) with long cable length for easy relocation
- Detachable video cable for easy cable harnessing
- Locking power connector
- Worldwide agency approvals
Specifications
-
Technical
Part Number(s)
IntelliTouch ZB (Antireflective, Worldwide) - C21274-000
Enclosure Color
Black
Touch Technology & Capacity
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
Diagonal Size
21.0" diagonal, Active matrix TFT LCD
Monitor Thickness
19.45" / 494 mm
Aspect Ratio
4:3
Active Area
Horizontal: 14.96" / 380 mm
Vertical: 11.22" / 285 mmResolution
1024 x 768 at 85 Hz (VESA)
Other Supported Resolutions
1024 x 768 at 85 Hz
800 x 600 at 85 Hz
640 x 480 at 60 Hz
640 x 400 at 70 Hz
640 x 350 at 70 HzNumber of Colors
16.7 million
Dot Pitch
0.25 mm
Contrast Ratio
300:1
Touch Interface
Serial
On Screen Display
Multilingual OSD
Video Bandwidth
100 MHz
Input Video Format
Analog (no proprietary video card needed)
Input Video Signal Connector
Mini D-Sub 15-Pin (female)
Power Consumption (Typical)
80 W typical, 90 W max.
Power Supply
100-240 VAC, 50-60 Hz
Input Frequency
Horizontal: 30-70 kHz
Vertical: 50-120 HzMonitor Dimensions (without Stand)
18.58" x 16.22" x 19.45" / 472 mm x 412 mm x 494 mm
Weight (Unpackaged)
55 lbs / 25.0 kg
Weight (Packaged)
66 lbs / 30.0 kg
Operating Temperature
5°C to 55°C
Storage Temperature
-20°C to 65°C
Humidity
Operating: 10% to 80%
Storage: 5% to 95%
noncondensingMTBF
50,000 hours demonstrated
Other Features
Energy save mode (less than 2 watts)
2 stage DPMS
VESA DDC Plug and PlayWarranty
Contact Elo
Regulatory approvals and declarations
FCC/ICES-03 Class B, UL/cUL recognized component, TÜV Bauart, CB (all members), CE, VCCI, C-Tick, Nevada SR 14, MPR II, DHHS
Power Cables
A special locking power cable is required.
Power cables which may be suitable are available separately:
North American version (drawing MS500325 Rev B, 79K PDF)
European version (drawing MS500324 Rev B, 85K PDF)Touch/Video/Audio/Accessory Cables:
Detachable touch and video cables are included
