2240L 22" Open Frame Touchscreen (Discontinued August 2015)
How to Buy

Overview

Specifically suited for use in high-traffic casino gaming, video-game entertainment and self-service kiosk environments, the 2240L complements Elo's expanded family of touch solutions for casino gaming, amusement and digital signage. The 2240L features a high quality LCD panel with an ultra-wide viewing angle of 178° x 178° horizontal and vertical, which is wider than most other 22" touchmonitors available today. Colors remain sharp, vivid and true, and graphics retain their integrity due to the 300 nits panel brightness.

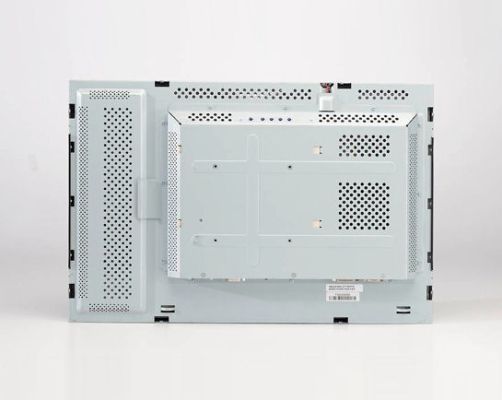

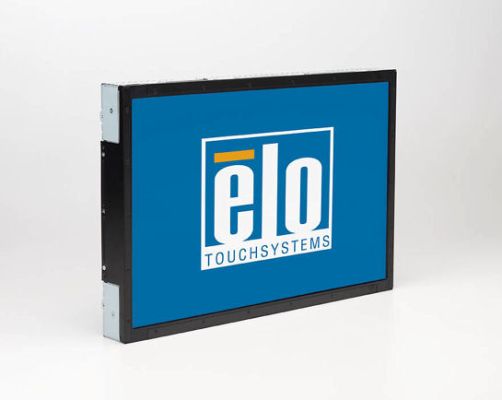

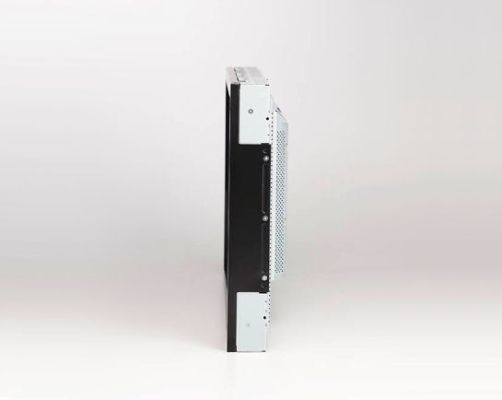

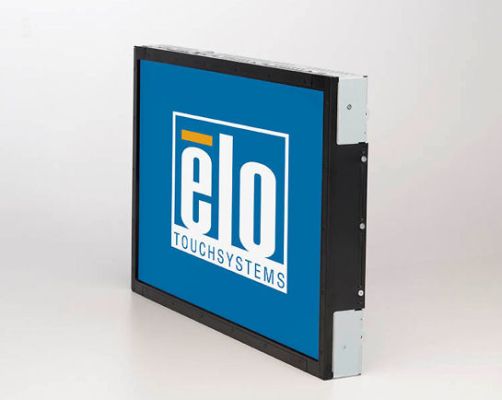

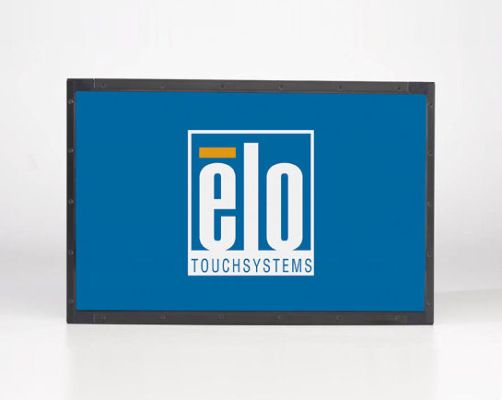

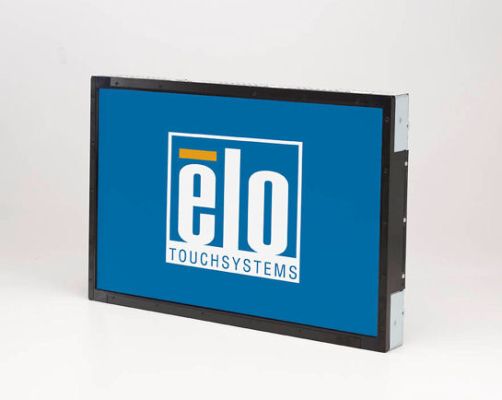

The innovative design of the open-frame 2240L provides a seamless fit for gaming and kiosk applications, and can be deployed in both landscape and portrait orientations. With a front-facing metal hardened anodized bezel and L-mounting brackets and slim dimensional profile (500 x 332 x 80 mm), the 2240L offers installation flexibility in a variety of entertainment and retail environments.

Features

  • A bright, high contrast display with ultra-wide 178° x 178° viewing angle easily attracts and holds the users' attention
  • Elo Touch Solutions IntelliTouch (surface acoustic wave) technology offers high quality optics, durability, and long-term reliability
  • "Designed for touch" from the ground-up, including Elo Touch Solutions proprietary ultra-slim protective bezel for sealing against liquids.
  • A long product life with the enclosure controlled by Elo Touch Solutions specifications
  • Multiple mounting options are available
  • Dual serial and USB connectivity are standard
  • Worldwide agency approvals and a three-year standard warranty are backed by Elo

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Clear, EMEA) - E186354

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Touch Interface

    Dual serial/USB

    Diagonal Size

    22'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Controls (back): menu, up, down, select
    Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall defaults, sharpness, display information
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: power, user controls

    Aspect Ratio

    16:10

    Active Area

    18.7" x 11.7" / 474 mm x 296 mm

    Resolution

    1680 x 1050

    Other Supported Resolutions

    720x350 @ 70Hz
    720x400 @ 70Hz
    640x480 @ 60Hz, 66Hz, 72Hz
    800x500 @ 60Hz
    800x600 @ 56Hz, 60Hz, 72Hz
    832x624 @ 75 Hz
    1024x768 @ 60Hz, 65Hz, 72Hz, 75Hz
    1152x864 @ 75 Hz
    1280x768 @ 65 Hz
    1280x800 @ 60 Hz
    1280x960 @ 60 Hz
    1280x1024 @ 60Hz, 75Hz
    1360x768 @ 60 Hz
    1366x768 @ 60 Hz
    1440x900 @ 60 Hz
    1600x1200 @ 60 Hz
    1680x1050 @ 60Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 400 nits
    IntelliTouch: 270 nits

    Response Time-total (typical)

    16 msec

    Contrast Ratio

    1000:1

    Input Video Format

    Analog VGA, DVI video

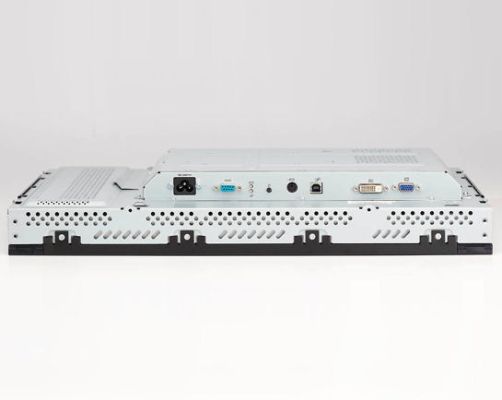

    Input Video Signal Connector

    Mini D-Sub 15-Pin VGA type, DVI-D connector

    Power Supply

    Internal AC

    Input Voltage

    AC: 100-240 VAC, 50-60 Hz

    Input Connector

    AC: IEC 60320 C6

    Input Frequency

    Horizontal: 30-83 kHz
    Vertical: 56-75 Hz

    Power Consumption (Typical)

    60 W

    Dimensions

    19.7" x 13.1" x 3.2" / 500mm x 332 mm x 80 mm

    Shipping Box Dimensions

    23.62" x 19.68" x 9.06" / 600 mm x 500 mm x 230 mm

    Weight (Unpackaged)

    16.6 lbs / 7.5 kg

    Weight (Packaged)

    23.5 lbs / 10.7 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20%-80%
    Storage: 10%-90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, China CCC, Korea MIC, Taiwan BSMI, China RoHS, UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, : China CCC, Japan VCCI, China RoHS
    Elo Declarations: WEEE, IMERC

    Mounting Options

    100 mm VESA mount
    Mounting brackets included

    Options / Peripherals / Upgrades

    Replacement Cable Kit - Elo P/N: E378229
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo Remote OSD (With 1.8 m cable) - Elo P/N: E622897

    Optional IntelliTouch Stylus Pen

    Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
