2293L 21.5" Open Frame Touchscreen (Rev A Discontinued)
How to Buy

Please see the latest model - 2294L.

Overview

The Elo 2293L 22-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 2293L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 2293L open is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

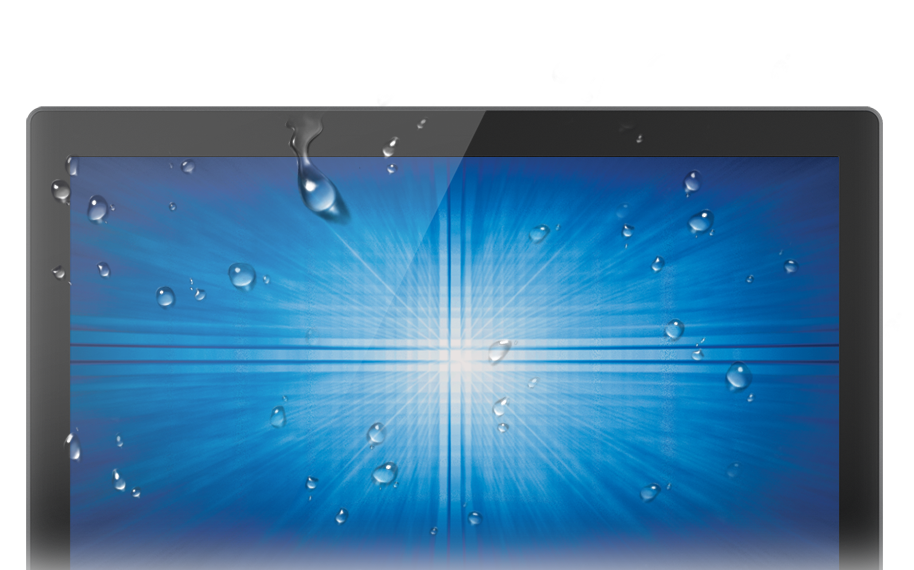

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected. If you are looking for a portrait solution, we suggest you use the 2294L which has a wide viewing angle 178° (h) x 178° (v) panel.

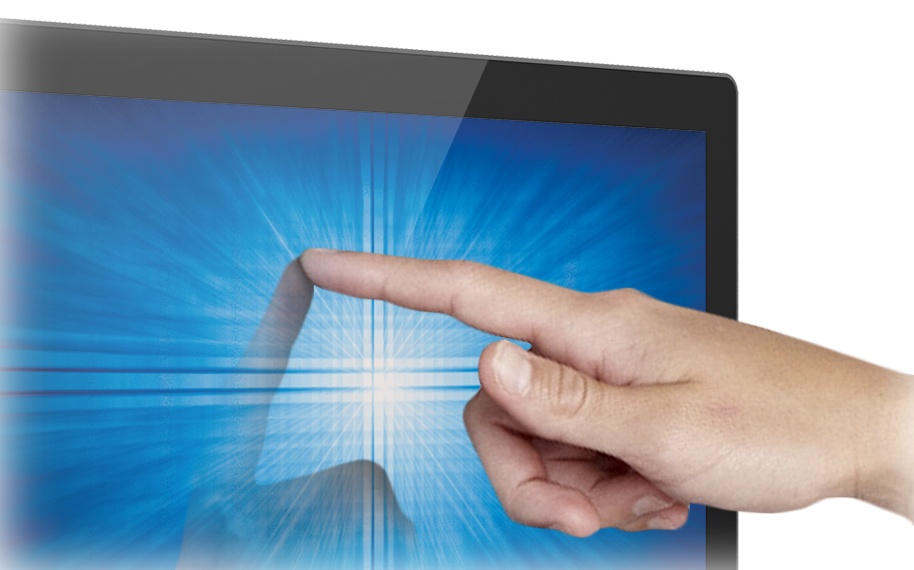

Touch ready.

Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

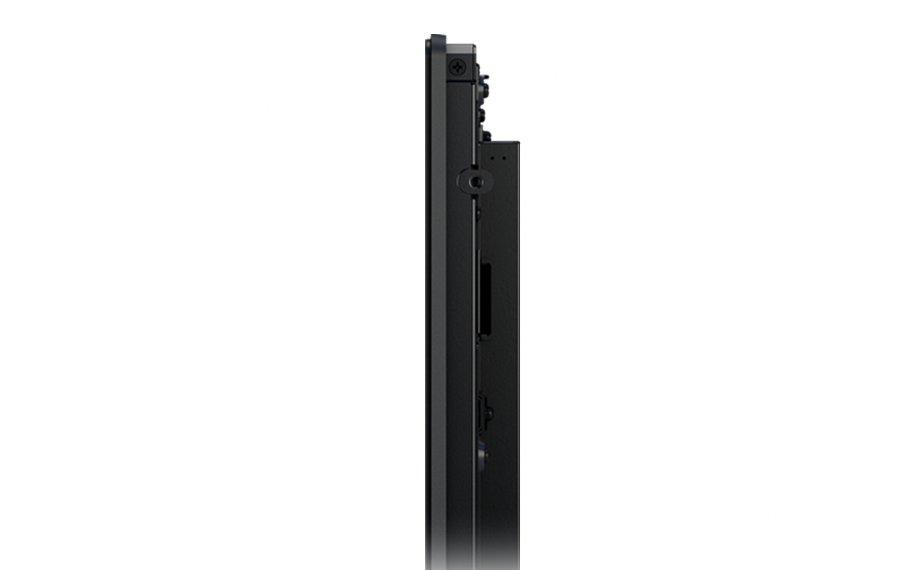

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.


Other features.
  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • High definition LCD display offers ultimate HD interactivity, clarity and resolution
  • LED backlighting allows for state-of-the-art slim design while reducing power consumption
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • Display Port and VGA video interfaces

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Worldwide) - E197833
    IntelliTouch Dual Touch (Worldwide) - E179842
    PCAP (Worldwide) - E179647

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Touch Interface

    PCAP, IntelliTouch DT - USB
    IntelliTouch - Dual serial/USB

    Diagonal Size

    21.5'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the unit’s tethered OSD Control box.

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Aspect Ratio

    16:9

    Active Area

    18.76" x 10.55" / 476.64mm x 268.11mm

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640 x 480 60Hz
    720 x 400 70Hz
    800 x 500, 60Hz
    800 x 600 56, 60Hz
    1024 x 768 60Hz
    1280 x 800 60Hz
    1280 x 1024 60Hz
    1366 x 768 60Hz, 60Hz RB
    1440 x 900 60Hz, 60Hz RB
    1680 x 1050 60Hz, 60Hz RB
    1920 x 1080 50, 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch: 225 nits
    IntelliTouch Dual-Touch: 225 nits
    PCAP: 225 nits

    Response Time-total (typical)

    5 msec

    Contrast Ratio

    1000:1

    Input Video Format

    Analog VGA on Female DB-15 connector
    DisplayPort V1.1a - Supports later versions of Display Port video input

    Input Video Frequency

    Horizontal: 30 - 82 KHz
    Vertical: 50 - 75 Hz

    Power Supply

    External DC - Optional power brick (sold separately)

    Input Voltage

    12VDC +/- 5%

    Input Connector

    Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

    Power Consumption (Typical)

    Monitor + Adapter at 230V/50Hz
    ON: 18 W
    SLEEP: 1.1 W
    OFF: 0.5W

    Dimensions

    Bezel: 20.12" x 11.74" x 1.65" / 511.8mm x 298.2mm x 42mm
    Zero-Bezel: 20.31" x 12.24" x 1.49" / 516mm x 311mm x 37.9mm

    Shipping Box Dimensions

    24.41" x 16.65" x 7.48" / 620mm x 423mm x 190mm

    Weight (Unpackaged)

    11.24 lbs / 5.1 kg

    Weight (Packaged)

    17.86 lbs / 8.1 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 95%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE, IMERC

    Mounting Options

    VESA 4-hole 100mm mounting interface on rear of unit
    2-hole mounting interface on all 4 sides
    Front mount with optional bezel kit (IT/AT/ST Models see Part Numbers for details)
    Rack mount with optional kit (IT/AT/ST Models see Part Numbers for details)
    Flush mount with included brackets (PCAP Models see dimensional drawings for details)
    See dimensional drawings for details

    What's in the Box

    VGA Cable
    RJ45 OSD Remote
    Touch USB Cable
    User Manual CD
    Quick Install Guide
    For Zero-Bezel Models: Flush Mount Brackets w/Screws
    For Bezeled - IT/ST/AT Models: “L” (Side Mount) Brackets and w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 20-inch & 22-inch Wide Flush-mount Bracket - Elo P/N: E190706
    Elo 22-inch Rack-mount Bracket - Elo P/N: E462672 (See Mounting Options Spec for Compatibility)
    Elo 22-inch Wide Front-mount Bezel - Elo P/N: E668194 (See Mounting Options Spec for Compatibility)
    1.8m DisplayPort to DisplayPort video cable - Elo P/N: E582895
    1.8m DVI-D to DisplayPort video cable - Elo P/N: E583090
    1.8m HDMI to DisplayPort video cable - Elo P/N: E583288

    Optional PCAP Stylus Pen

    E066148
