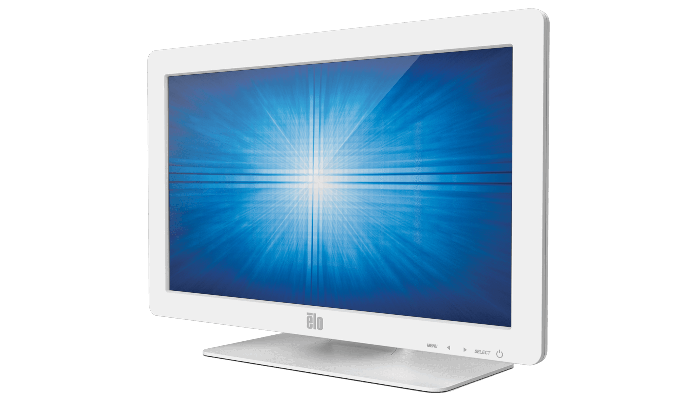

Elo 2401LM 24-inch touchscreen monitor delivers an interactive solution for healthcare professionals and patients. The feature rich, 2401LM 24-inch touchscreen monitor offers professional-grade, best-in-class optical performance with Elo’s industry-leading touch technology that was designed for medical professionals that demand reliability and input flexibility. Compliant with multiple safety and electrical certifications, the clean white design of the 2401LM is equipped with a USB and RS232 combination touch controller, built-in audio amp and speakers, VGA, and DVI, video connectors all with a three-year warranty.

Healthcare compliant.

The 2401LM is compliant with multiple safety and electrical certification standards, including IEC/EN 60950-1 and IEC/EN 60601-1 for safety and EN 55011, EN 55022, EN 55024 and IEC/EN 60601-1-2 (3rd Edition) for EMC. Equipped with an LED backlit state-of-the-art LCD panel, the monitor is environmentally friendly with reduced power consumption.

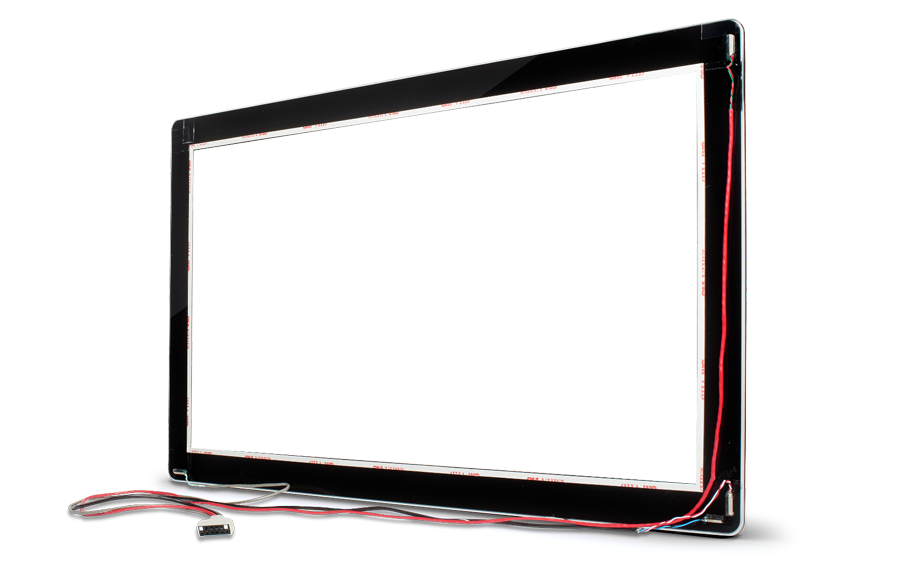

Integrated touch.

The 2401LM features IntelliTouch® surface acoustic wave (SAW) technology with single touch functionality providing a stable drift-free touch response, and outstanding image clarity and resolution.

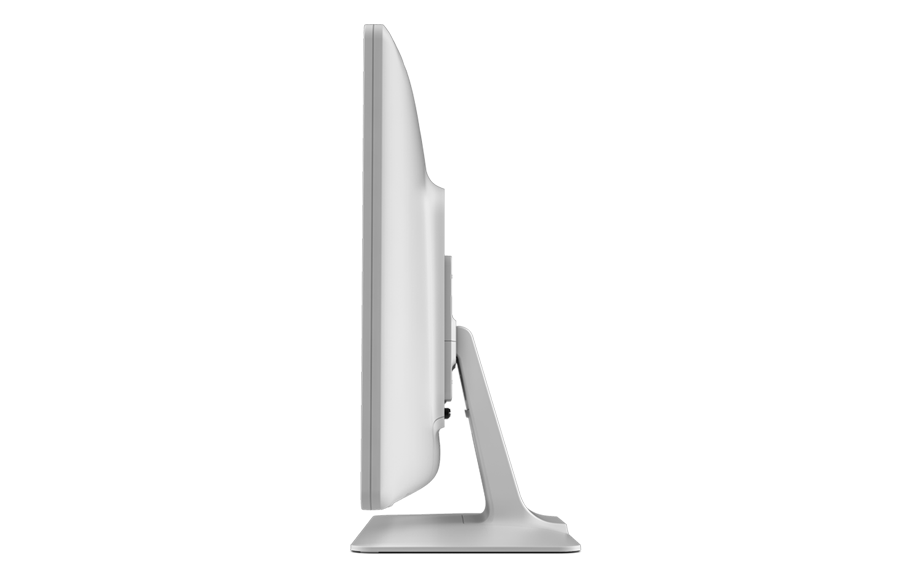

Functional design.

Having been designed for touch from the start, the 2401LM features a stable stand with tilting functionality, VESA mount, cable management and cable fastening features to prevent accidental disconnection, OSD controls with lockout capability and a IPx1 drip-resistant housing.

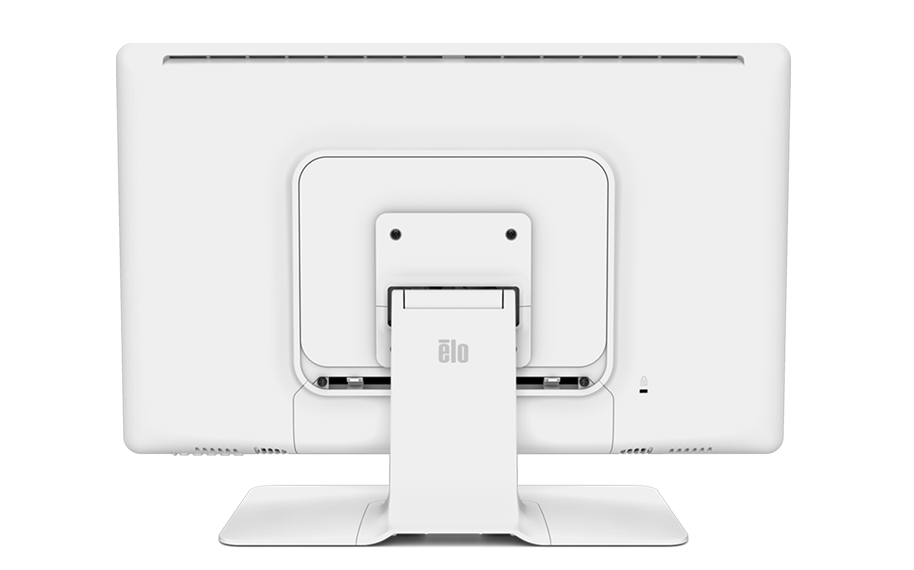

Commercial grade.

The 24-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
  • High quality panel, wide viewing angles, and high contrast ratio provides best-in-class optical performance
  • USB and serial touch interface VGA and DisplayPort 1.1 Video interface allows connectivity to new and legacy systems
  • On board audio amp and speakers positions sound signals nearby user interface
  • High quality panel, wide viewing angles, and high contrast ratio
  • Pure-glass touchscreen with SAW technology
  • Energy savings by using LED technology
  • Recognized by public health authorities in most countries as the safety standard for certain medical electrical equipment
  • Three-year standard warranty


  • Technical



Refine your search:
Compare Compare
Image of item
E263686 (Worldwide)
  • White
  • USB and Serial
  • Bezel
  • Anti-glare
  • IntelliTouch® - SAW
Compare Compare
Image of item
E000140 (Worldwide)
  • Black
  • USB and Serial
  • Bezel
  • Anti-glare
  • IntelliTouch® - SAW
No Configurations found.



  • Additional Support Resources

  • Collateral

  • Drawings and Certificates

  • User Guides
