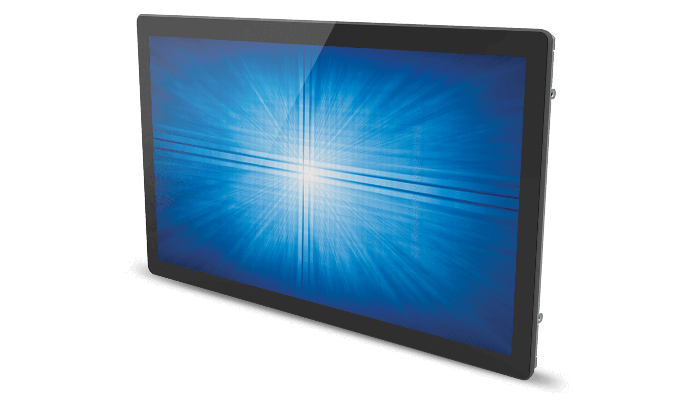

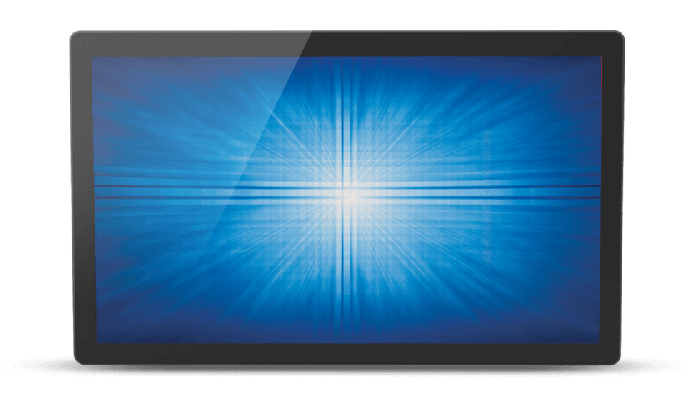

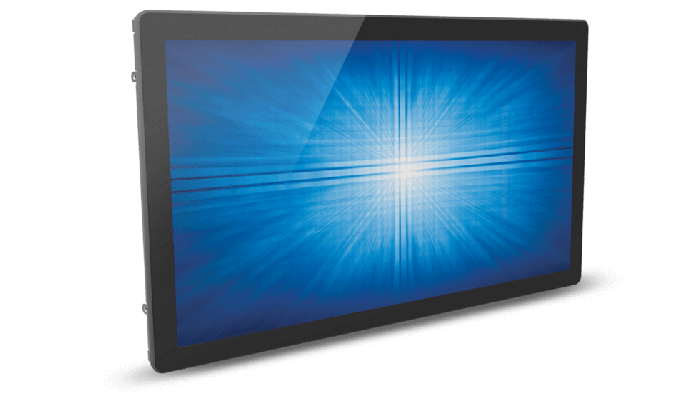

2440L Open Frame Touchscreen (Discontinued)
How to Buy

Overview

Elo’s 2440L 24-inch full HD open frame touchscreen delivers a professional-grade large format display in a slim, integrated package. Designed for touch from the start with proven Elo expertise and reliability built in, the 2440L offers a state-of-the-art slim design using LED backlighting, reducing power consumption and generating less heat. With a high-definition cinematic-like experience and compact form factor, the 2440L complements the large family of Elo solutions for applications in the retail self-service and gaming/ amusement markets. The 2440L also features a high quality panel along with a unique, injection-molded mini-bezel with virtually invisible water-resistant seal. The open frames are available with your choice of touch technologies and multiple mounting options for easy integration.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

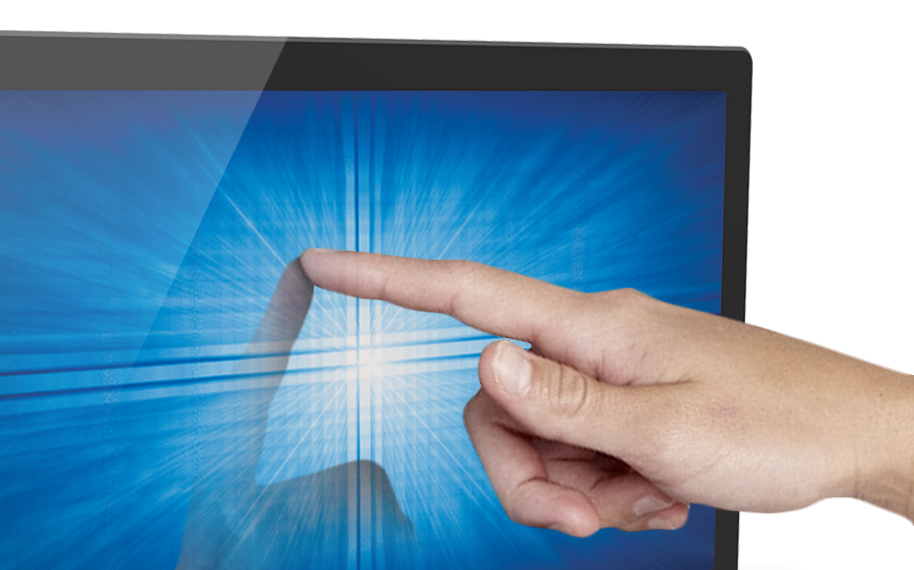

Touch ready.

The 2440L provides stable drift-free operation with outstanding image clarity, resolution, and light transmission. Available with a choice of Elo’s industry-leading touch technologies, in single-, dual- or multi-touch versions. The seamless zero-bezel edge-to-edge glass design is available with IntelliTouch® surface acoustic wave (SAW) single- and dual-touch, ideal for vertical implementations, as well as multi-touch (4-touch) projected capacitive (PCAP) technology with fast and extremely sensitive responses right out of the box. IntelliTouch® also comes with a standard bezel design with single-touch or dual-touch for the ultimate in optical quality. All 2440L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance with scratch-resistant protection making it nearly impossible to physically wear them out.

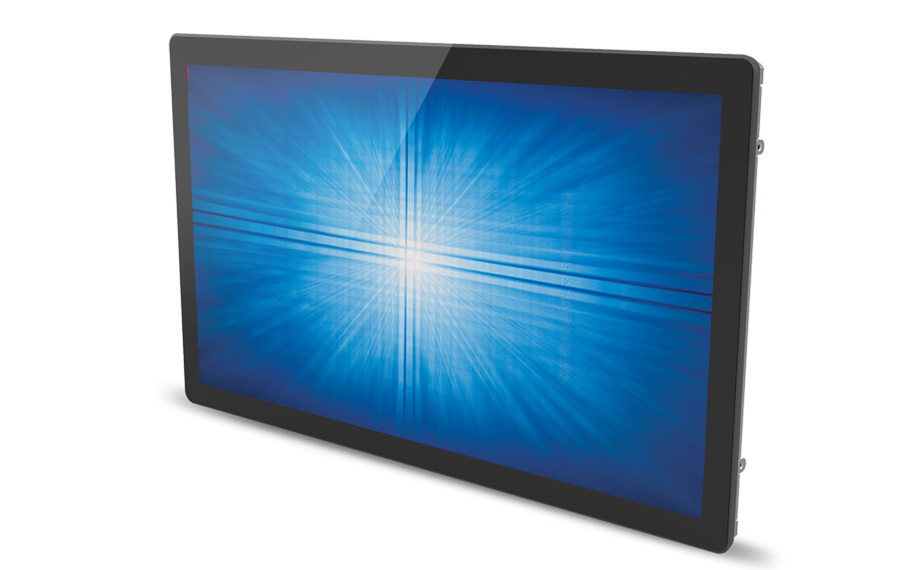

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.


Other features.
  • Multiple mounting options, in both landscape and portrait mode
  • Zero-bezel versions for a smooth, easy-to-clean surface
  • Video interfaces: VGA, DVI-D
  • Three-year warranty on the entire unit including the panel

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Worldwide) - E000413
    IntelliTouch Dual Touch (Worldwide) - E000415
    IntelliTouch ZB (Worldwide) - E000414
    IntelliTouch ZB Dual Touch (Worldwide) - E000416
    PCAP (Worldwide) - E000417

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch
    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    PCAP (Projected Capacitive) - up to 4 touches

    Diagonal Size

    23.8'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the unit’s tethered OSD Control box.

    Controls: Menu, Up, Down, Select, Power

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Aspect Ratio

    16:9

    Active Area

    20.50" x 11.54" / 521.28mm x 293.22mm

    Resolution

    Full HD 1920 x 1080

    Other Supported Resolutions

    640 x 480 60, 66, 72Hz
    720 x 400 70Hz
    720 x 480 60Hz
    720 x 576 50Hz
    800 x 500 60Hz
    800 x 600 56, 60, 72Hz
    1024 x 768 60, 65, 72, 75Hz
    1280 x 720 50, 60Hz
    1280 x 800 60Hz
    1280 x 960 60Hz
    1280 x 1024 60, 75Hz
    1360 x 768 60Hz
    1366 x 768 60Hz
    1440 x 900 60Hz
    1680 x 1050 60Hz
    1920 x 1080 50, 60Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    IntelliTouch: 225 nits
    IntelliTouch DT: 225 nits
    IntelliTouch ZB: 225
    IntelliTouch ZB DT: 225
    PCAP: 225 nits

    Response Time-total (typical)

    20 msec

    Contrast Ratio

    1000:1

    Input Video Format

    Analog VGA on Female DB-15 connector
    Digital DVI on Female DVI-D, Dual-Link connector

    Input Video Frequency

    Horizontal: 31.5 - 80 KHz
    Vertical: 50 - 75 Hz

    Power Supply

    External DC - power brick (sold separately)

    Input Voltage

    12VDC +/- 5%

    Input Connector

    Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

    Power Consumption (Typical)

    Monitor + Adapter
    ON: 30 W
    SLEEP: 2 W
    OFF: 1 W

    Dimensions

    Bezel: 22.11" x 12.82" x 1.66" / 561.6mm x 325.8mm x 42.2mm
    IntelliTouch ZB: 22.44" x 13.46" x 1.46" / 570.1mm x 342mm x 37.1mm

    Shipping Box Dimensions

    26.96" x 17.91" x 5.90" / 685mm x 455mm x 150mm

    Weight (Unpackaged)

    12.47 lbs / 5.66 Kg

    Weight (Packaged)

    18.71 lbs / 8.49 Kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM
    Canada CUL, IC
    China CCC
    Europe CE
    Japan VCCI
    Korea KCC, e-Standby
    Mexico CoC
    Taiwan BSMI
    United States UL, FCC
    International CB
    RoHS, China RoHS, WEEE

    Mounting Options

    200mm x 100mm VESA 4-hole mounting interface on rear of unit
    Side/Flush mounting brackets included with unit
    See dimensional drawings for details

    What's in the Box

    VGA Cable
    Touch USB Cable
    User Manual CD
    Quick Install Guide ZB Models: Flush Mount Brackets w/Screws
    Bezeled Models: “L” (Side Mount) Brackets and w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 24-inch - Wide L-Bracket - Elo P/N: E000878
    Elo 24-inch Wide Flush-mount Bracket - Elo P/N: E000879
    Elo 24-inch - Front-mount Bezel (IntelliTouch/Non-Touch) - Elo P/N: E000880 (See Mounting Options Spec for Compatibility)

    Optional PCAP Stylus Pen

    E066148

Configurations

(5)

Refine your search:
Compare Compare
Image of item
E000417
  • TouchPro® - PCAP
  • 4
  • 16:9
  • Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
  • UL & IK06 ball drop
Compare Compare
Image of item
E000416
  • IntelliTouch® ZB - SAW
  • 2
  • 16:9
  • Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Compare Compare
Image of item
E000414
  • IntelliTouch® ZB - SAW
  • 1
  • 16:9
  • Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Compare Compare
Image of item
E000413
  • IntelliTouch® - SAW
  • 1
  • 16:9
  • Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Compare Compare
Image of item
E000415
  • IntelliTouch® - SAW
  • 2
  • 16:9
  • Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
