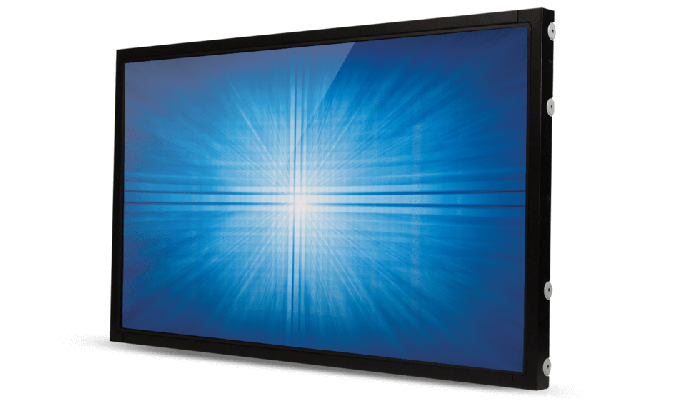

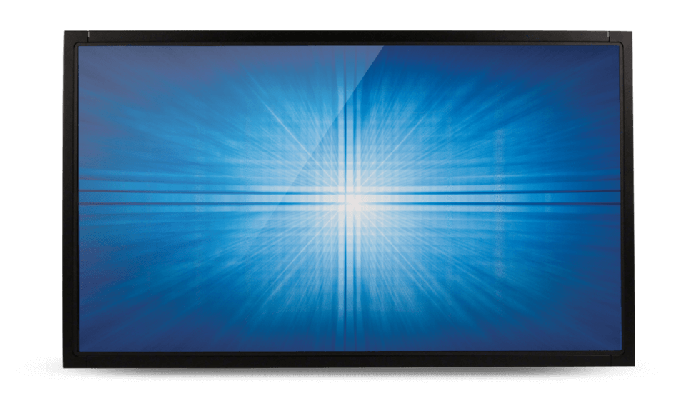

2740L Open Frame Touchscreen (Discontinued)
How to Buy

Overview

Elo’s 2740L 27-inch full HD open frame touchscreen delivers a professional-grade large format display in a slim, integrated package. Designed for touch from the start with proven Elo expertise and reliability built in, the 2470L offers a state-of-the-art slim design using LED backlighting, reducing power consumption by 54% compared to previous models while generating less heat. With a high-definition cinematic-like experience and compact form factor, the 2740L complements the large family of Elo solutions for applications in the retail self-service and gaming/ amusement markets. The touchscreen also features a high quality panel along with a unique, injection-molded mini-bezel with virtually invisible water-resistant seal. The 27-inch touchscreens are available with your choice of touch technologies and multiple mounting options for easy integration.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. PCAP units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.

The 2740L provides stable drift-free operation with outstanding image clarity, resolution, and light transmission. Available with a choice of industry-leading touch technologies, in single- or dual-touch versions. The seamless zero-bezel edge-to-edge glass design is available with single-touch IntelliTouch® surface acoustic wave (SAW), ideal for vertical implementations. It also comes with a standard IntelliTouch® bezel design with dual-touch for the ultimate in optical quality. All 2740L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance with scratch-resistant protection making it nearly impossible to physically wear them out.

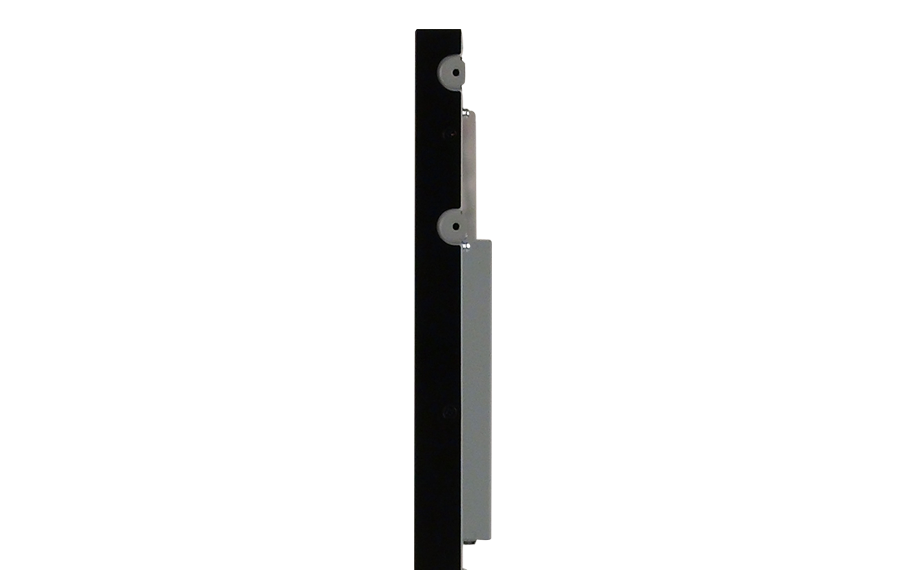

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.


Other features.
  • 1080p full HD display with wide viewing angle easily attracts and holds viewer's attention
  • Multiple mounting options, in both landscape and portrait mode
  • Chemically strengthened glass with UL60950 ball drop glass compliance
  • Three-year warranty on the entire unit including the panel

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Dual Touch (Worldwide) - E220828
    IntelliTouch ZB (Worldwide) - E001120

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    27'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the OSD Control Remote accessory.

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Aspect Ratio

    16:9

    Active Area

    23.52" x 13.23" / 597.6mm x 336.15mm

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640 x 480 60Hz
    720 x 400 70Hz
    800 x 500, 60Hz
    800 x 600 56, 60Hz
    1024 x 768 60Hz
    1280 x 800 60Hz
    1280 x 1024 60Hz
    1366 x 768 60Hz, 60Hz RB
    1440 x 900 60Hz, 60Hz RB
    1680 x 1050 60Hz, 60Hz RB
    1920 x 1080 50, 60Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 300 nits
    IntelliTouch DT: 270 nits
    IntelliTouch ZB: 270 nits

    Response Time-total (typical)

    12 msec

    Contrast Ratio

    3000:1

    Input Video Format

    Analog VGA on Female DB-15 connector
    Digital DVI on Female DVI-D, Dual-Link connector

    Input Video Frequency

    Horizontal: 31.5 - 82 KHz
    Vertical: 50 - 75 Hz

    Power Supply

    External DC - power brick (sold separately)

    Input Voltage

    12VDC +/- 5%

    Input Connector

    Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

    Power Consumption (Typical)

    Monitor + Adapter at 230V/50Hz
    ON: 45 W
    SLEEP: 1.8 W
    OFF: 0.8 W

    Dimensions

    IntelliTouch DT: 24.92" x 14.74" x 1.67" / 633.2mm x 374.4mm x 42.6mm
    IntelliTouch ZB: 25.50" x 15.43" x 1.59" / 647.8mm x 392mm x 40.4mm

    Shipping Box Dimensions

    31.02" x 21.10" x 9.17" / 788mm x 536mm x 233mm

    Weight (Unpackaged)

    16.53 lbs / 7.5 Kg

    Weight (Packaged)

    23.14 lbs / 10.5 Kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM Canada cUL, IC
    China CCC
    Europe CE
    Japan VCCI
    Korea KCC e-standby
    Mexico CoC
    Taiwan BSMI
    United States UL, FCC
    International CB
    RoHS, China RoHS, WEEE

    Power Cables

    Cable kit for replacement cables - Elo P/N: E378229

    Mounting Options

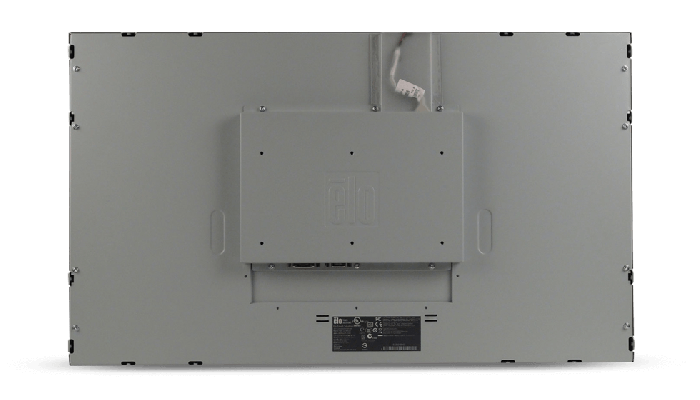

    200mm x 100mm VESA 4-hole mounting interface on rear of unit
    Side mounting brackets included with unit
    See dimensional drawings for details

    What's in the Box

    VGA Cable
    Touch USB Cable
    User Manual CD
    Quick Install Guide
    ZB Models: Flush Mount Brackets w/Screws
    Bezeled Models: “L” (Side Mount) Brackets and w/Screws

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Replacement Cable Kit - Elo P/N: E378229
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Elo 27-inch - Wide L-Bracket - Elo P/N: E646994
    Elo 27-inch Wide Flush-mount Bracket - Elo P/N: E190896
