3201L 32" Interactive Digital Signage (Discontinued March 2016)
How to Buy

Overview

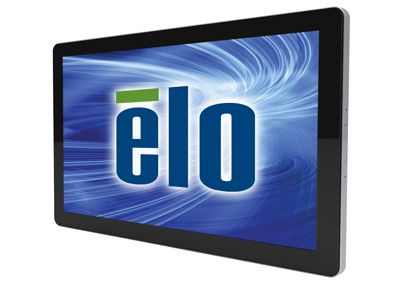

Elo's new 3201L 32-inch interactive digital signage touchscreen delivers a professional-grade large format display in a slim, integrated package. Designed from the bottom up for retail, hospitality, healthcare and other commercial markets, the Elo IDS is a high-quality, interactive canvas for attracting and engaging consumers. The 3201L offers system integrators and value-added resellers (VARs) a high performance solution that is easy to deploy and maintain in public environments. With a total thickness as thin as 2.8 inches (72 mm), the 3201L is compliant with ADA and IBC requirements of less than 4-inch protrusion for wall-mounted products when used with a compatible wall-mount.

Now available with two choices of pure-glass touch technologies which are durable and well-suited for public environments. The IntelliTouch® Dual-Touch surface acoustic wave multi-touch touchscreen provides display clarity which is undistorted due to use of clear glass. The Projected Capacitive (PCAP) touchscreen offers a fast, accurate, drift-free touch response and is compatible with Microsoft Windows® 7 and Windows® 8 operating systems with up to 10 touches recognized simultaneously.

Without an overlay or substrate, the pure-glass surface is durable and well-suited for public venues and high traffic areas. Elo's 3201L PCAP offers a unique, aesthetically-pleasing seamless, zero-bezel design that is resistant to dirt, impacts, scratches and other contaminants on the screen.Tilt mounts are available for easy cable access. State of the art HD display technology is utilized including a high contrast/brightness LED-backlight LCD panel, extended color gamut with movie/gaming/photo modes, black level adjustment, and on-screen menu enhancements.

Elo IDS -01 series displays are compatible with Intel's Open Pluggable Standard (OPS) for Digital Signage with an available adapter kit. Optional, high performance computer modules are available which turn the 3201L into a completely integrated all-in-one computer without the need for any cables or additional mounting hardware. Computer modules are available in a choice of two models: ECMG2-i3 based on a 3.3GHz Intel® Core i3 processor and HD2500 graphics; and ECMG2-i5 based on a 3.6GHz Intel Core i5 processor and HD4000 graphics. The computer modules make the 3201L a reliable platform that is interoperable with most content management servers and supports optimal partitioning of locally cached and network streamed content.

Other features.
  • Compatible with Intel Open Pluggable Standard (OPS) with available adapter kit (E102270), sold separately.
  • Available with two choices of touch technologies; with IntelliTouch Dual-Touch surface acoustic wave multi-touch by finger or soft stylus with a pure-glass display surface delivering crystal clear images. Or with Projected Capacitive offering a fast and sensitive response compatible with Microsoft Windows® 7 and Windows® 8 operating systems with up to 10 touches.
  • Housed in a highly durable steel chassis for a long-life of reliable performance
  • VESA mounting or optional stand
  • Aspect ratio 16:9
  • True High Definition (HD) 1080p (1920 x 1080)
  • Seamless, field installable, computer module, docking integration
  • Glass UL60950 ball drop tested
  • Analog VGA, HDCP-capable HDMI 1.3 and DisplayPort 1.1a, video
  • cFour 5W stereo speakers
  • Projected Capacitive multitouch (10 touch points – HID)
