Elo Edge Connect™
Status Light

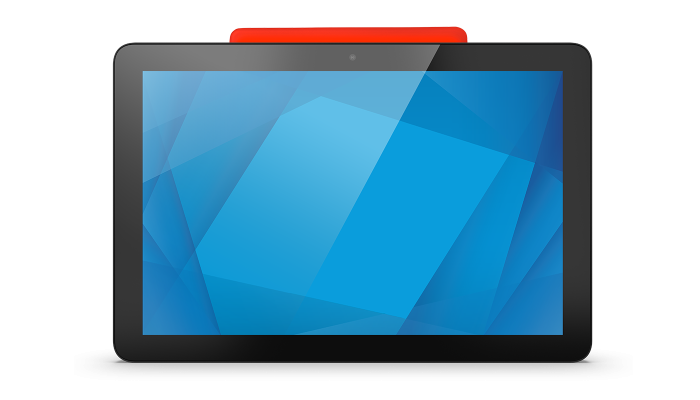

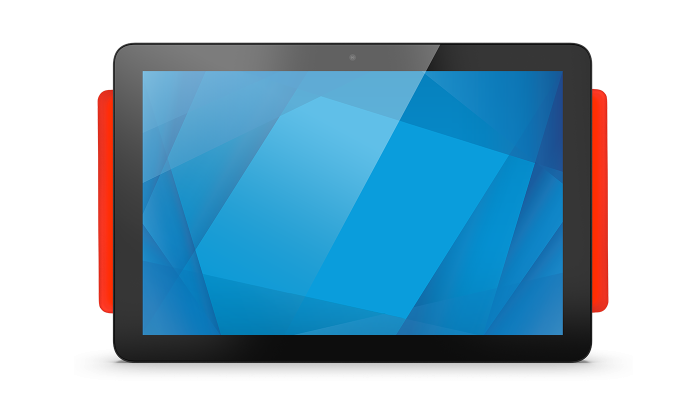

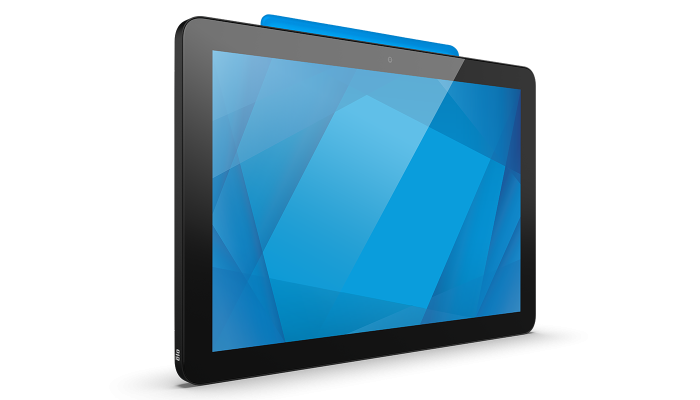

The Elo Edge Connect Status Light provides a sleek, low profile solution for highlighting status and availability for various applications on your favorite Elo products. From conference room availability to self-checkout (SCO) lane readiness, the Status Light easily attaches to the Micro USB ports located on the edge of the touchscreen displays. And, to make managing your solution easy, Elo provides a set of APIs through the EloView® SDK, allowing you to control the status lights via your own APIs.

Specifications

Technical

Part Number(s)

E644767

Enclosure Color

Black

Compatibility

I-Series for Android
I-Series for Windows
EloPOS
Touchscreen Monitors - 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L
Touchscreen Signage - 3202L, 3203L, 4202L, 4303L, 4602L, 5053L, 5502L, 5503L, 5553L, 6553L

Input Connector Type

Micro-USB

LED

Red (default), and RGB LED lights offer various color illumination.
Please download SDK from Elo Support website for custom programming.

Input Voltage

5.0VDC

Dimensions

4.72'' x 0.75'' x 1.02'' / 119.9 mm x 19.1 mm x 26.0 mm

Shipping Box Dimensions

7.165'' x 5.709'' x 1.693'' / 182 mm x 144 mm x 43 mm

Weight (Unpackaged)

0.07 lbs / 0.03 kg

Weight (Packaged)

0.265 lbs / 0.12 kg

Warranty

2-year

What's in the Box

1x Status Light with Micro-USB connector
2x Mounting screws
2x Mylar screw covers
QIG
