EloPOS™ Pack
with Windows 10
How to Buy
EloPOS Pack

EloPOS Pack

The EloPOS Pack delivers a powerful enterprise-ready compute platform in a sleek, compact form factor. Backed by the security and infrastructure of a Windows-based system with Intel’s Q370 Chipset and the speed of the Intel’s 9th gen processors, the EloPOS Pack provides the power you need to run your business. With versatile connectivity options, plug in anything from Elo’s latest monitor via single cable USB-C to a legacy printer requiring a 12V powered-USB. The system provides flexibility to make upgrades as your business requirements change.

Designed for Versatility

From point-of-sale terminals and self-service kiosks to automation controls, the EloPOS Pack offers the connectivity and durability to thrive under the demands of continuous use.

  • Retail

    Retail

  • Hospitality

    Hospitality

  • Industrial

    Industrial

Small Footprint

Small Footprint

Purpose-built to accommodate compact spaces, the EloPOS Pack boasts a smaller footprint in both size and weight than other commercial-grade PCs.

Securely Mount

Securely Mount

Easily secure the EloPOS Pack to any counter in a snap. Attach the mounting bracket to your desired location and simply clip it into place. And for added security, you can use the Kensington locks.

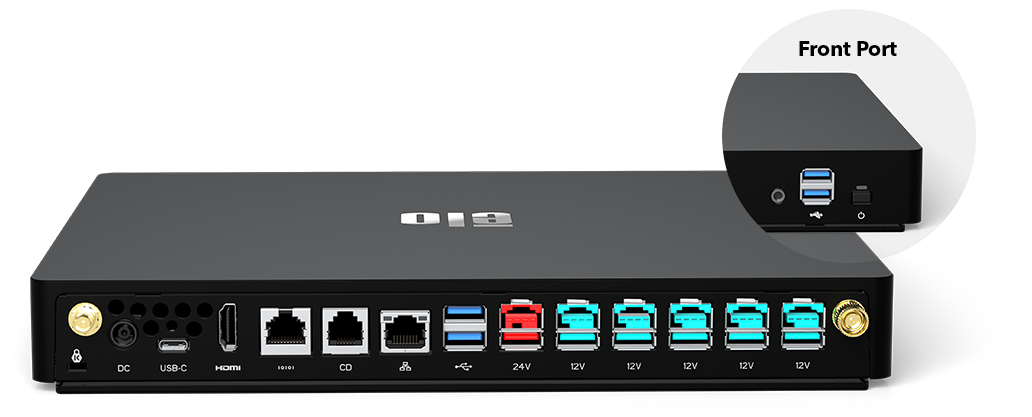

Connect It All

With 16 connection ports, you can connect all the peripherals you need. From cash drawers and printers to barcode scanners and payment devices — there is a port to connect it all.

Connect It All

Processing Power for Your Enterprise

Up to

4-cores

9th Generation
Intel Core i3 Processor

Up to

3.2 GHz

Up to

6-cores

9th Generation
Intel Core i5 Processor

Up to

3.6 GHz

  • Intel Core i3
  • Intel Core i5
6,195

EloPOS Pack

4,305

Competitor 1

3,764

Competitor 2

1.4x

Faster than Competitor 1

11,638

EloPOS Pack

6,580

Competitor 1

5,161

Competitor 2

1.76x

Faster than Competitor 1

*Based on Passmark scores comparing 9th generation i3 and i5 vs the competitors current 6th and 7th generation processors

Leverage the Best of Intel

Create a network with the security, performance and manageability you need for your business.
The EloPOS Pack includes*:

  • TPM 2.0

    TPM 2.0

  • Intel Active Management Technology

    Intel Active
    Management Technology

  • Intel Standard Manageability

    Intel Standard
    Manageability

  • Intel vPro Platform

    Intel vPro Platform

*applies to i3 and i5 models only

Windows or Linux. You Choose.

Whether you want Windows 10 or a no-OS model to run Linux, the enterprise-ready EloPOS Pack provides the freedom to adapt to your infrastructure. To get you up and running quicker, the no-OS models have been pretested with Linux SuSE, Ubuntu and Red Hat operating systems.

Windows or Linux. You Choose.
Get Peace of Mind With EloCare

Get Peace of Mind With EloCareSM

EloCare provides service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.

Unite Your Digital Touchpoints

From your POS Terminals and self-service kiosks to your back-of-house systems,
Elo has a solution for every touchpoint.

Unify Your Systems Across One Architecture

Specifications

  • Technical

    Part Number(s)

    Win 10, G4900T, 4GB RAM, 128GB SSD - E924330
    Win 10, i3-9100TE, 8GB RAM, 128GB SSD - E924535
    Win 10, i5-9500TE, 8GB RAM, 128GB SSD - E924731
    No OS, G4900T, 4GB RAM, 128GB SSD - E982296
    No OS, G4900T, 8GB RAM, 128GB SSD - E117640
    No OS, i3-9100TE, 8GB RAM, 128GB SSD - E982670
    No OS, i3-9100TE, 16GB RAM, 128GB SSD - E582680
    No OS, i5-9500TE, 8GB RAM, 128GB SSD - E982479
    No OS, i5-9500TE, 8GB RAM, 512GB SSD - E780801
    No OS, i5-9500TE, 16GB RAM, 128GB SSD - E582494

    Enclosure Color

    Black

    Processor

    Celeron: Intel Celeron Processor G4900T (2M Cache, up to 2.9 GHz)
    i3: Intel Core i3-9100TE Processor (6M Cache, 3.20 GHz)
    i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) Intel vPro Support

    Chipset

    Intel Q370 Express

    Graphics

    Celeron: Intel UHD Graphics 610
    i3 & i5: Intel UHD Graphics 630

    BIOS

    AMI

    Active Management Technology (AMT)

    Active Management Technology (Intel AMT 11.0) support

    Trusted Platform Module (TPM)

    TPM 2.0

    Memory (RAM)

    Celeron: 4GB 2133MHz DDR4 SO-DIMM on 1 of 4 slots (Expandable to 64GB maximum on 4 slots)

    i3 & i5: 8GB 2133MHz DDR4 SO-DIMM on 1 of 4 slots (Expandable to 64GB maximum on 4 slots)

    NOTE: Maximum memory using 4 slots. Expandable up to 64GB maximum, SO-DIMM DDR4-2133. Check brand of the memory included in your unit before purchasing the memory kit.

    Storage

    128GB M.2 SATA SSD 72 TBW

    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    Compatibility

    Select Models:
    90-Series Open Frames (SAW & PCAP)
    Large Format Open Frames
    Touchscreen Signage (supports a maximum resolution of 1920 x 1080), 7001LT
    02-Series Touchscreen Monitors
    Any HDMI-capable display, without touch support

    Control Buttons

    Power

    Wireless

    802.11 a/b/g/n/ac 2.4GHz and 5GHz

    Bluetooth

    Bluetooth 5.0

    I/O Ports

    1 x HDMI port
    1 x LAN RJ45 (Gigabit)
    2 x USB 3.0 (Front side)
    2 x USB 3.0 (Rear side)
    1 x 24V on I/O
    5 x 12V on I/O
    1 x RJ50
    1 x 12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)
    1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)
    1 x 3.5 mm headset jack

    Antenna

    2T2R design with External SMA connector

    OS

    No OS
    Windows 10 IoT Enterprise LTSC 64-bit

    OS Languages

    Windows 10 - 36 Language groups

    Power Supply

    External 24VDC universal-type power supply brick
    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Maximum output power: 180W

    Power Consumption (Typical)

    ON Celeron: 32.415 W
    ON i3: 48.87 W
    ON i5: 55.34 W
    ON i7: 65 W
    SLEEP BIOS EUP Disable: <3W
    SLEEP BIOS EUP Enabled: <2W
    OFF BIOS EUP Disable: <2W
    OFF BIOS EUP Enabled: < 0.5W

    Mounting Options

    Bracket mounts to table with screws
    System slides forward to engage hooks on bracket

    Other Features

    Serviceable internal components
    Kensington Nano Security Slot
    Kensington lock slot (standard size).

    Dimensions

    10.9" x 1.4" x 9.4" / 276 mm x 37 mm x 237.5 mm

    Shipping Box Dimensions

    16.3" x 6.7" x 13.6" / 414 mm x 169 mm x 346 mm

    Weight (Unpackaged)

    5.76 lbs / 2.6 kg

    Weight (Packaged)

    11.02 lbs / 5.0 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 10% to 90%
    Storage: 0% to 95% (38.7℃ max wet bulb temperature)

    Real-Time Clock

    CR2032 lithium metal battery

    Storage Upgrade Options

    256GB M.2 SATA SSD – Elo P/N: E206556, E762128, E503575
    512GB M.2 SATA SSD – Elo P/N: E865041

    Memory Upgrade Options

    4GB DDR4 Memory SO-DIMM – Elo P/N: E275416, E951667, E952623, E952056
    8GB DDR4 Memory SO-DIMM – Elo P/N: E275635, E951857, E952813, E952252
    16GB DDR4 Memory SO-DIMM – Elo P/N: E953014, E952437

    MTBF

    50,000 hours demonstrated

    Regulatory approvals and declarations

    UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC, UKCA

    Energy Star

    i3 and i5 - 8.0

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E896120
    5 year warranty coverage - Elo P/N: E896322
    3 year warranty coverage + AUR - Elo P/N: E896699
    4 year warranty coverage + AUR - Elo P/N: E896903
    5 year warranty coverage + AUR - Elo P/N: E897104

    What's in the Box

    EloPOS Pack
    North America Power Cord (1800+/-50mm), (6 ft +/- 1 inch)
    EU Power Cord (1800+/-50mm)
    Power Adapter – 180W
    Cable RJ-50 to DB-9 (900+/-30mm), (3 ft +/- 1 inch)
    USB Type-C cable (1800+/-50mm), (6 ft +/- 1 inch)
    HDMI cable (1800+/-50mm), (6 ft +/- 1 inch)
    USB cable (1800+/-50mm), (6 ft +/- 1 inch)
    2x SMA Antenna
    Quick Installation Guide (QIG)
