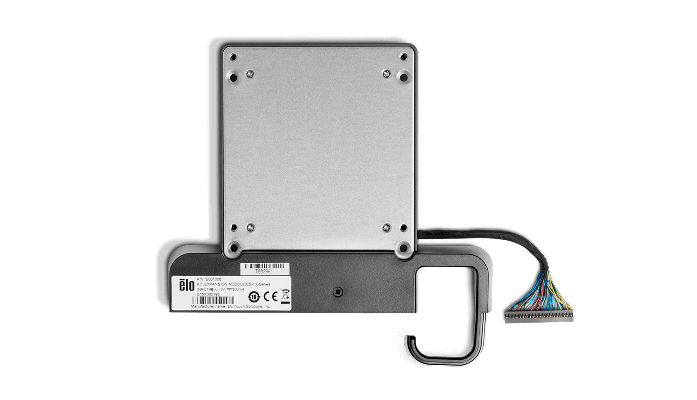

Expansion Module for X-Series
Elo's Expansion Module can be used with any Elo X-Series Touchscreen computer to provide additional connectivity to your hardware.
Specifications
-
Technical
Part Number(s)
E001006
Enclosure Color
Black
Compatibility
All X-Series REV A models All-in-One (AiO) touchcomputers

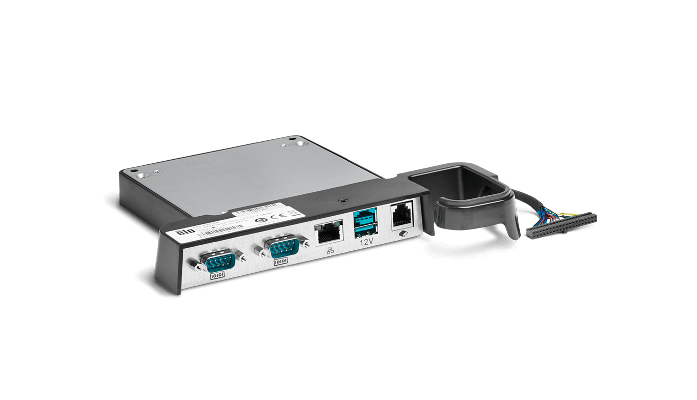

Supports OS- Windows 7, Windows POSReady 7, Windows 8.1, Windows 10I/O Ports
2x RS-232 ports
1x 12V Powered USB port
1x USB 2.0 port
RJ-45 Ethernet port (10/100/1000 Mbps Ethernet Controller)
Wake-On-LAN spec requirement
RJ-11 interface
12/24V Cash Drawer Port
BIOS menu controlDimensions
Refer to dimensional drawing
Shipping Box Dimensions
11.4" x 12.4" x 3.34" / 390 mm x 315 mm x 85 mm
Weight (Unpackaged)
1.14 lbs / 0.52 kg
Weight (Packaged)
1.43 lbs / 0.65 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Regulatory approvals and declarations
UL, cUL , FCC, IC, TUV, CE, CB, CoC, VCCI, CCC, RCM, SRRC, Energy Star
MTBF
50,000 hours demonstrated
Warranty
3-year
What's in the Box
Expansion Module
Quick Install Guide
Expansion Module Cable Cover x 1pcs.
Screw to secure (M4x30mm, 4pcs)
Screw to secure for cable cover x 1pcs
Note for X2 sku system.
