IDS Touch Stylus
Specifications
-
Technical
Part Number(s)

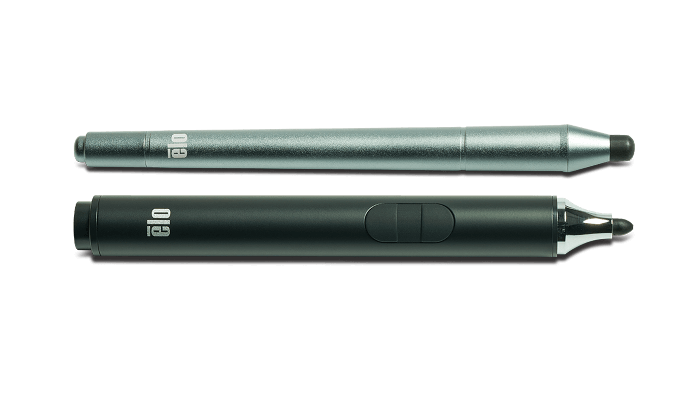

Active Stylus for PCAP IDS Displays - E216215
Passive Stylus for IR IDS Displays - E727568Technology
Active: Active Capacitive Coupled
Passive: N/AEnclosure Color
Active: Black/Silver
Passive: Space greyWorking Frequency
Active: 90KHz – 250KHz, Frequency Hopping Supported
Passive: N/APressure Level
Active: Up to 1024 levels
Passive: N/AButtons
Active: Eraser, Barrel
Passive: N/AActive Tip Force
Active: < 25g, Max: 400g
Passive: N/AReport Rate
Active: Typical: ≥ 133Hz
Passive: N/APower
Active: AA battery x1, replaceable
Passive: N/APower Consumption (Typical)
Active:
Active: 6mA @1.5V
Suspend: 75uA @1.5V
Passive: N/ATouch Accuracy
Active:
≤ ±1mm for center area
≤ ±1.5mm within 8mm of the edges
Passive: N/AJitter
Active:
≤ ±1mm for center area
≤ ±1.5mm within 8mm of the edges
Passive: N/ASupported Operating Systems
Active: Win7, Win10, Android, Linux
Passive: N/AOther Features
Active:
Auto Power Off: enter sleep mode after idle for 2 mins
Pressure Detection
Tilt Angle Detection
Pen Priority
Function Button: Lower for eraser function, upper for barrel function
See User Guide for details on how to use these functions.
Passive: N/ADimensions
Active: 5.68" x 0.63" / 144.2 mm x 16 mm
Passive: 6.52" x 0.56" / 165.6 mm x 14.3 mmWeight (Unpackaged)
Active: 0.06 lbs / 26 g
Passive: 0.07 lbs / 32 gOperating Temperature
0°C to 50°C / 32°F to 122°F
Storage Temperature
30°C to 70°C / -22°F to 158°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
Compatibility
Active: 5053L, 5553L, 6553L PCAP Interactive Displays
Passive: 4303L, 5053L, 5553L, 6553L IR Interactive DisplaysWarranty
2-year
What's in the Box
Active:
Black active stylus x1

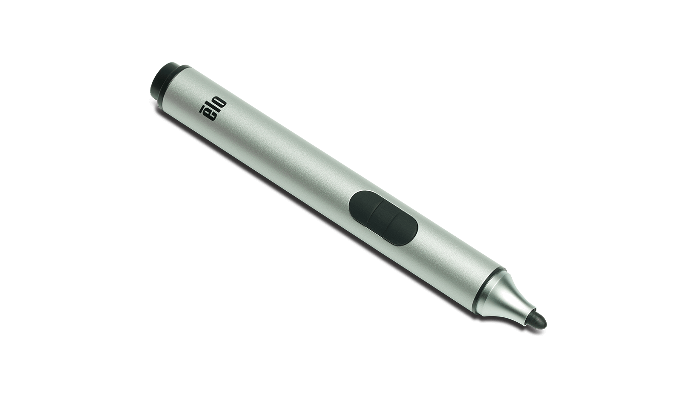

Silver active stylus x1
AA battery x2
Passive:
Space grey passive stylus x2
