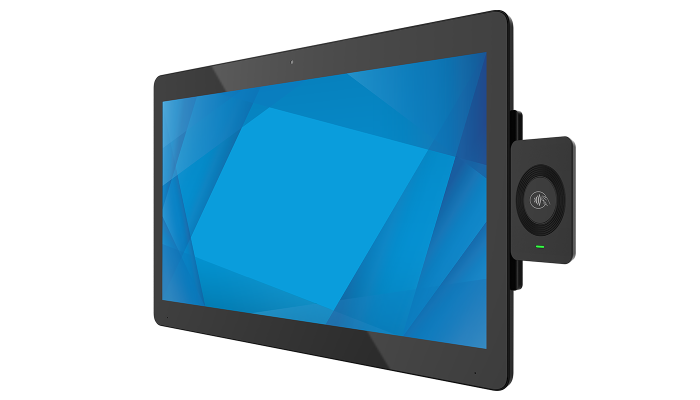

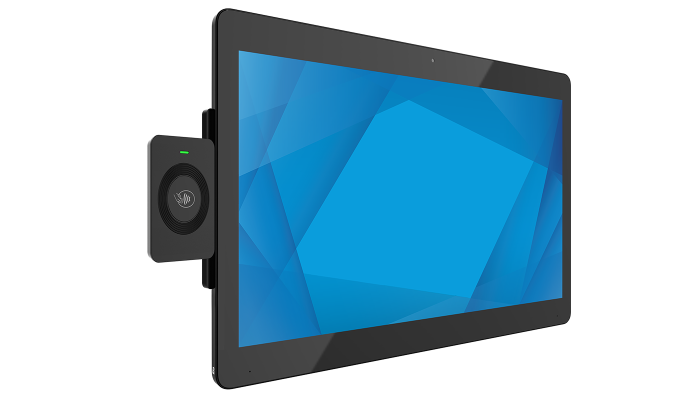

Elo Edge Connect® RFID

Specifications

• Technical

  ---

  Part Number(s)

  E673037

  Enclosure Color

  Black

  Power Supply

  5VDC ± 5%

  RF Interface

  ISO/IEC14443 - ISO/IEC14443 Type A & B up to 848kbps, MIFARE Classic, MIFARE DESFire, HID Seos
  ISO/IEC15693
  HID iCLASS - ISO/IEC15693 mode
  FeliCa - CSN only
  HID Prox
  Indala Prox
  BLE - For HID Mobile Access applications

  Host Interface

  USB 2.0

  Interface Modes

  CCID
  Keyboard Wedge

  Beeper Support

  Yes

  Status Indicators

  Yes

  Frequency Range

  125 KHz, 13.56 MHz, 2.44 GHz

  Card & Protocols High Frequency

  CCID:
  iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus, MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2, T=CL, ISO 14443A, ISO14443B CSN, FeliCa, SmartMX with up to 848 kbps transmission rate (depending on card1), ISO 15693 with up to 26 kbps transmission rate (depending on card), Student ID in Apple Wallet

  KEYBOARD WEDGE:
  The following credentials can be handled autonomously: iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus (Security Lvl 1) , MIFARE DESFire 0.6 MIFARE DESFire EV1/EV2 (MAC/DES/3DES / 3K3DES / AES), CEPA (CAN), FeliCa (Idm), PIV, ISO14443B (CSN), Student ID in Apple Wallet

  Card & Protocols Low Frequency

  HID Prox, Indala Prox, EM Prox (Standard Mode Only), AWID Prox

  Supported Operating Systems

  Windows 7/10
  Ubuntu 18.04
  Mac OS X
  Android 7.x or later

  Weight (Unpackaged)

  0.165 lbs / 0.075 Kg

  Weight (Packaged)

  0.408 lbs / 0.185 Kg

  Dimensions

  4.71" x 2.70" x 1.15" / 119.6 mm x 68.5 mm x 29.1 mm

  Shipping Box Dimensions

  6.89" x 4.49" x 2.72" / 175 mm x 114 mm x 69 mm

  Operating Temperature

  10°C to 40°C / 50°F to 104°F

  Storage Temperature

  0°C to 50°C / 32°F to 122°F

  Humidity

  Operating: 20% to 80%
  Storage: 10% to 90%

  Warranty

  2-year

  Regulatory approvals and declarations

  FCC (US) - Class B
  IC (Canada)
  CE (Europe) - Class B
  VCCI, MIC (Japan)
  RCM (Australia)
  SRRC (China)
  UKCA
  China RoHS

  What's in the Box

  RFID
  2 Mounting screws
  2 Mylar screw covers
  QIG
