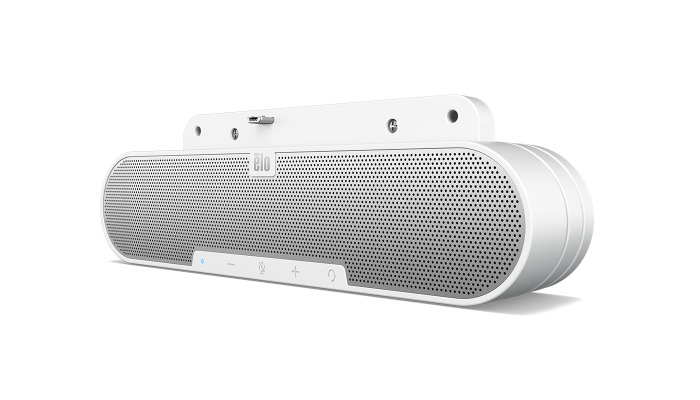

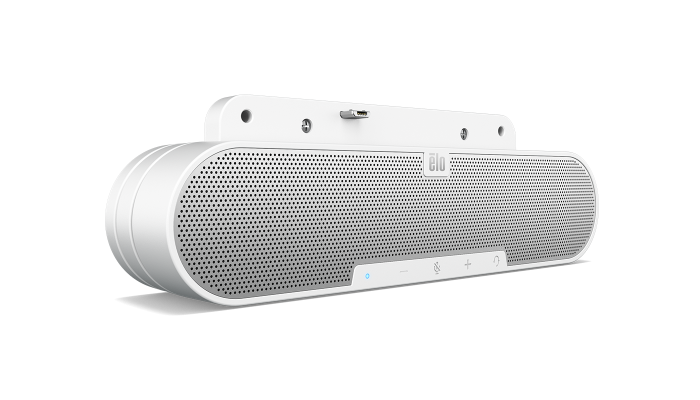

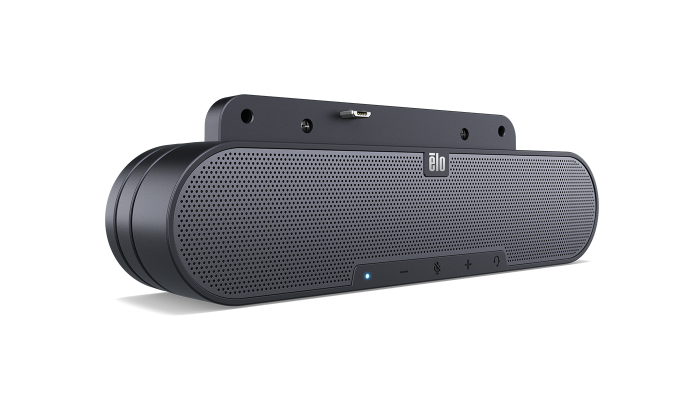

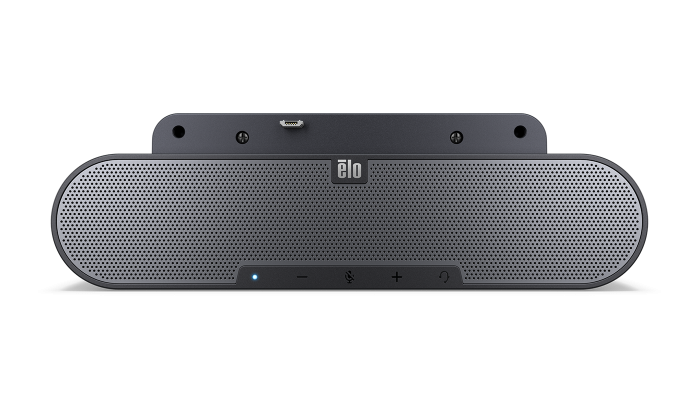

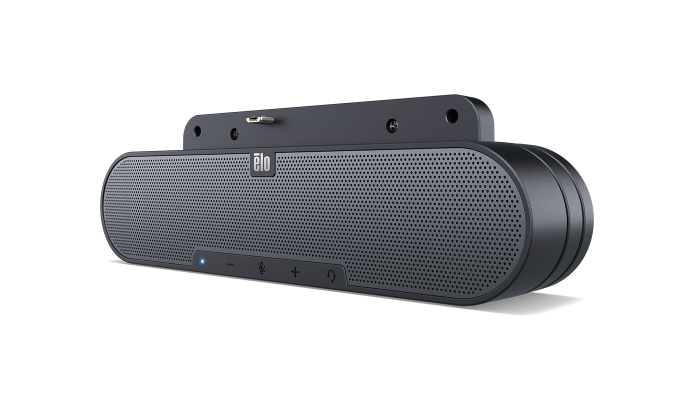

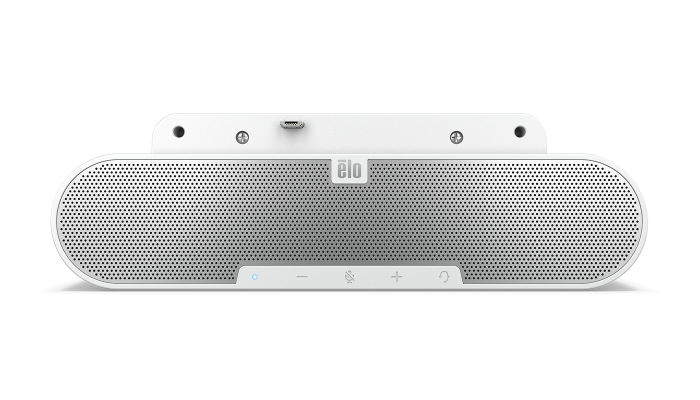

Elo Edge Connect™ Speaker Bar
Overview
Upgrade your audio by adding the Elo Edge Connect Speaker Bar to a variety of Elo touchscreens. With a minimalistic design and easy installation, the speaker bar fits seamlessly into any Edge Connect port. Start providing your customers with an immersive audio experience with a simple and space efficient solution.
Specifications
-
Technical
Part Number(s)
Black - E894719
White - E133780Enclosure Color
White or Black
Compatibility
I-Series for Android (2.0, 3.0, 4.0)
I-Series for Windows (2.0)
EloPOS
Touchscreen Monitors - 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L
Touchscreen Signage - 3202L, 4202L, 4602L, 5502L, 3203L, 4303L, 5503L, 5053L, 5553L, 6553LSpeaker
Speaker Type: Internal magnetic speaker
Output Power: Normal: 3W, MAX:5W
Max SPL: 81 ±3dB @1M/1W
Frequency Response: 280Hz-20KHzMicrophone
Microphone Frequency: 100-10,000Hz
Analog Signal Processing: Two analog microphone
Microphone Coverage : 360° Omni-directional
Microphone Sensitivity: -30±2dB
Max Pickup Spacing: Within 5 metersAmplifier
Integrated
Interface
Micro USB
Controls
Mute, Volume+, Volume-
I/O Ports
USB 2.0 (Micro USB)
Headphones (mini-phone stereo 3.5 mm)Power
USB Power
OS Support
Android 10/12, Windows 10/11
Ubuntu 22.04Dimensions
165.00 mm x 50.50 mm x 39.40 mm
Operating Temperature
10°C to 40°C / 50°F to 104°F
Storage Temperature
0°C to 50°C / 32°F to 122°F
Humidity
Operating: 20% - 80%
Storage: 10% - 90%Warranty
2-year
What's in the Box
Speaker Bar
2 Mounting screws
QIG
