Windows Computer Modules (ECMG4) - for IDS 03/53-Series
How to Buy

Computer Modules

The Elo ECMG4 Computer Modules feature Intel® Core® 7th Generation CPUs with enhanced graphics performance. Available with Intel i5 processors for Microsoft Windows® 10 or no operating system, the commercial grade computer modules transform Elo's Large Format Interactive Displays into powerful all-in-one platforms. By adding touch to digital signage installations, you can create immersive brand experiences and self-service solutions to help increase customer engagement and satisfaction.

*14 Day Free Trial of AirServer Windows 10 Desktop Edition.
The all new AirServer for Windows 10 is a powerful universal mirroring receiver, $40 per year.

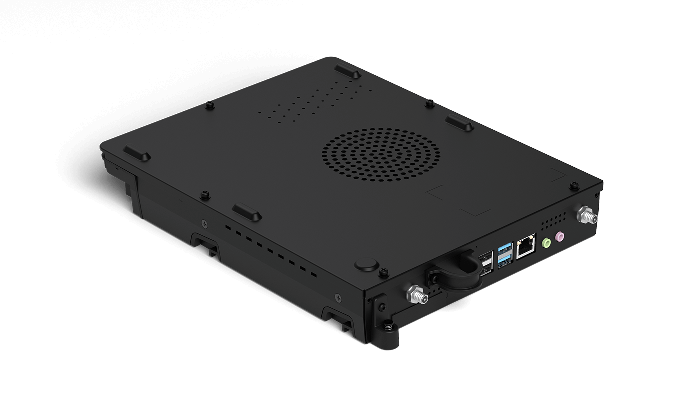

Smaller Form Factor

With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model,
delivering a lower cost, lower energy consumption mini pc that's easier to install and maintain.

Smaller Form Factor

Key Features

  • CPU


    Intel Core i5-7500T

  • GPU


    Intel HD Graphics 630

  • Chipset


    Intel H110 Chipset

  • OS


    Windows 10 Enterprise 2019 LTSC 64-bit,
    Windows 10 Enterprise 2019 SAC 64-bit or no OS

  • RAM


    8 GB DDR4-2400 MHz SO-DIMM on
    1 of 2 slots (expand to 64 GB) OS

  • Storage


    256GB m.2
    Solid State Drive (SSD)

Easy Installation

Easy Installation

The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.

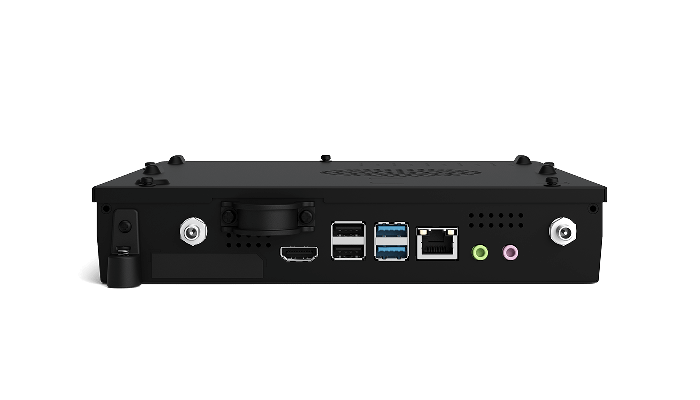

  • LAN


  • 2x USB 2.0 Type A

    2x USB 2.0
    Type A

  • 2x USB 3.0 Type A

    2x USB 3.0
    Type A

  • HDMI


  • >3.5 mm line out & mic in

    3.5 mm line
    out & mic in

Collaboration Ready

Collaboration Ready

Pair the flexibility of Elo’s 03/53-Series Interactive Boards with an intuitive dashboard, seamless bring-your-own-device content sharing and robust annotation and whiteboarding software – delivering employees and corporations countless benefits. From increased efficiency to controlled costs – start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.



The Elo Computer Modules deliver the quality and
reliability Elo is known for and are backed by our
3-year standard warranty with an optional extension
to 4 or 5-years. We design and build the complete
solution, with touch integrated from the start.


  • Technical



  • Additional Support Resources

  • Collateral

  • User Guides

  • Drawings and Certificates

Get Started with Elo Today.
