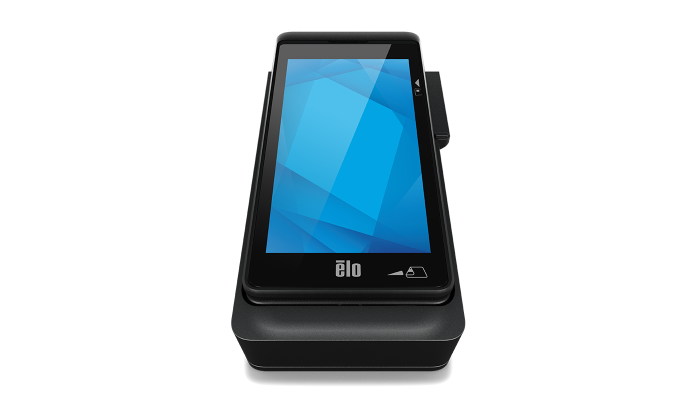

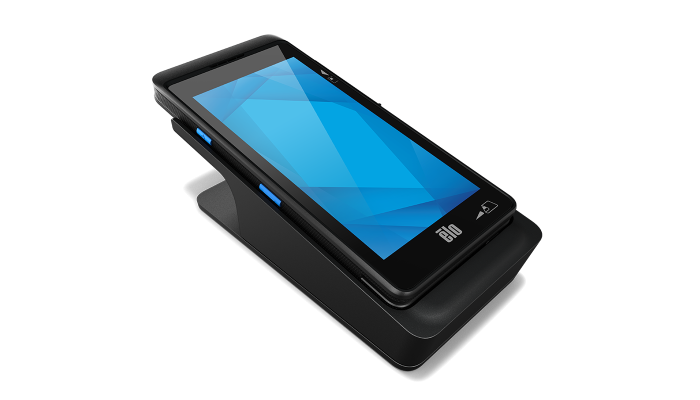

DS11 Docking Station

Specifications

• Technical

  ---

  Part Number(s)

  E392249

  Enclosure Color

  Black

  Compatibility

  M60 Mobile Computer

  I/O Ports

  USB-C

  Dimensions

  6.93" x 3.93" x 2.41" / 176 mm x 99.9 mm x 61.2 mm

  Shipping Box Dimensions

  8.97" x 7.05" x 3.82" / 228 mm x 179 mm x 97 mm

  Mounting Options

  Countertop (Refer to QIG for more details)

  Weight (Unpackaged)

  1.1 lbs / 0.5 kg

  Weight (Packaged)

  1.54 lbs / 0.7 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 50°C / -4°F to 122°F

  Humidity

  Operating: 20% - 80%
  Storage: 10% - 95%

  Regulatory approvals and declarations

  UL, FCC (US) - Class B
  cUL, IC (Canada)
  CB (International safety)
  CE (Europe) - Class B
  VCCI (Japan)
  RCM (Australia)
  China RoHS

  MTBF

  50,000 hours demonstrated

  Warranty

  1-year

  What's in the Box

  DS11 Docking Station
  1x tie wrap for cable management
  1x M60S/M60SC holder
  1x HS11 hand strap
  2x key
  QIG
