Windows 7 Computer Modules (ECMG3) - for IDS 02-Series (Discontinued October 2019)

Specifications

• Technical

  ---

  Part Number(s)

  i3-6100 ECMG3 - Windows 7 - Elo P/N: E400775
  i5-6500 ECMG3 - Windows 7 - Elo P/N: E401365
  i7-6700 ECMG3 - Windows 7 (with vPro) - Elo P/N: E401962

  Compatible with
  3202L TouchPro and IR
  4202L TouchPro and IR
  4602L TouchPro and IR
  5502L TouchPro and IR
  5551L IR
  7001LT IR

  Enclosure Color

  Black

  Processor

  Intel Core i3-6100 Processor:
  (3M Cache, 3.70 GHz)
  3 MB Intel Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Intel Core i5-6500 Processor:
  (6M Cache, up to 3.60 GHz)
  6 MB Intel Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Intel Core i7-6700 Processor (vPro):
  (8M Cache, up to 4.00 GHz)
  8 MB Intel® Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Chipset

  i3 & i5: Intel H110 Chipset
  i7: Intel Q170 Chipset

  Graphics

  Intel HD Graphics 530

  BIOS

  AMI

  Memory (RAM)

  i3 & i5: 4 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  i5 Model (E458919): 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  i7: 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  *Maximum memory using 2 slots.

  Storage

  128 GB 2.5” SATA Solid State Drive (SSD)

  i5 Model (E458919) / i7 Model (E459109) - 256 GB 2.5” SATA Solid State Drive (SSD)

  GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

  Max/Slot

  Expandable up to 16GB maximum, SO-DIMM DDR4-2400 per slot

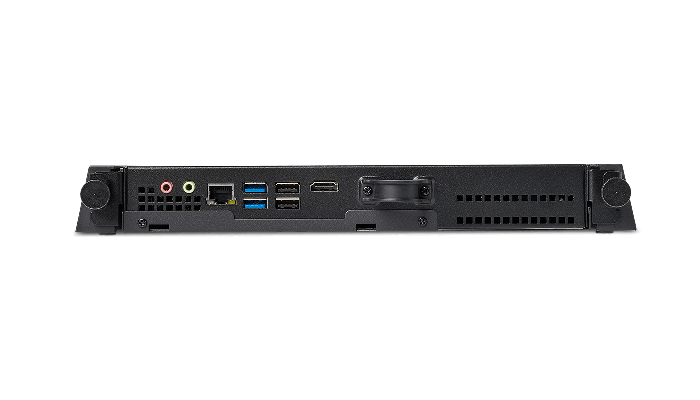

  USB Ports

  i3 & i5: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A
  i7: 4 x USB 3.0 Type A

  Ethernet Port

  1 x LAN RJ45

  Audio Ports

  1 x 3.5 mm Line out
  1 x 3.5 mm MIC in

  Video Out

  1 x HDMI (UHD capable)

  OS

  Windows Pro 7*

  OS Languages

  Windows 7: 35 language groups: Arabic, Brazilian Portuguese, Bulgarian, Chinese (Simplified), Chinese (Traditional), Chinese (Hong Kong), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian Latin, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian

  Power Supply

  Internal power supply module included

  Dimensions

  power module + computer module: 11.81” x 16.85” x 1.46” / 300mm x 428mm x 37mm

  Shipping Box Dimensions

  power module + computer module: 16.5” x 21.0” x 5.12” / 419 mm x 535mm x 130mm

  Weight (Unpackaged)

  6.88 lbs / 3.12kg

  Weight (Packaged)

  10.47 lbs / 4.75 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 5% to 90%

  Real-Time Clock

  lithium-ion battery

  MTBF

  50,000 hours demonstrated

  What's in the Box

  Computer Module
  QIG
  Screws
  VESA Spacer for IDS02

  Regulatory approvals and declarations

  UL/cUL, CB, FCC, CE, AS, NZS, VCCI

  Warranty

  3-year

  Extended Service Options

  4 year warranty coverage - Elo P/N: E896120
  5 year warranty coverage - Elo P/N: E896322
  3 year warranty coverage + AUR - Elo P/N: E896699
  4 year warranty coverage + AUR - Elo P/N: E896903
  5 year warranty coverage + AUR - Elo P/N: E897104

  Optional Product Coverage

  On Site Exchange included in Continental US only

  *Windows 7 License

  Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. If your system has a Windows 10 license sticker, then your system includes this feature and, subject to the licensing terms for the Windows software, you may temporarily use the loaded Windows version before upgrading.
