5543L Open Frame Touchscreen (Replaced by 5503L)
This version has been replaced by the 5503L.

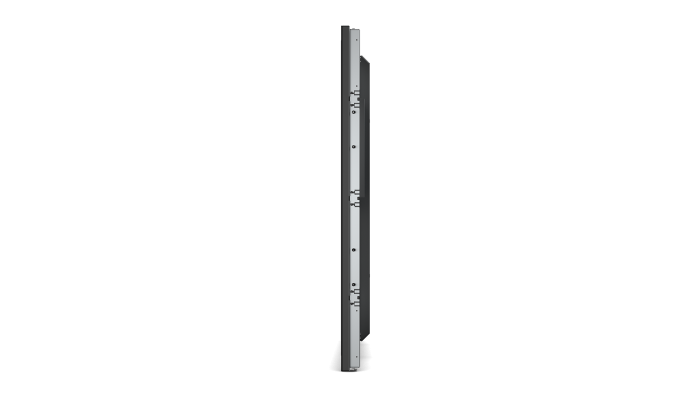

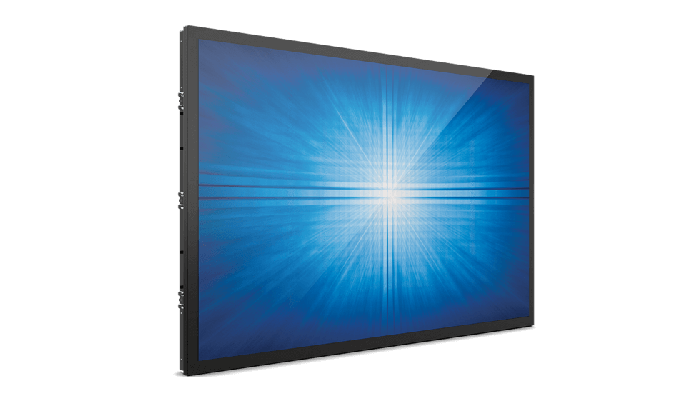

The Elo 5543L open frame touchscreen delivers a professional-grade large format 54.6-inch full HD display in a sleek and thin 2.6-inch (67 mm) form factor. The 5543L enables a thinner and smaller kiosk design for applications with limited space. The touchscreen glass is built and tested to provide robust impact resistance by exceeding the UL60950 ball-drop and IK07 impact immunity requirements. Energy Star 7.0 certified, the 5543L, with its’ energy efficient LED backlight, is designed for optimal energy conservation reducing power consumption and heat dissipation. The 5543L offers multiple mounting options, sleek edge-to-edge glass architecture and can handle 24/7 operation, making it ideal for public venue self-service kiosks and built-in application installs for retail, hotels, gaming, transportation and other commercial uses.

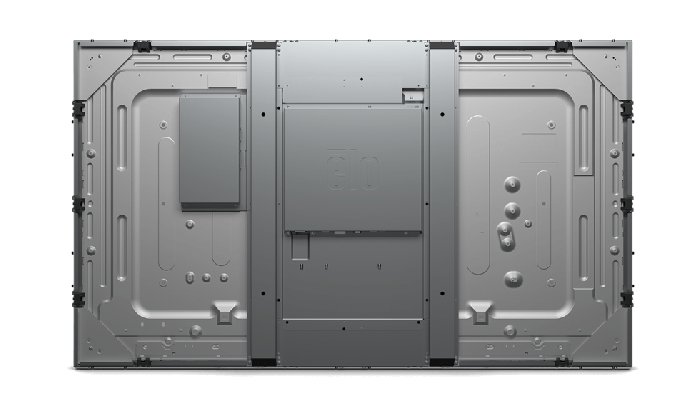

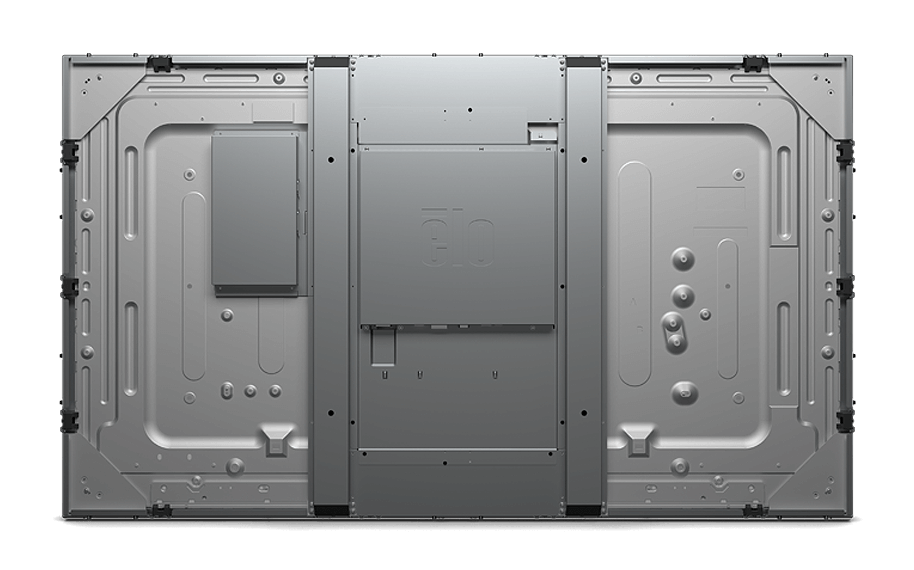

TouchPro® Projected capacitive (PCAP) units offer clear anti-friction glass that are sealed against dirt and dust to simplify integration into the final enclosure. And with the capability to support touch thru glass, the 5543L can be sealed into a solution and obtain an IP65 rating on the front side of the unit. The flush mount kit is included to enable a seamless and elegant front kiosk surface. And, as with all Elo open frame touchscreen displays, we control the design and tooling to help ensure future products will be identical in form, fit and mechanical design whenever possible helping you to minimize costly enclosure changes.
Designed for touch from the start, the seamless zero-bezel 54.6-inch multi-touch display is available with our latest TouchPro PCAP advanced solution offering a lighter 12-point multi-touch screen specifically designed for large format, high-use applications. The 5543L's TouchPro PCAP offers fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows® 7, Windows 8 and Windows 10. The 5543L touchscreen provides pure glass construction to deliver a clear, bright and long-lasting touchscreen solution.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. Designed and built by Elo, we use our own touchscreens, software and drivers ensuring everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
- 1920 x 1080 full HD for crisp image and text detail
- Multiple available mounting option
- Bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
- TouchPro PCAP technology utilizes clear glass with anti-friction coating to provide a smooth smartphone like touch experience without surface tension.
- Regulatory approvals and declarations for use across the globe
- Integrated power supply for use in slim enclosures
- Energy efficient with EnergyStar 7.0 certification and EU Efficiency Class A+ ratings
Similar products.3243L 32" Open Frame Touchscreen
4243L 42" Open Frame Touchscreen
4343L 42.5" Open Frame Touchscreen
5502L 55" Interactive Digital Signage
5551L 55" Interactive Digital Signage
Refine your search:
- TouchPro® - PCAP
- Up to 12
- Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
No Configurations found.
