PayPoint® for Windows® (Replaced by EloPOS Z30)
This version has been discontinued. Please see the replacement model - EloPOS Z30 with Intel.
Overview

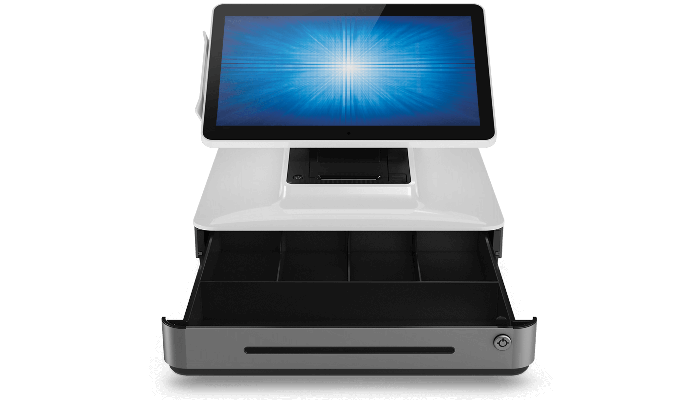

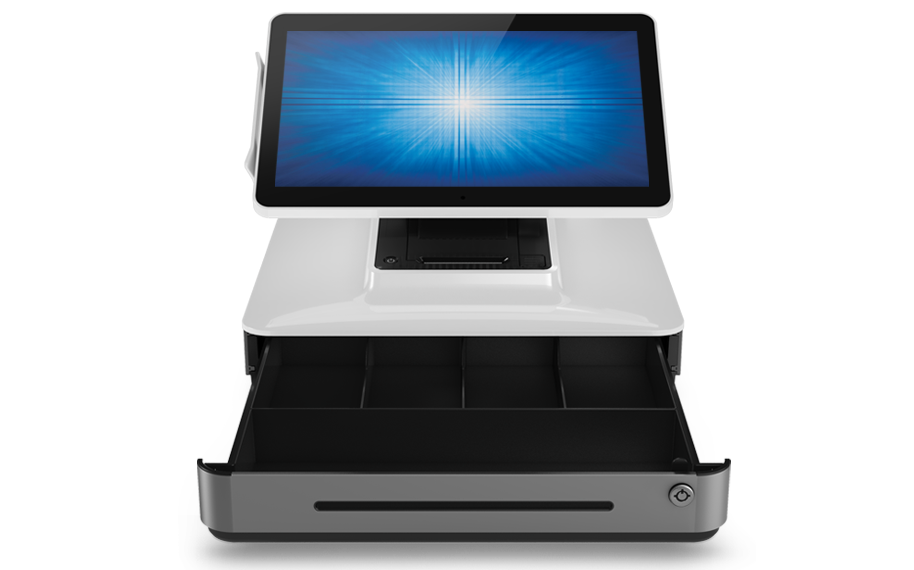

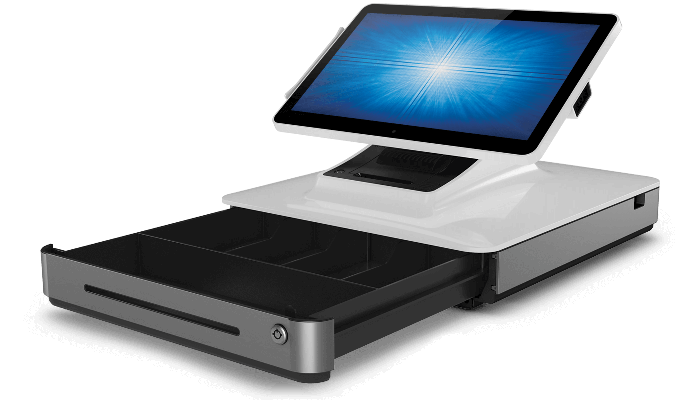

PayPoint is an all-in-one mPOS solution that brings simplicity and elegance to the point of sale. Offering sleek, modern style with peripherals built in, the PayPoint platform is retail hardened and built to last with a three-year warranty.
Plug & play.With its single cable design, PayPoint makes setting up the point of sale system fast and easy. Just unbox, plug in, connect, and go. |
 |
 |

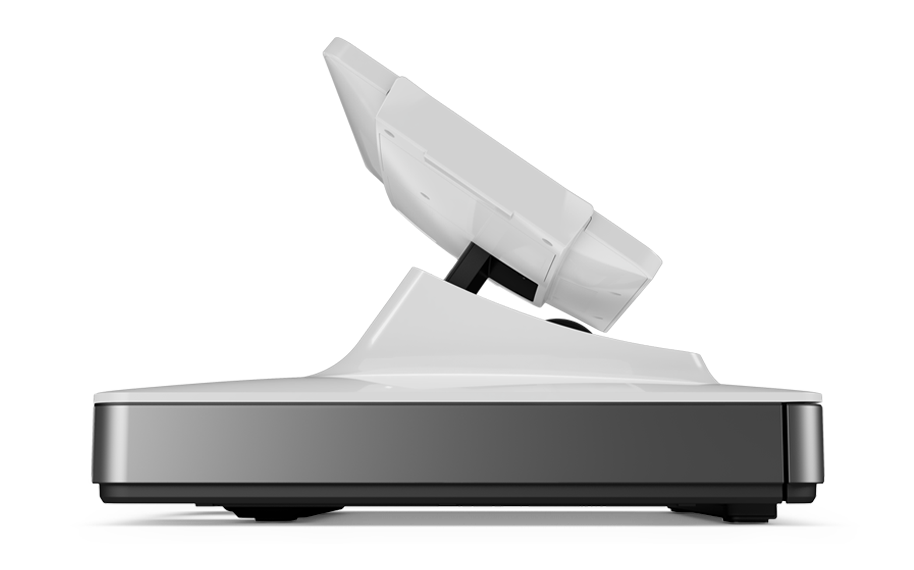

Sleek design.For retailers and operators, counter space is always at a premium. Ensuring that the counter looks inviting and remains functional is of the utmost importance. With its small footprint and attractive design, PayPoint turns the cash wrap into a beautiful and functional space to allow you to better serve your customers. |

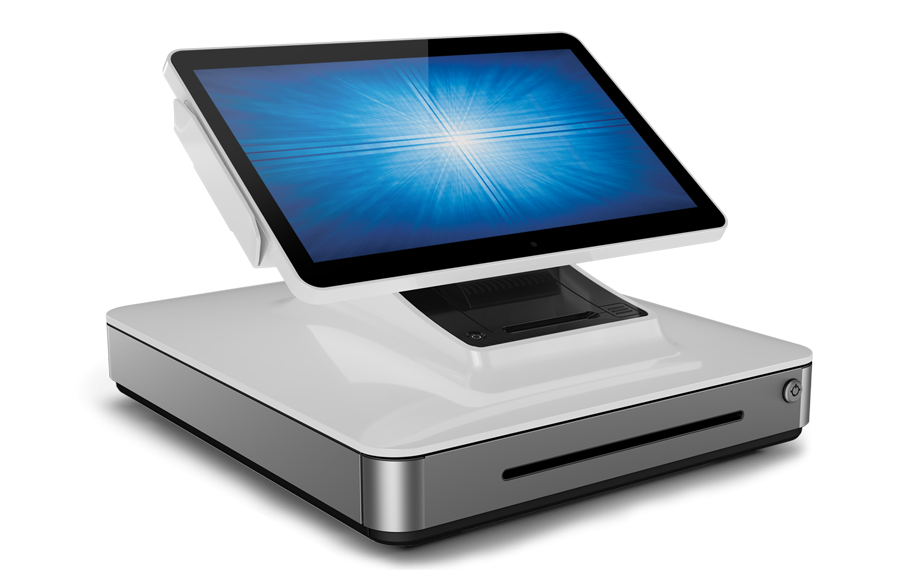

Functionality delivered.PayPoint integrates a receipt printer, cash drawer, MSR, barcode scanner and customer facing display. The flip-for-signature screen encourages shopper engagement and electronic receipt delivery. Bluetooth connectivity and expansion ports allows for the addition of optional peripherals such as a handheld scanner or weight scale. For traditional payments, leverage the built-in MSR or add Elo’s optional NFC reader for contactless payments and proximity marketing. For EMV support, pair with your preferred EMV reader via USB or Bluetooth to provide your customers with a full-function, mobile point of sale experience that supports highly secure EMV transactions. |
 |
 |

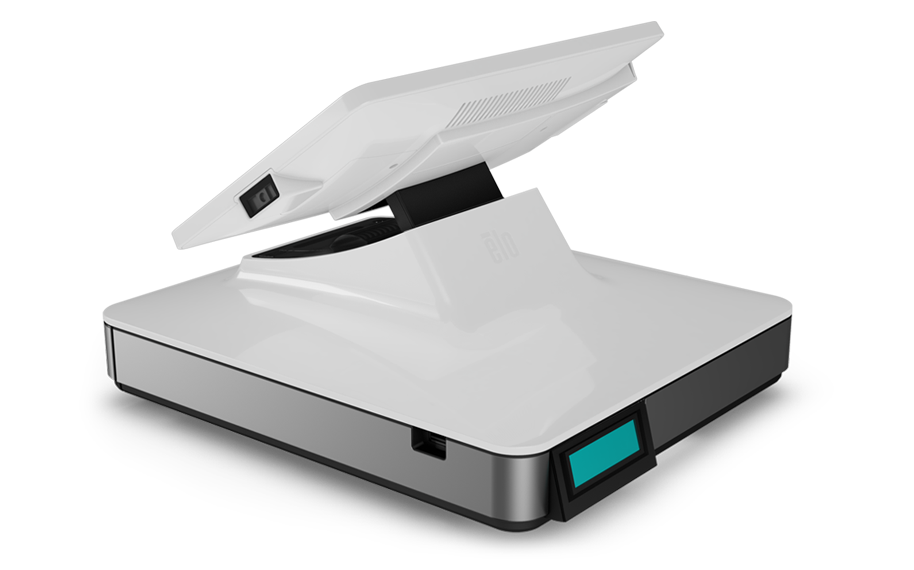

Integrated flexibility.Whether working with one of Elo’s strategic point of sale software partners or deploying your own application, you can easily add the mPOS functionality you need to run your business. PayPoint Certified Software Partners |
Other features.
- Integrated receipt printer, cash drawer, MSR, barcode scanner and customer facing display
- 13.3-inch projected capacitive (PCAP) display
- High-performance Intel Celeron Quad-Core processor
- WiFi and LAN network connectivity
- Bluetooth module and expansion ports for external peripherals
- Access to memory and storage compartments allow for ease of serviceability
- Ability to secure base to tabletop or desktop
- Three-year warranty
- Windows SDK and OPOS/JPOS support that allows developers to certify PayPoint with ease.
Specifications
-
Technical
Part Number(s)
PCAP POSReady (Americas) - E158764
PCAP Win Pro 7 (Americas) - E158558
PCAP No OS (Americas) - E158947
PCAP POSReady (Europe) - E270404
PCAP Win Pro 7 (Europe) - E270176
PCAP No OS (Europe) - E270602
PCAP Win Pro 7 (Asia/Pacific) - E318163
PCAP No OS (Asia/Pacific) - E317972Enclosure Color
White
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60Hz
Active Area
11.6" x 6.5" / 293.47mm x 165.07mm
Number of Colors
262,000
Brightness (typical)
LCD Panel: 400 nits
Response Time-total (typical)
25 msec
Contrast Ratio
700:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Processor
Intel 2.42 GHz Celeron Quad-Core; 2MB Intel® Smart Cache
Chipset
Intel® J1900 Chipset
Graphics
Intel® HD Graphics
BIOS
AMI
Memory (RAM)
4GB 1600MHz DDR3L DIMM on 1 slot
NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximumHard Disk Drive
128GB 2.5” (7mm) SATA SSD
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less
USB Ports
3 x USB 2.0 (USB 3.0 charging/power capability)
Serial Ports
1 x RJ45 Serial
Ethernet Port
1 x LAN RJ45 (Gigabit)
Wireless
Mini-PCIe wireless (802.11a/b/g/n/ac)
Cash Drawer Port
4 bill, 5 coin built in cash drawer
Removable coin slot insert
Slot for checksSpeakers
1 x .5W internal speaker
OS
No OS
Windows Pro 7*
Windows POSReady 7Languages
Windows 7 - 35 Language groups
Power
110VAC 60Hz or 230VAC 50Hz (internal power adapter)
Power Consumption (Typical)
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzMax Touchcomputer Dimensions With Stand
13.6" x 11.3" x 8.4" / 345mm x 288mm x 212mm (Display at 0° tilt, W x H x D)
Shipping Box Dimensions
17.7" x 18.7" x 13.4" / 450mm x 475mm x 340mm
Weight (Unpackaged)
21.4lbs / 9.7kg
Weight (Packaged)
26.7lbs / 12.1kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL, FCC, CE, CB, CCC
Real-Time Clock
lithium-ion battery
MTBF
50,000 hours demonstrated
Warranty
3-year
Sealability
Touchscreen sealed to LCD (all)
Power Cables
Power cables included
Other Features
Serviceable internal components
What's in the Box
13-inch PCAP display, cash drawer, printer, MSR, bar code scanner, customer facing display, Ethernet cable, Power cable (NA, EU, UK, China), 2 receipt paper rolls, 2 cash drawer keys, Quick Installation Guide
Optional PCAP Stylus Pen
E066148
Optional Accessories
PayPoint NFC Kit - Elo P/N: E149962
PayPoint Cash Drawer Kit US - Elo P/N: E332393
PayPoint Cash Drawer Kit Worldwide - Elo P/N: E332197
EMV Cradle for Ingenico ICMP - Elo P/N: E953516
EMV Cradle for Verifone E355 - Elo P/N: E002639Expansion Options
Any SSD/HDD with 7mm thickness
Up to 8GB LPDDR3 (single slot)*Windows 7 License
Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. If your system has a Windows 10 license sticker, then your system includes this feature and, subject to the licensing terms for the Windows software, you may temporarily use the loaded Windows version before upgrading.
