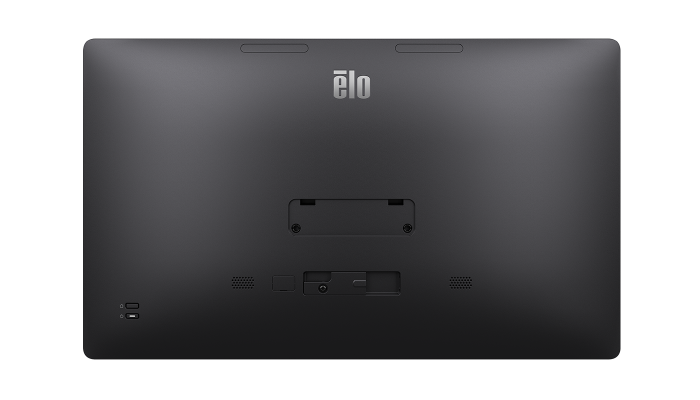

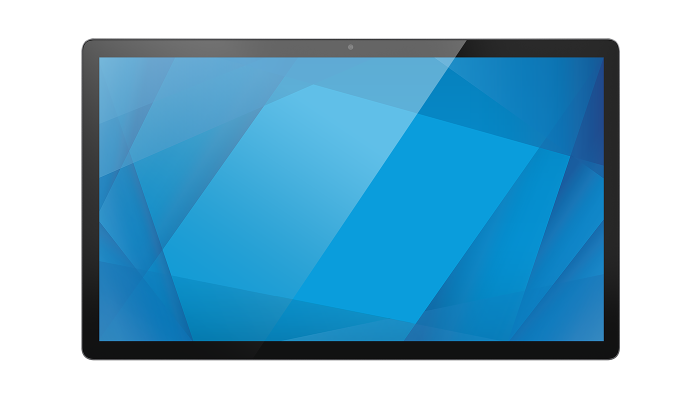

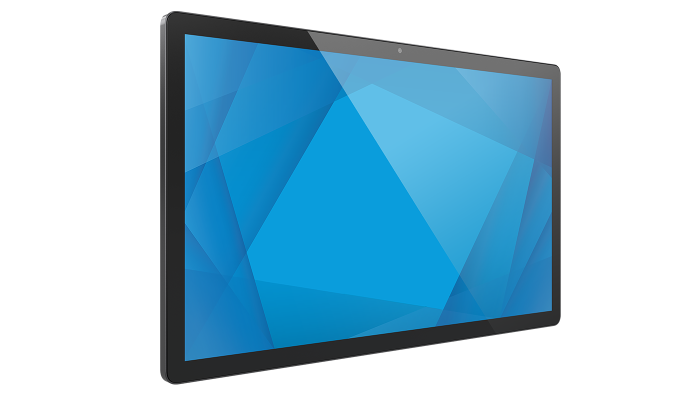

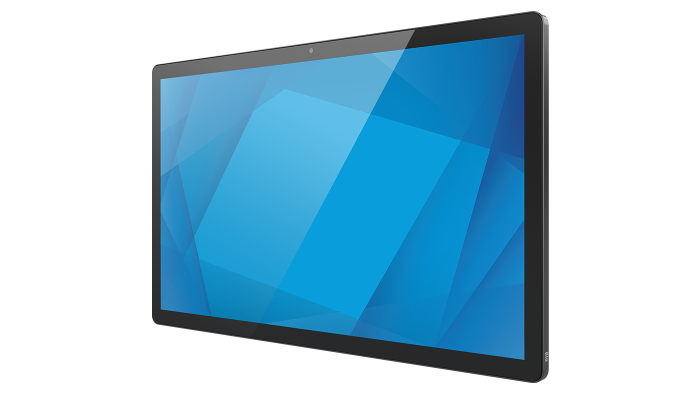

15-inch I-Series 5 Slate
Touchcomputer

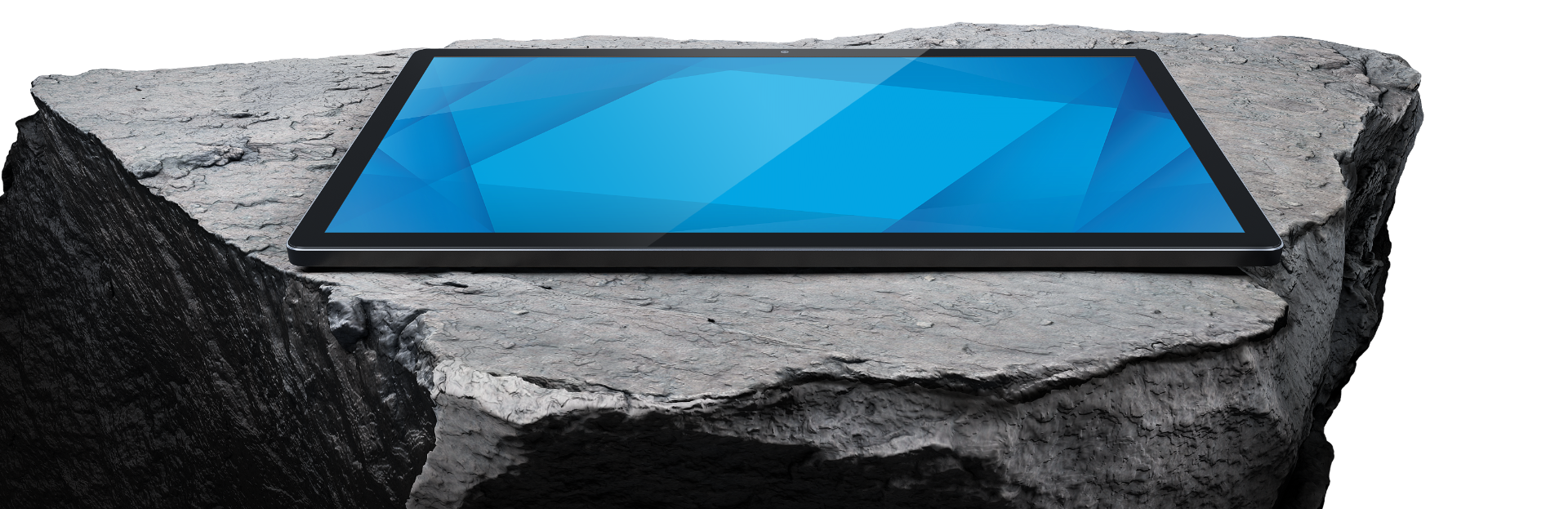

Elo's I-Series 5 Slate delivers a powerful 15.6-inch Full HD interactive system, complete with Android 14 OS, Qualcomm processor and an I/O hub. Built to be one of the thinnest commercial-grade fixed tablet form factors, the I-Series 5 Slate delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity.
Order now
Brilliant touchscreen
for any experience.
10-touch PCAP display
Android 14 with GMS

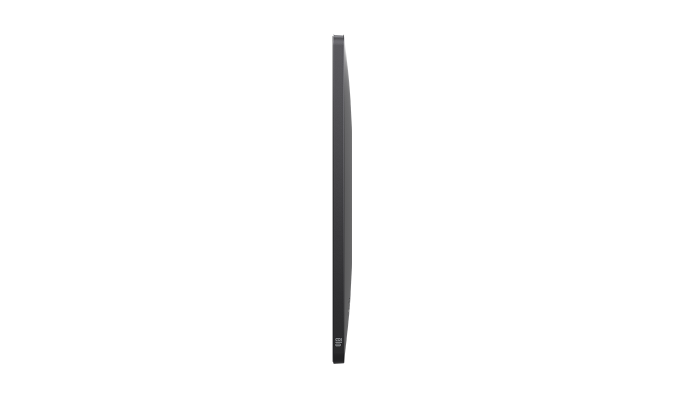

15.1 mm thin
8MP webcam

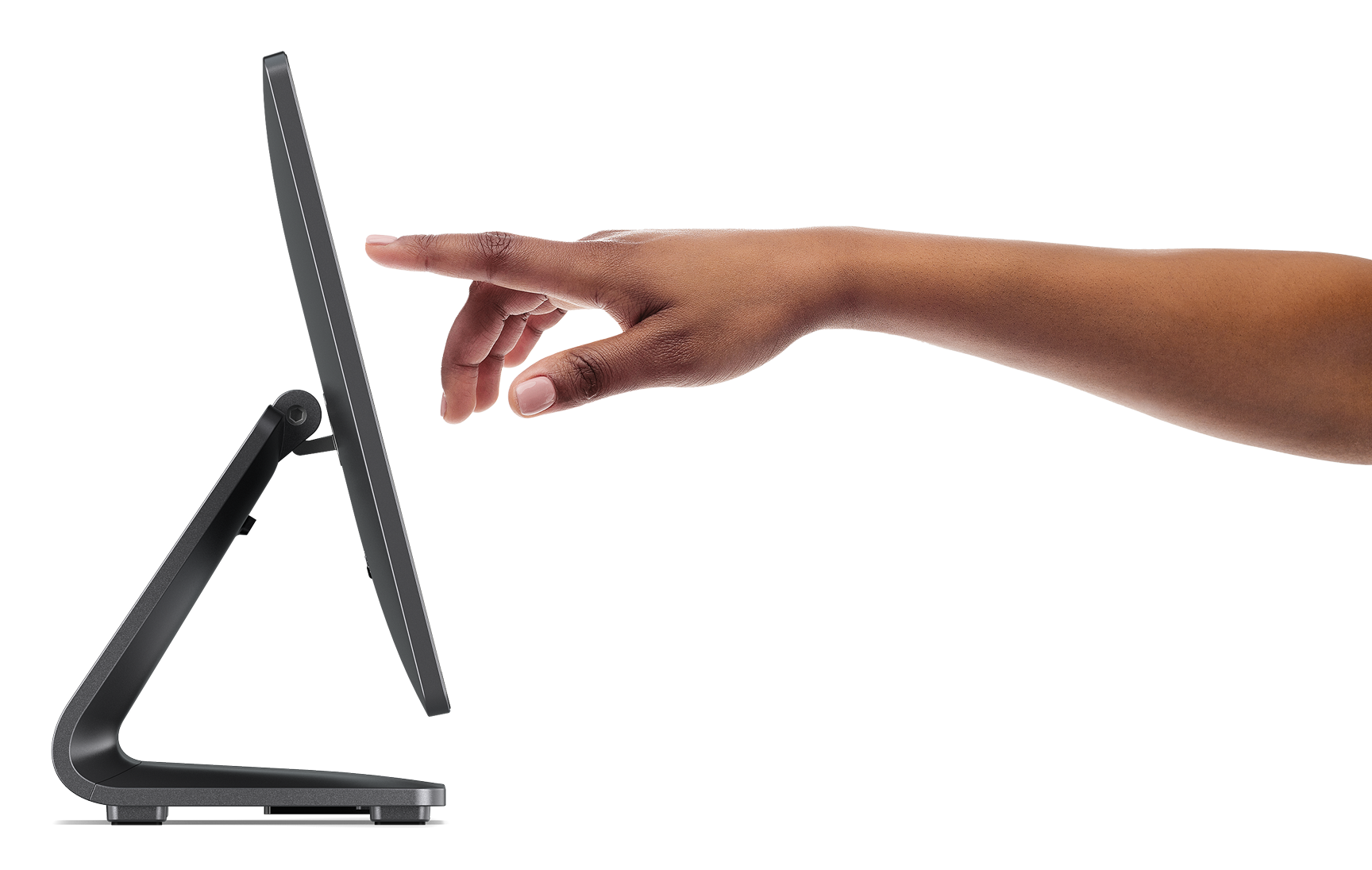

Z10 stand sold separately.

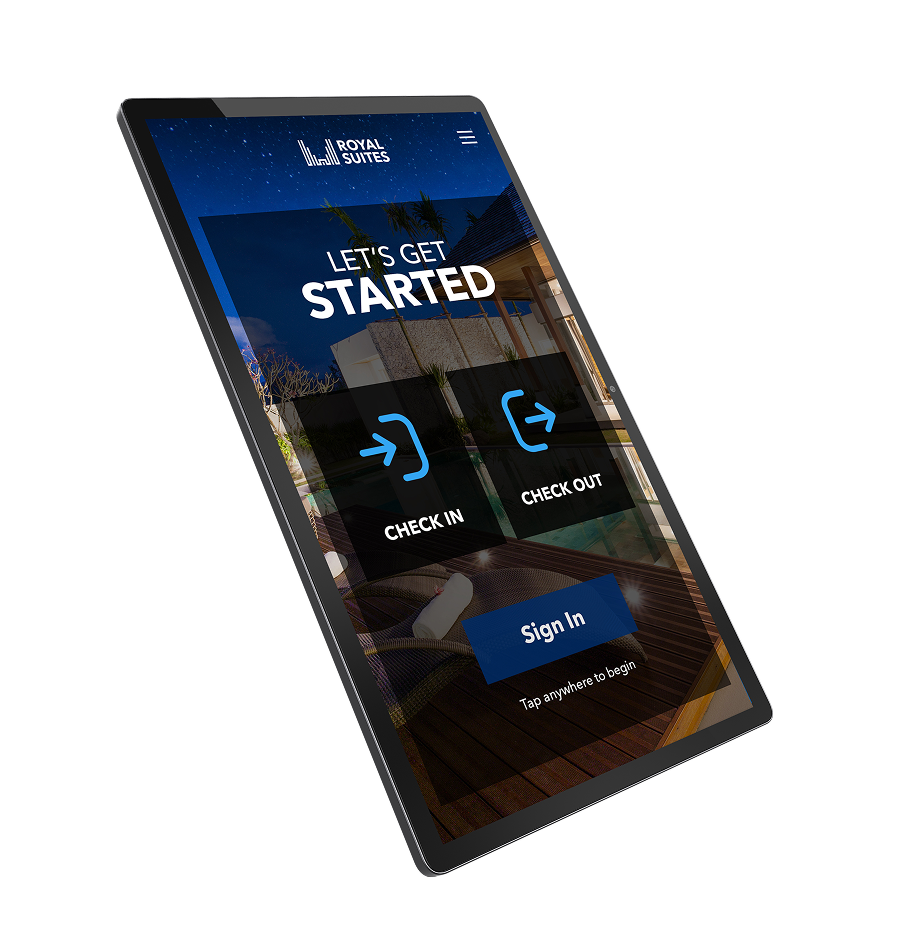

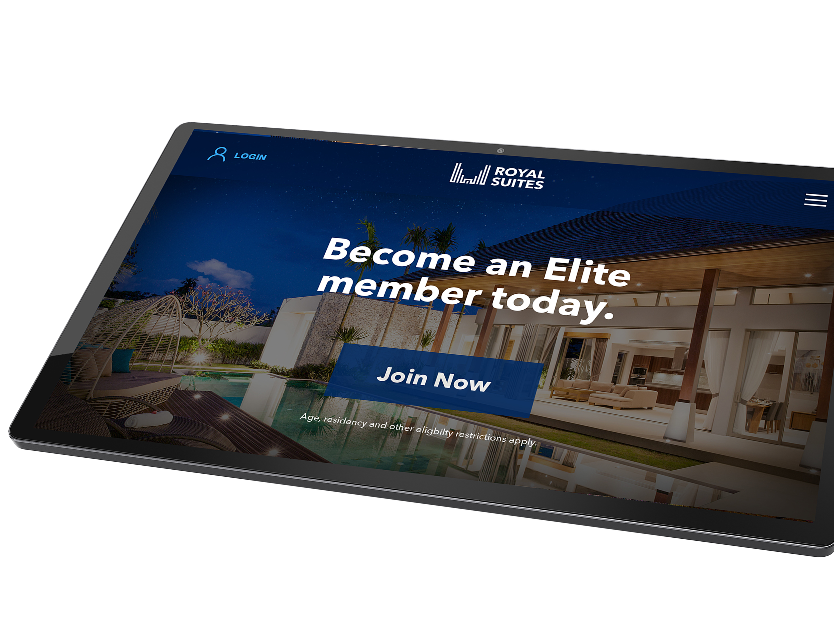

Interactive signage has
never looked so good.

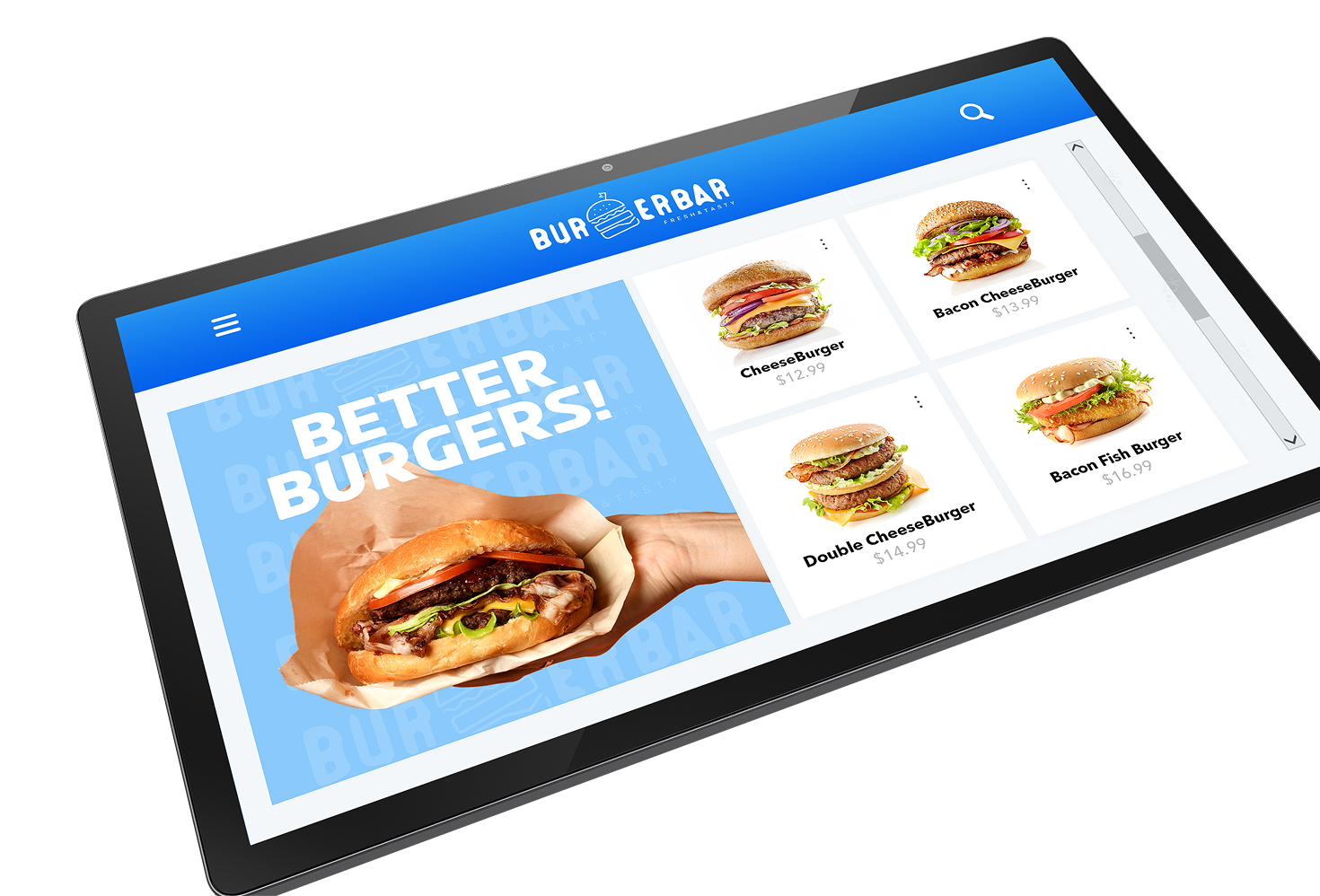

Create your
POS system.
Transform the I-Series 5 Slate it into a powerful, industrial-design POS system that scales with your business.

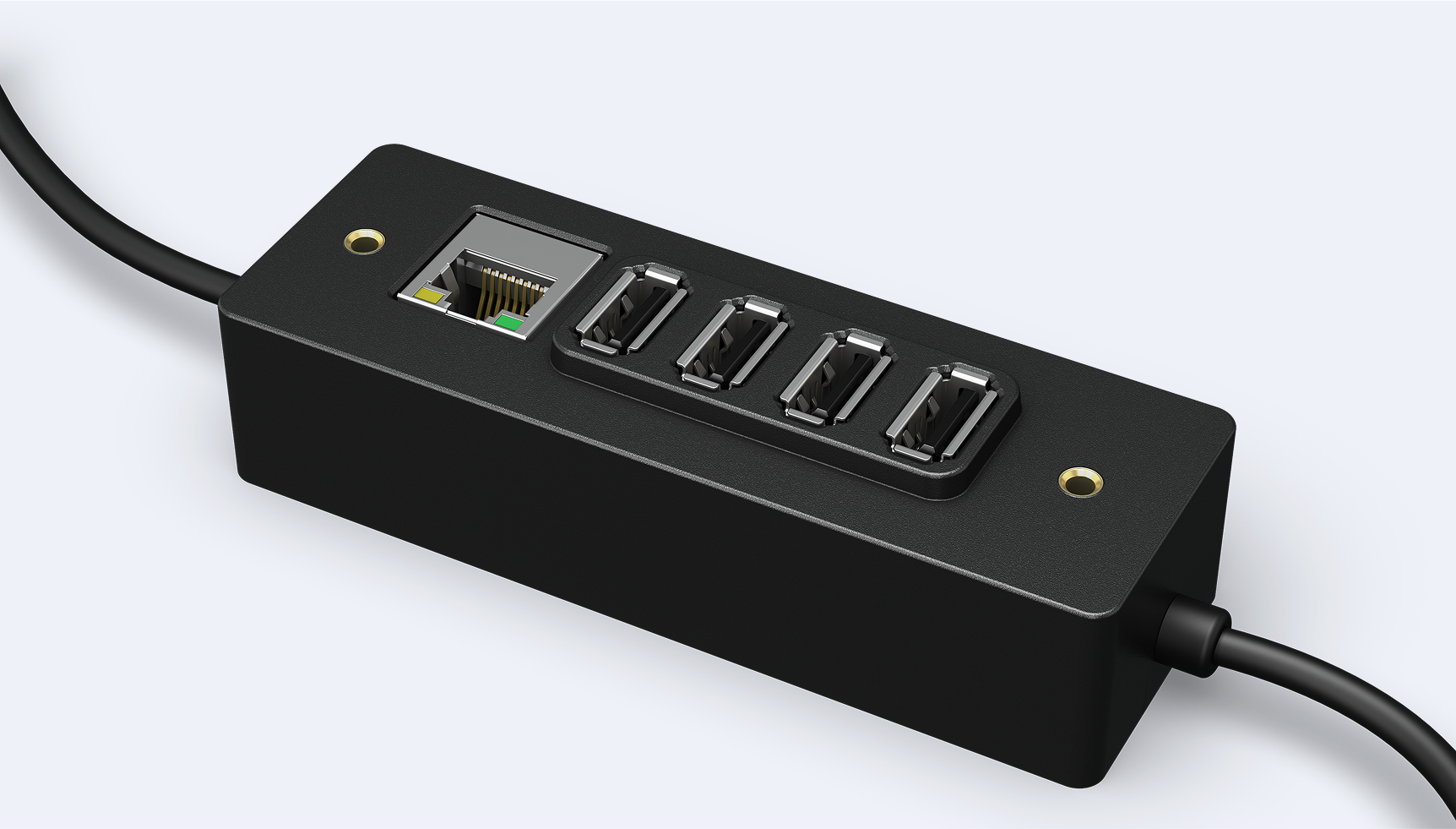

Connectivity for

all your accessories.
The I‑Series 5 Slate offers an I/O hub that extends connectivity from the display to your accessories.

Get enterprise support
with Elo EssentialEdge.â„¢
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
OS 360 – Take advantage of monthly security updates to keep your devices secure.
Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.
Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.
Explore Elo EssentialEdgeCommercial-grade
performance.
The Backpack is backed by the powerful Qualcomm 6490 octa-core processor to deliver the performance businesses need.
Expand possibilities
with Applied AI.
The Qualcomm 6490 chipset offers a fused AI accelerator, enabling astonishing performance at low power. These features and more produce a combined AI performance of up to 12 TOPS.

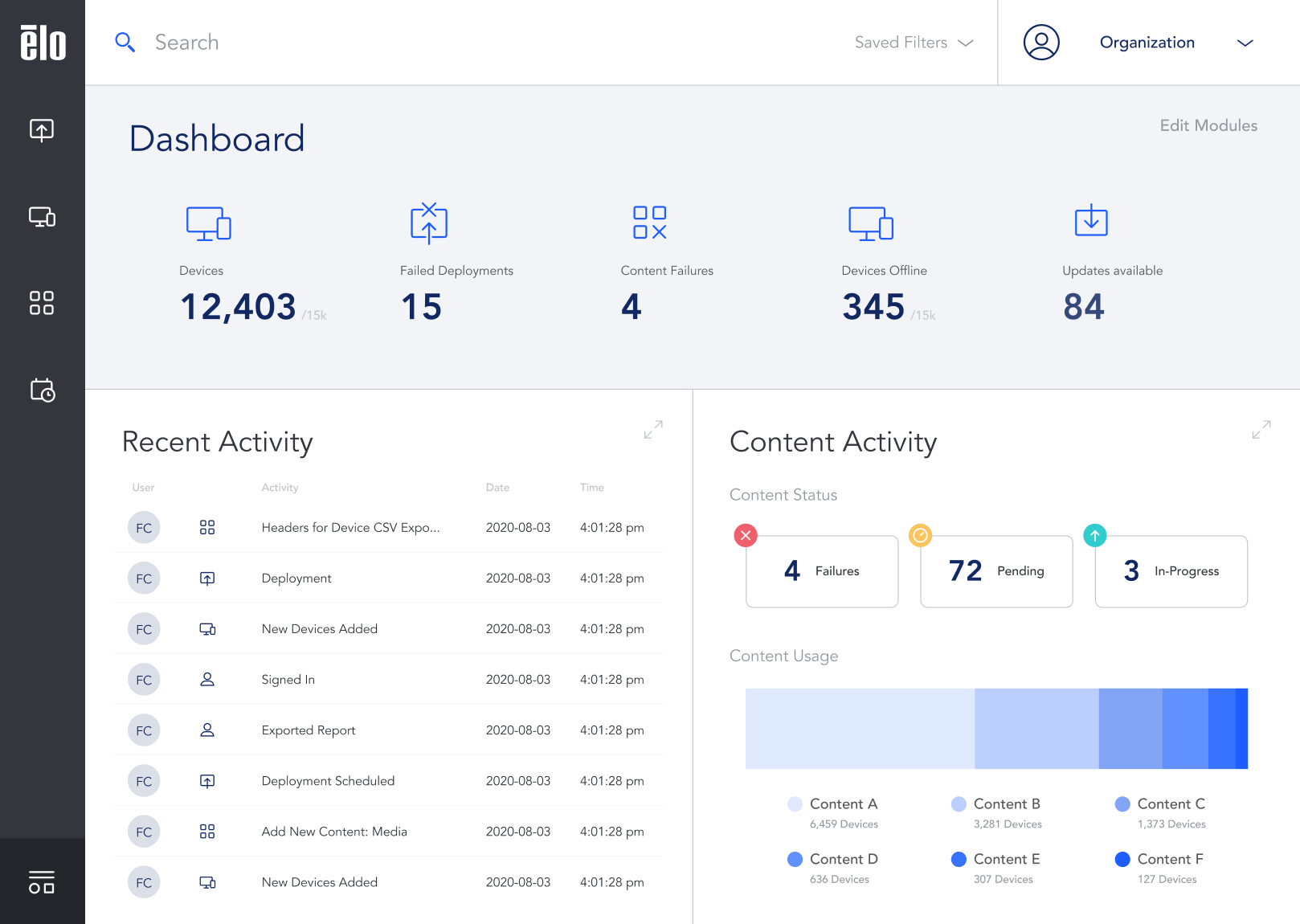

Manage your devices
easily with EloView.®
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
- Remotely deploy content and manage your devices securely.
- Provision your devices in seconds with a seamless out-of-the-box experience.
- Leverage Elo Home to create a customized interface on your Elo device.
Google Mobile
Services Ready.
With Google Mobile Services and EloView, managing Android devices and your apps is simplified. You can remotely deploy and manage your device, adjust detailed settings, and take advantage of the latest Google-powered features. Not only does this make management easier, but it also ensures your Elo devices meet the high standards required for Google CTS verification, giving you peace of mind.
Get peace of mind
with EloCare.
From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.
- Advance Unit Replacement
- Extended Warranty
- Professional Services
- OS 360
Quality that
is built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
Learn more
Specifications
-
Technical
Part Number(s)
E540697
Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Qualcomm Snapdragon QCS6490
Memory (RAM)
8GB
Storage
64GB
OS
Android 14 with Google Play Services and EloView content deployment and management
Planned upgrade to Android 16 and Android 18 available with OS 360 subscriptionDiagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344 mm x 194 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
LCD Panel: 350 nits
TouchPro PCAP: 280 nitsResponse Time-total (typical)
20 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
Display Head Interface:
USB-C Connector
Supports USB 2.0/3.0, DP output
(Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)
I/O Hub:
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)Webcam
8MP
Max Resolution: 3264x2448 30fps
Auto FocusWireless
802.11a/b/g/n/ac/ax + Bluetooth 5.2
Audio Ports
2x built-in Digital Microphones
Speakers
2x 1W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
On: 8.5W
Off: 0.4W
Sleep: 3WDimensions
With VESA: 14.6" x 8.7" x 0.6" / 370.3 mm x 221.3 mm x 15.1 mm
Shipping Box Dimensions
17.4" x 12.2" x 6.1" / 445 mm x 308 mm x 160 mm
Weight (Unpackaged)
3.44 lbs / 1.56 kg
Weight (Packaged)
7.74 lbs / 3.51 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 10% to 90%Regulatory approvals and declarations
UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)
BSMI/NCC (Taiwan)
KCC (Coreia)
CCC/SRRC (China)Supported Countries
Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated

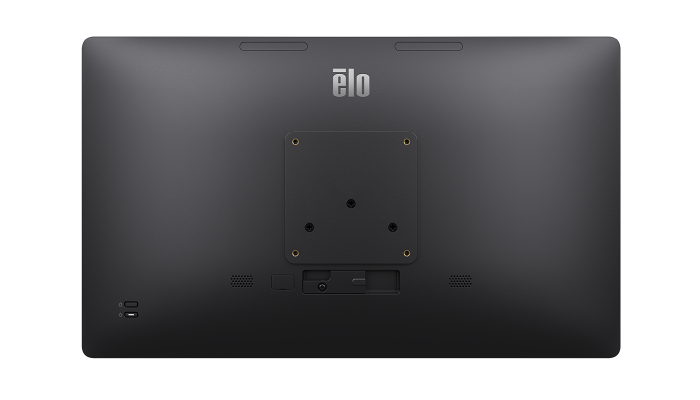

Mounting Options
VESA 75 mm / Z-Hinge
Warranty
2-year
Extended Service Options
3 year OS 360 - Elo P/N: E897877
4 year OS 360 - Elo P/N: E898079
5 year OS 360 - Elo P/N: E898282
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053OS Support
Bi-monthly Android security updates available with Elo OS 360 package.
Sealability
Touchscreen optically bonded to LCD
What's in the Box
I-Series 5 Slate
IO Hub
North American Power Cable
European Power Cable
1x Power Brick 65W (E153026)
Quick Install Guide
4 x M4x6 mm Panhead screws in a plastic bagOptional Peripherals

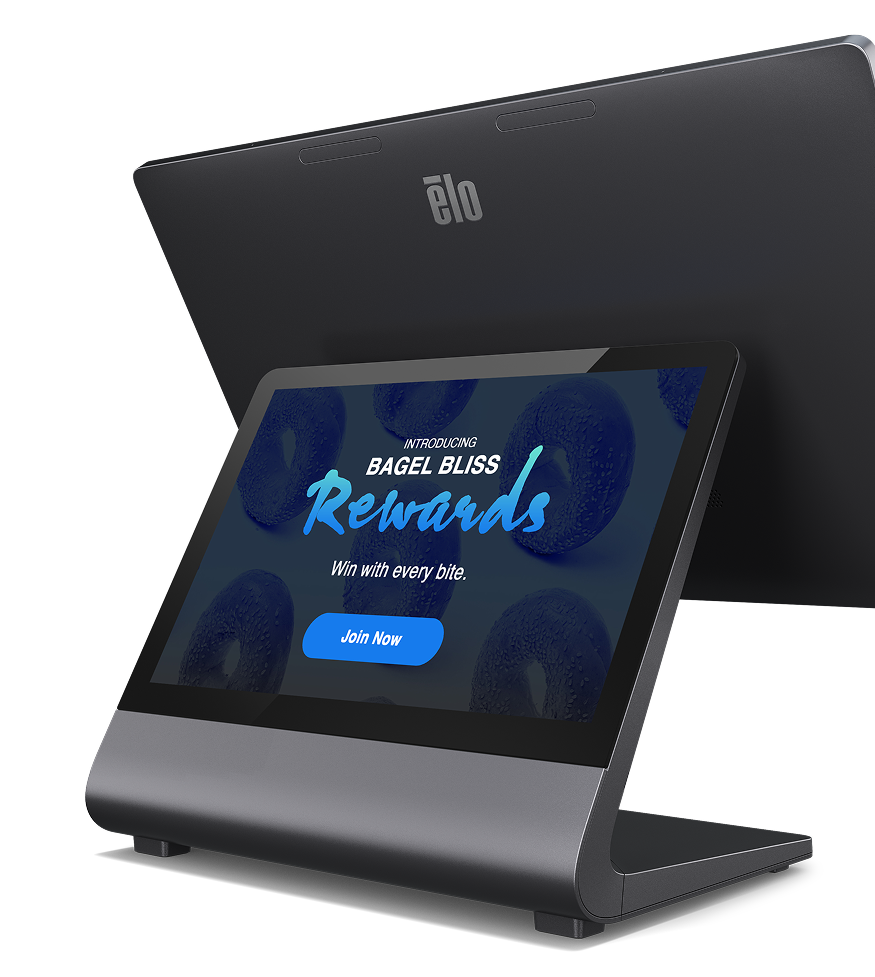

1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
Stands, Mounts & Kits
Z10 POS Stand (75mm VESA) - Elo P/N: E767159
I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E955492
