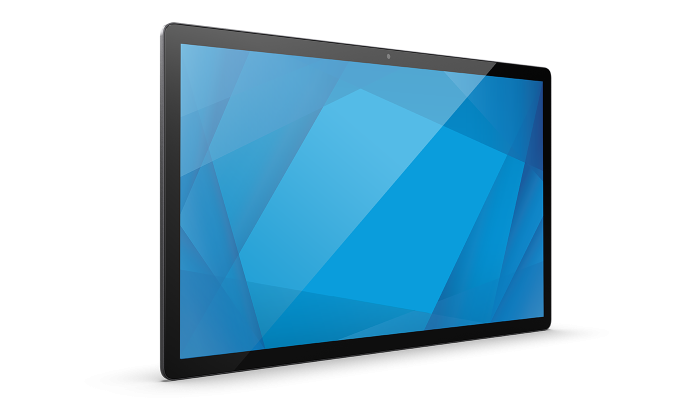

15-inch I-Series 4 Slate for Android

I‑Series 4 Slate

Built on Android 10

Razor thin design.
Brilliant touchscreen.

Built to be one of the thinnest commercial-grade fixed tablet form
factors, the I‑Series 4 Slate delivers a stunning design, enhanced
durability, increased touch accuracy and brilliant display clarity.

Order now

Cutting edge touchscreen for any experience.

Create your perfect POS system.

Transform the I‑Series 4 Slate it into a powerful,
industrial-design POS system that scales with your business.

Explore EloPOS for Android

EloPOS Z30

EloPOS Z10

Discover the easy‑to‑use interactive platform.

Amazing touchscreen kiosk
solutions simplified.

Connectivity
for accessories.

The I‑Series Slate offers an I/O hub that
extends connectivity from the display to
your accessories.

Commercial-grade performance.

Whether equipped with the Qualcomm
Snapdragon 8-core Kryo processor or the
Rockchip 6-core processor, the I‑Series Slate for
Android delivers the performance your
point-of-sale system needs.

Get enterprise support with Elo EssentialEdge.^™

With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.

OS 360 – Take advantage of monthly security updates to keep your devices secure.

Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.

Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.

Explore Elo EssentialEdge

Android device
management made easy.

EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.

Remotely deploy content and manage your devices securely.
Provision your devices in seconds with a seamless out-of-the-box experience.
Leverage Elo Home to create a customized interface on your I‑Series device.

Get peace
of mind
with EloCare.

Advance Unit
Replacement

Accidental
Damage Protection

Extended
Warranty

EloCare
OS 360

Specifications

Technical

Part Number(s)

Standard Model: E391994
Value Model: E392786

Enclosure Color

Dark Gray Metallic

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399

Memory (RAM)

4GB

Storage

Standard Model: 64GB
Value Model: 32GB

OS

Android 10 with Google Play Services and EloView content deployment and management

Diagonal Size

15.6'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area

13.55" x 7.62" / 344 mm x 194 mm

Resolution

1920 x 1080 @ 60Hz

Number of Colors

8-bit (16.7 million)

Brightness (typical)

Standard Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits

Value Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits

Response Time-total (typical)

20 ms

Contrast Ratio

1000:1

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

I/O Ports

Display Head Interface:
USB-C Connector
Supports USB 2.0/3.0, DP output
(Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)

I/O Hub:
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)

Webcam

5MP
Max Resolution: 1920x1080 30fps
Auto Focus

Wireless

802.11a/b/g/n/ac + Bluetooth 5.0

Audio Ports

Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog Microphone

Speakers

Standard Model: 2x 0.7W
Value Model: 2x 1W

Power Supply

AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz

Power Consumption (Typical)

Standard Model:
On: 10W
Off: 0.4W
Sleep: 5W

Value Model:
On: 11.5W
Off: 0.68W
Sleep: 4.4W

Dimensions

Standard Model: 14.6" x 8.7" x 0.52" / 370.2 mm x 221.2 mm x 13.1 mm
Value Model: 14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mm

Shipping Box Dimensions

17.4" x 12.2" x 6.1" / 443 mm x 310 mm x 156 mm

Weight (Unpackaged)

3.3 lbs / 1.5 kg

Weight (Packaged)

7.61 lbs / 3.45 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 50°C / -4°F to 122°F

Humidity

Operating: 20% to 80%
Storage: 5% to 95%

Regulatory approvals and declarations

UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)

Supported Countries

Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey

Real-Time Clock

lithium coin cell battery

MTBF

50,000 hours demonstrated

Mounting Options

VESA 75mm

Warranty

2-year

Extended Service Options

3 year OS 360 - Elo P/N: E873133
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

OS Support

Monthly Android security updates available with Elo OS 360 package.

Sealability

Standard Model: Touchscreen optically bonded to LCD
Value Model: Touchscreen sealed to LCD

What's in the Box

I-Series 4 Slate
IO Hub
North American Power Cable
European Power Cable
1x Power Brick 65W (E153026)
Quick Install Guide
4 x M4x6 mm Flathead screws in a plastic bag
4 x M4x6 mm Panhead screws in a plastic bag

Optional Peripherals

1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))

Stands, Mounts & Kits

Z10 POS Stand (75mm VESA) - Elo P/N: E398278
Z30 POS Stand without CFD (75mm VESA) - Elo P/N: E483135
Z30 POS Stand with CFD (75mm VESA) - Elo P/N: E482940
I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E682436
