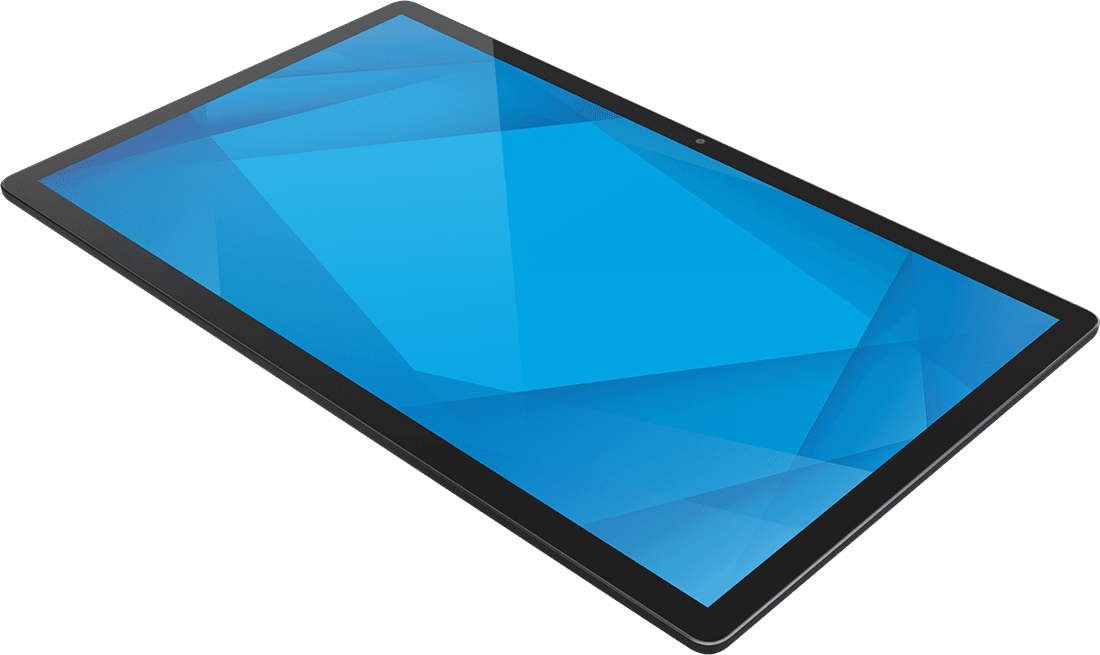

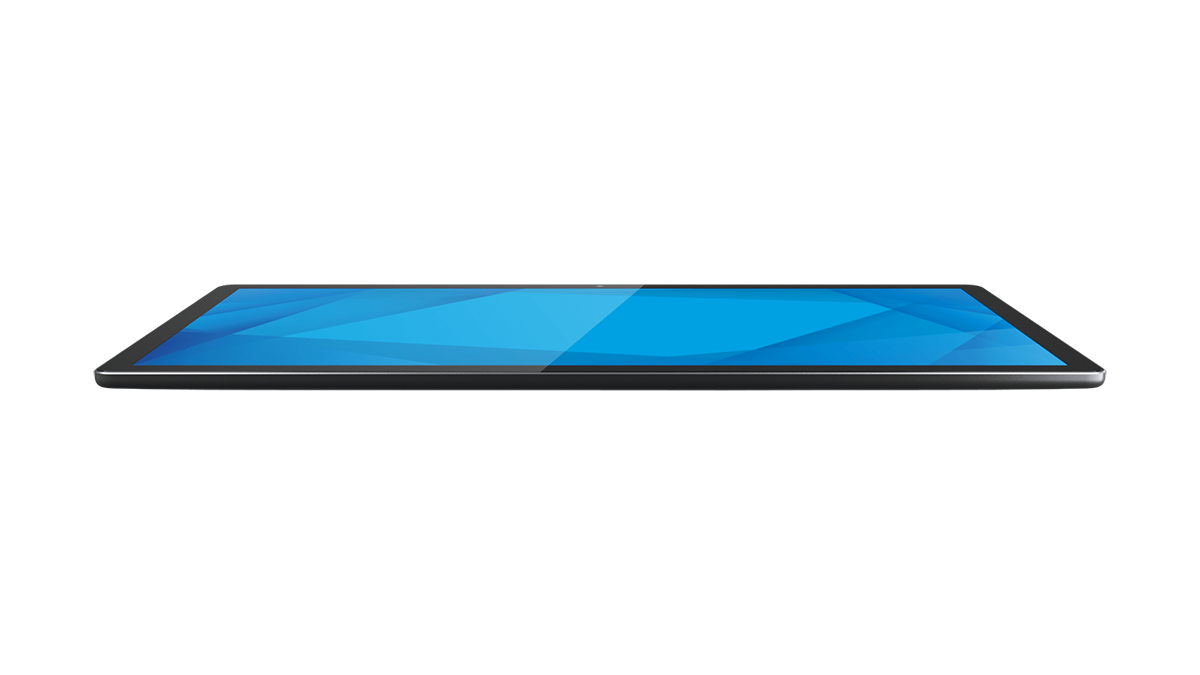

I-Series Slate
Built on Linux Debian 10

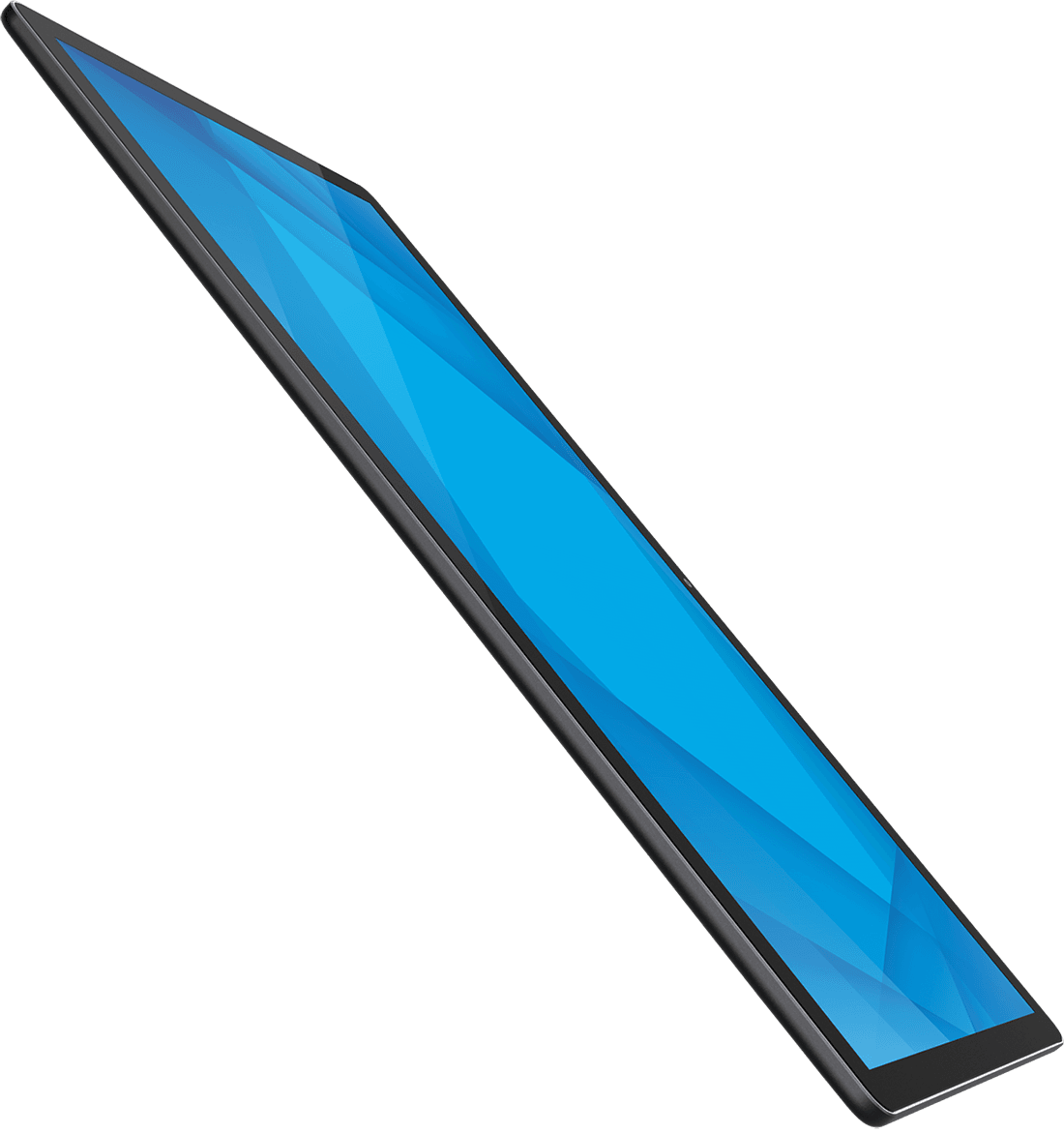

Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade fixed tablet form
factors, the I-Series Slate delivers a stunning design, enhanced
durability, increased touch accuracy and brilliant display clarity.

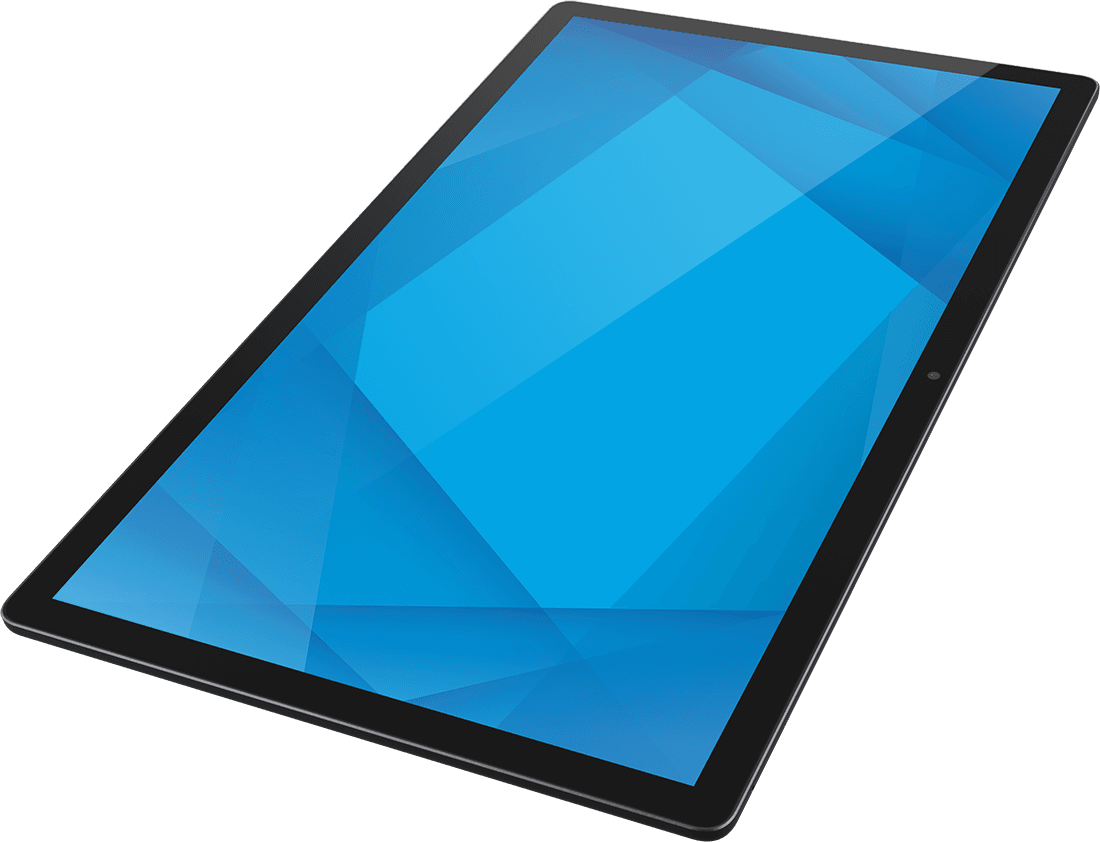

Cutting edge touchscreen for any experience.

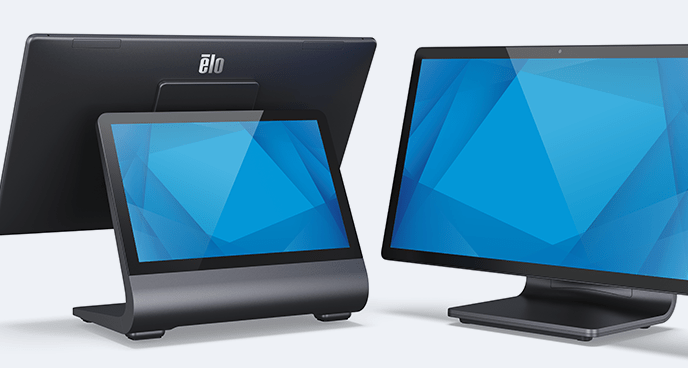

Create your perfect POS system.
Transform the I-Series Slate it into a powerful,
industrial-design POS system that scales with your business.

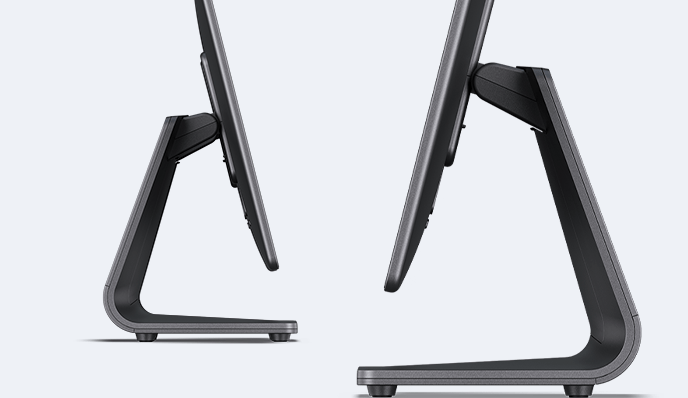

Z30 POS Stand
Z10 POS Stand

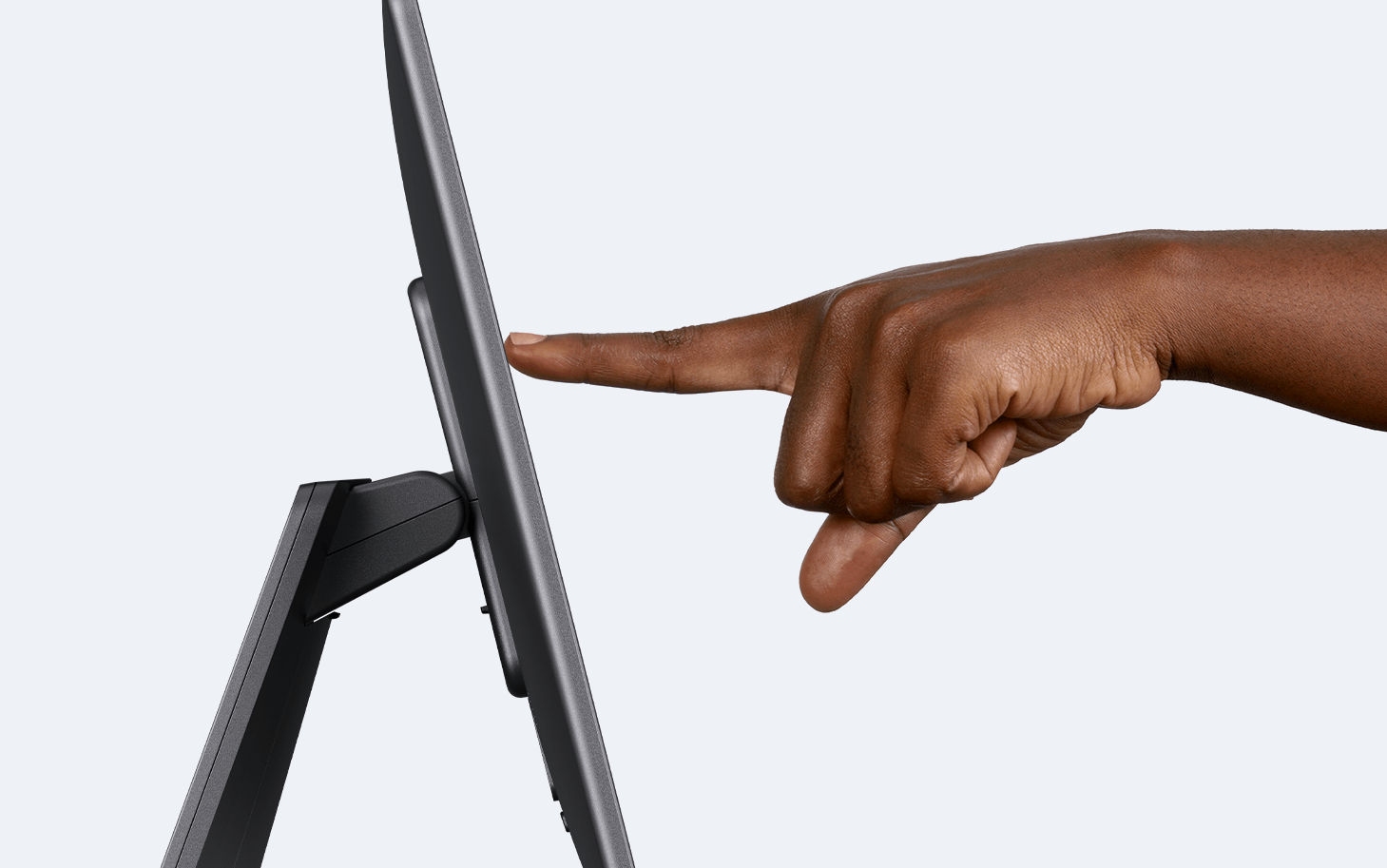

Discover the easy‑to‑use interactive platform.

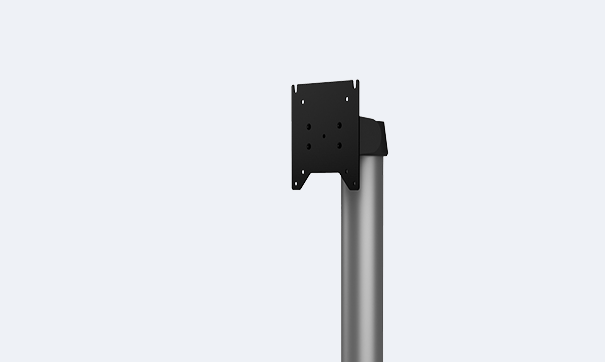

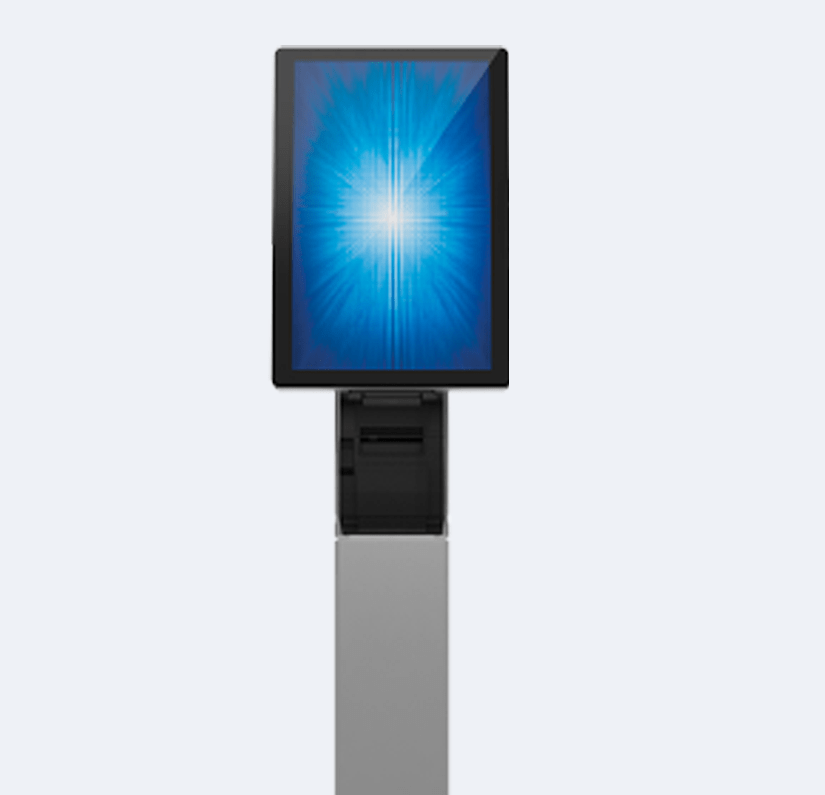

Amazing touchscreen kiosk
solutions simplified.
Connectivity
for accessories.
The I‑Series Slate offers an I/O hub that
extends connectivity from the display to
your accessories.
Commercial-grade performance.
Equipped with Rockchip 6-core processor
and your choice of Debian 10 OS distributions
or newer, the I-Series Linux computer delivers
the performance your business needs.
Get peace of mind
with EloCareSM.
From advance unit replacement to accidental
damage protection, EloCare delivers service
and support from the people who know your
Elo Linux device best.
- Advance Unit Replacement
- Extended Warranty
- Accidental Damage Protection
- Professional Services
Specifications
-
Technical
Part Number(s)
E240416
Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Rockchip RK3399
Memory (RAM)
4GB
Storage
32GB
OS
Linux Debian 10
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344 mm x 194 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
Standard Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits
Value Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nitsResponse Time-total (typical)
20 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
Display Head Interface:
USB-C Connector
Supports USB 2.0/3.0, DP output
(Requires 20V/20W USB-C Power Delivery 2.0 if not using IO Hub for power)
I/O Hub:
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)Webcam
5MP
Max Resolution: 1920x1080 30fps
Auto FocusWireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
1x built-in Analog Microphone
Speakers
2x 1W
Power Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
ON: 9.32W
OFF: 0.4W
SLEEP: 4.84WDimensions
14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mm
Shipping Box Dimensions
17.4" x 12.2" x 6.1" / 443 mm x 310 mm x 156 mm
Weight (Unpackaged)
3.3 lbs / 1.5 kg
Weight (Packaged)
7.61 lbs / 3.45 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL (US)
FCC (US)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm
Warranty
2-year
Extended Service Options
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053Sealability
Touchscreen sealed to LCD
What's in the Box
I-Series Slate
IO Hub
North American Power Cable
European Power Cable
1x Power Brick 65W (E153026)
Quick Install Guide
4 x M4x6 mm Flathead screws in a plastic bag
4 x M4x6 mm Panhead screws in a plastic bagStands, Mounts & Kits
65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
Z10 POS Stand (75mm VESA) - Elo P/N: E398278
Z30 POS Stand without CFD (75mm VESA) - Elo P/N: E483135
Z30 POS Stand with CFD (75mm VESA) - Elo P/N: E482940
I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E682436
