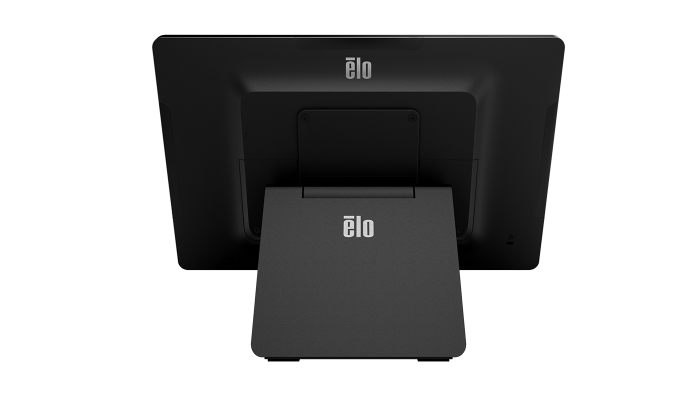

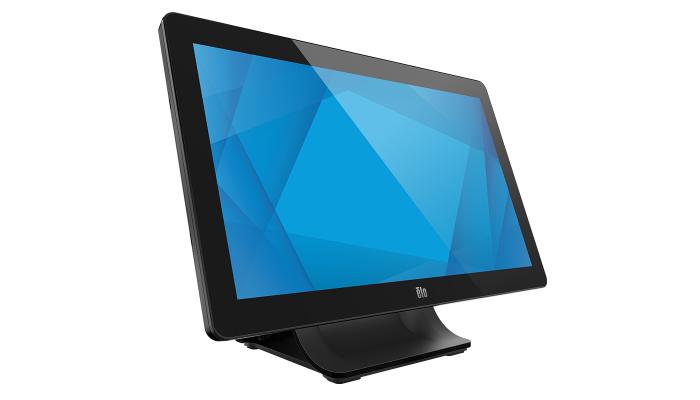

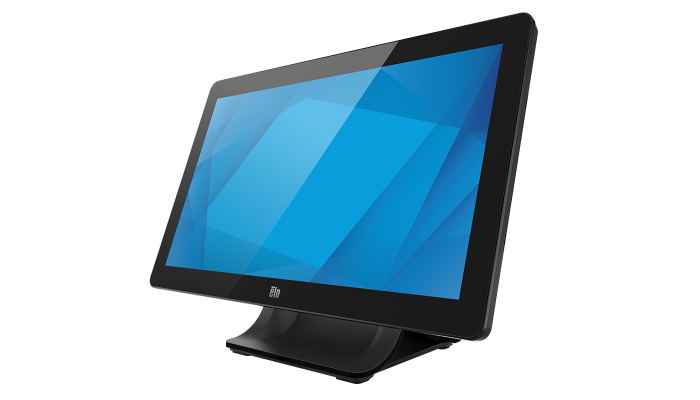

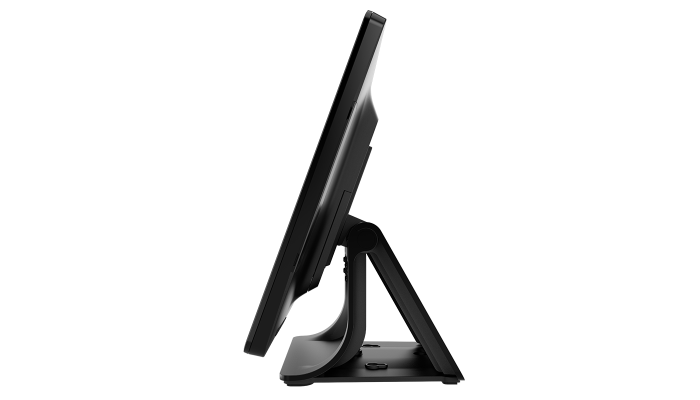

1509L 15.6" Touchscreen Monitor
How to Buy

Overview

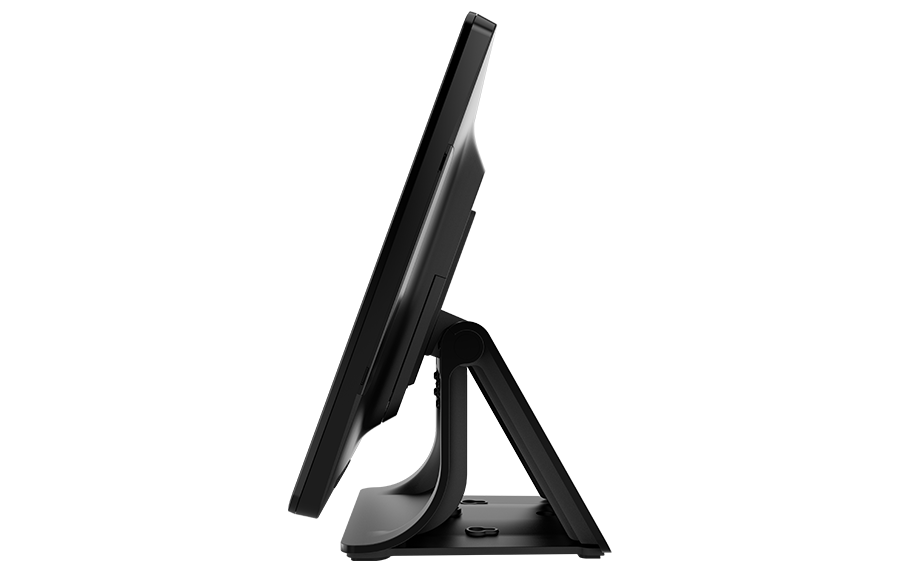

The Elo 1509L 15.6-inch widescreen LED touchscreen monitor delivers a low-profile, retail-hardened solution with a pure glass construction to allow high light transmission without compromising durability or functionality. Available with TouchPro® PCAP offering multi touch capacity, the 1509 has been "built for touch" offering an ideal solution for general applications including hospitality and retail environments.

Integrated touch.

With no moving parts to wear out, the 1509 offers a touch response that is fast, accurate, and drift-free using a finger, gloved hand, or soft stylus.
Flexible mounting.

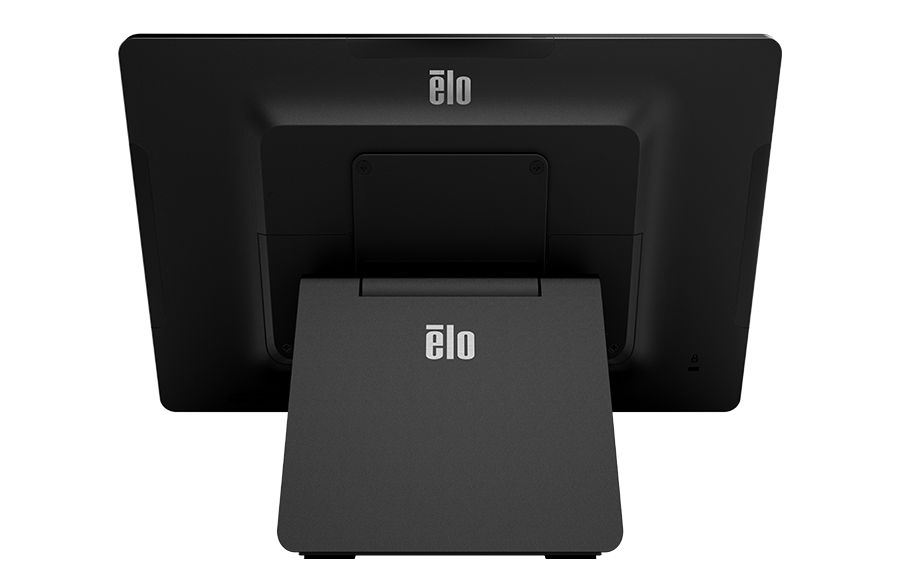

The touchscreen monitor can be affixed to a counter, or when the stand is removed, mounted on a wall or to a pole, and with the LED backlight power consumption is significantly reduced.
Commercial grade.

The 15.6-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our two-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
  • Sleek and modern widescreen design with built-for-touch reliability
  • Energy savings using LED technology
  • Pure, clear glass touchscreen for superior picture quality
  • Removable stand allows the monitor to be mounted on a wall or to a pole (via VESA bracket)
  • Fixable to counter for extra security
  • Optional, field-installable magnetic stripe reader (MSR)
  • Touchscreen is sealed for resistance to water, dust, grease

Specifications

  • Technical

    Part Number(s)

    E551755

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344.23 mm x 193.55 mm

    Resolution

    1366 x 768

    Other Supported Resolutions

    640 x 480 at 60Hz
    800 x 600 at 60Hz
    1024 x 768 at 60Hz
    1280 x 800 at 60, 60RB Hz
    1280 x 960 at 60Hz
    1280 x 1024 at 60Hz
    1360 x 768 at 60Hz
    1366 x 768 at 60, 60RB Hz

    Viewing Angle

    Horizontal: ±45° / 90° total
    Vertical: -40°/ +20° / 60° total

    Number of Colors

    6-bit (262,000)

    Brightness (typical)

    LCD Panel: 200
    PCAP: 225 nits

    Response Time-total (typical)

    12 msec

    Contrast Ratio

    500:1

    Touch Interface

    USB

    Power

    External DC Adapter 12V/24W in box
    Monitor input power connector: Coaxial power jack (2.1mm (+/- 0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

    Monitor input voltage range: 12VDC +/- 5%
    Adapter output power connector: DC barrel plug (2.1mm pin inner diameter, 5.5mm barrel outer diameter, 12mm Barrel length)
    Adapter input voltage range: 100-240 VAC
    Input frequency: 50-60 Hz

    Video_1

    Analog VGA
    HDMI

    Input Video Horizontal Sync frequency range: 31.5 – 82KHz
    Input Video Vertical Sync (frame rate) frequency range: 50 – 75Hz

    Power Consumption (Typical)

    Monitor + AC/DC adapter
    ON: 6.41 W
    SLEEP: 0.84 W
    OFF: 0.21 W

    I/O Ports

    USB Type-B
    VGA (Mini-VGA female connecter)
    HDMI
    12V D/C input

    On Screen Display

    Accessible through switches along the bottom.

    Controls: Menu, Power, Up, Down, Select

    Settings: Brightness, Contrast, Input Select, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, power

    Monitor Dimensions (with Stand)

    11.16" x 15.24" x 6.83" / 283.4 mm x 387.1 mm x 173.5 mm

    Shipping Box Dimensions

    17.72" x 14.25" x 10.24" / 450 mm x 326 mm x 260 mm

    Weight (Unpackaged)

    5.82 lbs / 2.642 kg

    Weight (Packaged)

    10.49 lbs / 4.76 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 4-hole 75mm and 100mm mounting interface on rear of unit

    Warranty

    2-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449

    Regulatory approvals and declarations

    Canada cUL, IC
    Europe CE
    United Kingdom UKCA
    Japan VCCI
    United States UL, FCC
    China CCC
    Korea, KCC
    Australia RCM
    Mexico NOM
    Taiwan BSMI
    International CB
    RoHS, China RoHS, WEEE, REACH

    Ingress Protection

    IPX1

    Impact Protection

    IK07

    What's in the Box

    1509L Touchscreen Monitor
    Quick Install Guide
    EEI Label
    Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
    USB cable (USB Type A plug to USB Type B plug)
    Power brick (Wall-mount with 6 AC switches)
    2x cable clamps
    2x tie wraps Power brick
    3x screws (M3x8mm) for cable clamps
    2x screws (M3x12mm) for cable doors

    Optional IntelliTouch Stylus Pen

    Elo P/N: D82064-000

    Optional Peripherals

    PCAP Stylus Pen - Elo P/N: E066148
    24W wall mount power brick (includes wall plugs for US/JP/TW, Brazil/EU, UK, AUS/ARG, CN, and KR/IND clipped-in plugs) – Elo P/N: E274991

    Stands, Mounts & Kits

    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    1.8m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210789
    3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606
