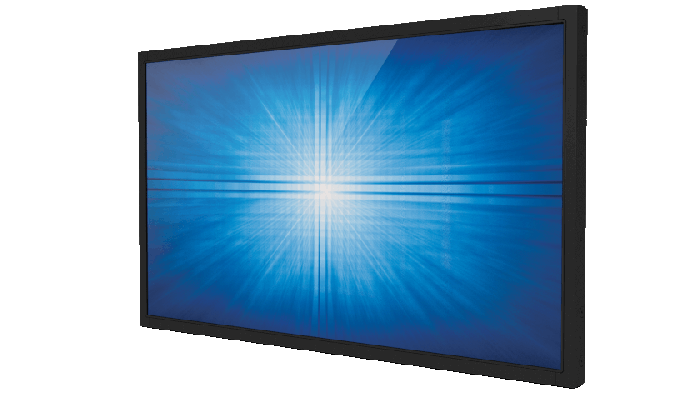

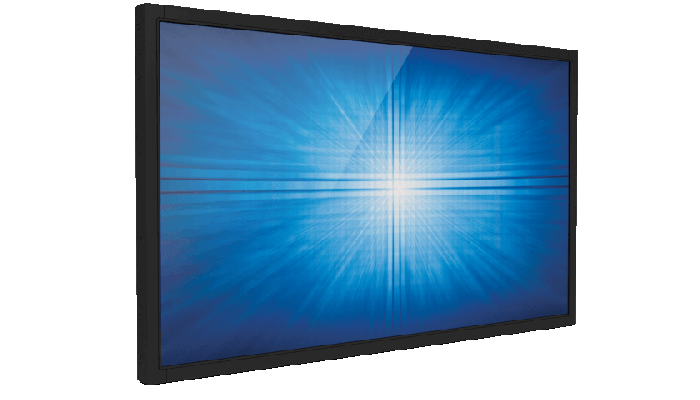

4243L Open Frame Touchscreen (Discontinued March 2019)
How to Buy

Overview

The Elo 4243L 42-inch full HD open-frame touchscreen delivers a professional-grade large format display at less than 2.6 inches (66 mm) in total thickness and less than 1 inch in border width. Designed for touch from the start with proven Elo expertise and reliability built in, the 4243L offers a sleek state-of-the-art slim design using LED backlighting, reducing power consumption and heat to enable thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust UL60950 ball-drop requirements, supporting applications in demanding public access environments. The 4243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 4243L.

Easily integrated.

Featuring a compact form factor and optional rack- and front-mount bezels, the 4243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected helping to minimize enclosure costs.
Touch ready.

The 4243L is available with a choice of dual- or multi-touch technologies as well as a non-touch option. IntelliTouch® surface acoustic wave (SAW) dual-touch offers the ultimate in optical quality. All 4243L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to physically wear them out.


Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).


Other features.
  • 1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
  • Multiple mounting options are available
  • Worldwide agency approvals and a three-year standard warranty extendable to five years
  • Integrated power supply
Similar products.
3243L 32" Open Frame Touchscreen
4202L 42" Interactive Digital Signage
4343L 42.5" Open Frame Touchscreen
5543L 55" Open Frame Touchscreen

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Dual Touch (Asia) - E000445
    Non-Touch (Worldwide) - E000447

    Enclosure Color

    Black

    Touch Technology & Capacity

    SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
    Non-Touch

    Diagonal Size

    42'' diagonal, Active matrix TFT LCD (LED)

    On Screen Display

    Accessible through switches on the OSD Control Remote accessory.

    Controls (side): Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.

    See user manual for full details.

    Aspect Ratio

    16:9

    Active Area

    36.6" x 20.6" / 930mm x 523mm

    Resolution

    1920 x 1080

    Other Supported Resolutions

    640 x 480 at 60Hz
    800 x 500 at 60Hz
    800 x 600 at 56/60Hz
    1024 x 768 at 60Hz
    1280 x 720 at 60Hz
    1280 x 960 at 60 Hz
    1280 x 1024 at 60Hz
    1360 x 768 at 60 Hz
    1366 x 768 at 60 Hz
    1440 x 900 at 60 Hz
    1600 x 1200 at 60 Hz
    1680 x 1050 at 60 Hz
    1920 x 1080 at 60 Hz

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    Number of Colors

    1073.7 million

    Brightness (typical)

    LCD panel: 500 nits
    IntelliTouch Dual Touch: 450 nits
    Non-Touch: 450 nits

    Response Time-total (typical)

    8 msec

    Contrast Ratio

    4000:1

    Input Video Format

    Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)

    Input Video Signal Connector

    Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
    Female DVI-D Dual Link Connector (Asian model only)

    Input Video Frequency

    Horizontal: 31 - 80 KHz
    Vertical: 47 - 63 Hz

    Power Supply

    Internal AC

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz

    Input Connector

    AC: IEC 60320 C14

    Power Consumption (Typical)

    Monitor Only
    (Typical at 110V at 60Hz):
    ON: 104 W
    SLEEP: 2.0 W
    OFF: 0.5 W

    (Typical at 230V at 50Hz):
    ON: 102.0 W
    SLEEP: 2.5 W
    OFF: 1 W

    Dimensions

    38.5" x 22.6" x 2.6" / 978mm x 575mm x 65mm

    Shipping Box Dimensions

    45.9" x 33.7" x 11.02" / 1168mm x 856mm x 280mm

    Weight (Unpackaged)

    44 lbs / 20 kg

    Weight (Packaged)

    61 lbs / 27.67 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 50°C / -4°F to 122°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 95%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Warranty

    3-year

    Regulatory approvals and declarations

    Australia RCM
    Canada cUL, IC
    China CCC
    Europe CE
    Japan VCCI
    Korea KCC e-standby
    Mexico NOM, CoC
    Taiwan BSMI
    United States UL, FCC
    International CB
    RoHS, China RoHS, WEEE
    Russia EAC

    Mounting Options

    Mounting Options 400, 400, 6mm VESA mount
    Side mounting brackets included

    Options / Peripherals / Upgrades

    Remote OSD (RJ45) - Elo P/N: E483757
    Elo Backpack® - Elo P/N: E611864
    IntelliTouch Stylus Pen - Elo P/N: D82064-000
    Replacement Bracket Kit for 3243L IT model – Elo P/N: E727550
