7001LT 70" Interactive Digital Signage (Discontinued March 2020)
This product has been replaced by - 6553L.

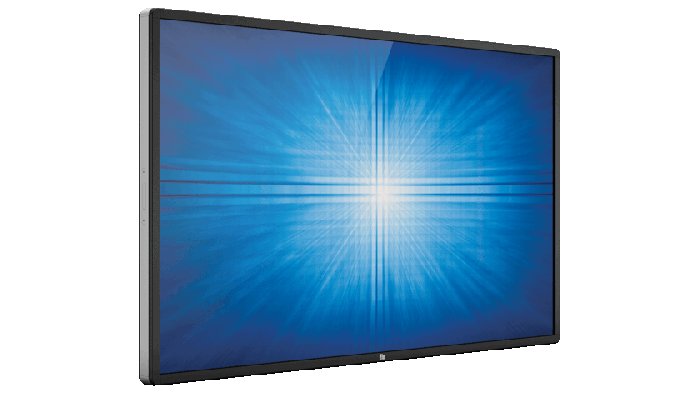

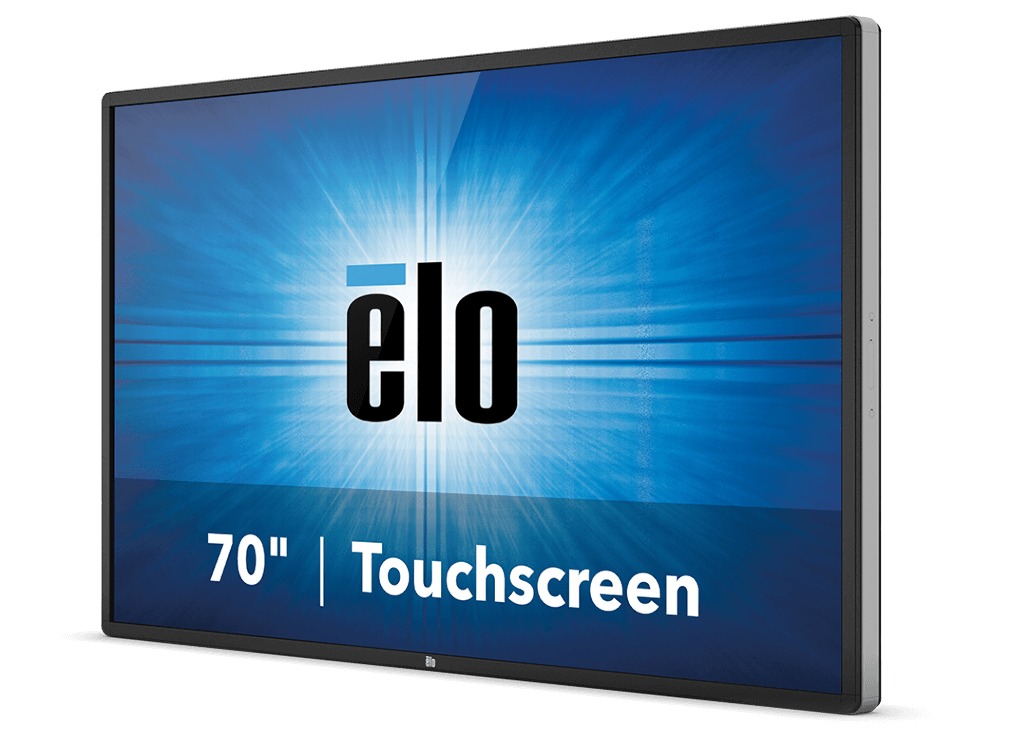

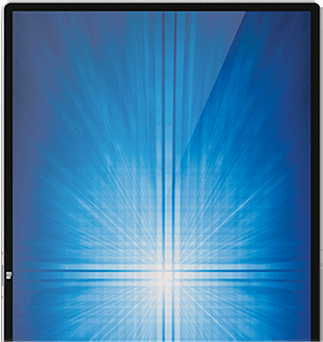

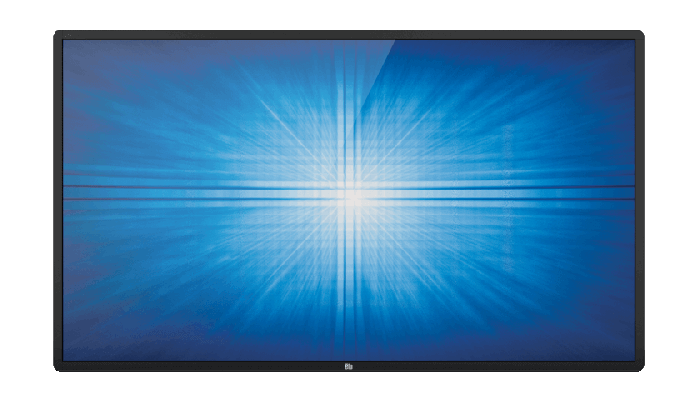

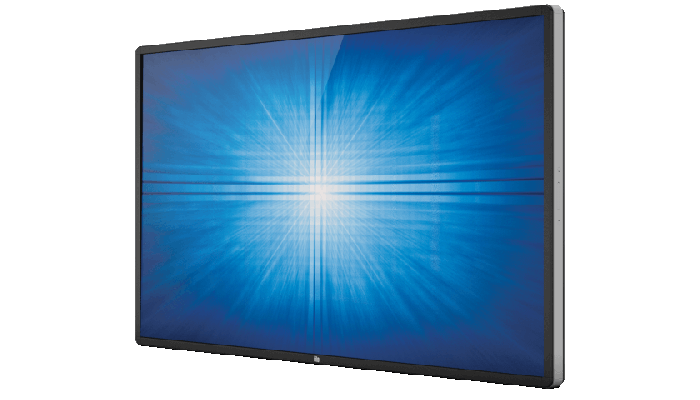

Elo 7001LT Touchscreen Signage Display
Add interactivity to any environment with Elo’s 7001LT 70-inch touchscreen display. With a brilliant and responsive interactive canvas for leveraging a variety of content, the professional-grade large format display is well-suited for creating engaging experiences. From endless aisle and brand experiences to way-finding and collaboration, Elo’s touchscreen displays from 10 to 70 inches offer everything you need in a sleek, slim design and are built to withstand the rigors of continuous public use.
Bring Interactive Experiences into Public Places
Wayfinding
Product Configurator
Self-Service
Endless Aisle

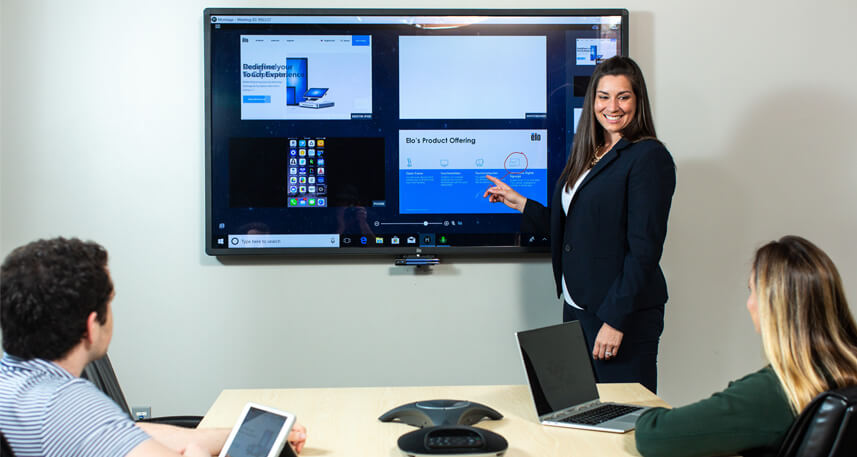

Collaboration for all Environments
Not only do high traffic environments demand interaction, but meeting rooms and classrooms do as well.
They introduce heightened collaboration capabilities between the instructor and their audience, helping to drive concepts and
innovation beyond what a whiteboard and dry erase marker once did.
Collaborative
Learning
White Boarding &
Markup
Collaborative
Conferencing
Presentations
Meeting
Management
Unified Style Across Sizes
The 7001LT Infrared display enables up to 20 touches with fast and sensitive responses, making it great for multi-user interaction.
Projected capacitive (PCAP) offers edge-to-edge glass with touch thru performance. Infrared (IR) offers ease of scalability to larger sizes with an extra
level of protection against scratches.
Transform your Touchscreen Display into a Touchscreen Computer
With high-powered CPU options for Android or Windows OS, Elo enables a seamless end-to-end solution from one manufacturer for interactive experiences.
Purpose-built for compatibility and long life-cycles, the compute modules and touchscreen systems create one of the most robust and reliable
solutions on any platform.
Add Windows Computing Power with Ease

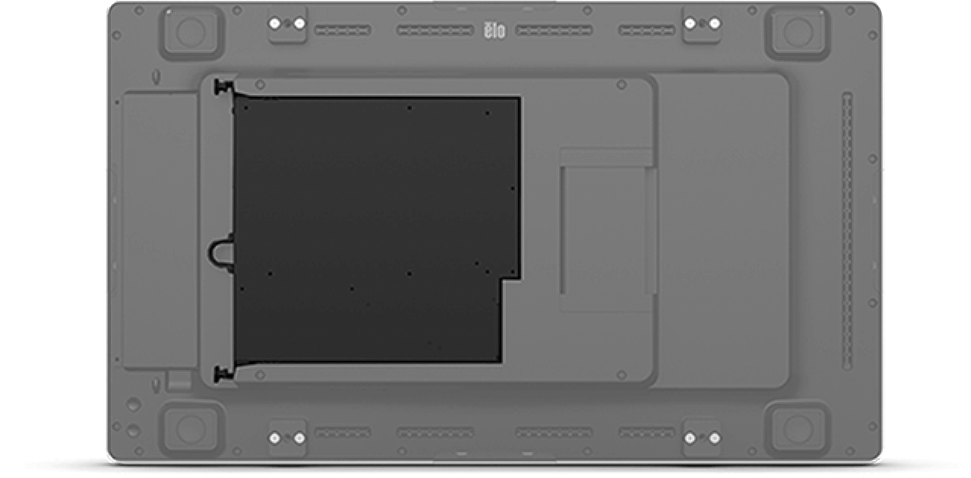

The Elo Computer Modules (ECMs) for Windows slide into the back of the touchscreen display to deliver one of the industry's thinnest commercial grade all-in-one large format touchcomputers. AC power, video and USB signals pass between the computer module and the display making field installation and maintenance easy with no external cables required.

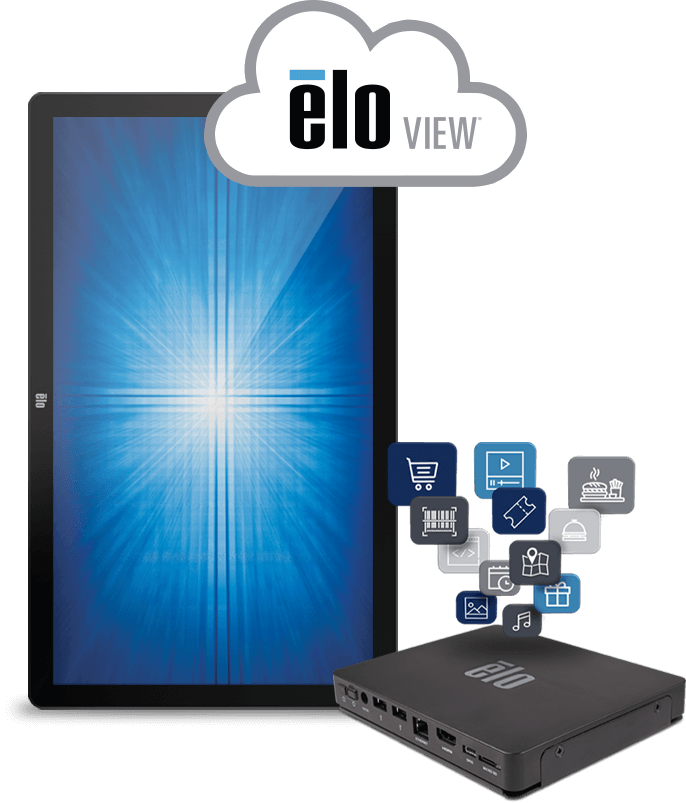

Start Managing Your Devices Smarter with the Elo Backpack® & EloView®
The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView® portal, the Backpack provides a low-power, solid-state, fan-less computing solution running Android 7.1 (Nougat) with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Elo On-Site Exchange – We Have Your Back.
Retailers, restaurants and business operators do not have the time or resources to deal with technology outages or finding the right person to call when an issue arises. As part of the three-year standard warranty for large format IDS, Elo offers complimentary On-Site Exchange to cover you in the unfortunate event your device has a hardware issue. All you do is submit an RMA through Elo’s online portal. If the issue can’t be resolved over the phone, Elo will send a replacement unit and dispatch a technician to replace the device on-site within three business days. Additionally, Elo offers rapid response times for Large Format IDS at an additional cost.
Commercial-Grade Products Designed for Commercial-Grade Environments
Compliant with ADA and IBC requirements for protrusion when mounted to a wall with an Elo low-profile mount.
Ready for use 24/7
On-Site Exchange Program included with standard warranty. Learn More
Backed by our 3-year standard warranty with an optional extension to 4 or 5-years.
Purpose built for touch at the factory level
External control for remote management (RS232 via virtual comm-port)
Specifications
-
Technical
Part Number(s)
Infrared 20-touch - E183504
Infrared 20-touch with Qwizdom Octopus/Ximbus Software - E399924Enclosure Color
Black
Touch Technology & Capacity
Infrared - 20 Touch
Touch Interfaces
USB
Diagonal Size
69.5'' diagonal, Active matrix TFT LCD (LED)
Active Area
60.6" x 34.0" / 1538.9mm x 865.6mm
Aspect Ratio
16:9
Resolution
Full HD 1920 x 1080
Viewing Angle
Horizontal: ±88° or 176° total / Vertical: ±88° or 176° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 700 nits
IR: 630Response Time-total (typical)
8 msec
Contrast Ratio
5000:1
On Screen Display
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, Auto-Adjust, H-position, V-position, Maintain Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Mounting, OSD H-Position, OSD V-Position, Volume, Mute, Recall Defaults, Video Source, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Information, MDC Protocol, Support and Help, System Temperature and Exit
Accessible through switches on the unit's tethered OSD control box.Input Video Format
Analog VGA, HDCP-capable HDMI 1.3, Display port 1.1a.
Input Video Signal Connector
Female DE-15 for Analog VGA
HDMI Type A receptacle Display part 1.1a Connector.Input Video Frequency
Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 HzAudio Input Connector
3.5 mm TRS jack
Audio Input Signal Range
1Vrms max stereo signal (standard PC line out)
Headphone Output Connector
3.5 mm TRS jack
Speakers
Internal 4x5 W stereo speakers
Power Supply
Internal AC
Input Connector
IEC 60320 C14
Input Voltage
100 - 240 VAC 50/60Hz
Maximum Operating Time
24/7
Power Consumption (Typical)
Monitor Only - Typical @ 110V/60Hz:
ON: 215W
SLEEP: 12.5W
OFF: 1.5W
Monitor Only - Typical @ 230V/50Hz:
ON: 211.0W
SLEEP: 12.5W
OFF: 2.0WDimensions
63" x 3.7" x 36.4" / 1600mm x 94mm x 925mm
Shipping Box Dimensions
Box #1: 70.6" x 15.2" x 45.2" / 1794mm x 386mm x 1149mm Box #2: 69.7" x 14.4" x 10.2" / 1772mm x 365mm x 260mm
Weight (Unpackaged)
Monitor Only: 149.5 lbs / 67.8 kg
Monitor with Computer Module: 154.35 lbs / 70 kgWeight (Packaged)
Monitor Only: 201.5 lbs / 91.4 kg (packaged with pallet)
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Mounting Options
VESA 4-hole mount per MIS-F, 600, 600, 8mm
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Optional Product Coverage
Extended Warranty (North America and EMEA only)
Regulatory approvals and declarations
Without RFID: UL, cUL , FCC Class A, CE Class A, VCCI Class A, IC, CCC, China RoHS, CB, RCM Class A, EAC, CoC, KC, BSMI, e-standby
With RFID: UL, FCC Class A, CE Class AWhat's in the Box
7001LT, OSD Remote, QIG, JP Class A Kiosk Info, User Manuals/Driver CD, HDMI cable (A to A plug), VGA + RS232 Y-Cable, VGA Cable, USB cable (A to B plug), power cable, NA plug, EU/KR plug UK plug, AR plug, CH plug, JP plug (3-pin to 2-pin adapter)
IDS Optional Accessories
Elo Backpack® - Elo P/N: E611864
Elo Backpack® 3.0 - Elo P/N: E901355
i3-6100 ECMG3 with No OS - Elo P/N: E400587
i3-6100 ECMG3 with Windows 7 - Elo P/N: E400775
i3-6100 ECMG3 with Windows 10 - Elo P/N: E400965
i5-6500 ECMG3 with No OS - Elo P/N: E401168
i5-6500 ECMG3 with Windows 7 - Elo P/N: E401365
i5-6500 ECMG3 with Windows 10 - Elo P/N: E401558
i5-6500 ECMG3 with Windows 10 (256 GB SSD & 8GB RAM) - Elo P/N: E458919
i5-6500 ECMG3 with Windows 10 and DisplayNote Montage Software - Elo P/N: E343989
i7-6700 ECMG3 with No OS - Elo P/N: E401764
i7-6700 ECMG3 with Windows 7 - Elo P/N: E401962
i7-6700 ECMG3 with Windows 10 - Elo P/N: E402161
i7-6700 ECMG3 with Windows 10 (256 GB SSD) - Elo P/N: E459109
i3 3.4 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001292
i3 3.4 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001293
i3 3.4 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001294
i3 3.4 GHz ECMG2 - Windows 10 for IDS 01 Series - Elo P/N: E991018
i5 3.7 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001295
i5 3.7 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001296
i5 3.7 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001297
i7 4.0 GHz ECMG2 - No OS for IDS 01 Series - Elo P/N: E001298
i7 4.0 GHz ECMG2 - Windows 7 for IDS 01 Series - Elo P/N: E001299
i7 4.0 GHz ECMG2 - Windows 8.1 for IDS 01 Series - Elo P/N: E001300
ECMG2 Android Computer Module Kit for IDS 01 Series - Elo P/N: E000739
Web Cam Kit - Elo P/N: E688656
NFC Adapter - Elo P/N: E918074
OPS Kit - Elo P/N: E102270
OSD Control Box - Elo P/N: E483757
Replacement Cable Kit - Elo P/N: E000263
Wall Mount Kit - Elo P/N: E248743
