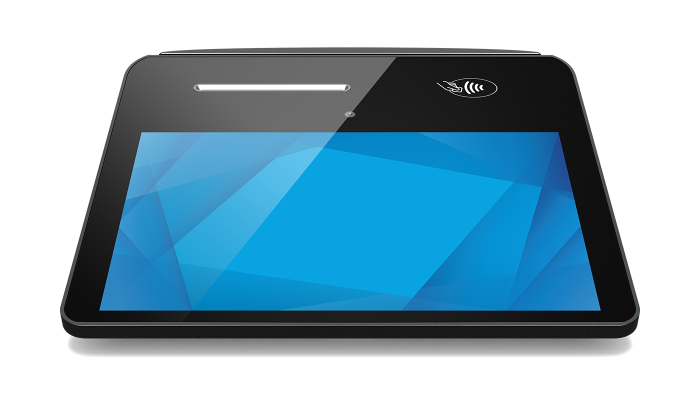

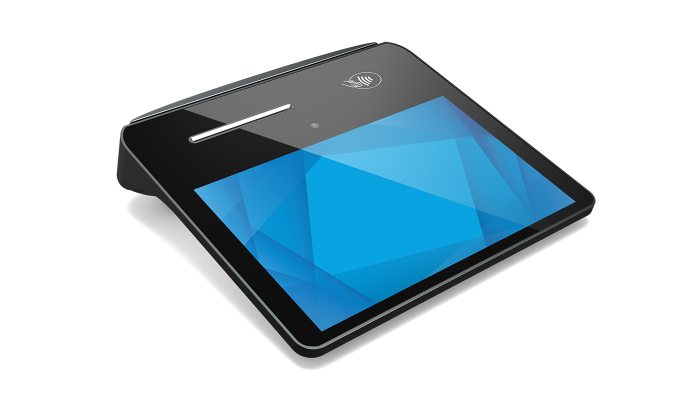

Elo Pay 7"
POS System
The integrated payment POS system packs the modularity merchants need into a compact enterprise-grade terminal. Complete with a 7-inch HD touch display, integrated payment, flexible Android 12 OS and Qualcomm SD660 processor.
7-inch HD
Touch Display
Integrated
Payment
Built On
Android 12
Qualcomm
SD660
EloView
Ready

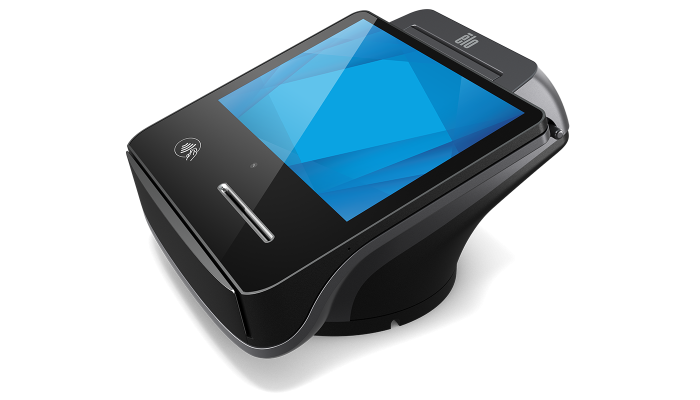

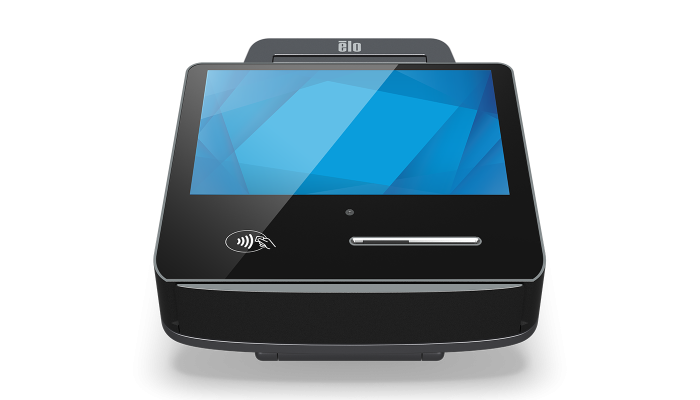

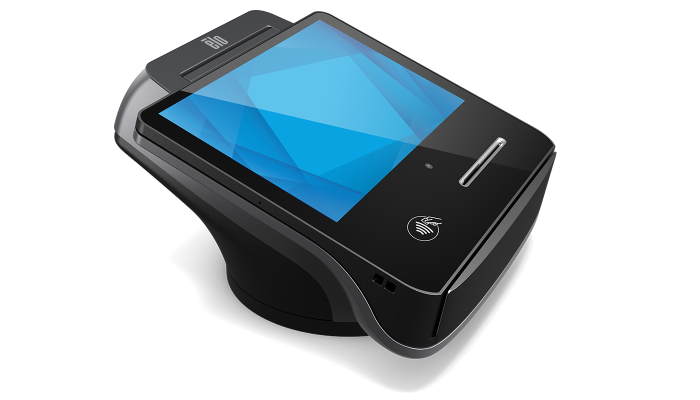

Dock it to the printer stand.

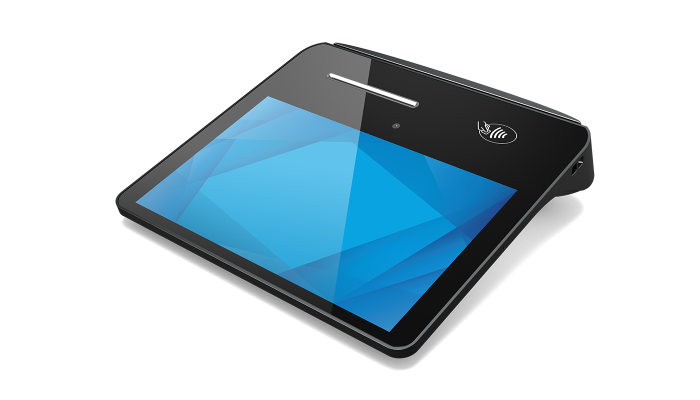

Place it on the counter.

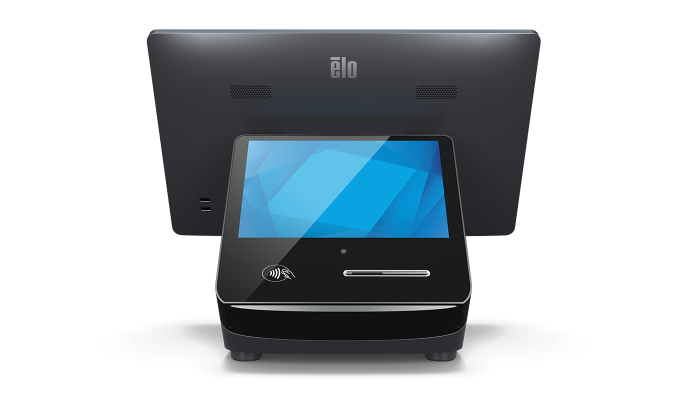

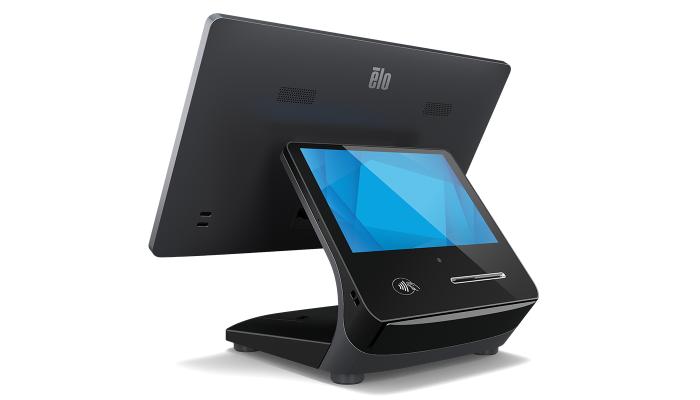

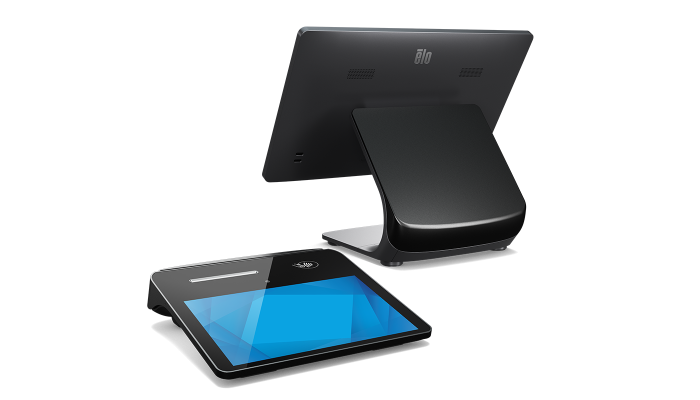

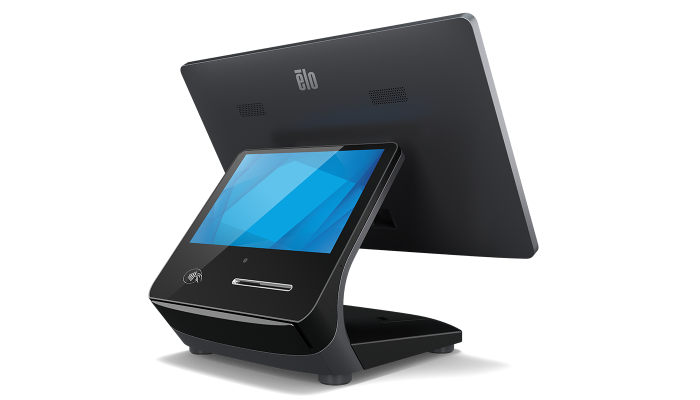

Integrate it to the Z70 stand.
Enjoy the convenience
of integrated payment.
Dip. Tap. Swipe.
Whether your customers have a physical card or
contactless via their mobile phone, the Elo Pay 7"
POS terminal accepts all forms of payment.
EMV - Insert cards with chips.
NFC - Tap with contactless payments.
MSR - Swipe cards with mag stripes.
Pin on Glass - Enter your pin directly on the screen.
Unified Hardware.
Unified Payment.
Elo Pay terminals leverage one payment kernel to
simplify the payment process, increase security,
and improve the user experience.
Elo Pay delivers fast, secure
and scalable payment services.
Elo Pay offers comprehensive payment services that enables
merchants to process transactions with confidence. With access to
multiple payment applications, end-to-end encryption, secure
tokenization, robust terminal management services (TMS) and
easy to use APIs for quick integration, merchants can get started
quickly and securely.
Manage your devices
easily with EloView.®
EloView allows you to deploy and securely manage
your entire network of Android-powered Elo devices
from anywhere in the world.
Remotely deploy content and manage your
devices securely.
Provision your devices in seconds with a
seamless out-of-the-box experience.
Leverage Elo Home to create a customized
interface on your Elo Pay device.
Get enterprise support
with Elo EssentialEdge.™
With easy-to-use development kits, robust management
tools, world class life cycle management and security, Elo
can help you deliver the convenience and familiarity of
Android interfaces in a secure, business-friendly way.
OS 360 - Take advantage of monthly security updates to
keep your devices secure.
Seamless Provisioning - Leverage EloView or Google
Zero Touch to easily set up your device.
Elo OEMConfig - Get Elo's proprietary APIs on your
preferred Android MDM platform, saving months of
effort as new releases become available.
Get peace of mind
with EloCare.
From advance unit replacement to OS 360, EloCare
delivers service and support from the people who
know your Elo products best.
- Advance Unit Replacement
- Accidental Damage Protection
- Extended Warranty
- OS 360
Specifications
-
Technical
Part Number(s)
E863808 - Elo Pay 7"
E814281 - Elo Pay 7" with Z70 POS Stand & External Hub*
E814473 - Elo Pay 7" with Z70 POS Stand & Integrated Hub*
E814661 - Elo Pay 7" with Printer Stand
*Monitor sold separately.Enclosure Color
Black
Processor
Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor
Memory (RAM)
4GB
Storage
64GB
Expansion Options
1x MicroSD
OS
Android 12 with Google Play Services
Display
7” Optically Bonded High Definition LCD
Touchscreen
10-touch Projective capacitive with Corning Gorilla Glass
Water rejectionSensor
Accelerometer
Resolution
1920 x 1080
Brightness (typical)
400 nits
Contrast Ratio
1000:1
I/O Ports
Elo Pay 7": 1x USBC
Small External Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C
Large External Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V)
EloPOS Z70 Pay with Integrated Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 1x USB-C, 1x RJ12 Cash DrawerCamera
1x 5MP FF
Payment
EMV Contactless ISO 14443-A/B, MiFare, ISO-18092
EMV Chip Card Reader (chip and pin-on-glass)
3-track MSR ISO 7810/7811Certifications
PCI-PTS 6.2 (PCI Approval Number: 4-30548)
EMV L1 & L2
Visa PayWave (coming soon)
Mastercard PayPass
Amex ExpressPay
Discover D-PAS
Mastercard TQM (coming soon)
China Union Pay International (coming soon)
JCB J/Speedy (coming soon)
Interac Flash (coming soon)
EFTPOS (coming soon)Wireless
802.11a/b/g/n/ac with 2x2 MU-MIMO
Bluetooth
Bluetooth 5.0
LED
1x Amber/White LED for Power
Programmable R/G/B/W LED for EMV-CL Reader
Programmable R/G/B/W LED for SCR ReaderKeyboard
On screen keyboard
Audio
2x Microphone
1x 1W speaker
1x BuzzerButtons
1x Power button
1x Home ButtonPrinter
Paper width: 58mm
Print width: 48mm
Print speed: 100 mm / sec
Auto-cutter
Roll diameter: 48mm
Sensors: paper out, cover openSupported Monitors
1002L Without Stand - E155834* (for pairing with Z70 POS Stand)
1302L Black Without Stand – E683595* (for pairing with Z70 POS Stand)
1302L Black With Stand – E683204 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand)
1304LS Gray Without Stand – E968117 (for pairing with Z70 POS Stand)
1502L Without Stand – E125496* (for pairing with Z70 POS Stand)
1502L With Stand – E155645 (for pairing with Elo Pay 7” & Elo Pay 7” with printer stand)
1504LS Gray Without Stand – E968313 (for pairing with Z70 POS Stand)
*requires VESA mount kit (included in box)Dimensions
6.9" x 6.6" x 1.7" / 176 mm x 168.68 mm x 42.95 mm
Shipping Box Dimensions
8.7" x 7.3" x 2.7" / 220 mm x 185 mm x 68 mm
Weight (Unpackaged)
1.4 lbs / 0.616 kg
Weight (Packaged)
1.6 lbs / 0.716 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
5% to 95% non-condensing
Regulatory approvals and declarations
UL, FCC (US) - Class B
cUL, IC (Canada)
CB (International safety)
CE (Europe) - Class B
RCM (Australia)
China RoHSESD
Class B: 8kV contact, 15kV air
Warranty
2-year
Extended Service Options
3 year OS 360 - Elo P/N: E822682
4 year OS 360 - Elo P/N: E834310
5 year OS 360 - Elo P/N: E822484
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053OS Support
Monthly Android security updates available with Elo OS 360 package
Sealability
IP54 on the panel/front-facing side
What's in the Box
Elo Pay 7" (E863808)
Elo Pay 7"
18W USBC PD Charger w/ (US, EU, UK) Plug Options
Quick Install Guide
Elo Pay 7" with Z70 POS Stand and External Hub (E814281)
Elo Pay 7"
Z70 POS Stand with External Hub (E815422)
Small Hub (E815044)
120W Power Brick w/ (US, EU, UK) Cable Options
1.8m USBC to USBC Cable
Quick Install Guide
Elo Pay 7" with Z70 POS Stand and Integrated Hub (E814473)
Elo Pay 7"
Z70 POS Stand with Integrated Hub (E815605)
120W Power Brick w/ (US, EU, UK) Cable Options
1.8m USBC to USBC Cable
Quick Install Guide
Elo Pay 7" with Printer Stand (E814661)
Elo Pay 7"
Printer Stand (E815808)
45W USBC PD Charger w/ (US, EU, UK) Plug Options
Paper Roll
Quick Install GuideStands, Mounts & Kits
Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C – Elo P/N: E815044
Large I/O Hub: 1x DC-in, 1x RJ45 LAN, 1x RJ12 Cash Drawer, 4x USB-A, 2x USB-C, 1x Powered USB (24V) – Elo P/N: E815235
VESA Mount Kit – Elo P/N: E220684
Accessories
(4)
Upgrades, add-ons, and more.
Small Hub
Large Hub

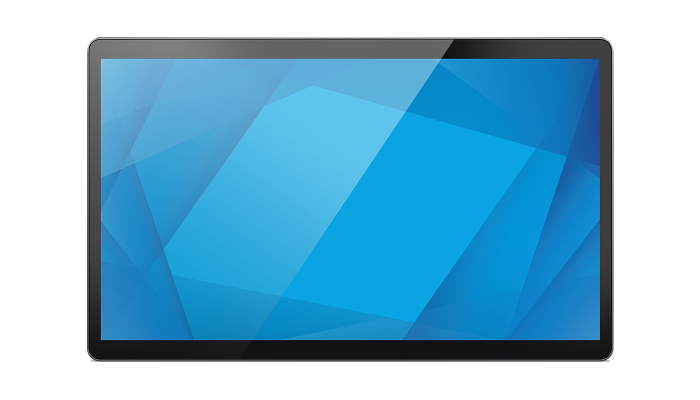

1304LS 13" Touchscreen Monitor

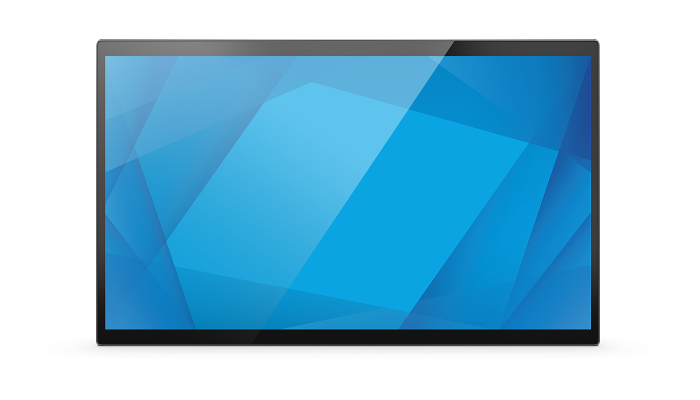

1504LS 15" Touchscreen Monitor
