1304LS 13” Touchscreen Monitor
Razor thin design.
Brilliant touchscreen.
Built to be one of the thinnest commercial-grade 13-inch
touchscreen monitors, the 04LS-Series delivers a stunning
design with thin borders, enhanced durability and state-of-the-
art optical bonding - all with brilliant display clarity.
Available in a range of
sizes from 7- to 15-inch.
Streamline setup with USB‑C to
enable power, video and touch
integration all in a single cable.
Secure your cables into place.
With a port cover that can be locked into place, cables are less prone
to becoming disconnected, minimizing disruptions to the device.
A clean slate for
touch experiences.
The perfect pairing for
your POS terminal.
Whether you want to pair the 1304LS with a PC, a mobile device
or an AiO with integrated payment, the 04LS slate monitors
offers the perfect compact touch display with the sleekness you
desire at the point of sale.
Get peace of mind
with EloCare.SM
From advance unit replacement to extended warranties,
EloCare delivers service and support from the people
who know your Elo products best.
Specifications
-
Technical
Part Number(s)
E968117
Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio
16:9
Active Area
11.57" x 6.51" / 293.76 mm x 165.24 mm
Resolution
1920 x 1080
Other Supported Resolutions
640x480 60Hz
800x500 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz
1280x720 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 60HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.2 million
Brightness (typical)
Panel: 300 nits; TouchPro PCAP: 270 nits
Response Time-total (typical)
27 msec
Contrast Ratio
600:1
Touch Interfaces
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
Controls: Menu, Power
Settings: Brightness, Contrast, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
Lockouts: OSD, PowerI/O Ports
USB Type-C connector
Speakers
2 x 2W (+/-10%) internal speakers
Video_1
USB Type-C connector
Input Video Horizontal Sync frequency range: 30 – 82KHz
Input Video Vertical Sync (frame rate) frequency range: 60HzPower
Power Delivery compatible via USB Type-C connector
Power Consumption (Typical)
ON (Default - 100% Brightness): 6.6W
SLEEP: 0.8 W
OFF: 0.15 WMonitor Dimensions (without Stand)
Without VESA Adapter: 12.27" x 7.56" x 0.59" / 311.52 mm x 191.86 mm x 14.88 mm
With VESA Adapter: 12.27" x 7.56" x 0.79” / 311.52 mm x 191.86 mm x 19.88 mmShipping Box Dimensions
14.88" x 9.92" x 3.62" / 378 mm x 252 mm x 92 mm
Weight (Unpackaged)
1.92 lbs / 0.87 kg
Weight (Packaged)
3.42 lbs / 1.55 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA via 4-hole 75mm mounting adapter on rear of unit.
Other Features
Energy Star 8.0
TUV Rhineland (Low Blue Light)
Power collection function via DDCCIWarranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Canada CUL, IC
Europe CE
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Mexico NOM
RoHS, China RoHS, WEEE, REACH
United Kingdom UKCAImpact Protection
IK07
What's in the Box
Touchmonitor
Quick Install Guide
USB Type-C cable
75mm VESA adapter (assembled)Optional Peripherals
PCAP Stylus Pen - Elo P/N: E066148
Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Rear Facing display Pole Mount Kit – Elo P/N: E038989
Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
Wallaby™ POS Stand (Black) - Elo P/N: E949536
USB-C to USB-C Cable Kit – Elo P/N: E129019
Z10 POS Stand (75mm VESA) - Elo P/N: E767159
Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
Accessories
(8)
Upgrades, add-ons, and more.
Pole Stands
Shelf Mount

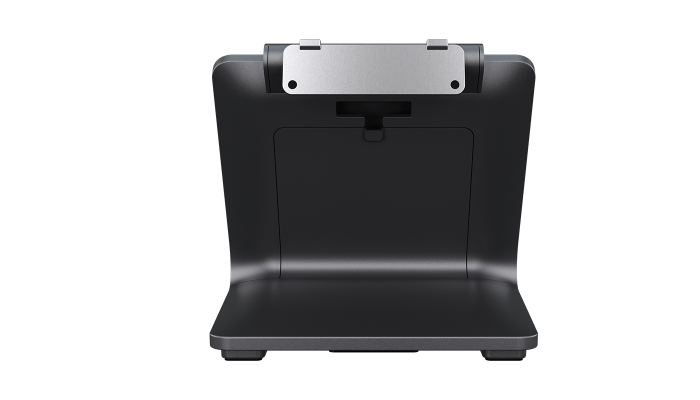

Z10 POS Stand
Wallaby™ Pro Merchant-facing Display Kit

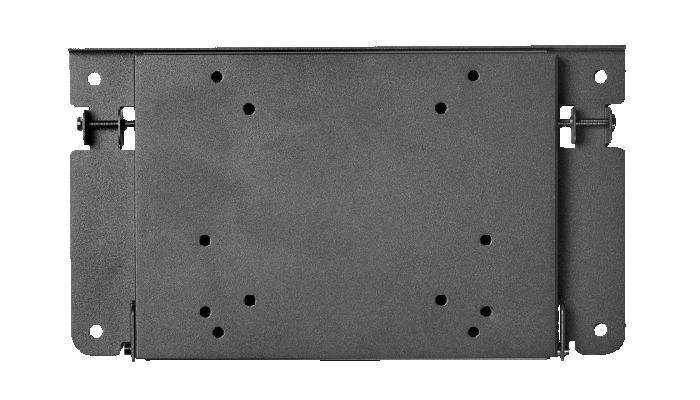

Wall Mount
Flip Stand

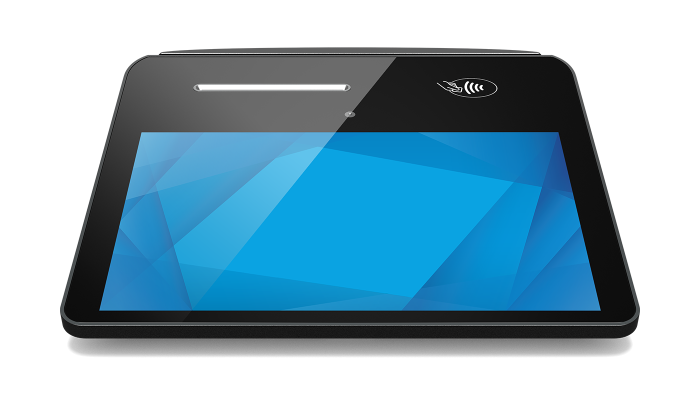

Elo Pay 7-inch Integrated Payment POS

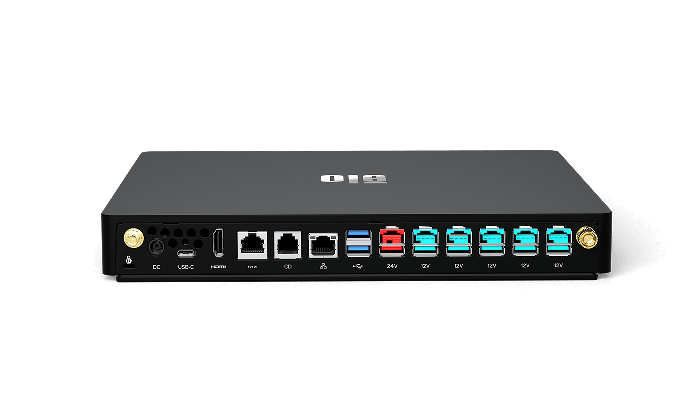

EloPOS™ Pack
