1002L 10" Touchscreen Monitor (Rev A - Replaced by new 1002L)

This version has been discontinued. Please see the replacement model - 1002L.

Overview

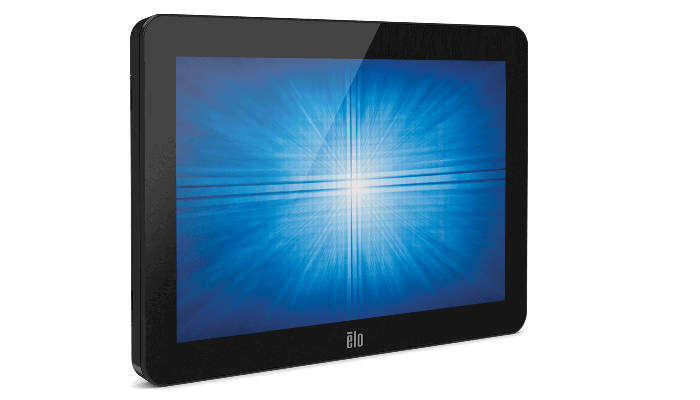

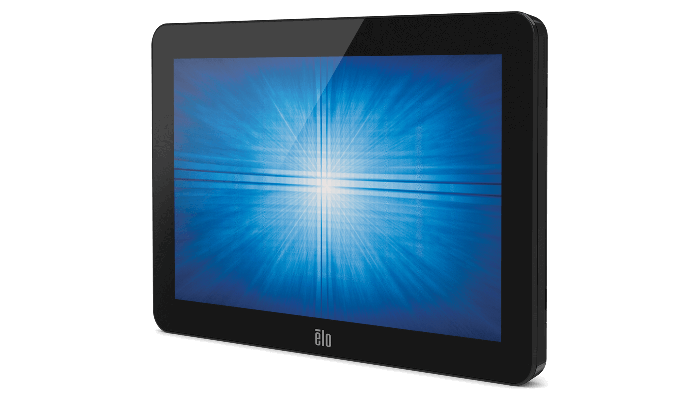

The Elo M-Series 1002L 10-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo’s industry-leading TouchPro™ PCAP technology. The sleek, low-profile, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 1002L well suited for high traffic environments.

Installation flexibility.

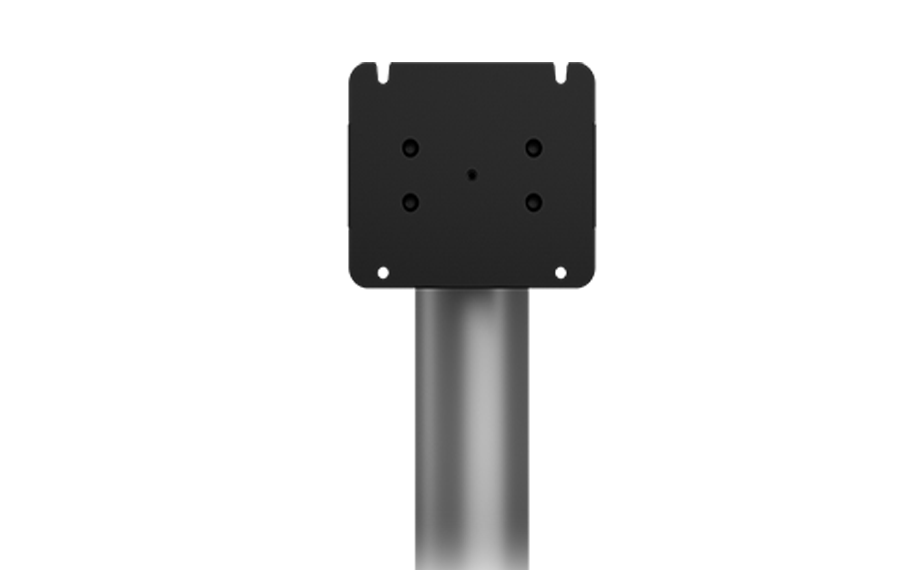

The Elo M-Series is available in 10-, 15-, and 20-inch sizes with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.

POS ready.

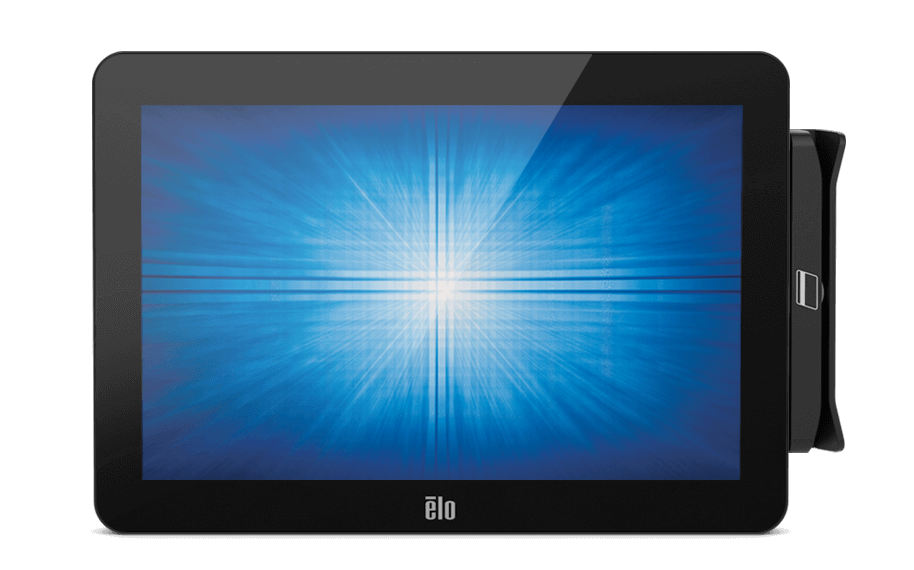

The 1002L offers optional universal retail accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.

Commercial grade.

The 10-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

Energy savings using LED technology
TouchPro and non-touch models available
Edge-to-edge glass display with anti-glare for retail interiors
Installation flexibility with mounting in portrait, landscape and table-top orientation
Typical power consumption: 5.6W; power
Power over USB using optional cable
Three-year standard warranty

Specifications

Technical

Part Number(s)

PCAP (Worldwide) - E045337
Non-Touch (Worldwide) - E138394

Enclosure Color

Black

Touch Technology & Capacity

Non-Touch
PCAP (Projected Capacitive) - 10 Touch

Diagonal Size

10.1'' diagonal, Active matrix TFT LCD (LED)

Monitor Thickness

1.14" / 29mm panel depth

Aspect Ratio

16:10

Active Area

8.57" x 5.37" / 218mm x 136.6mm

Resolution

1280 x 800

Other Supported Resolutions

640 x 480 @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080 @ 60Hz
1920 x 1200 @ 60Hz

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

Number of Colors

262,000

Brightness (typical)

LCD panel: 350 nits
PCAP (DC Power): 315 nits
PCAP (USB Power): 176 nits

Response Time-total (typical)

25 msec

Contrast Ratio

700:1

Touch Interface

USB

On Screen Display

Accessible through switches along the bottom:

Controls: Menu, Up, Down, Select

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

Lockouts: OSD, Power

Input Video Format

Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported

Input Video Frequency

Horizontal: 31.5 - 60 KHz
Vertical: 60 Hz

Power Consumption (Typical)

Monitor + AC/DC adapter
ON: 5.6W
SLEEP: 0.4W
OFF: 0.2W
Max Power Consumption with USB Power: 7W

Power Supply

External DC (Power Brick)

Input Voltage

12VDC +/- 5%; 100-240VAC, 50/60Hz

Input Connector

Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)

Monitor Dimensions (without Stand)

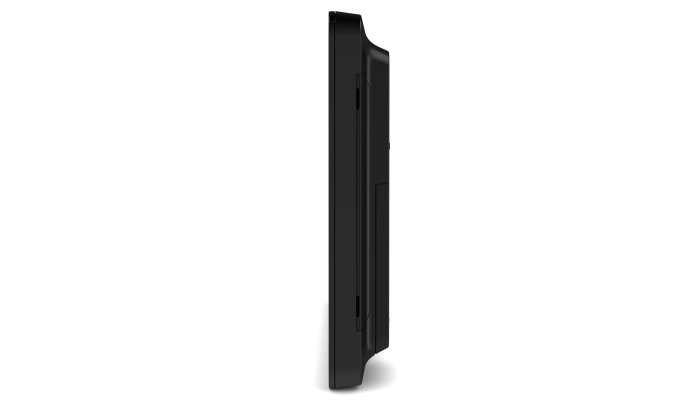

10.02" x 6.98" x 1.14" / 254.6mm x 177.3mm x 29mm

Shipping Box Dimensions

12.2" x 5.47" x 9.37" / 310mm x 139mm x 238mm

Weight (Unpackaged)

1.75 lbs / 0.79 kg

Weight (Packaged)

4.5 lbs / 2 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95%

Sealability

Touchscreen sealed to bezel; Touchscreen sealed to LCD

MTBF

50,000 hours demonstrated

Mounting Options

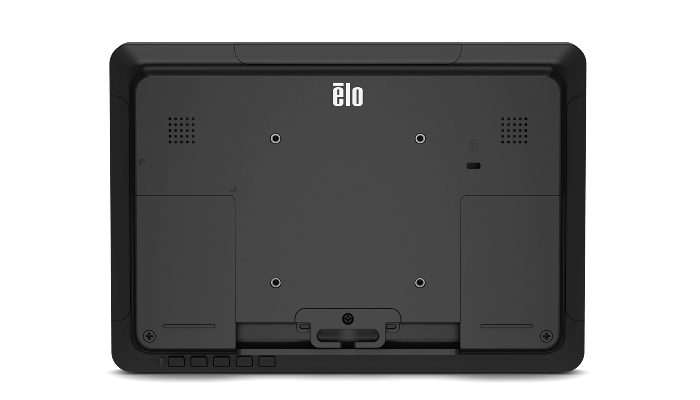

VESA 4-hole 75mm mounting interface on rear of unit

Other Features

Optional wall mount kit available tabletop, shelf- and pole mounts available, see Accessories tab
2 x 2W internal speakers
Kensington lock slot

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Regulatory approvals and declarations

UL, cUL, FCC, IC, CE, VCCI, CCC, BSMI

What's in the Box

QIG, Japan Class-B TM info, User Manual CD, 40W Power Brick with Clipped-in plugs, Mini-VGA to VGA cable (mini-VGA to DE-15 male), USB cable (USB Type A plug to USB Type B plug), HDMI cable, Audio cable, 2 cable clamps, 2 tie wraps

Optional PCAP Stylus Pen

E066148

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Barcode Reader (BCR) – Elo P/N: E093433
Customer Display (2x20 VFD) – Elo P/N: E001003
2D Barcode Scanner – Elo P/N: E926356
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

Stands, Mounts & Kits

Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Elo Backpack® - Elo P/N: E611864
Elo Backpack® 3.0 - Elo P/N: E901355
Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
1.8m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210789
3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606
Power Brick Kit – 1.8m Power Cable (includes clipped-in plugs for US, EU, UK, KR, AU and CH) - Elo P/N: E211174
Power Brick Kit – 3m Power Cable (includes clipped-in plugs for US, EU, UK, KR, AU and CH) - Elo P/N: E210973
1.8m Power USB Cable - Elo P/N: E457742
3m Power USB Cable - Elo P/N: E209775
Wallaby™ POS Stand (Black) - Elo P/N: E949536
Wallaby™ POS Stand (White) - Elo P/N: E353758

Accessories

(13)

Upgrades, add-ons, and more.

EMV Cradles

Wallaby™ POS Stand

Elo Edge Connect™ Magnetic Stripe Reader (MSR)

2D Barcode Scanner (Gen 1)

1D Barcode Reader (Gen 1 - Replaced by 2D Barcode Scanner)

NFC/RFID (Replaced by new RFID)

Elo Edge Connect™ VFD Customer Display

Flip Stand

Pole Mount Bracket

Pole Stands

Shelf Mount

Elo Backpack™ 4 for Android

Elo Backpack™ for Linux

Configurations

(2)

Refine your search:

Compare Compare

E045337 (Worldwide)

Black
USB
No-Bezel
Anti-glare
Projected Capacitive

Compare Compare

E138394 (Worldwide)

Black
USB
No-Bezel
Anti-glare
Non-Touch
