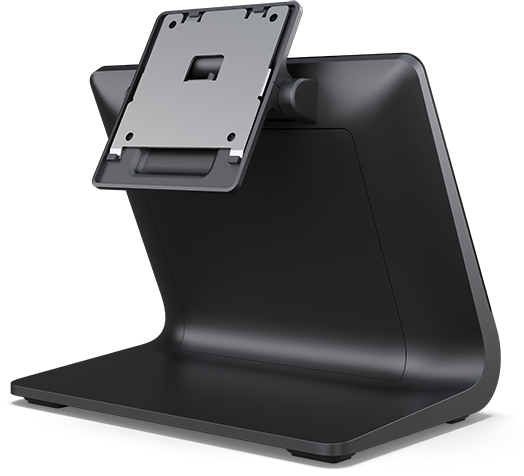

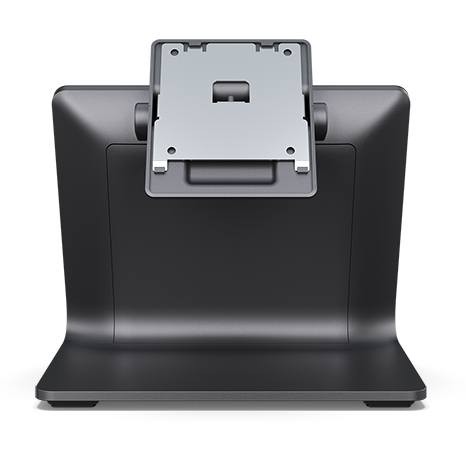

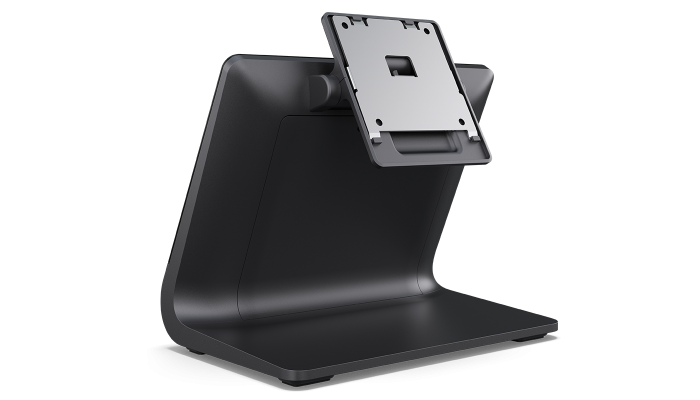

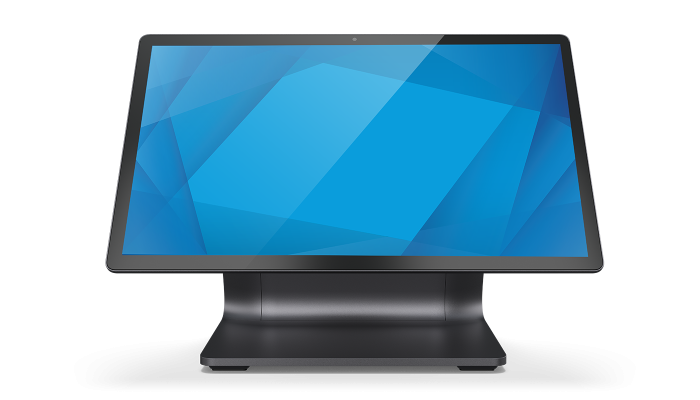

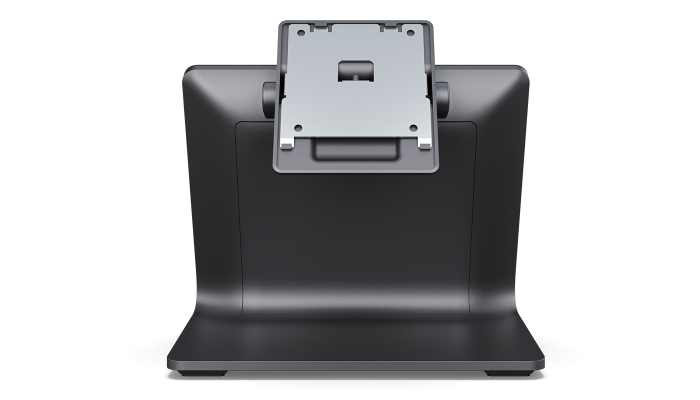

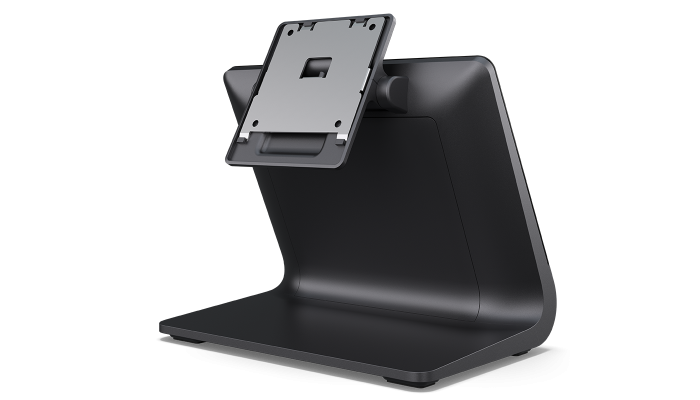

Z30 POS Stand
Complete with a built-in customer-facing touchscreen display, integrated connectivity hub and concealed cable routing, the Z30 delivers a beautifully robust point-of-sale stand.
Add the perfect touchscreen display.
15" I-Series 4 Slate

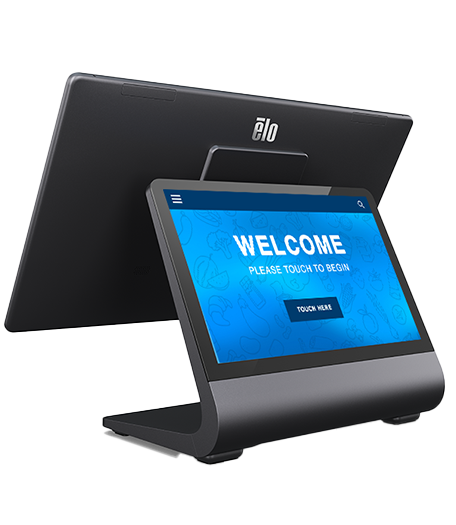

Integrated interactive CFD.

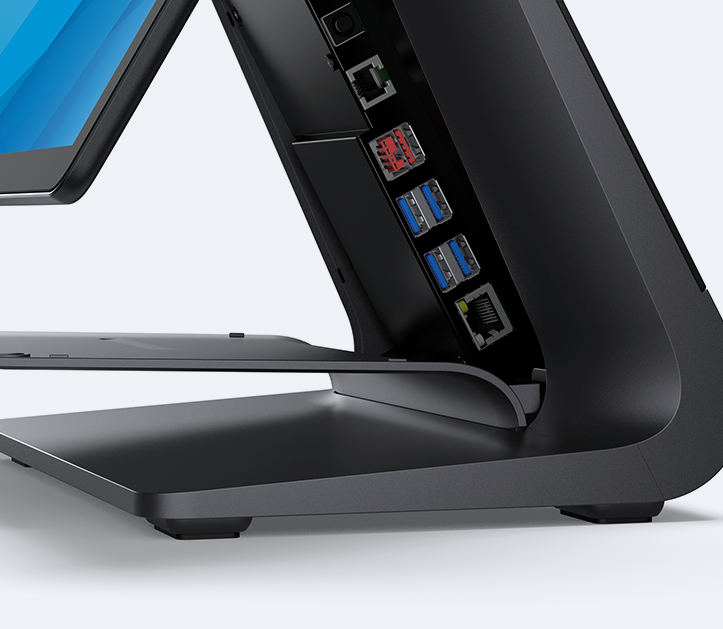

Integrated I/O
From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB‑C cable that provides
touch, video and power.
Create your perfect POS system.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
| I/O | EloPOS Z10 | EloPOS Z20 | EloPOS Z30 |
|---|---|---|---|
| Ethernet |  |
|
|
| 4x USB-A 3.0 | |
|
|
| Cash Drawer Port | |
|
|
| 24V powered USB | |
||
| USB-C | |
||
| Edge Connect Ports** | |
| Main Display | ||||||
|---|---|---|---|---|---|---|
| I-Series 4 | |
|||||
| I-Series 4 Slate | |
|
||||
| Secondary Display | |||
|---|---|---|---|
| Integrated | |
||
| Mount for CFD | |
|
|
*RJ12 (serial/cash drawer) **On I‑Series 4
EloPOS Z10
Compatible with the 15‑inch I‑Series Slate
I/O
-
Ethernet
-
4x USB-A 3.0
Secondary Display
-
Optional 7-inch CFD.
EloPOS Z20
Compatible with the 10‑ & 15‑inch I‑Series 4
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
USB‑C
-
Edge Connect Ports**
Secondary Display
-
Optional 10‑, 13‑ or 15‑inch CFD.
EloPOS Z30
Compatible with the 15‑inch I‑Series Slate.
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
24V powered USB
-
USB‑C (non-CFD model)
Secondary Display
-
Choose integrated CFD; or no CFD in stand.
*RJ12 (serial/cash drawer) **On I‑Series 4
Specifications
-
Technical
Part Number(s)
E483135 - Z30 POS Stand without CFD
E482940 - Z30 POS Stand with CFDEnclosure Color
Dark Gray Metallic
Compatibility
Main Display:
15" I-Series 4 Slate
Customer-facing Display (for use with E483135):
0702L – Elo P/N: E796382
1002L – Elo P/N: E155834 and E324341
1302L – Elo P/N: E683595 and E683787
1502L – Elo P/N: E125496Display Head Connection
USB-C
I/O Ports
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)
RJ12 (Serial/cash drawer)* 12/24V
Powered USB 24V
USB-C output - CFD (DisplayPort, Touch & Power Delivery up to 27W)
*User will need to select modePower
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
On:
No CFD Model: 3.5W
With CFD Model: 8.32W
Off:
<0.1W
Sleep:
No CFD Model: 2.5W
With CFD Model: 8.32WReal-Time Clock
lithium coin cell battery
Mounting Options
VESA 75 mm

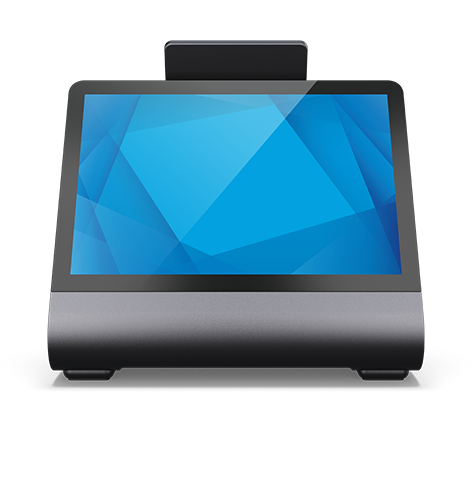

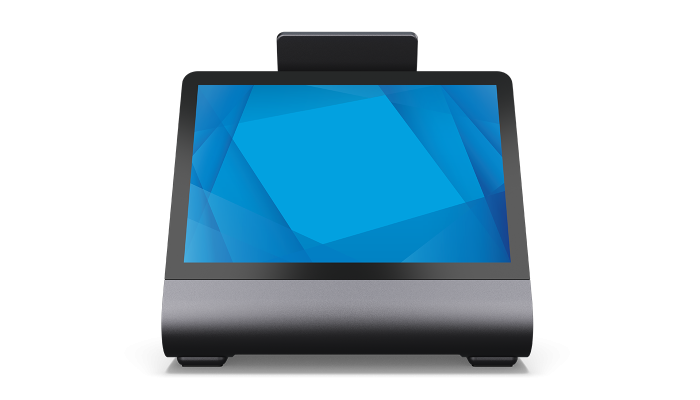

Integrated Customer-Facing Display
Size -10.1 inch
Resolution - 1280x800 @ 60 Hz
Active Display Area (H x V) - 8.7” x 5.3” / 216.96 mm x 135.6 mm
Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Brightness - LCD Panel: 400 nits, TouchPro PCAP 344 nits
Number of Colors - 8-bit (16.7M)
Touch Technology - TouchPro PCAP
Sealing - Touchscreen sealed to LCD
Number of Touches - 10Weight (Unpackaged)
5.7 lbs / 2.6 kg
Weight (Packaged)
10.8 lbs / 4.9 kg
Dimensions
6.34" x 9.55" x 7.99" / 162 mm x 242.6 mm x 203 mm
Shipping Box Dimensions
11.65" x 11.42" x 12.6" / 296 mm x 290 mm x 320 mm
Operating Temperature
0° C to 40° C / 32° F to 104° F
Storage Temperature
-20° C to 50° C / -4° F to 122° F
Humidity
Operating: 20% - 80% / Storage: 5% - 95%
MTBF
50,000 hours demonstrated
Warranty
2-year
Extended Service Options
3 year warranty coverage - Elo P/N: E375367
4 year warranty coverage - Elo P/N: E375573
5 year warranty coverage - Elo P/N: E375771
2 year warranty coverage + AUR - Elo P/N: E375970
3 year warranty coverage + AUR - Elo P/N: E376169
4 year warranty coverage + AUR - Elo P/N: E376362
5 year warranty coverage + AUR - Elo P/N: E376547Regulatory approvals and declarations
FCC (US) Class B (With CFD Model is Class A only)
IC (Canada)
CE (Europe)
VCCI (Japan)
RCM (Australia)What's in the Box
Z30 POS Stand
North American Power Cable
European Power Cable
Quick Install Guide
150W Power Brick
2 x Zip Ties
4 x M4x6 mm screws in a plastic bag
1 x M4x8 mm screw in a plastic bag
1 x M3x6 mm screw in a plastic bag
Base Plate – for mounting to a countertop
