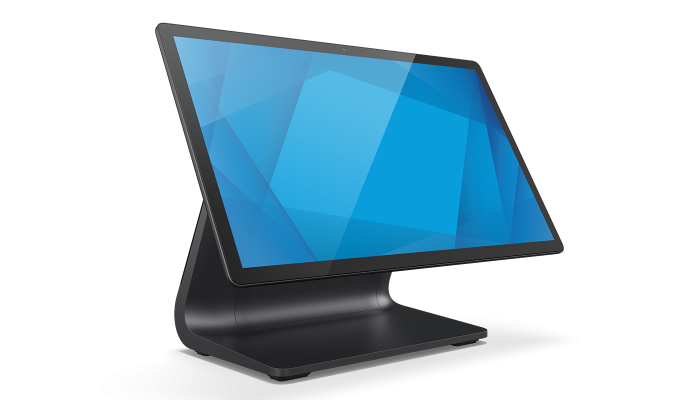

EloPOS Z30 for Android.
Built on Elo’s unified architecture, the EloPOS Z30 delivers a powerful point of sale system that outperforms the competition. Complete with a 15.6-inch Full HD interactive display, integrated connectivity hub, contained cable routing, optional customer-facing touchscreen display and Android 10 OS, the EloPOS Z30 brings one of the sleekest form factors to the market.
Powerful Touchscreen

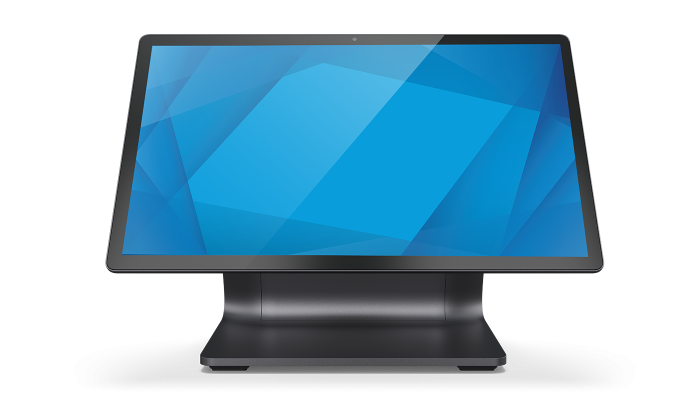

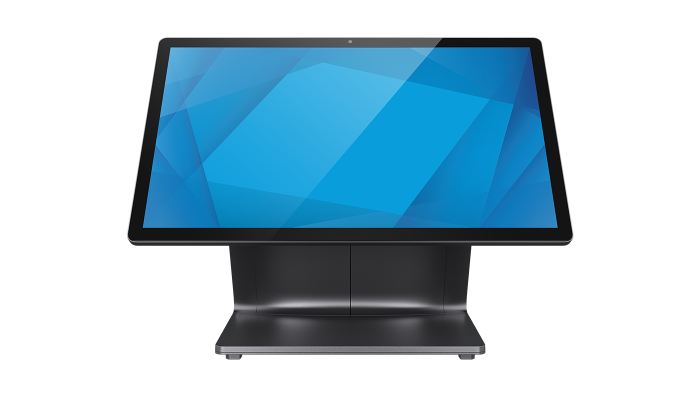

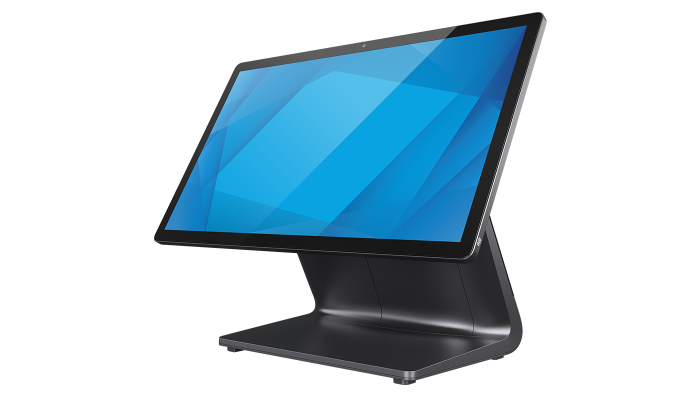

The EloPOS Z30 offers a fully integrated 15.6-inch full HD interactive display.
Integrated I/O
From payment devices and scanners
to a cash drawer and printer, there is room
for everything you need at point of sale.
Conceal Your Cables
Keep your counter clean with the
integrated cable routing system.
Single Cable Connection
Connect a secondary display with
a single USB‑C cable that provides
touch, video and power.

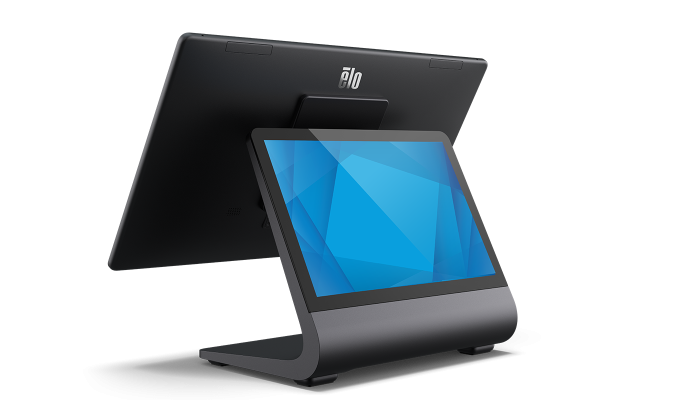

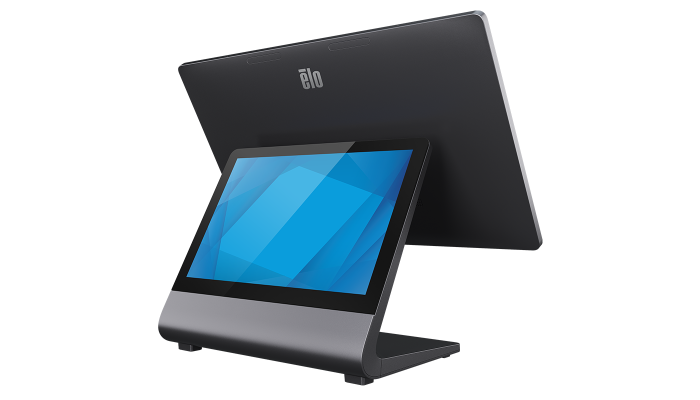

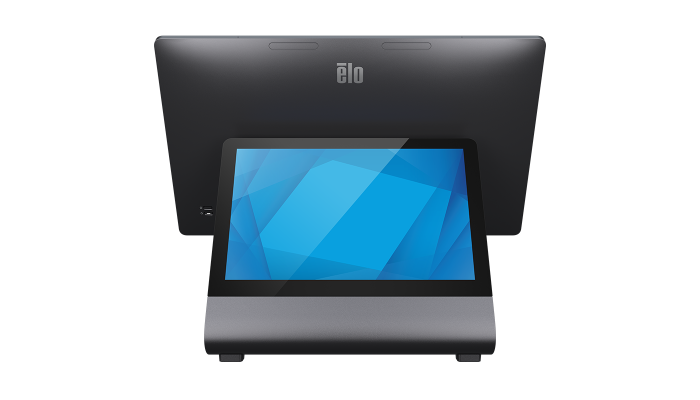

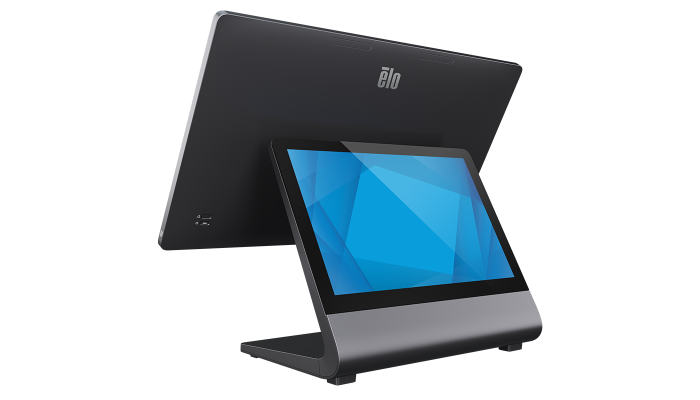

Interactive display for customers.
With an integrated CFD, offer your customers a point of interaction to review transactions, participate in loyalty programs and see the latest promotions with the integrated customer-facing touchscreen display.
Secure it.
The Z30 is designed to stay in place
without being secured, but if
permanent mounting is required,
easily affix your POS terminal to any
counter or surface.
Commercial-grade performance.
Whether equipped with the Qualcomm
Snapdragon 8-core Kryo processor or the
Rockchip 6-core processor, the EloPOS Z30 for
Android delivers the performance your
point-of-sale system needs.
Create your perfect POS system.
From integrated I/O and a customer-facing display to concealed cable routing, Elo’s modular point of sale solutions can be tailored to fit any business.
| I/O | EloPOS Z10 | EloPOS Z20 | EloPOS Z30 |
|---|---|---|---|
| Ethernet |  |
|
|
| 4x USB-A 3.0 | |
|
|
| Cash Drawer Port* | |
|
|
| 24V powered USB | |
||
| USB-C | |
||
| Edge Connect Ports** | |
| Main Display | ||||||
|---|---|---|---|---|---|---|
| I-Series 4 | |
|||||
| I-Series 4 Slate | |
|
||||
| Secondary Display | |||
|---|---|---|---|
| Integrated | |
||
| Mount for CFD | |
|
|
*RJ12 (serial/cash drawer) **On I‑Series 4
EloPOS Z10
Compatible with the 15‑inch I‑Series Slate
I/O
-
Ethernet
-
4x USB-A 3.0
Secondary Display
-
Optional 7-inch CFD.
EloPOS Z20
Compatible with the 10‑ & 15‑inch I‑Series 4
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
USB‑C
-
Edge Connect Ports**
Secondary Display
-
Optional 10‑, 13‑ or 15‑inch CFD.
EloPOS Z30
Compatible with the 15‑inch I‑Series Slate.
I/O
-
Ethernet
-
4x USB-A 3.0
-
Cash Drawer Port*
-
24V powered USB
-
USB‑C (non-CFD model)
Secondary Display
-

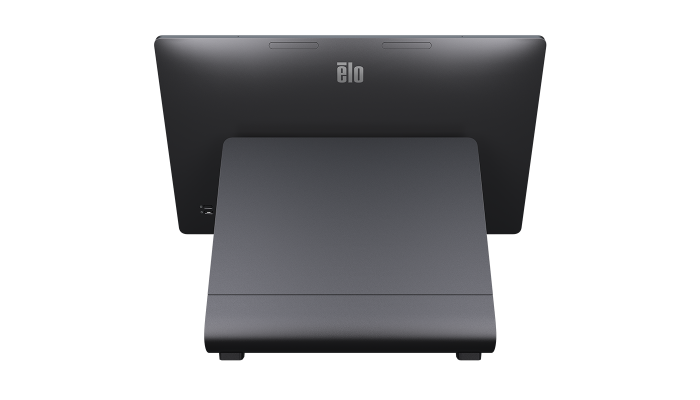

Choose integrated CFD; or no CFD in stand.
*RJ12 (serial/cash drawer) **On I‑Series 4
Get enterprise support with Elo EssentialEdge.™
With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
OS 360 – Take advantage of monthly security updates to keep your devices secure.
Seamless Provisioning – Leverage EloView or Google Zero Touch to easily set up your device.
Elo OEMConfig – Get Elo’s proprietary APIs on your preferred Android MDM platform, saving months of effort as new releases become available.
Android device management made easy.
EloView allows you to deploy and securely manage your entire network of Android-powered Elo devices from anywhere in the world.
-
Remotely deploy content and manage your devices securely.
-
Provision your devices in seconds with a seamless out-of-the-box experience.
-
Leverage Elo Home to create a customized interface on your I‑Series device.
Get peace
of mind
with EloCare.
Retailers across the globe rely on Elo's POS Solutions everyday.
Your success is our success. We work side-by-side to help ensure selection, deployment and updates are executed properly so you can focus on your business.
Specifications
-
Technical
Part Number(s)
EloPOS Z30 Standard Model with CFD: E482347
EloPOS Z30 Value Model with CFD: E482746
EloPOS Z30 Standard Model without CFD: E392186
EloPOS Z30 Value Model without CFD: E392977Enclosure Color
Dark Gray Metallic
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Standard Model: Qualcomm Snapdragon SDA660
Value Model: Rockchip RK3399Memory (RAM)
4GB
Storage
Standard Model: 64GB
Value Model: 32GBOS
Android 10 with Google Play Services and EloView content deployment and management
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
13.55" x 7.62" / 344 mm x 194 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
8-bit (16.7 million)
Brightness (typical)
Standard Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nits
Value Model:
LCD Panel: 350 nits
TouchPro PCAP: 280 nitsResponse Time-total (typical)
20 ms
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
I/O Ports
DC Input
4 x USB-A 3.0 (900mA)
RJ45 Ethernet LAN (Gigabit)
RJ12 (Serial/cash drawer)* 12/24V - User will need to select mode
Powered USB 24V
USB-C output - CFD (DisplayPort, touch and power delivery up to 27W)Integrated Customer-Facing Display
Size -10.1 inch
Resolution - 1280 x 800 @ 60 Hz
Active Display Area (H x V) - 8.7" x 5.3" / 216.96 mm x 135.6 mm
Viewing Angle - Horizontal: ±80° or 160° total / Vertical: ±80° or 160° total
Brightness - LCD Panel: 400 nits, TouchPro PCAP: 344 nits
Number of Colors - 8-bit (16.7M)
Touch Technology - TouchPro PCAP
Sealing - Touchscreen sealed to LCD
Number of Touches - 10Webcam
5MP
Max Resolution: 1920x1080 30fps
Auto FocusWireless
802.11a/b/g/n/ac + Bluetooth 5.0
Audio Ports
Standard Model: 2x built-in Digital Microphones
Value Model: 1x built-in Analog MicrophoneSpeakers
Standard Model: 2x 0.7W
Value Model: 2x 1WPower Supply
AC input voltage: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
Standard Model wIth CFD:
On: 18W
Off: < 0.5W
Sleep: 13W
Value Model wIth CFD:
On: 17.84W
Off: < 0.7W
Sleep: 12.9W
Standard Model wIthout CFD:
On: 12W
Off: < 0.5W
Sleep: 7W
Value Model wIthout CFD:
On: 11.8W
Off: < 0.7W
Sleep: 7.66WDimensions
11.6" x 7.4" x 14.6" / 294 mm x 188 mm x 371 mm
Shipping Box Dimensions
18.22" x 11.22" x 17.64" / 463 mm x 285 x 448 mm
Weight (Unpackaged)
9.6 lbs / 4.4 kg
Weight (Packaged)
17.1 lbs / 7.75 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 50°C / -4°F to 122°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL (US)
FCC (US) Class B (CFD Version is Class A only)
IC (Canada)
CE (Europe)
CB (International)
VCCI, MIC (Japan)
RCM (Australia)Supported Countries
Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
Real-Time Clock
lithium coin cell battery
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm
Warranty
2-year
Extended Service Options
3 year OS 360 - Elo P/N: E873133
3 year Warranty Coverage – Elo P/N: E819394
4 year Warranty Coverage – Elo P/N: E819598
5 year Warranty Coverage – Elo P/N: E819795
3 year Warranty Coverage + ADP – Elo P/N: E130329
4 year Warranty Coverage + ADP – Elo P/N: E130530
5 year Warranty Coverage + ADP – Elo P/N: E130719
2 year Warranty Coverage + AUR – Elo P/N: E819985
3 year Warranty Coverage + AUR – Elo P/N: E820186
4 year Warranty Coverage + AUR – Elo P/N: E820388
5 year Warranty Coverage + AUR – Elo P/N: E820582
2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490
3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674
4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859
5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053OS Support
Monthly Android security updates available with Elo OS 360 package.
Sealability
Standard Model: Touchscreen optically bonded to LCD
Value Model: Touchscreen sealed to LCDWhat's in the Box
EloPOS Z30
North American Power Cable
European Power Cable
Quick Install Guide
150W Power Brick
2 x Zip Ties
1 x M4x8 mm screw in a plastic bag
1 x M3x6 mm screw in a plastic bag
Base Plate – for mounting to a countertopStands, Mounts & Kits
0702L - Elo P/N: E796382
1002L - Elo P/N: E155834
1002L - Elo P/N: E324341
1302L - Elo P/N: E683595
1502L - Elo P/N: E125496
