TouchPro® 7200 Series Controller COF
Overview

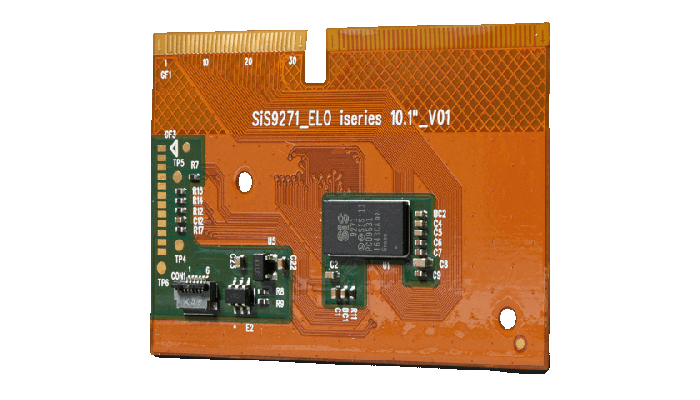

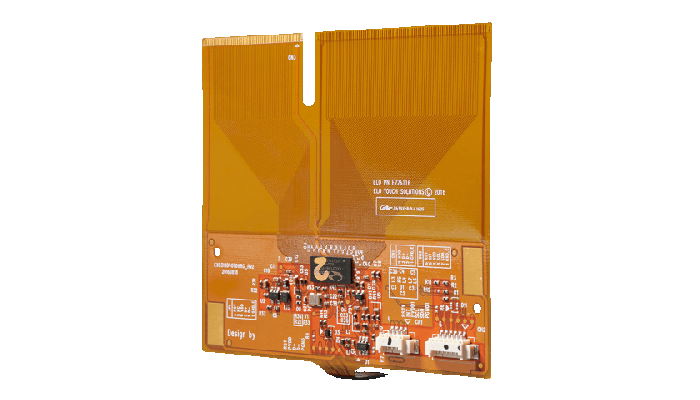

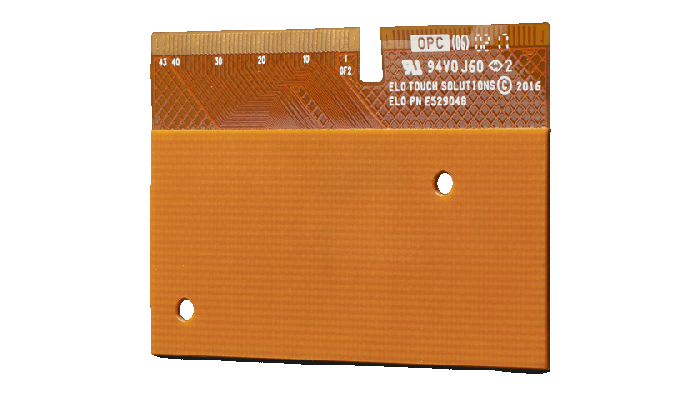

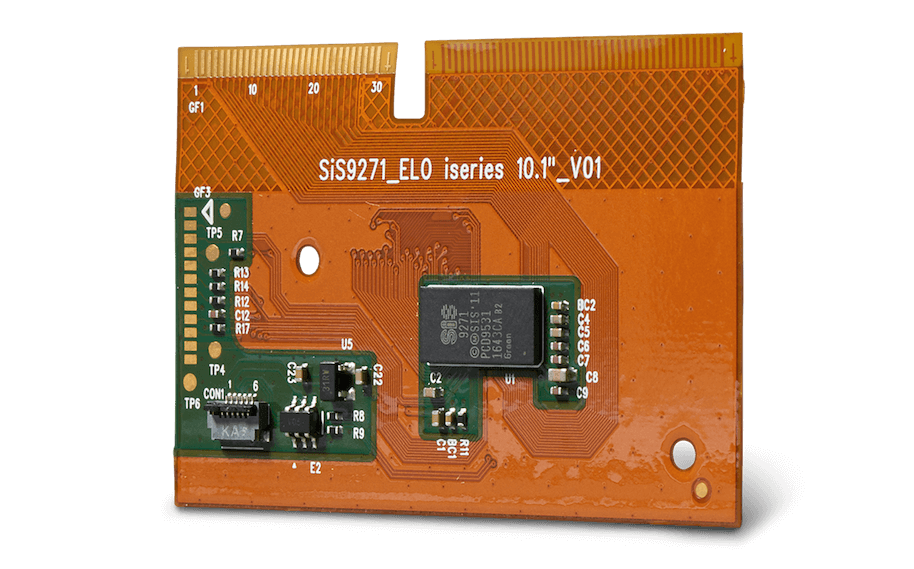

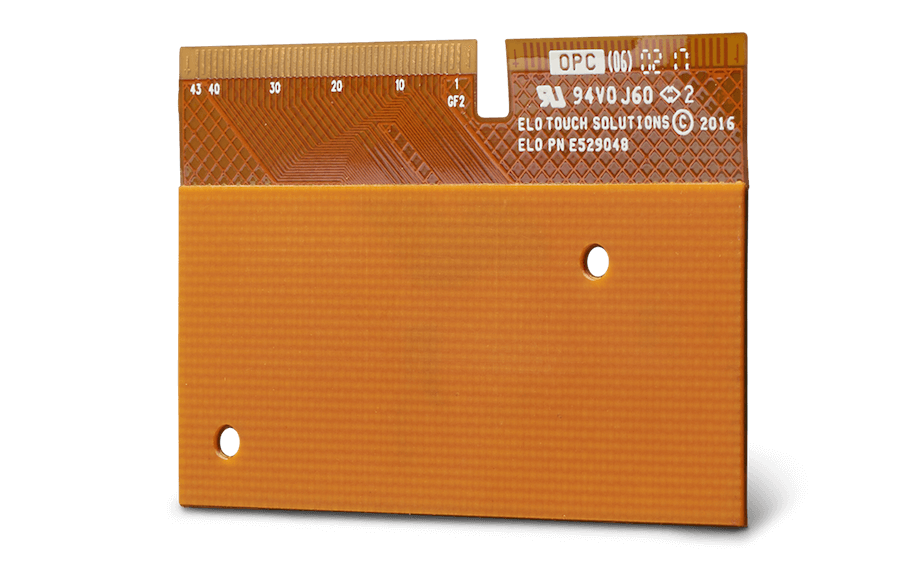

The Elo Touch Solutions 7200-series chip-on-flex (COF) controllers are designed to work with Elo’s Projected Capacitive (PCAP) touchscreens. The 7200 series is compatible with TouchPro® Pro-F screens from 7” to 15.6”. This family of controllers supports excellent touch performance with gloves, screen contaminants, and a wide temperature range, making it a great choice for challenging applications in industrial environments.
Designed for simple integrationElo’s 7200-series controllers were designed specifically for customers that prefer the simplified logistics and ease of assembly that an integrated screen and COF controller offer. |
|
Fully OptimizedThe 7200-series controllers are designed to provide a high-performance touch experience when paired with Elo’s TouchPro® PCAP touchscreens. They are optimized with Elo software and drivers to provide high reliability in a lower profile design. Using industry leading control ICs, our controllers combine the best of mutual and self-capacitance architecture for fast touch response, enhanced liquid resistance and noise immunity. |
TouchPro Product Selection Table
Screen Families
7"- 32"
7"- 22"
≥ 42"
7"- 32
7"- 22"
≥42"
Controller Families
Screen Size Range |
Form Factor* |
Flextail Configuration |
Interface | Touch Screen Family |
Controller IC Make/ Model |
Fluid Rejection |
Saline/ Salt Water Operation |
10V RMS CS |
Touch Through Glass |
Glove | Stylus | # of touches |
|
7200 series CoF |
≤15.6" | CoF | Single | USB | Pro-F | Multiple | Good | - | Yes | Good | Good | Passive | Multi |
8200 series Core |
7"- 22" | PCB | Single/Multi | USB/Serial | Pro-F/Pro-G | Multiple | Good | Good | Yes | Good | Good | Passive | Multi |
9200 series Advanced |
7"- 22" | PCB | Single/Multi | USB/Serial | Pro-F/Pro-G | Elo | Best | Best | Yes | Best | Best | Passive | Multi |
8300 series Large |
≥32" | PCB | Single/Multi | USB | Pro-M/Pro-F | Multiple | Good | - | Yes | Good | Good | Active | Multi |
9300 series Advanced |
22"- 32" | PCB | Single/Multi | USB/Serial | Pro-F | Elo | Best | Best | Yes | Best | Best | Passive | Multi |
Specifications
-
Technical
Technology
touchpro
Number of Touches
10+
Input Methods
Finger
Gloved hand
Passive stylusDimensions
Elo’s 7200-series controllers have multiple form factors to choose from. Contact Elo for more details.
Surface Treatment
clear
Interface
USB, I2C
Positional Accuracy
±1.5mm
Report Rate
≥ 100 Hz
Operating Temperature
-20°C to 70°C; max 90% RH (non-condensing)
Controller Cables
Serial cable: P/N D16890-000
USB cable: P/N D38640-000
Dual serial/USB cable: P/N D40022-000Note
Exact specifications vary with touch IC, configuration, and screen size. The information above represents typical values.
