TouchPro® 9300 Series Advanced Large Format Controller
How to Buy

Overview

The Elo Touch Solutions 9300-series advanced PCAP controllers are designed for the most demanding industrial and commercial applications and are powered by the COACh Pro touch IC – Elo’s new advanced ASIC. In combination with our Pro-G and Pro-F touch screens from 22 inches to 32 inches, it delivers industry leading performance.

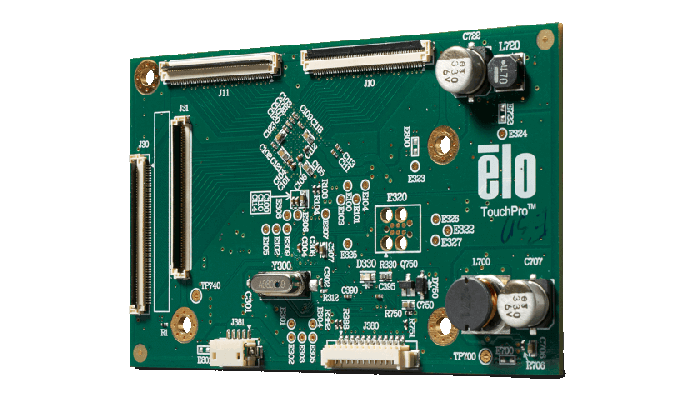

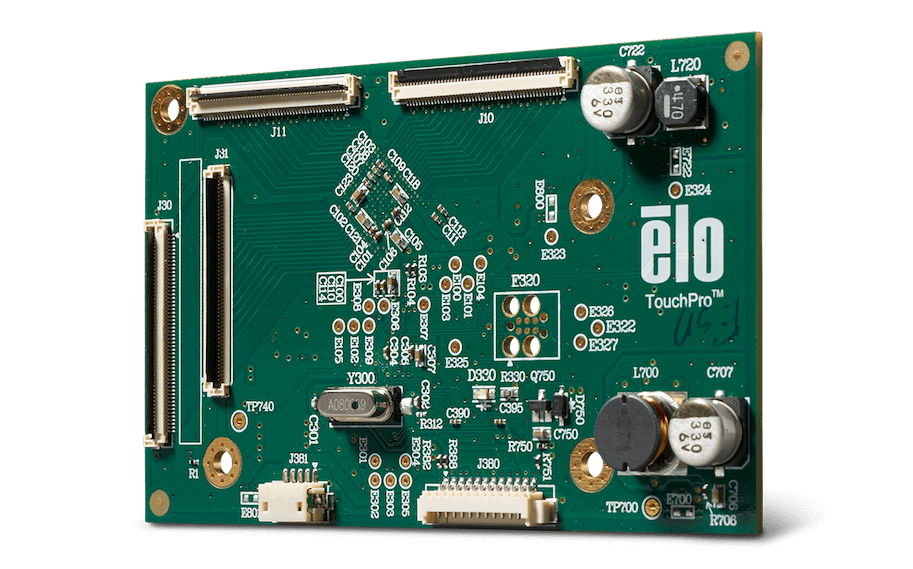

Elo TouchPro 9300 controller
Tablet Performance in a Large Format Screen

Elo’s 9300-series controllers are designed and manufactured to work specifically with large format PCAP touchscreens for optimal performance. The 9300 series offers fast response times to deliver the same seamless capacitive touch experience as today’s consumer devices. Designed with a built-in palm-rejection feature, the controller senses unintended touches to help ensure touch accuracy.
Customization for Your Application

With in-house developed hardware, firmware and software for our new COACh Pro advanced touch IC, Elo can customize its features and performance to your unique application, creating an ideal partnership and opportunity for mutual success and growth in targeted markets with unique touch requirements and features.

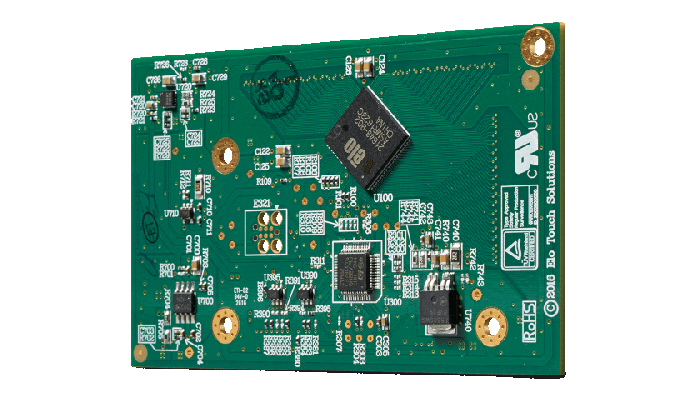

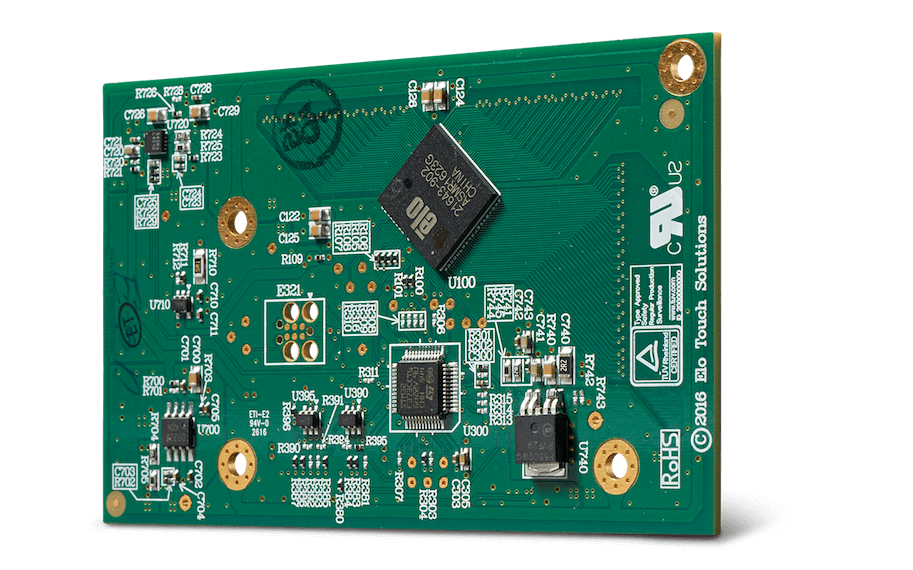

 Elo TouchPro 9300 controller

TouchPro Product Selection Table

Screen Families
Screen Families
7
10
12
15
17
19
22
24
27
32
42
46
55
Pro-F (Film)
7"- 32"
7200 series - CoF
8200 series - PCB- Core
8300 series - PCB
9200 series - PCB - Advanced
9300 series - PCB- Advanced
Pro- G (Glass)
7"- 22"
8200 series - PCB- Core
9200 series - PCB - Advanced
Pro-M (Large)
≥ 42"
8300 series - PCB- Large
Pro-F (Film)
7"- 32
7
10
12
15
17
7200 series- CoF
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
24
27
32
8300 series - PCB
9300 series- PCB- Advanced
Pro- G (Glass)
7"- 22"
7
10
12
15
17
19
22
8200 series - PCB- Core
9200 series- PCB- Advanced
Pro-M (Large)
≥42"
42
46
55
8300 series - PCB- Large
Controller Families
Controller Families
Screen
Size
Range		 Form
Factor*		 Flextail
Configuration		 Interface Touch
Screen
Family		 Controller
IC Make/
Model		 Fluid
Rejection		 Saline/
Salt Water
Operation		 10V RMS
CS		 Touch
Through
Glass		 Glove Stylus # of
touches
7200 series
CoF		 ≤15.6" CoF Single USB Pro-F Multiple Good - Yes Good Good Passive Multi
8200 series
Core 		7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Multiple Good Good Yes Good Good Passive Multi
9200 series
Advanced		 7"- 22" PCB Single/Multi USB/Serial Pro-F/Pro-G Elo Best Best Yes Best Best Passive Multi
8300 series
Large		 ≥32" PCB Single/Multi USB Pro-M/Pro-F Multiple Good - Yes Good Good Active Multi
9300 series
Advanced		 22"- 32" PCB Single/Multi USB/Serial Pro-F Elo Best Best Yes Best Best Passive Multi
* PCB (Controller IC mounted on a stand alone printed circuit board), CoF (Chip on Flex - Controller IC mounted on a flex tail)

Specifications

  • Technical

    Technology

    touchpro

    Number of Touches

    Up to 12

    Input Methods

    Finger
    Gloved hand
    Passive stylus

    Dimensions

    Elo’s 9300-series controllers have multiple form factors to choose from. Contact Elo for more details.

    Surface Treatment

    clear

    Interface

    USB, Serial

    Positional Accuracy

    ± 2.0mm

    Report Rate

    Up to 200Hz

    Operating Temperature

    -20°C to 70°C; max 90% RH (non-condensing)

    Controller Cables

    Serial cable: P/N D16890-000
    USB cable: P/N D38640-000
    Dual serial/USB cable: P/N D40022-000

    Note

    Exact specifications vary with touch IC, configuration, and screen size. The information above represents typical values.
