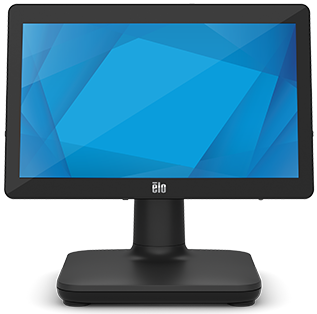

15-inch (16:9) EloPOS™ System
How to Buy
EloPOS all in one POS system

EloPOS™ System
Modern. Modular. Made for Retail.

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 15.6-inch touchscreen display, choice of Intel’s 9th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.

Watch the EloPOS System Overview Video

Interactive Points of Sale

The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.

  • Retail

    Retail

  • Hospitality

    Hospitality

  • Entertainment

    Entertainment

  • Restaurant

    Restaurant

  • Grocery

    Grocery

Powerful Performance

  • 1

    Choose
    Celeron, i3 or i5

  • 2

    Up to 1.4x faster
    than competitors*

  • 3

    Expandable up to
    32GB RAM

*Based on Passmark scores comparing 9th generation i3 and i5 vs the competitors current 6th and 7th generation processors

Elo I/O Hub for POS touch screen cash register system

Connections. Connections. Connections.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations.

Configure Your Solution

EloPOS is designed with the flexibility to be mounted however you desire. With a standard VESA mounting system, and optional pole and self-service stands, EloPOS offers the modularity you need to create the solution you want. From POS terminals to self-service checkout, the EloPOS can be configured to deliver maximum impact.

  • Pole Mount

    Pole Mount

  • Self-Service Stand

    Floor Stand

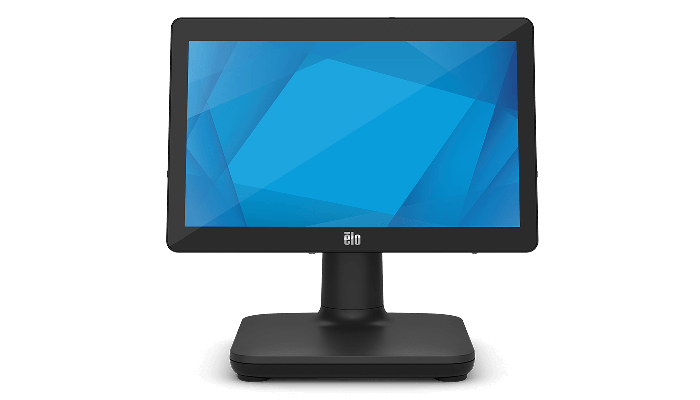

  • Countertop Stand

    Countertop Stand

  • Wall Mount

    Wall Mount

Elo POS system for retail with a customer-facing display

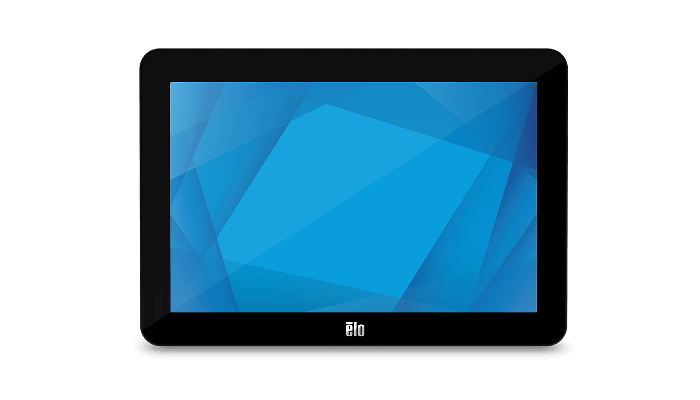

Add a Customer-Facing
Display with Ease

The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.

Elo All in one touchscreen pos terminal with Elo Edge Connect Technology

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

  • Fingerprint Scanner

    Fingerprint
    Scanner

  • EMV

    EMV

  • Barcode Scanner

    Barcode
    Scanner

  • MSR

    MSR

Learn More

Windows or Linux.
You Choose.

EloPOS utilizes the reliability-tested performance
and security of Intel 9th Generation processors,
integrated Trusted Platform Modules, Intel vPro™
and the Windows 10 operating system. For
added flexibility, the EloPOS offers models with
no OS - all pretested with Linux SuSE, Ubuntu
and Red Hat operating systems, allowing businesses
to get the solution best-suited for them.

or
EloBridge

Elo Bridge

Bridge the gap between
Windows and Android.

Transitioning to Android in the future? Elo Bridge
is the perfect solution. Simply choose the Elo
Windows device that fits your needs today, and
when you are ready to transition to Android, you
can use Elo Bridge to migrate your fleet of devices.

Learn more
Elo offers 3-year warranty on Windows POS Systems

Retail-Hardened

Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.

Specifications

  • Technical

    Part Number(s)

    HD Models:
    Celeron (J4125), No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E440439
    Celeron (G4900T), No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E545668
    Celeron (G4900T), Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E546051
    Celeron (J4125), Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand - E397891
    Celeron (G4900T), Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand - E547007
    Celeron (J4125), No OS, 8GB RAM, 128GB SSD, with I/O Hub Stand - E144974
    Celeron (G4900T), No OS, 8GB RAM, 128GB SSD, with I/O Hub Stand - E554190
    Celeron (J4125), Win 10, 8GB RAM, 128GB SSD, with I/O Hub Stand - E189048
    Celeron (G4900T), Win 10, 8GB RAM, 128GB SSD, with I/O Hub Stand - E546819
    Celeron (J4125), No OS, 4GB, 128GB SSD with Wall Mount I/O Hub - E441010
    Celeron (G4900T), No OS, 4GB, 128GB SSD with Wall Mount I/O Hub - E546637
    Celeron (J4125), Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E440808
    Celeron (G4900T), Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E545479
    Celeron (G4900T), No OS, 8GB RAM, 128GB SSD, with Wall Mount I/O Hub - E548715
    i3, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E441385
    i3, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E441193
    i3, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E441781
    i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E441575
    i3, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E262258
    i3, Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand -E397698
    i3, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E263402
    i5, No OS, 8GB RAM, 128GB SSD with I/O Hub Stand - E442161
    i5, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E441968
    i5, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E442550
    i5, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E442365
    i5, Win 10, 8GB RAM, 256GB SSD with Wall Mount I/O Hub - E892954
    i5, Win 10, 8GB RAM, 512GB SSD with Wall Mount I/O Hub -E841559
    i5, Win 10, 16GB RAM, 128GB SSD with I/O Hub Stand - E877703
    i5, Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand - E892761

    Full HD Models:
    Celeron (J4125), No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E935572
    Celeron (G4900T), No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E545297
    Celeron (J4125), Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E935367
    Celeron (G4900T), Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E546242
    Celeron (G4900T), No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E547750
    Celeron (G4900T), Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E548331
    Celeron (G4900T), No OS, 8GB RAM, 128GB SSD with I/O Hub Stand - E547381
    Celeron (G4900T), Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E548147
    i3, Win 10, 8GB RAM, 128GB SSD, with I/O Hub Stand - E317130
    i3, Win 10, 8GB RAM, 512GB SSD, with I/O Hub Stand - E664384
    i3, No OS, 8GB RAM, 256GB SSD, with Wall Mount I/O Hub - E899520
    i3, No OS, 4GB RAM, 128GB SSD with I/O Hub Stand - E935967
    i3, Win 10, 4GB RAM, 128GB SSD with I/O Hub Stand - E935775
    i3, No OS, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E407627
    i3, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub -E880567
    i3, Win 10, 4GB RAM, 128GB SSD with Wall Mount I/O Hub - E396134
    i3, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E727037
    i5, No OS, 8GB RAM, 128GB SSD with I/O Hub Stand - E936365
    i5, Win 10, 8GB RAM, 128GB SSD with I/O Hub Stand - E936163
    i5, No OS, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E936750
    i5, Win 10, 8GB RAM, 128GB SSD with Wall Mount I/O Hub - E936556
    i5, Win 10, 8GB RAM, 256GB SSD with I/O Hub Stand - E536624
    i5, Win 10, 16GB RAM, 256GB SSD with I/O Hub Stand - E939305
    i5, Win 10, 16GB RAM, 256GB SSD with Wall Mount I/O Hub - E939498
    i5, Win 10, 32GB RAM, 1TB SSD with I/O Hub Stand - E580923

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    Celeron: Intel Celeron Processor J4125 (4M Cache, up to 2.7 GHz) or Intel Celeron G4900T Processor (2M Cache, up to 2.9 GHz)
    i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)
    i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

    Chipset

    Celeron Models: N/A or Intel H310 Express
    i3 Models: Intel H310 Express
    i5 Models: Intel Q370 Express

    Graphics

    Celeron Models: Intel UHD Graphics 600 or Intel UHD Graphics 610
    i3 & i5 Models: Intel UHD Graphics 630

    BIOS

    AMI

    Memory (RAM)

    Celeron Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 8GB)
    i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)
    i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)

    Note: Check brand of the memory included in your unit before purchasing the memory kit.

    Storage

    128GB M.2 SATA SSD, 80 TBW
    256GB M.2 SATA SSD, 160 TBW
    Optional M.2 PCIe (NVMe) SSD for select SKUs

    GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

    TPM

    2.0

    Active Management Technology (AMT)

    Celeron Models: N/A
    i3 Models: N/A
    i5 Models: Active Management Technology (Intel® AMT 11.0) Support.

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344.2 mm x 193.5 mm

    Resolution

    HD Models:
    1366 x 768 @ 60Hz

    Full HD Models:
    1920 x 1080 @ 60Hz

    Number of Colors

    262,000

    Brightness (typical)

    HD Models:
    LCD Panel: 220 nits
    PCAP: 187 nits

    Full HD Models:
    LCD Panel: 300 nits
    PCAP: 255 nits

    Response Time-total (typical)

    HD Models:
    10 msec

    Full HD Models:
    25 msec

    Contrast Ratio

    FHD Models: 700:1 / HD Models: 400:1

    Viewing Angle

    HD Models: Horizontal: 45°/45° or 90° total / Vertical: 15°/35° or 50° total

    Full HD Models: Horizontal: 80°/80° or 160° total / Vertical: 80°/80° or 160° total

    USB Ports

    3 x USB 3.0 (1 on display head, 2 on I/O)
    2 x USB 2.0 (on I/O)
    4 x Micro USB 2.0 (on display head)

    Powered USB

    1 x 24V on I/O
    2 x 12V on I/O

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Serial Ports

    2 x RJ45

    Cash Drawer Port

    12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)

    Wireless

    Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

    Bluetooth

    Bluetooth 5.0

    Additional Video Out

    1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

    Audio Ports

    1 x 3.5 mm headset jack

    Speakers

    2 x 2W internal speakers

    OS

    No OS
    Windows 10 IoT Enterprise LTSC 64-bit
    Optional - Windows 10 Professional English 64-bit

    Languages

    Windows 10 - 36 Language groups

    Power Supply

    External 24VDC universal-type power supply brick
    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Maximum output power: 180W

    Power Consumption (Typical)

    HD Models:
    Celeron: 24W
    i3: 65W
    i5: 74W

    Full HD Models:
    Celeron: 26W
    i3: 67W
    i5: 76W

    Dimensions

    With Stand: 15.2" x 14.54" x 8.71" / 386.2 mm x 369.3 mm x 221.2 mm
    Without Stand: 15.2" x 9.8" x 2.89" / 386.2 mm x 248.9 mm x 73.3 mm

    Shipping Box Dimensions

    With Stand: 18.19" x 11.77" x 18.5" / 462 mm x 299 mm x 470 mm
    Without Stand: 18.19" x 8.5" x 13.57" / 462 mm x 216 mm x 346 mm

    Weight (Unpackaged)

    With Stand: 10.8 lbs / 4.9 kg
    Without Stand: 6.4 lbs / 2.9 kg

    Weight (Packaged)

    With Stand: 16.1 lbs / 7.3 kg
    Without Stand: 10.8 lbs / 4.9 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95% (38.7℃ max wet bulb temperature)

    Energy Star

    Energy Star 7.1

    Regulatory approvals and declarations

    United States UL, FCC
    Canada cUL
    Germany TUV
    Europe CE
    International CB
    United Kingdom UKCA
    Mexico NOM
    Australia RCM
    New Zealand R-NZ
    Japan VCCI
    Argentina S-Mark
    China CCC
    Korea KCC for i3 and i5 FHD models / i5 HD models
    Taiwan BSMI for i3 and i5 FHD models
    Singapore IMDA for i3 FHD models / i5 HD models
    Malaysia SIRIM for i3 FHD models / i5 HD models
    Thailand NBTC for i3 FHD models / i5 HD models

    Real-Time Clock

    CR2032 lithium metal battery

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75mm VESA mount

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E819598
    5 year warranty coverage - Elo P/N: E819795
    3 year warranty coverage + AUR - Elo P/N: E820186
    4 year warranty coverage + AUR - Elo P/N: E820388
    5 year warranty coverage + AUR - Elo P/N: E820582

    Sealability

    Touchscreen sealed to sub-bezel
    Touchscreen sealed to LCD

    Power Cables

    North American and European power cables included

    Other Features

    Serviceable internal components.

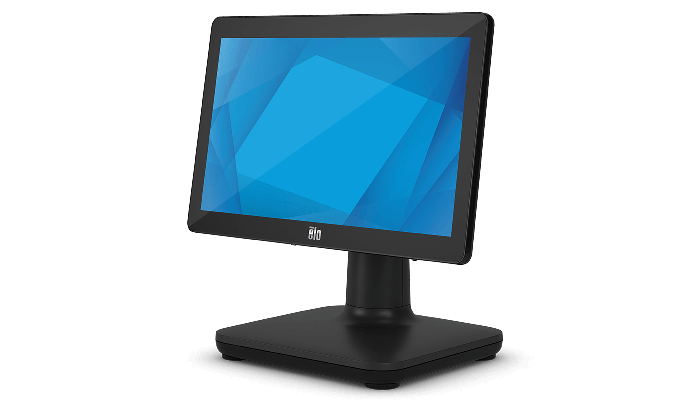

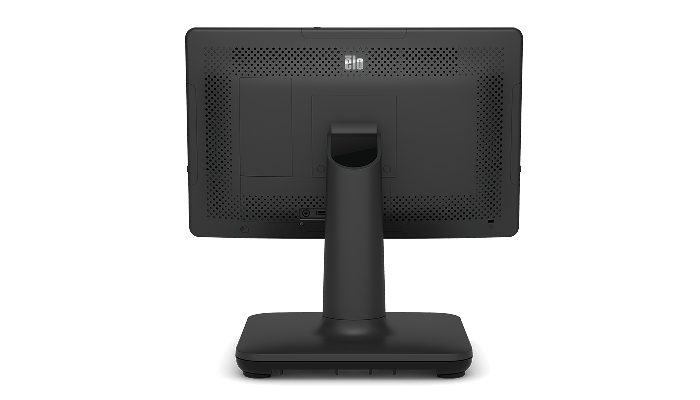

    Models with a stand for desktop application.

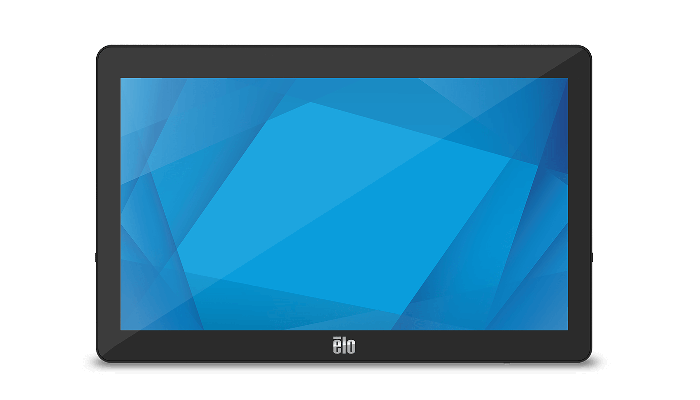

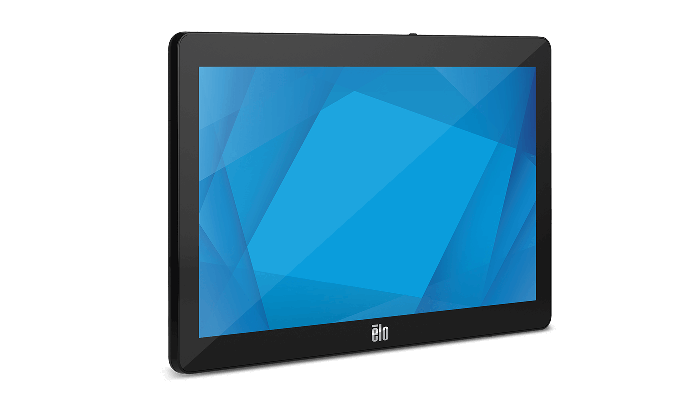

    Models without a stand for 75mm VESA mounting.
    Kensington lock.

    What's in the Box

    EloPOS System
    North America Power Cord
    EU Power Cord
    Power Adapter – 180W
    Cable RJ-45 to DB-9
    Cable cover locking screw
    Quick Installation Guide (QIG)

    Upgrade Options

    4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186
    8GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264375
    16GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E263989
    M.2 SATA 128GB SSD – Elo P/N: E206352
    M.2 SATA 256GB SSD – Elo P/N: E206556
    Note: Celeron SKUs only support 4GB DDR4 per slot

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    10" LCD Customer-facing Display (10 touch) – Elo P/N: E155834 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
    10" LCD Customer-facing Display (no touch) – Elo P/N: E324341 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
    1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    6ft Elo authorized USB-C cable – Elo P/N: E710364
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
    Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

    Stands, Mounts & Kits

    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Rear-facing Display Mount - Elo P/N: E835969 (Requires authorized 2ft USB-C cable)
    Power Brick Kit, 24V 180W - Elo P/N: E845269
    Elo 2ft authorized USB-C cable - Elo P/N: E969524
    RJ45 to DB9 cable kit - Elo P/N: E641484

Accessories

(11)

Upgrades, add-ons, and more.
Image of item

EMV Cradles

Image of item

Elo Edge Connect™ Magnetic Stripe Reader (MSR)

Image of item

Pole Stands

Image of item

Elo Edge Connect™ Fingerprint Scanner

Image of item

Shelf Mount

Image of item

1002L 10" Touchscreen Monitor

Image of item

1302L 13" Touchscreen Monitor

Image of item

Elo Edge Connect™ 2D Barcode Scanner (SE4107 & SE4720)

Image of item

Elo Edge Connect™ Status Light

Image of item

Elo Edge Connect™ RFID

Image of item

Elo Edge Connect™ Speaker Bar

Resources

(20)

  • Additional Support Resources

    EloCare℠

    Go

    Download Drivers

    Go
  • Collateral

    Spec Sheet

    Go
  • Drawings and Certificates

    Dimensional Drawing

    Go

    CAD Drawings

    Go

    Agency Approval Certificates

    Go

    Material Safety Data Sheet (MSDS)

    Go
  • User Guides

    English

    Go

    Latin America Spanish

    Go

    Euro Spanish

    Go

    Portuguese

    Go

    French

    Go

    Italian

    Go

    German

    Go

    Simplified Chinese

    Go

    Traditional Chinese

    Go

    Japanese

    Go

    Korean

    Go

    Russian

    Go

    Quick Install Guide

    Go

Get Started with Elo Today.

Contact Sales
