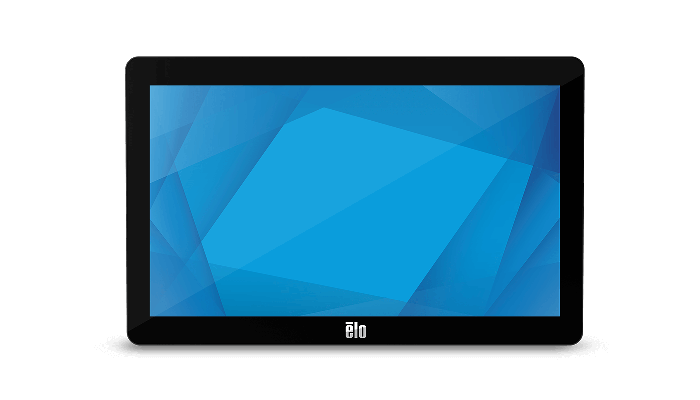

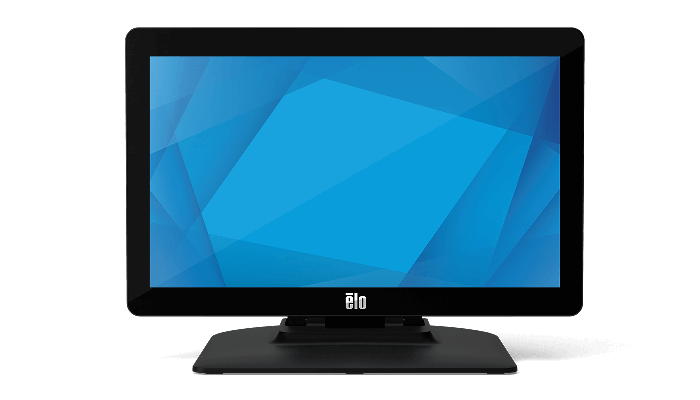

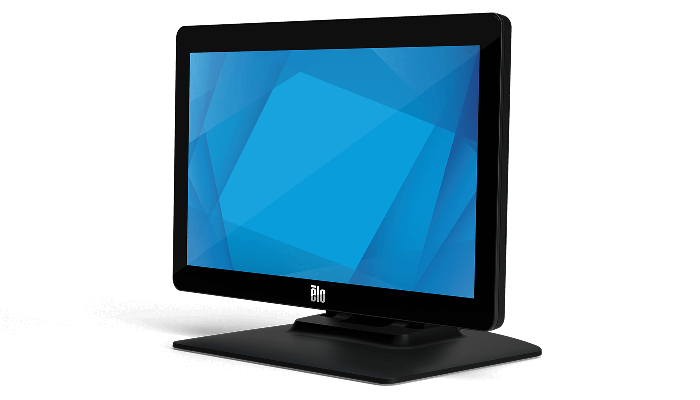

1502L 15" Touchscreen Monitor
How to Buy
Elo’s 1502L Touchscreen Monitor

Elo’s 1502L
Touchscreen Monitor

The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.

Single Cable Connection

Single Cable Connection

The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

1502L

One for You.
One for Your Customers.

The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.

Well-Suited for…

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

  • Retail

    Retail

  • Hospitality

    Hospitality

  • Government

    Government

  • Restaurant

    Restaurant

  • Industrial

    Industrial

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

  • EMV

    EMV Cradles

    The ability to take payment is essential to complete a transaction. The 1502L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.

  • Barcode Scanner

    Barcode Scanner

    Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.

  • MSR

    MSR

    Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.

Mount with Flexibility

Mount with Flexibility

Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.

Brilliant Displays from 7 to 27-inches

The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Explore all touchscreen monitors
Built-to-Last

Built-to-Last

The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.

Specifications

  • Technical

    Part Number(s)

    PCAP FHD USB-C With Stand (Worldwide) - E155645
    PCAP FHD USB-C Without Stand (Worldwide) - E125496
    PCAP HD With Stand (Worldwide) - E318746

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (Projected Capacitive) - 10 Touch

    Diagonal Size

    15.6'' diagonal, Active matrix TFT LCD (LED)

    Monitor Thickness

    1.28" / 32.4 mm panel depth

    Aspect Ratio

    16:9

    Active Area

    13.55" x 7.62" / 344.16 mm x 193.5 mm

    Resolution

    FHD model: 1920 x 1080
    HD model: 1366 x 768

    Other Supported Resolutions

    FHD model:
    640 x 480 60Hz
    640 x 400 70Hz
    720 x 400 70Hz
    800 x 600 56, 60Hz
    1024 x 768 60Hz
    1280 x 720 50, 60Hz
    1280 x 800 60Hz, 60Hz RB
    1280 x 960 60Hz
    1280 x 1024 60Hz
    1360 x 768 60Hz
    1366 x 768 60Hz, 60Hz RB
    1440 x 900 60Hz, 60Hz RB
    1680 x 1050 60Hz, 60Hz RB
    1920 x 1080 50, 60Hz


    HD model:
    640 x 480 60Hz
    640 x 400 70Hz
    720 x 400 70Hz
    800 x 600 56, 60Hz
    1024 x 768 60Hz
    1280 x 720 50, 60Hz
    1360 x 768 60Hz

    Viewing Angle

    FHD Model:
    Horizontal: ±80° / 160° total; Vertical: ±80° / 160° total

    HD Model:
    Horizontal: ±45° / 90° total; Vertical: -35°/ +15° / 50° total

    Number of Colors

    16.7 million

    Brightness (typical)

    FHD model
    LCD Panel: 250 nits
    PCAP + DC power: 225 nits
    PCAP + USB-C 5V power: 180 nits

    HD model
    LCD Panel: 220 nits
    PCAP + DC power: 198 nits

    Response Time-total (typical)

    FHD model: 30 ms
    HD model: 10 ms

    Contrast Ratio

    FHD Models: 700:1 / HD Models: 400:1

    Touch Interface

    USB

    Surface Treatment

    Anti-glare

    On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

    Lockouts: OSD, Power

    I/O Ports

    FHD Model:
    1 x USB Type-C
    1 x Audio jack (Line-in)
    1 x VGA (Micro-HDMI female connecter)
    1 x HDMI
    1 x 12V D/C input
    3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals

    HD Model:
    1 x USB Type-B
    1 x Audio jack (Line-in)
    1 x VGA (Mini-VGA female connecter)
    1 x HDMI
    1 x 12V D/C input
    3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals

    Speakers

    2 x 2W internal speakers

    Video_1

    FHD Model:
    Analog VGA
    HDMI
    USB Type-C (support DP Alt mode)
    *Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues

    HD Model:
    Analog VGA
    HDMI

    Input Video Format

    Horizontal: 31.5 - 82 KHz
    Vertical: 50 - 75 Hz

    Power

    FHD Model:
    Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A
    Option 2: External DC Adapter 12V/36W in box
    Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
    Monitor input voltage range: 12VDC +/- 5%
    Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
    Adapter input voltage range: 100-240 VAC
    Input frequency: 50-60 Hz

    HD Model:
    External DC Adapter 12V/40W in box
    Monitor input power connector: Coaxial power jack (2.5mm pin outer diameter, 6.4mm barrel inner diameter)
    Monitor input voltage range: 12VDC +/- 5%
    Adapter output power connector: DC barrel plug (2.5mm (+0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
    Adapter input voltage range: 100-240 VAC
    Input frequency: 50-60 Hz

    Power Consumption (Typical)

    FHD Model (monitor + adapter):
    ON: 9.5 W
    SLEEP: 1.87 W
    OFF: 0.2 W

    HD Model (monitor + adapter):
    ON: 10.2 W
    SLEEP: 0.4 W
    OFF: 0.2 W

    Monitor Dimensions (without Stand)

    9.62" x 15.23" x 1.28" / 244.39 mm x 386.96 mm x 32.4 mm

    Monitor Dimensions (with Stand)

    11.21" x 15.23" x 7.84" / 284.65 mm x 386.96 mm x 199.12 mm

    Shipping Box Dimensions

    With Stand: 8.03" x 17.76" x 13.54" / 204 mm x 451 mm x 344 mm
    Without Stand: 6.89" x 17.76" x 12.60" / 175 mm x 451 mm x 320 mm

    Weight (Unpackaged)

    With Stand: 6.72 lbs / 3.05 kg
    Without Stand: 3.62 lbs / 1.64 kg

    Weight (Packaged)

    With Stand: 11.05 lbs / 5.01 kg
    Without Stand: 7.47 lbs / 3.39 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

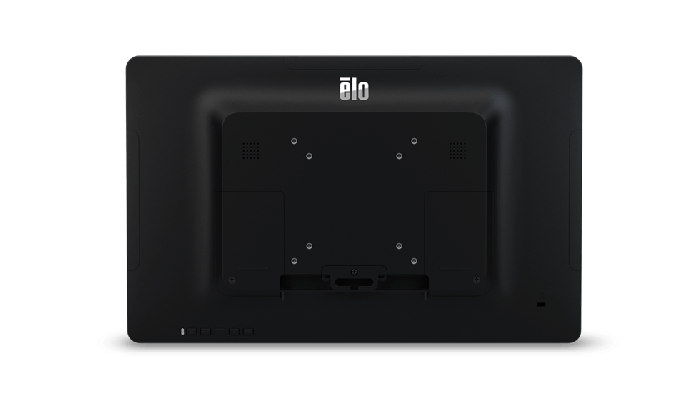

    VESA 4-hole 75mm and 100mm mounting interface on rear of unit

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Canada cUL, IC
    Europe CE
    United Kingdom UKCA
    Japan VCCI
    United States UL, FCC
    China CCC
    Korea, KCC, e-standby
    Australia RCM
    Mexico NOM
    Taiwan BSMI
    International CB
    RoHS, China RoHS, WEEE, REACH
    India BIS
    Russia EAC

    Ingress Protection

    IPX1 for front side

    Impact Protection

    FHD Model: IK07

    What's in the Box

    FHD Model:
    Touchmonitor
    Quick Install Guide
    HDMI cable
    Power brick
    2x cable clamps
    2x tie wraps
    EEI Label
    USB Cable (USB Type-A to Type-C)
    NA Power cable
    EU Power cable
    3x screws (M3x8mm) for cable clamps
    2x screws (M3x10mm) for cable doors
    4x screws (M4x10mm) for E125496 only

    HD Model:
    Touchmonitor
    Quick Install Guide
    HDMI cable
    Power brick
    2x cable clamps
    2x tie wraps
    Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
    USB cable (USB Type A plug to USB Type B plug)
    Audio cable
    EEI Label

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
    PCAP Stylus Pen - Elo P/N: E066148
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    Webcam - Elo P/N: E201494
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
    Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

    Stands, Mounts & Kits

    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162
    Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    1.8m Cable Kit (HD Model only) - Elo P/N: E210789
    3m Cable Kit (includes VGA, USB, HDMI and audio cables) - Elo P/N: E210606
    Power Brick Kit – 1.8m Power Cable (includes clipped-in plugs for US, EU, UK, KR, AU and CH) - Elo P/N: E211174
    Power USB to USB-C/DC-IN (2.1 mm) cable - 1.8 m (FHD model only) - Elo P/N: E214097
    Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m (FHD model only) - Elo P/N: E214282
    Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
    Wallaby™ POS Stand (Black) - Elo P/N: E949536
    USB-C to USB-C Cable Kit – Elo P/N: E710364
    VGA-DB15 to Micro Cable Kit – Elo P/N: E710549
    DVI-D to HDMI Cable Kit – Elo P/N: E538507
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
    1.8 m USB-C Cable Kit - includes VGA, USB, HDMI and audio cables (FHD Model only) - Elo P/N: E408388

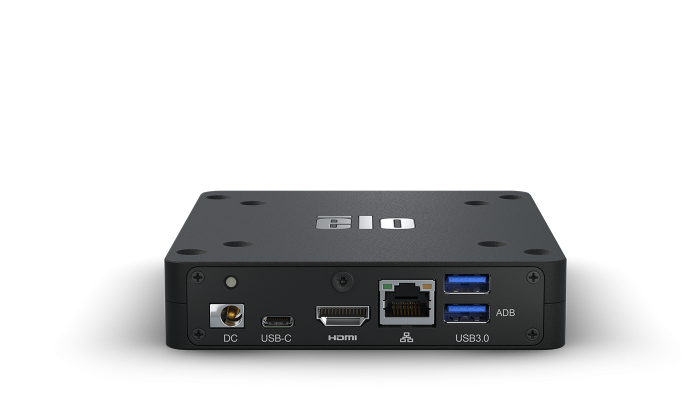

    Elo Backpack® 4 (Value Model) - Elo P/N: E393754
    Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
    North America Power Cable C5 (FHD model only) - Elo P/N: E793990
    Australia Power Cable C5 (FHD model only) - Elo P/N: E794186
    Europe Power Cable C5 (FHD model only) - Elo P/N: E794376
    Korea Power Cable C5 (FHD model only) - Elo P/N: E794574
    China Power Cable C5 (FHD model only) - Elo P/N: E794756
    Taiwan Power Cable C5 (FHD model only) - Elo P/N: E794957
    Japan Power Cable C5 (FHD model only) - Elo P/N: E795147
    Power Brick – 36W (FHD model only) - Elo P/N: E593458
    Power USB to USB-B/DC-IN (2.5 mm) cable – 1.8 m - Elo P/N: E752302
    Power USB to USB-B/DC-IN (2.5 mm) cable – 3 m - Elo P/N: E763022

Accessories

(16)

Upgrades, add-ons, and more.
Image of item

EMV Cradles

Image of item

Pole Stands

Image of item

Flip Stand

Image of item

Elo Edge Connect™ Fingerprint Scanner

Image of item

Elo Edge Connect™ Magnetic Stripe Reader (MSR)

Image of item

VFD Customer Display

Image of item

Tabletop Stands

Image of item

Pole Mount Bracket

Image of item

Shelf Mount

Image of item

Elo Edge Connect™ 2D Barcode Scanner (SE4107 & SE4720)

Image of item

Elo Edge Connect™ Status Light

Image of item

Elo Edge Connect™ Webcam

Image of item

Elo Backpack® 4 for Android

Image of item

Elo Edge Connect™ RFID

Image of item

Elo Backpack® for Linux

Image of item

Elo Edge Connect™ Speaker Bar

Configurations

(3)

Refine your search:
Compare Compare
Image of item
E155645 (Full HD)
  • Black
  • USB
  • No-Bezel
  • Anti-glare
  • TouchPro® - PCAP
Compare Compare
Image of item
E125496 (Full HD)
  • Black
  • USB
  • No-Bezel
  • Anti-glare
  • TouchPro® - PCAP
Compare Compare
Image of item
E318746 (HD)
  • Black
  • USB
  • No-Bezel
  • Anti-glare
  • Projected Capacitive
No Configurations found.

Resources

(27)

  • Collateral

    Spec Sheet

    Go
  • Drawings and Certificates

    Dimensional Drawing

    Go

    Dimensional Drawing - Pole Mounts

    Go

    Dimensional Drawing - Floor Stand (E048069)

    Go

    Dimensional Drawing - Pole Mount Bracket (E045151)

    Go

    Dimensional Drawing - Shelf Mount (E043382)

    Go

    CAD Drawings

    Go

    FHD - CAD Drawings

    Go

    Agency Approval Certificates

    Go

    Energy Efficiency Fiche

    Go
  • User Guides

    English

    Go

    French

    Go

    Italian

    Go

    German

    Go

    Simplified Chinese

    Go

    Traditional Chinese

    Go

    Japanese

    Go

    Spanish

    Go

    Korean

    Go

    Russian

    Go

    Quick Install Guide

    Go

    Quick Installation Guide (No Driver)

    Go

    QIG: EMV Cradle

    Go
  • Additional Support Resources

    Extended Warranty Information

    Go

    Advance Unit Replacement (NA only)

    Go

    Pixels and Image Sticking

    Go

    Download Drivers

    Go

Get Started with Elo Today.

Contact Sales
