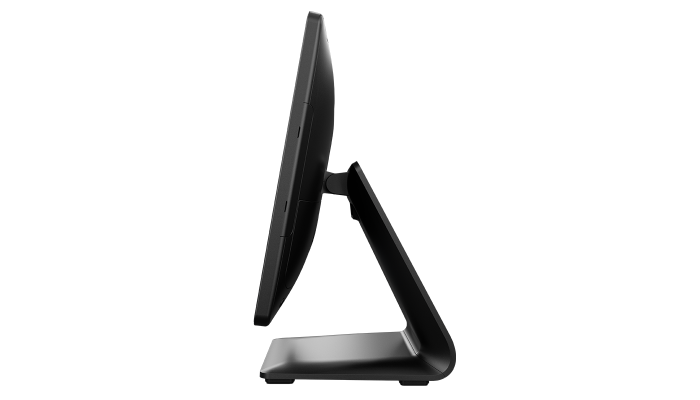

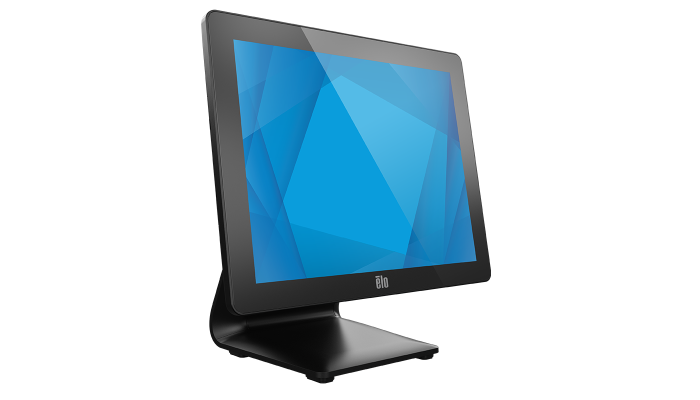

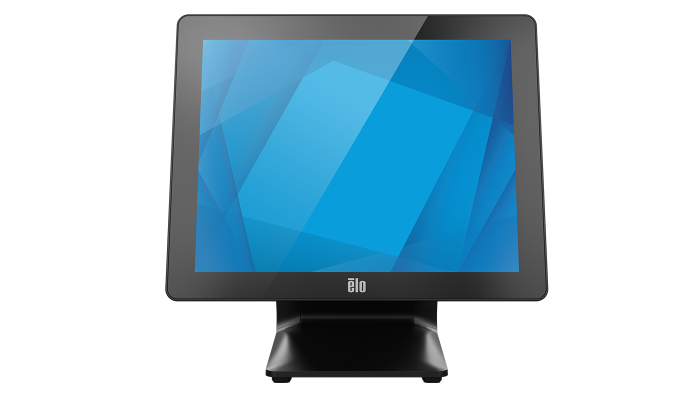

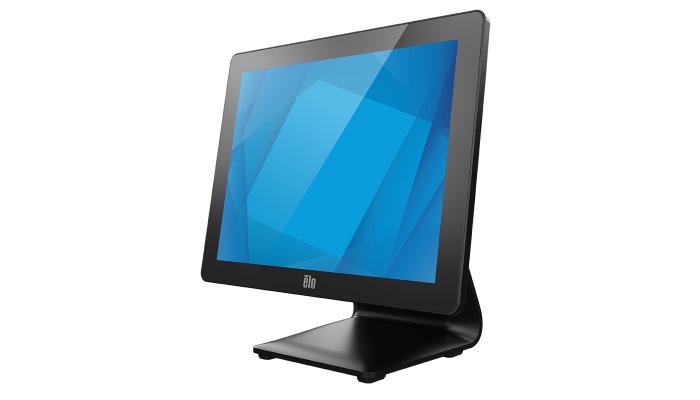

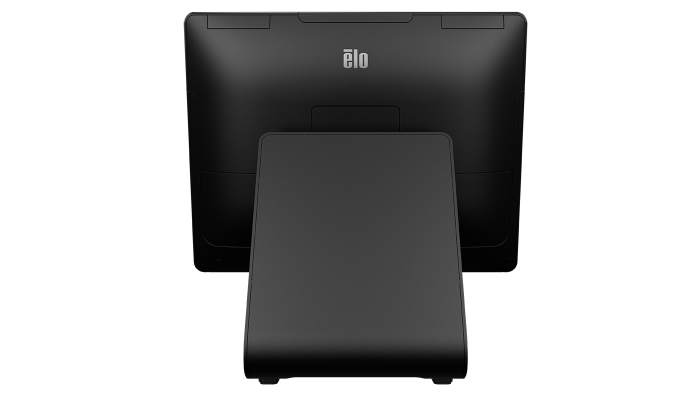

15-inch (4:3) I-Series 3 with Intel®

How to Buy

Completely redesigned
I‑Series 3 with Intel.

Image of multiple Elo Windows I-Series 3 products

Brilliant and beautiful,
interactive platform.

10-touch
TouchPro PCAP

Fanless, IP54
rated design

HD IPS
Touchscreen

Easy to clean
edge-to-edge glass

50,000
MTBF

Modular design.
Endless versatility.

Available in sizes ranging from 15 to 24 inches, including with
and without stand options, you can easily configure the I‑Series
to fit the needs of your business - from signage and point-of-sale
to self-service, automation controls and more.

Universal VESA Mount

Conveniently mount the
I‑Series with the built‑in
VESA mount.

Expand with Edge Connect

Seamlessly attach a variety
of peripherals to the edge of
the touchscreen.

Reliable, security
and performance.

Built with the reliability-tested performance and security of Intel 12th
Generation processors, integrated Trusted Platform Modules, Intel
vPro™ and the Windows 10 operating system, the I‑Series 3 delivers
the dependability businesses need.

Enhanced connectivity
for all your accessories.

USB-C full featured
Gigabit LAN
Powered RJ50 Serial
24V Powered USB
2x 12V Powered USB
12V/24V Cash Drawer
4x USB 3.0
4x Micro-USB Edge Connect
WiFi & Bluetooth 5.3

Support
for Linux.

For added flexibility, the I‑Series 3 offers no
OS models, all pretested with Linux SuSE,
Ubuntu and Red Hat operating systems.

Elo Bridge

Bridge the gap between
Windows and Android.

Transitioning to Android in the future? Elo Bridge
is the perfect solution. Simply choose the Elo
Windows device that fits your needs today, and
when you are ready to transition to Android, you
can use Elo Bridge to migrate your fleet of devices.

Learn more

Get peace of mind
with EloCare.^SM

Advance Unit Replacement
Extended Warranty
Professional Services

Learn more

Specifications

Technical

Part Number(s)

Celeron, Win10, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E700571
Celeron, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand - E426554
Celeron, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E700385
i3, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand - E426758
i3, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E700774
i5, No OS, 8GB RAM, 128GB SSD, Anti-glare, With Stand - E701155
i5, Win10/Win11, 8GB RAM, 256GB SSD, Anti-glare, With Stand - E426944
i5, Win10/Win11, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E427129
i7, Win10/Win11, 16GB RAM, 256GB SSD, Anti-glare, With Stand - E427316

Looking for a different configuration? Please contact us.

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz)
i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support
i7: Intel Core i7-1265UL Processor (12M Smart Cache, up to 4.80 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro Support

Graphics

Intel UHD Graphics
For i5 & i7 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.

BIOS

AMI

Memory (RAM)

Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots)

i5 & i7: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 64GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 64GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.

Storage

128GB M.2 PCIe (NVMe) SSD 80 TBW
256GB M.2 PCIe (NVMe) SSD 160 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

TPM

2.0

Active Management Technology (AMT)

Celeron & i3: N/A
i5 & i7: Intel Active Management Technology

Diagonal Size

15.6'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

4:3

Active Area

11.97" x 8.98" / 304.1 mm x 228.1mm

Resolution

1024 x 768 @ 60Hz

Number of Colors

262,000

Brightness (typical)

LCD panel: 400 nits
TouchPro PCAP: 340 nits

Response Time-total (typical)

23 msec

Contrast Ratio

800:1

Viewing Angle

Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total

I/O Ports

1x RJ45 LAN (Gigabit) Port
4x USB 3.0 Ports
4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
1x 24V Powered USB Port
2x 12V Powered USB Ports
1x RJ50 Powered Serial Port
1x 12V/24V Cash Drawer Port (EPSON Pinout, 24V default; selectable by BIOS setting)
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)

Wireless

802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz

Bluetooth

Bluetooth 5.3

Speakers

2 x 2W internal speakers

OS

No OS
Windows 10 IoT Enterprise LTSC 64-bit
Windows 11 IoT Enterprise LTSC 64-bit

Languages

Windows 10 - 36 Language groups

Power Supply

External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180W

Power Consumption (Typical)

Without Peripherals*
On Celeron: 34W
On i3: 49W
On i5: 50W
On i7: 50W
Sleep: < 5W
Off: < 0.5W

*Condition for i5 and i7 models with 16GB DIMM/256GB SSD, others with 8GB DIMM/128GB SSD

Dimensions

14.15" x 14.02" x 7.78" / 359.5 mm x 356.0 mm x 197.5 mm

Shipping Box Dimensions

19.6" x 19.2" x 13.6" / 497 mm x 487 mm x 345 mm

Weight (Unpackaged)

14.77 lbs / 6.7 kg

Weight (Packaged)

22.61 lbs / 10.26 kg

Operating Temperature

0°C to 35°C / 32°F to 95°F
Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)

Energy Star

Energy Star 8.0 certified configurations available

Regulatory approvals and declarations

Canada cUL, IC
United States UL, FCC
Germany TUV
Europe CE
Australia RCM
United Kingdom UKCA
International CB
Argentina S-Mark
Brazil ANATEL
Japan VCCI, MIC
China CCC, SRRC
Mexico NOM
RoHS CoC
New Zealand R-NZ
Singapore IMDA

Real-Time Clock

CR2450 lithium metal battery

MTBF

50,000 hours demonstrated

Mounting Options

75mm VESA mount

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582

Ingress Protection

IP54

Sealability

Touchscreen sealed to sub-bezel
Touchscreen sealed to LCD

Power Cables

North American and European power cables included

Other Features

Serviceable internal components
Kensington lock

What's in the Box

I-Series
North America Power Cord
European Power Cord
Power Adapter – 180W
Cable RJ-50 to DB-9
Quick Installation Guide (QIG)
Cable tie
CFD mounting screw
VESA mounting screw
VESA cover and mounting screw
75mm to 100mm adapter and mounting screw

Upgrade Options

8GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466053
16GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466237
32GB 5600MHz DDR5 SO-DIMM – Elo P/N: E466430
M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613
M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803
Changing SO-DIMM or SSD requires opening the back cover. Special care must be taken when removing and replacing the back cover to prevent losing the IP rating or possibly damaging the touch computer. Please contact Elo technical support or product manag

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
Customer Display (2x20 VFD) – Elo P/N: E001003
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
RFID - Elo P/N: E673037
Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780

Stands, Mounts & Kits

Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Tabletop Stand for 15" Display - Elo P/N: E466998
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260
Power Brick Kit, 24V 180W - Elo P/N: E845269
1002L - Elo P/N: E155834
1002L - Elo P/N: E324341
1302L - Elo P/N: E683595
Elo 2ft authorized USB-C cable - Elo P/N: E969524
Elo 6ft authorized USB-C cable – Elo P/N: E710364
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E421137
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E421325 + E797162
