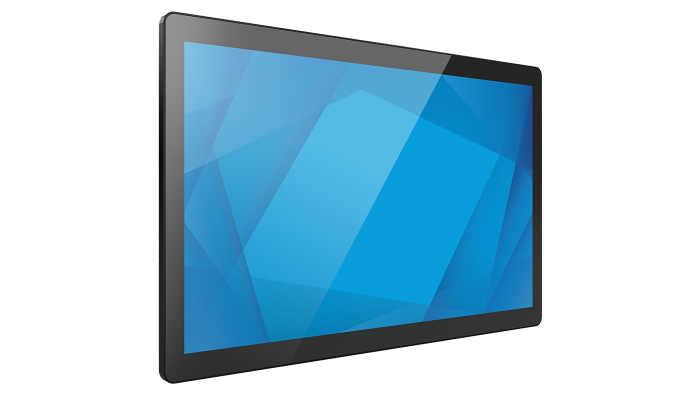

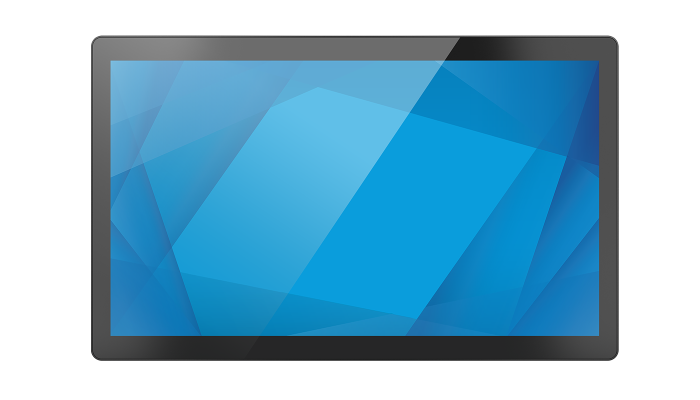

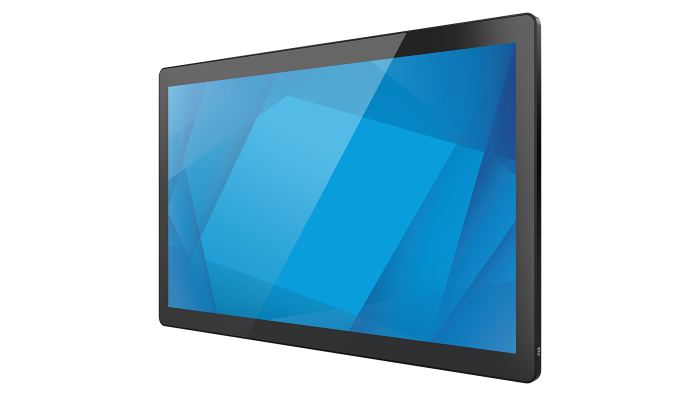

Completely redesigned
I‑Series 3 with Intel.
Brilliant and beautiful,
interactive platform.
10-touch
TouchPro PCAP
Fanless, IP54
rated design
Full HD IPS
Touchscreen
Easy to clean
edge-to-edge glass
50,000
MTBF
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with
and without stand options, you can easily configure the I‑Series
to fit the needs of your business - from signage and point-of-sale
to self-service, automation controls and more.

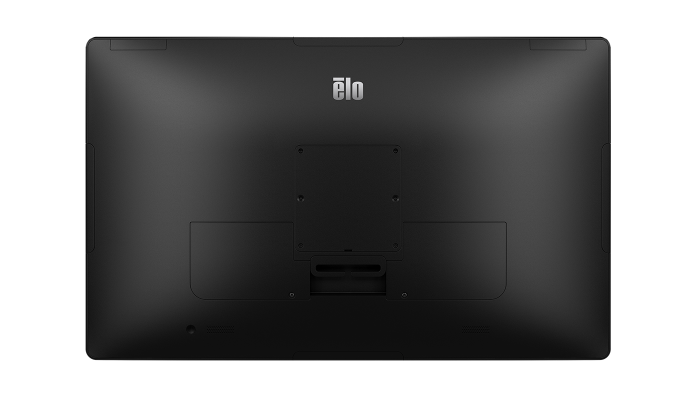

Universal VESA Mount
Conveniently mount the
I‑Series with the built‑in
VESA mount.
Expand with Edge Connect
Seamlessly attach a variety
of peripherals to the edge of
the touchscreen.
Reliable, security
and performance.
Built with the reliability-tested performance and security of Intel 12th
Generation processors, integrated Trusted Platform Modules, Intel
vPro™ and the Windows 10 operating system, the I‑Series 3 delivers
the dependability businesses need.
Enhanced connectivity
for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Support
for Linux.
For added flexibility, the I‑Series 3 offers no
OS models, all pretested with Linux SuSE,
Ubuntu and Red Hat operating systems.
Elo Bridge
Bridge the gap between
Windows and Android.
Transitioning to Android in the future? Elo Bridge
is the perfect solution. Simply choose the Elo
Windows device that fits your needs today, and
when you are ready to transition to Android, you
can use Elo Bridge to migrate your fleet of devices.
Get peace of mind
with EloCare.SM
- Advance Unit Replacement
- Extended Warranty
- Professional Services
Specifications
-
Technical
Part Number(s)
Celeron, Win10, 8GB RAM, 128 SSD, Clear, Without Stand - E608084
Celeron, No OS, 8GB RAM, 128 SSD, Clear, Without Stand - E607901
i3, Win10, 8GB RAM, 128 SSD, Clear, Without Stand - E608462
i3, No OS, 8GB RAM, 128 SSD, Clear, Without Stand - E608275
i5, No OS, 8GB RAM, 128 SSD, Clear, Without Stand - E608662
i5, Win 10, 8GB RAM, 128 SSD, Clear, Without Stand - E608847Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
Celeron: Intel Celeron Processor 7305L (8M Smart Cache, up to 1.10 GHz)
i3: Intel Core i3-1215UL Processor (10M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0)
i5: Intel Core i5-1245UL Processor (12M Smart Cache, up to 4.40 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro SupportGraphics
Intel UHD Graphics
For i5 Models: Intel Iris Xe Graphics eligible: to use the Intel Iris Xe Graphics, the system must be populated with 128-bit (dual channel) memory. Otherwise, use the Intel UHD Graphics.BIOS
AMI
Memory (RAM)
Celeron & i3: 8GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)
NOTE: Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.
i5: 16GB 4800MHz DDR5 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)
NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR5-4800. Check brand of the memory included in your unit before purchasing the memory kit.Storage
128GB M.2 PCIe (NVMe) SSD 80 TBW
GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.TPM
2.0
Active Management Technology (AMT)
Celeron & i3: N/A
i5: Intel Active Management TechnologyDiagonal Size
23.8'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area
20.75" x 11.67" / 527.04 mm x 296.46 mm
Resolution
1920 x 1080 @ 60Hz
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
TouchPro PCAP: 212.5 nitsResponse Time-total (typical)
16 msec
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
I/O Ports
1x RJ45 LAN (Gigabit) Port
4x USB 3.0 Ports
4x Micro USB 2.0 Ports for Elo Edge Connect peripherals
1x RJ50 Powered Serial Port
1x Full-function USB-C Port (Power up to 27W, USB 3.0, Display Port, Additional Video Out)
1x Audio Port (3.5 mm headset jack)Wireless
802.11 a/b/g/n/ac/ax 2.4GHz, 5GHz and 6GHz
Bluetooth
Bluetooth 5.3
Speakers
2 x 2W internal speakers
OS
No OS
Windows 10 IoT Enterprise LTSC 64-bitLanguages
Windows 10 - 36 Language groups
Power Supply
External 24VDC universal-type power supply brick
AC input voltage: 100-240 VAC
Input frequency: 50-60 Hz
Maximum output power: 180WPower Consumption (Typical)
On Celeron: 40W
On i3: 52W
On i5: 56W
Sleep: < 5W
Off: < 0.5WDimensions

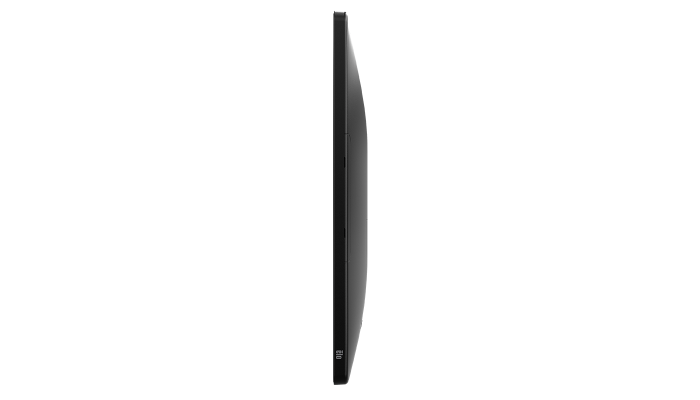

22.49" x 13.86" x 1.54" / 571.2 mm x 352.0 mm x 39.0 mm
Shipping Box Dimensions
27.4" x 20.8" x 7.4" / 697 mm x 529 mm x 188 mm
Weight (Unpackaged)
14.8 lbs / 6.7 kg
Weight (Packaged)
19.84 lbs / 9 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Note: the thermal report pass airflow 0.5m/s condition. For non-OS SKUs, recommend using the Elo optimize TDP tool for better performance.Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95% (38.7°C max wet bulb temperature)Energy Star
Energy Star 8.0 certified configurations available
Regulatory approvals and declarations
Canada cUL, IC
United States UL, FCC
Germany TUV
Europe CE
Australia RCM
United Kingdom UKCA
International CB
Argentina S-Mark
Brazil ANATEL
Japan VCCI, MIC
China CCC, SRRC
Mexico NOM
RoHS CoCReal-Time Clock
CR2450 lithium metal battery
MTBF
50,000 hours demonstrated
Mounting Options
100mm VESA mount
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCDPower Cables
North American and European power cables included
Other Features
Serviceable internal components
Kensington lockWhat's in the Box
I-Series
North America Power Cord
European Power Cord
Power Adapter – 180W
Cable RJ-50 to DB-9
Quick Installation Guide (QIG)
Cable tie
VESA mounting screwUpgrade Options
8GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466053
16GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466237
32GB 4800MHz DDR5 SO-DIMM – Elo P/N: E466430
M.2 PCIe (NVMe) 128GB SSD – Elo P/N: E466613
M.2 PCIe (NVMe) 256GB SSD – Elo P/N: E466803Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
Customer Display (2x20 VFD) – Elo P/N: E001003
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
RFID - Elo P/N: E673037
Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780Stands, Mounts & Kits
Power Brick Kit, 24V 180W - Elo P/N: E845269
1002L - Elo P/N: E155834
1002L - Elo P/N: E324341
1302L - Elo P/N: E683595
Elo 2ft authorized USB-C cable - Elo P/N: E969524
Elo 6ft authorized USB-C cable – Elo P/N: E710364
