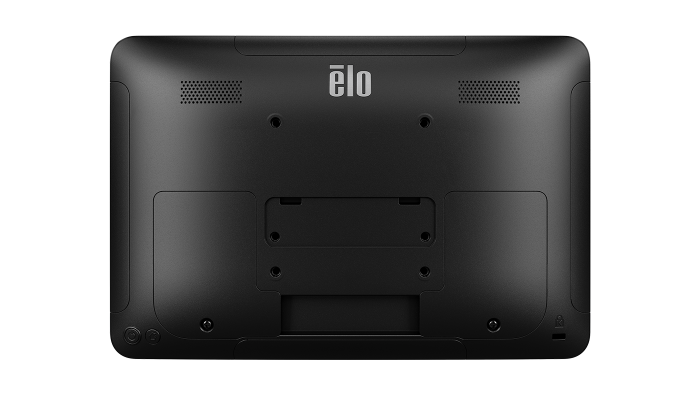

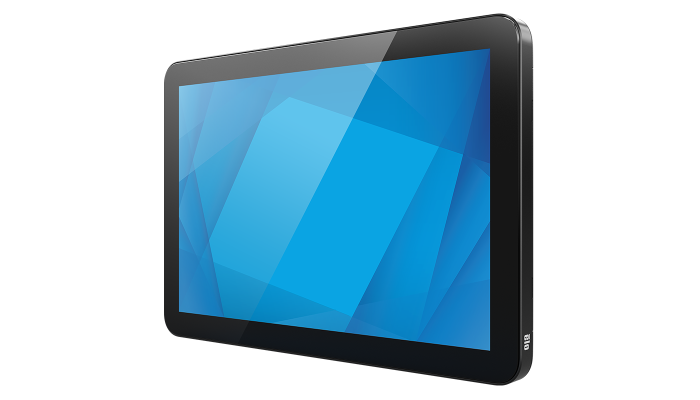

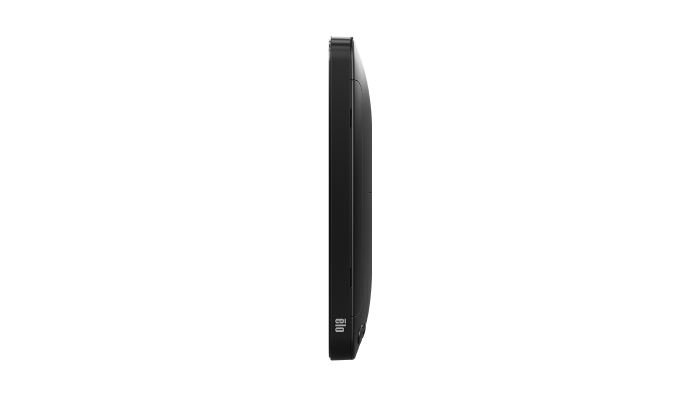

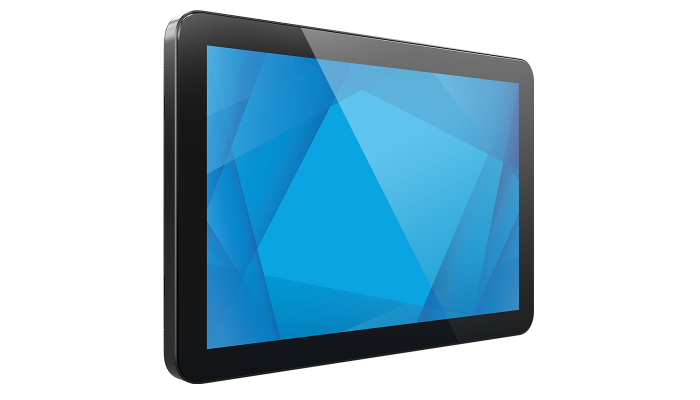

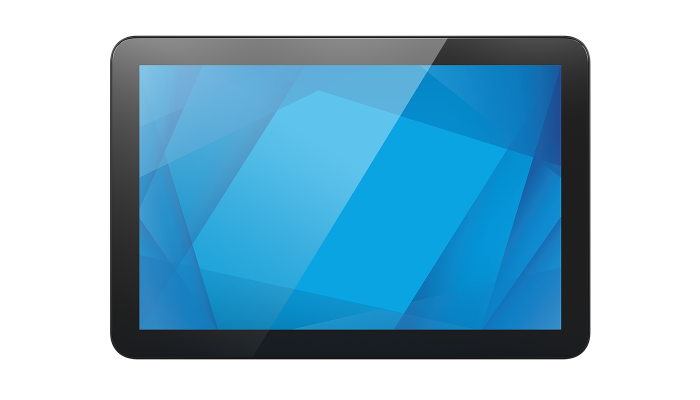

1004L 10" Touchscreen Monitor
How to Buy

1004L 10-inch
Touchscreen
Monitor

The 1004L touchmonitor delivers a stunning design, enhanced durability,
increased touch accuracy and brilliant display clarity. With state-of-the-art
optical bonding and IP54-sealed design, the 10” touch monitor offers a
feature-rich platform and the versatility to extend across a diverse range of
applications from point-of-sale, self-service and kitchen display systems to
warehouse automation, access control and HMI.

Order now

Available in 10",
13" & 15".

Image of touchscreen monitors in 10”, 13” and 15” sizes

Create the perfect payment
stack with the 10" touchscreen.

Easily pair the 10-inch touchscreen monitor with one of Elo's integrated payment devices -
from Elo Pay mobile computers to the Elo Pay 7", the 1004L offers the perfect compact
touch display with the connectivity you need at the point of sale.

Image of touchscreen monitors being used as a POS interface paired with a compute device

State of the art
optical viewing.

Designed with high quality optical bonding, anti-
glare coverglass and low-blue light settings -
the 1004L 10-inch touch­screen monitor brings
the best-in-class solution for viewing comfort
and clarity.

Image of 10-inch touchscreen monitor showing its anti-glare, flicker-free backlight design, and low blue light settings

Built to endure,
made to perform.

  1. Scratch resistant icon
    Scratch-resistant
    glass surface
  2. IP54 sealed design
    IP54 sealed
    design
  3. IK08 impact resistant
    IK08 impact
    resistant
  4. 50,000 MTBF
    50,000 MTBF

Secure your
cables into place.

Never lose your port covers and screws with the security of the
captive design. With a port cover that locks into place, cables are
less prone to becoming disconnected, resulting in minimal
disruptions to the device.

Image of locking port cover with 4 cables plugged into the touchscreen monitor

Connect accessories
to the edge.

Elo Edge Connect™ offers an expansive lineup
of accessories that seamlessly attach to the edge
of the display including - EMVs, barcode
scanners, status lights, cameras, RFID, MSR,
fingerprint scanner and more.

Image of 10-inch touchscreen monitor with a 2D-barcode scanner attached at the bottom

Navigate the OSD directly
on the touchscreen.

The on-screen display (OSD) controls are now directly on
the touchscreen - making navigation easier while still
offering OSD lock security.

Expand the possibilities
with touch through.

Elo's TouchPro PCAP monitors feature touch through
capability, supporting use with gloves and additional layers
of films and filters to meet specific industry requirements.

Image of 10-inch touchscreen with TouchPro PCAP technology Image of 10-inch touchscreen with TouchPro PCAP technology

Get peace of mind with EloCareSM.

From advance unit replacement to extended
warranties, EloCare delivers service and support
from the people who know your Elo products best.

  1. Advance Unit Replacement
  2. Extended Warranty
  3. Professional Services
Learn more

Quality that is built to last.

We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.

Learn more

Specifications

  • Technical

    Part Number(s)

    PCAP - E968703
    Non-Touch - E315290

    Enclosure Color

    Black

    Touch Technology & Capacity

    Non-Touch
    PCAP (Projected Capacitive) - 10 Touch

    Diagonal Size

    10.1'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    16:10

    Active Area

    8.54" x 5.34" / 216.96 mm x 135.6 mm

    Resolution

    1280 x 800

    Other Supported Resolutions

    640x480 60Hz
    800x500 60Hz
    800x600 60Hz
    1024x768 60Hz
    1280x720 60Hz
    1280x800 60Hz, 60Hz RB
    1920x1080 60Hz
    1920x1200 60Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 400 nits
    PCAP: 360 nits

    Response Time-total (typical)

    30 msec

    Contrast Ratio

    800:1

    Touch Interface

    USB

    Surface Treatment

    Anti-glare

    On Screen Display

    Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

    Controls (Touch Model): Menu, Power
    Controls (Non-touch Model): Two keys (one power key + 5 directional key)

    Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

    Lockouts: OSD, Power

    I/O Ports

    1x USB Type-C
    1x Mini-Displayport
    1x HDMI
    1x DC jack
    4x Micro-USB Elo Edge Connect ports

    Speakers

    2 x 2W (+/-10%) internal speakers

    Video_1

    USB Type-C
    Mini-Displayport
    HDMI

    Input Video Horizontal Sync frequency range: 30 – 80KHz
    Input Video Vertical Sync (frame rate) frequency range: 60Hz

    Power

    Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)

    Power Consumption (Typical)

    ON (Default - 100% Brightness): 6.5W
    SLEEP (Touch Model): 1.0 W
    SLEEP (Non-touch Model): 0.5 W
    OFF: 0.25 W

    Monitor Dimensions (without Stand)

    9.80" x 6.61" x 0.98" / 249 mm x 168 mm x 25 mm

    Shipping Box Dimensions

    12.13" x 5.63" x 8.78" / 308 mm x 143 mm x 223 mm

    Weight (Unpackaged)

    1.98 lbs / 0.90 kg

    Weight (Packaged)

    4.84 lbs / 2.2 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75mm X 75mm rear-mount mounting interface
    See dimensional drawings for details.

    Other Features

    TUV Rhineland (Low Blue Light)
    Power collection function via DDCCI
    PD (power delivery) out via USB-C (18W Max) for 7” pay

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Argentina AR certificate
    Canada cUL, IC
    China CCC
    Europe CE
    Korea, KCC
    Taiwan BSMI
    United Kingdom UKCA
    United States UL, FCC
    Japan VCCI, PSE
    International CB
    Australia RCM
    Mexico NOM
    RoHS, China RoHS, WEEE, REACH
    India BIS

    Ingress Protection

    IP54

    Impact Protection

    IK07

    What's in the Box

    Touchmonitor
    Quick Install Guide
    EU EEI Label
    2x UK EEI Label
    1.8m HDMI cable
    1.8m USB-A to C cable
    Power brick
    1.8m NA Power cable
    1.8m EU Power cable

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Scanner – Elo P/N: E134286
    Customer Display (2x20 VFD) – Elo P/N: E001003
    2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
    2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
    2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
    PCAP Stylus Pen - Elo P/N: E066148
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
    Status Light (Micro-USB Connectivity) - Elo P/N: E644767
    3D Camera - Elo P/N: E134699
    Webcam - Elo P/N: E201494
    RFID - Elo P/N: E673037
    Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719

    Stands, Mounts & Kits

    Rear Facing display Pole Mount Kit – Elo P/N: E038989
    Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
    Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097
    Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282
    mPOS Printer Stand (White) - Elo P/N: E353758
    Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
    Wallaby™ POS Stand (Black) - Elo P/N: E949536
    USB-C to USB-C Cable Kit – Elo P/N: E129019
    DVI-D to HDMI Cable Kit – Elo P/N: E538507
    North America Power Cable – C13 - Elo P/N: E593865
    Australia Power Cable – C13 - Elo P/N: E594067
    Europe Power Cable – C13 - Elo P/N: E594264
    Korea Power Cable – C13 - Elo P/N: E594466
    China Power Cable – C13 - Elo P/N: E594670
    Taiwan Power Cable – C13 - Elo P/N: E594869
    Japan Power Cable – C13 - Elo P/N: E793799
    Elo Backpack® 4 (Value Model) - Elo P/N: E393754
    Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
    Z10 POS Stand (75mm VESA) - Elo P/N: E767159
    Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
    Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C – Elo P/N: E815044
