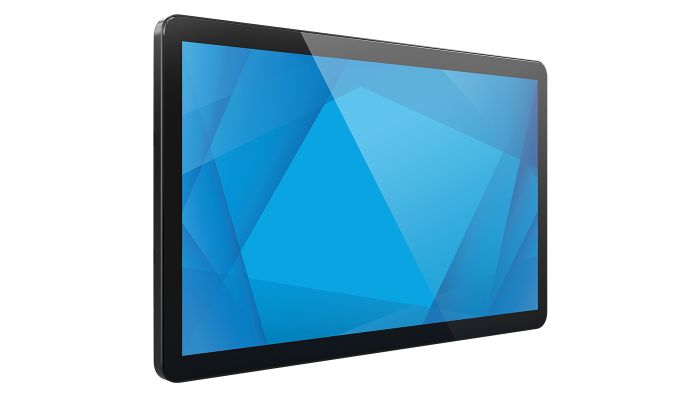

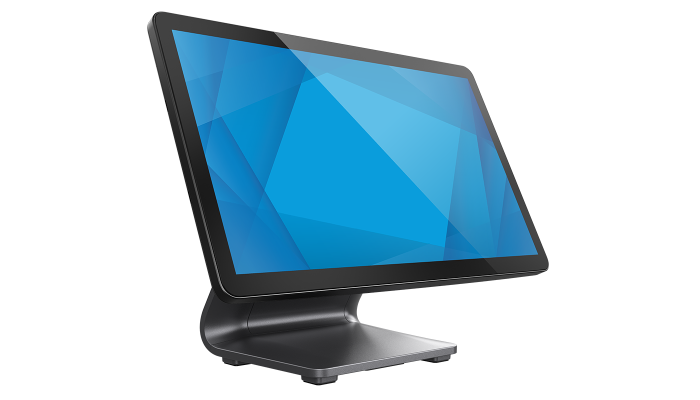

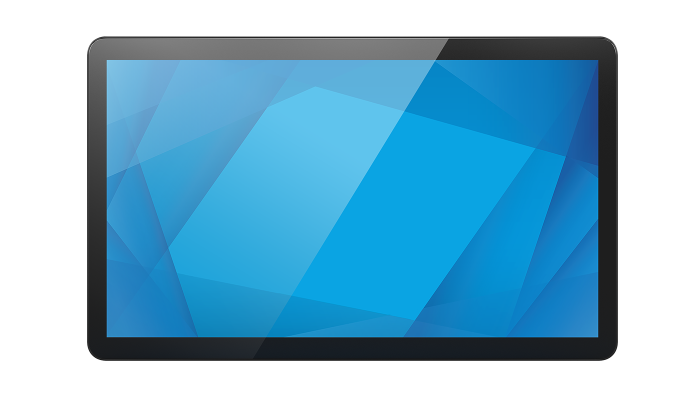

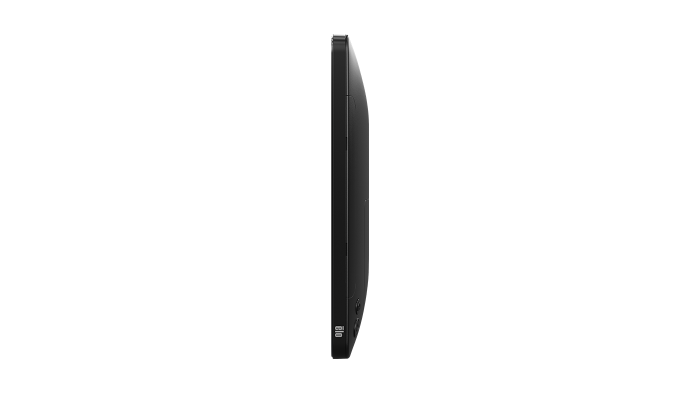

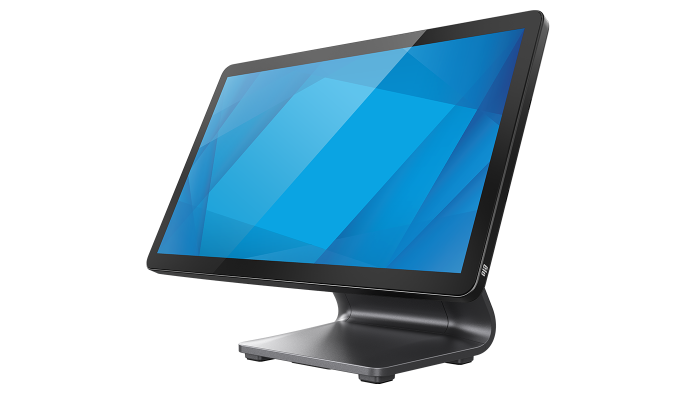

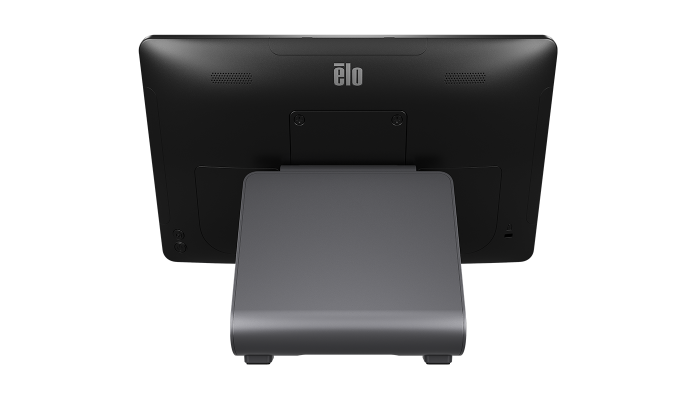

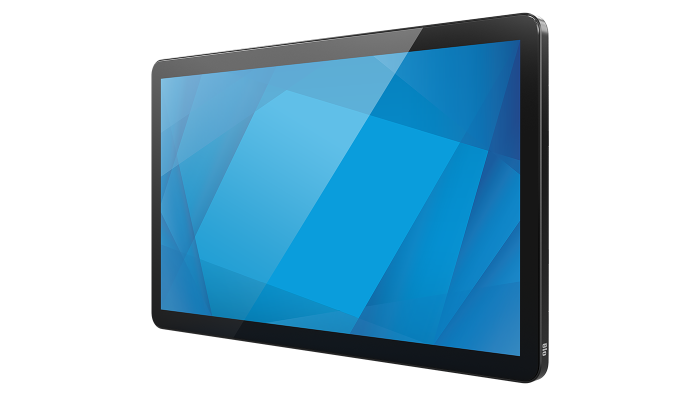

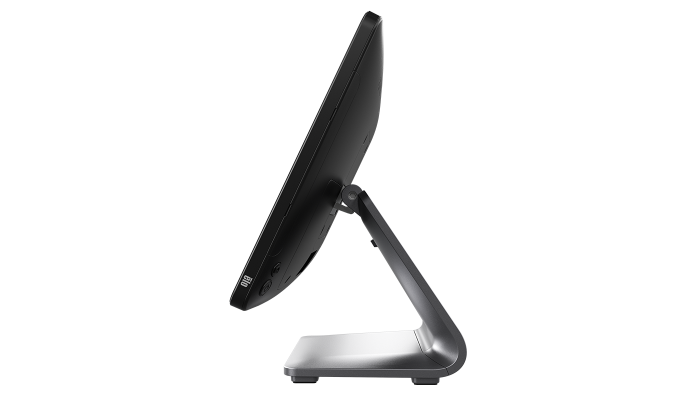

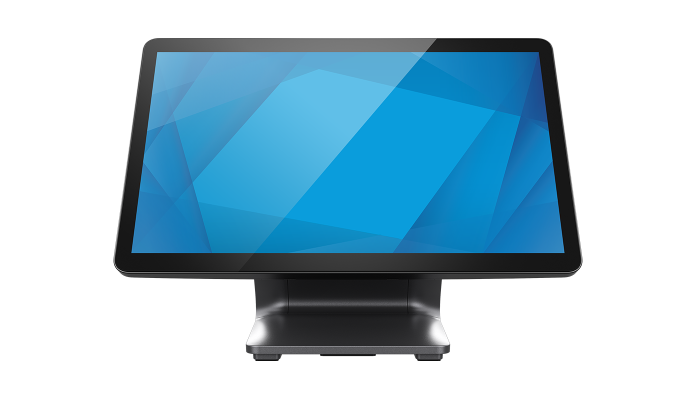

1304L 13" Touchscreen Monitor

1304L 13-inch
Touchscreen
Monitor

The 1304L touchmonitor delivers a stunning design, enhanced durability,
increased touch accuracy and brilliant display clarity. With state-of-the-art
optical bonding and IP54-sealed design, the 13” touch monitor offers a
feature-rich platform and the versatility to extend across a diverse range of
applications from point-of-sale, self-service and kitchen display systems to
warehouse automation, access control and HMI.

Order now

Available in 10",
13" & 15".

Image of touchscreen monitors in 10”, 13” and 15” sizes

Create the perfect payment
stack with the 13" touchscreen.

Easily pair the 13-inch touchscreen monitor with one of Elo's integrated payment devices -
from Elo Pay mobile computers to the Elo Pay 7", the 1304L offers the perfect compact
touch display with the connectivity you need at the point of sale.

Image of touchscreen monitors being used as a POS interface paired with a compute device

State of the art
optical viewing.

Designed with high quality optical bonding, anti-
glare coverglass and low-blue light settings -
the 1304L 13-inch touchscreen monitor brings
the best-in-class solution for viewing comfort
and clarity.

Image of 13-inch touchscreen monitor showing its anti-glare, flicker-free backlight design, and low blue light settings

Durable, energy efficient
touchscreen.

Scratch-resistant
glass surface
IP54 sealed
design
IK08 impact
resistant
Energy Star 8.0
certified

Secure your
cables into place.

Never lose your port covers and screws with the security of the
captive design. With a port cover that locks into place, cables are
less prone to becoming disconnected, resulting in minimal
disruptions to the device.

Image of locking port cover with 4 cables plugged into the touchscreen monitor

Connect accessories
to the edge.

Elo Edge Connect® offers an expansive lineup
of accessories that seamlessly attach to the edge
of the display including - EMVs, barcode
scanners, status lights, cameras, RFID, MSR,
fingerprint scanner and more.

Image of 13-inch touchscreen monitor with a 2D-barcode scanner attached at the bottom

Navigate the OSD directly
on the touchscreen.

The on-screen display (OSD) controls are now directly on
the touchscreen - making navigation easier while still
offering OSD lock security.

Expand the possibilities
with touch through.

Elo's TouchPro PCAP monitors feature touch through
capability, supporting use with gloves and additional layers
of films and filters to meet specific industry requirements.

Image of 13-inch touchscreen with TouchPro PCAP technology

Get peace of mind with EloCare^SM.

From advance unit replacement to extended
warranties, EloCare delivers service and support
from the people who know your Elo products best.

Advance Unit Replacement
Extended Warranty
Professional Services

Learn more

Quality that is built to last.

We engineer each product with a goal that goes
beyond meeting expectations; we aim to exceed
them. By integrating our technology into your
operations, you are partnering with us - and as
your partner, we are committed to delivering
reliable products so you can focus on growth and
innovation, confident in the knowledge that we
stand behind our products, ready to support you
every step of the way.

Learn more

Specifications

Technical

Part Number(s)

Stand - E969110
No Stand - E968908

Enclosure Color

Black

Touch Technology & Capacity

PCAP (Projected Capacitive) - 10 Touch

Diagonal Size

13.3'' diagonal, Active matrix TFT LCD

Aspect Ratio

16:9

Active Area

11.57" x 6.51" / 293.76 mm x 165.24 mm

Resolution

1920 x 1080

Other Supported Resolutions

640x480 60Hz
800x600 60Hz
1024x768 60Hz
1280x800 60Hz
1280x720 60Hz
1280x1024 60Hz
1366x768 60Hz, 60Hz RB
1440x900 60Hz, 60Hz RB
1680x1050 60Hz, 60Hz RB
1920x1080 60Hz

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

Number of Colors

16.2 million

Brightness (typical)

LCD panel: 300 nits
PCAP: 270 nits

Response Time-total (typical)

27 msec

Contrast Ratio

600:1

Touch Interface

USB

Surface Treatment

Anti-glare

On Screen Display

Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.

Controls: Menu, Power

Settings: Brightness, Contrast, Aspect Ratio, Auto Scan, Sharpness, Color Temperature, Low Blue Light, Volume, Mute, OSD Timeout, OSD Language, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults, Peripheral Port

Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

Lockouts: OSD, Power

I/O Ports

1x USB Type-C
1x USB Type-A
1x Displayport
1x HDMI
1x DC jack
4x Micro-USB Elo Edge Connect ports

Speakers

2 x 2W (+/-10%) internal speakers

Video_1

USB Type-C
Displayport
HDMI

Input Video Horizontal Sync frequency range: 30 – 80KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz

Suggest using Elo USB Type C (Elo P/N: E129019) to prevent any compatibility issues

Power

Power Delivery compatible via USB Type-C connector or DC Jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)

Power Consumption (Typical)

ON (Default Brightness): 6.5W
SLEEP: 1.0 W
OFF: 0.25 W

Monitor Dimensions (without Stand)

12.56" x 7.67" x 1.02" / 318.9 mm x 194.9 mm x 25.8 mm

Shipping Box Dimensions

Without Stand: 15.67" x 6.34" x 10.94" / 398 mm x 161 mm x 278 mm
With Stand: 16.06" x 12.72" x 8.39" / 408 mm x 323 mm x 213 mm

Weight (Unpackaged)

Without Stand: 2.64 lbs / 1.2 kg
With Stand: 5.28 lbs / 2.4 kg

Weight (Packaged)

Without Stand: 6.82 lbs / 3.1 kg
With Stand: 10.78 lbs / 4.9 kg

Operating Temperature

0°C to 40°C / 32°F to 104°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)

MTBF

50,000 hours demonstrated

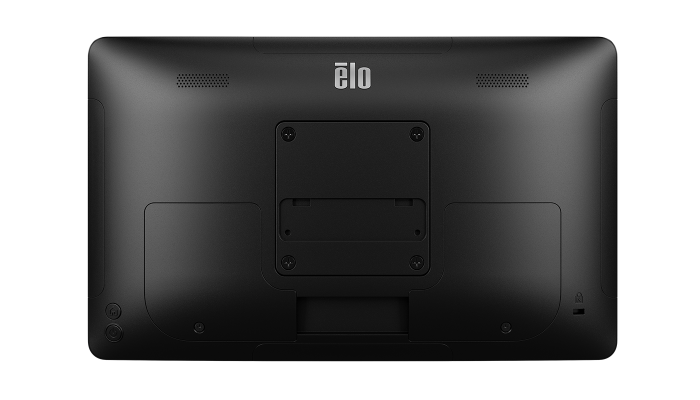

Mounting Options

75mm X 75mm rear-mount mounting interface
See dimensional drawings for details.

Other Features

Energy Star 8.0
TUV Rhineland (Low Blue Light)
Power collection function via DDCCI
PD (power delivery) out via USB-C (18W Max) for Elo Pay 7"

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125

Regulatory approvals and declarations

Argentina AR certificate
Canada cUL, IC
China CCC
Europe CE
Korea, KCC
Taiwan BSMI
United Kingdom UKCA
United States UL, FCC
Japan VCCI, PSE
International CB
Australia RCM
Mexico NOM
RoHS, China RoHS, WEEE, REACH
India BIS

Ingress Protection

IP54

Impact Protection

IK08

What's in the Box

Touchmonitor
Quick Install Guide
EU EEI Label
2x UK EEI Label
1.8m HDMI cable
1.8 m USB cable (USB Type-A to Type-C)
Power brick
1.8m NA Power cable
1.8m EU Power cable
1x VESA filler (E968908 only)
4x Pan Head Screw M4x15 (E968908 only)
2x Cable tie

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
Customer Display (2x20 VFD) – Elo P/N: E001003
2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
PCAP Stylus Pen - Elo P/N: E066148
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
RFID - Elo P/N: E673037
Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719

Stands, Mounts & Kits

Rear Facing display Pole Mount Kit – Elo P/N: E038989
Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
Z20 Stand for 10'' & 15'' I-Series - Elo P/N: E809321
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097
Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282
mPOS Printer Stand (White) - Elo P/N: E353758
Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
Wallaby™ POS Stand (Black) - Elo P/N: E949536
USB-C to USB-C Cable Kit – Elo P/N: E129019
DVI-D to HDMI Cable Kit – Elo P/N: E538507
North America Power Cable – C13 - Elo P/N: E593865
Australia Power Cable – C13 - Elo P/N: E594067
Europe Power Cable – C13 - Elo P/N: E594264
Korea Power Cable – C13 - Elo P/N: E594466
China Power Cable – C13 - Elo P/N: E594670
Taiwan Power Cable – C13 - Elo P/N: E594869
Japan Power Cable – C13 - Elo P/N: E793799
Elo Backpack® 4 (Value Model) - Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
Z10 POS Stand (75mm VESA) - Elo P/N: E767159
Wallaby Pro Merchant-facing Display Kit – Elo P/N: E801367
Small I/O Hub: 1x DC-in, 1x RJ45 LAN, 4x USB-A, 2x USB-C – Elo P/N: E815044
60W Power Brick Kit - Elo P/N: E435091
